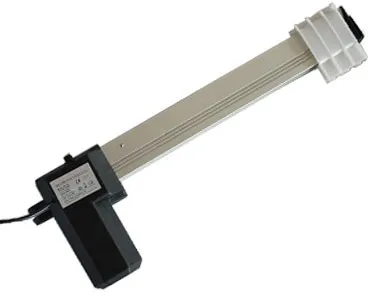

YNT-02 Linear Actuator is a low-noise slider linear actuator designed specifically for massage chairs, electric sofas, electric beds, elderly chairs, home care equipment, fitness equipment, smart home and medical beds. Maximum push/pull force up to 6000N, Stroke can be customized

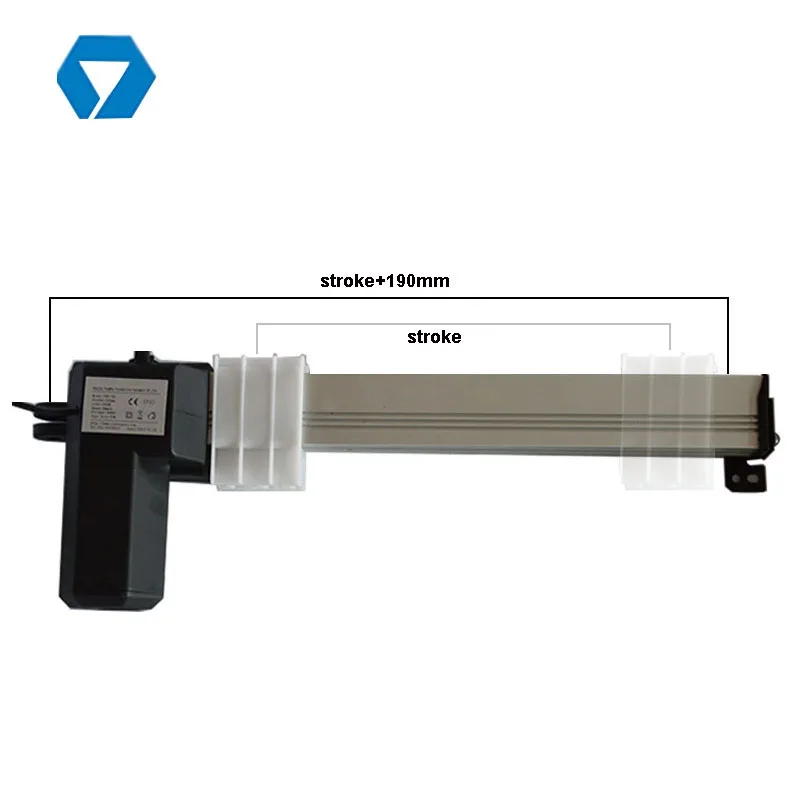

YNT-02 drawing.jpg




























































LINEAR ACTUATOR YNT-02 TECHNICAL PARAMETER



Model



YNT-02



Input voltage



12/24VDC



Load capacity



Max6000N (push)/6000N(pull)



Stroke



100,150,200,250,300,350,400mm (custom)



Free load speed



30mm/s (500N)



Operation temperature



 -26℃~+65℃



Full load speed



5mm/s (6000N)



Protection class



IP54



Duty cycle



20%(2 minutes continuous use in 8 minutes)



Limit switch



Built-in



Output Power



60W



Noise level



≤50dB



Pot



Shanghai/Ningbo



Control mode



wired or wireless



Certificate



CE,ROHS



Minimum installation distance



A=155mm: L=S+155mm










Load Capacity and Speed performance:




YNT-02 linear actuator support several load and speed based on different  worm gear ratio.































Dynamic Load Force



6000N



1500N



500N



Static Load Force



6000N



1500N



500N



Speed with Load



5mm/s



18mm/s



35mm/s



Input Voltage



12/24VDC


















Features:


1.Low noise


2.Using permanent magnet DC motor


3.Slider design, according to different chair frame for different custom programs


4.High precision, self-locking strong ability


5.Shell with high-intensity fire-resistant materials


6.Load and speed to meet different customer custom requirements

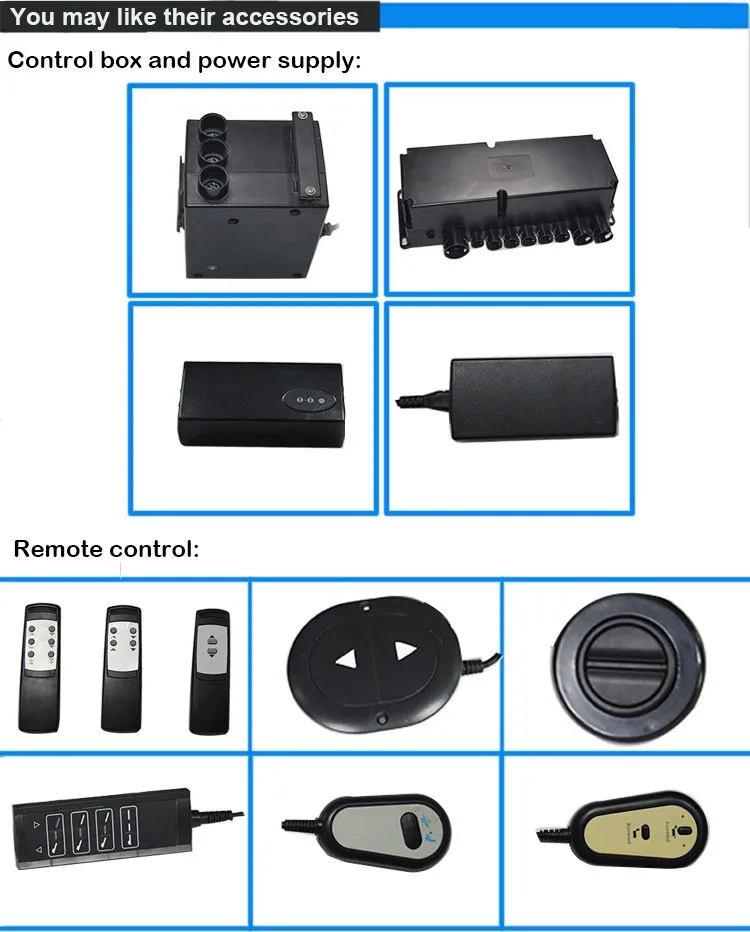

7.Maintenance is simple, maintenance-free, with controller






 Mounting Drawing in millimeter:

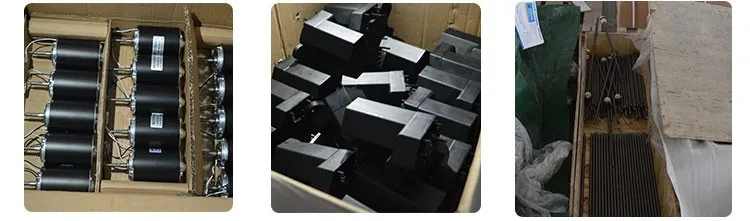

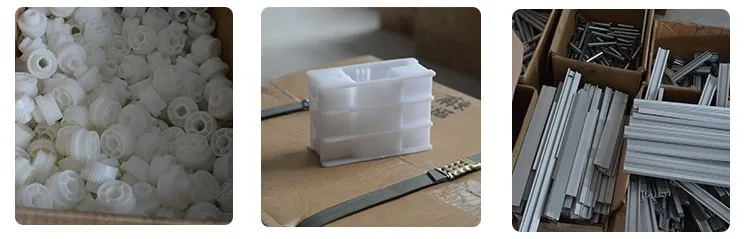

Material List:












DC drive motorchassisScrew











turbineSliderAluminum alloy outer tube

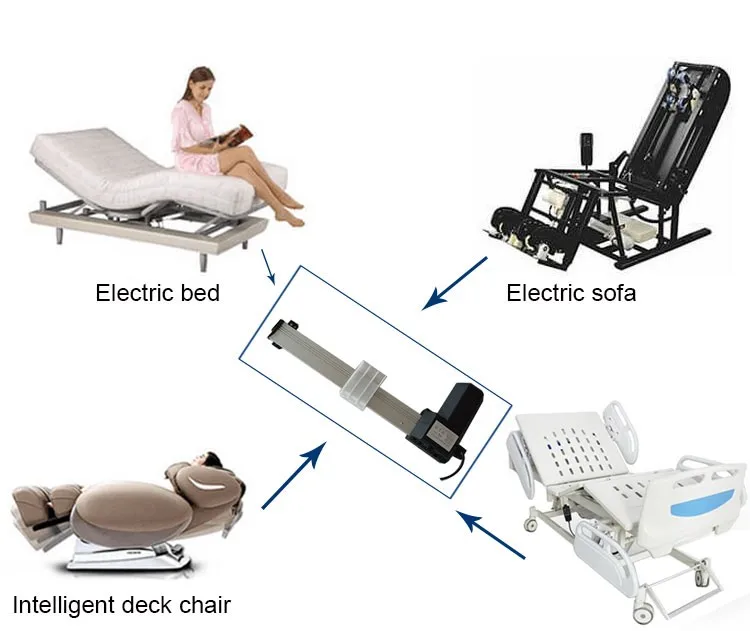

Electric elderly chairs, electric sofa, LCD TV lifts and other needs of the implementation of linear operation of the occasion, the product design novel, self-locking performance, no gas / oil, easy to install and simple.




Multifunctional electric medical bed


Other linear actuators you may like:



















YNT-02 linear actuator— Quality Certification:ROHS and CE


YNT-04_05





Our Company:


Welcome to YONGNUO!


  Nanjing Yongnuo Transmission Equipment Co., Ltd specialize in manufacturing linear actuator, control box and handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success!


Company PhotoYNT-05_16


Q: Are you trading company or manufacturer ?


A: We are factory.


Q: How much is the packaging size?


A: Packing size is in accordance with your order, your product specifications to determine the package size.


Q: How much does shipping cost and what shipping methods do you support?


A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling;


Transport of large trucks to the seaport and international transport cooperation


Q: How long is your delivery time?


A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


Q: Do you provide customized Functions ?


A: Yes, we can design and program as your requirements.


Q: What is your terms of payment ?


A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
