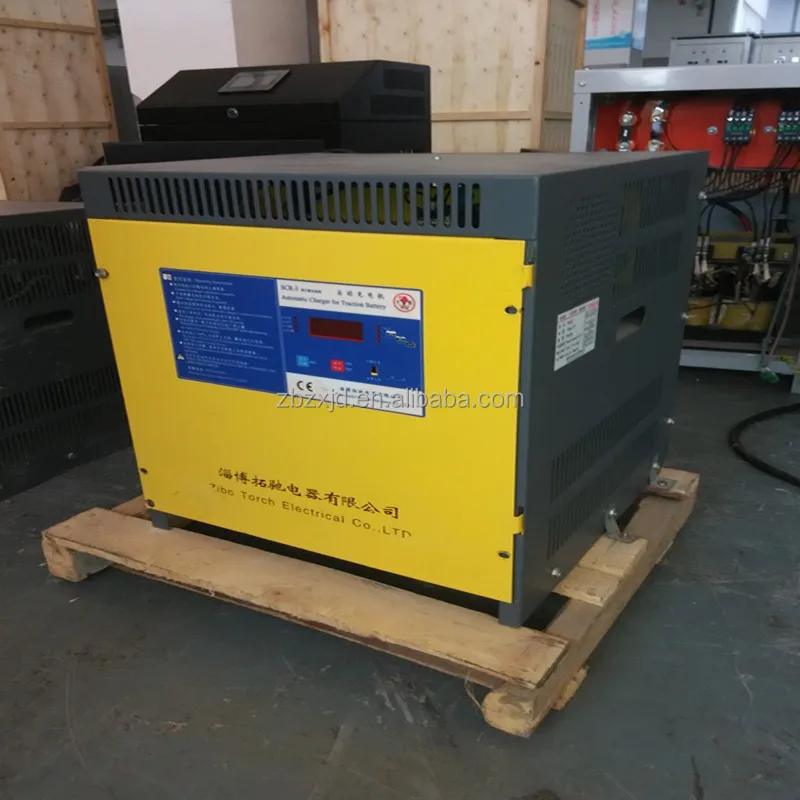

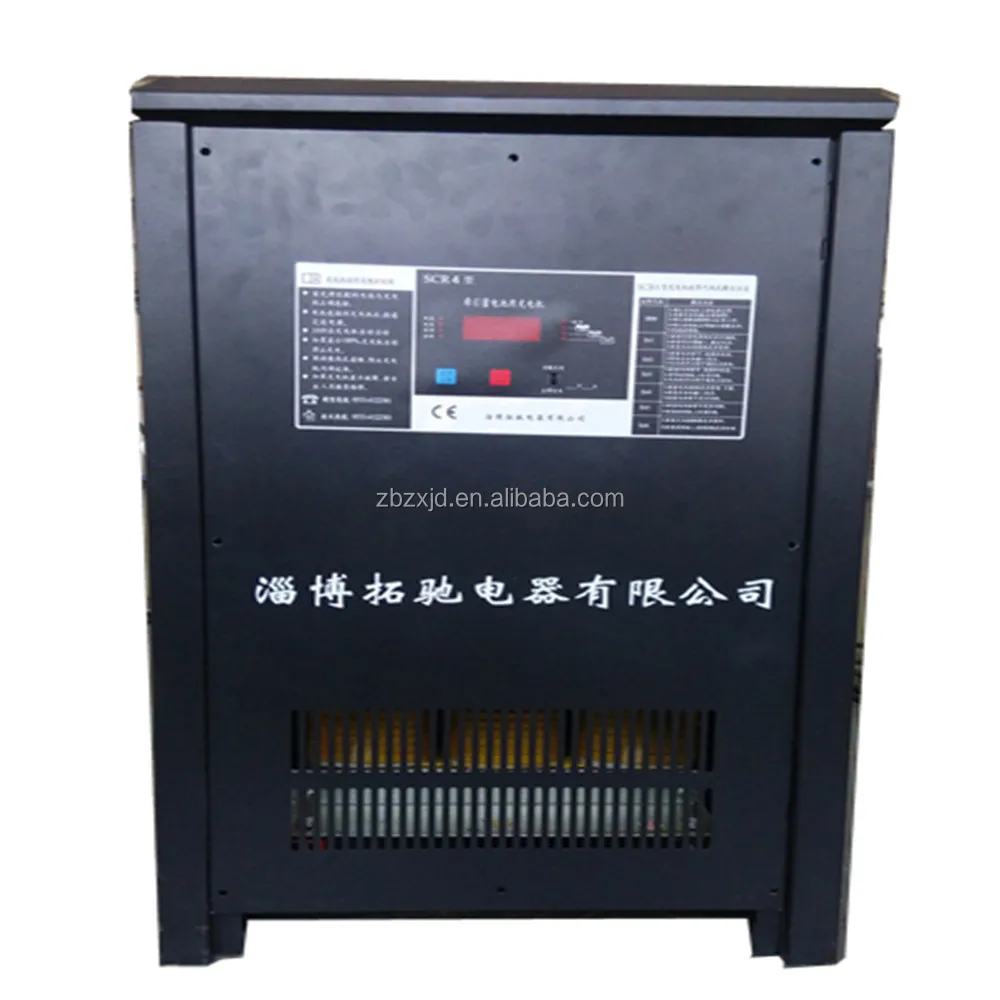

Silicon controlled rectifier charger 48V 20A

Product Application

Traction battery charger

Brief description

1.This charger adapts the up to date SCM and several decades of charging experience to develop the SCR series of automatic intelligent charger, it is widely used for the flooded traction battery.

2.It can carry out the normal charge and equalizing charge automatically. It is suitable for single shift or multi shifts

3.The charging time is between 8-12 hours.

4.It has a simple structure, reliable performance and lower operating and maintenance cost, easy to operate.

Technical performance

1.The charge process can be controlled intelligently with a microprocessor, optimized charge performance to get a excellent charge results

2.Wa+Equalising charge curves. The temperature rising during the charge and the evaporating of the electrolyte at the end of charging can be restricted through controlling the charging parameter. This can prolong the battery life and reduce the lost of water, so that it can reduce the maintenance cost.

3.Intelligent and automatic control

4.The advanced technology and the excellent quality units guarantee the reliable quality and the performance of the charger

5.Self diagnosis and display panel indicating operational conditions.

6.it can be selected to carry out normal charging or equalizing charging after normal charging through the adjustment of the switch.

7.it can judge the polarity reverse and open circuit automatically and alarm

8. high power factor and low power aberrance

9.the voltage of the power can be 220V,230V,240V or 380V,400V,420V. ±10% deviation of the total power source voltage is allowed.

10.supply frequency 50Hz, 60Hz

Operation and display

1.\tIt can be started and stopped by one key. Once it starts, it can charge automatically to the end without caring.

2.\tIt can display the charge information by pressing the information key

3.\tIt has a switch for Wa +Eq to select the normal charge or normal with equalizing charge

4.\tDetailed charge monitoring display

Reliable safety

1.\tOptimized design and compact structure. The units are all specially produced with excellent safety

2.\tThe charge can test the polarity and the open circuit automatically before charge and then alarm

3.\tRestrict the over current and over voltage and then alarm

4.\tThe charger can start and stop any time by pressing the on/off key

5.\tThe charger will inspect the temperature In the charger during running time

6.\tIt is controlled by micro computer and it can judge aplenty of the abnormal conditions during charge to protect from overcharge

7.\tElectromagnetic compatibility and electrical safety conform to EC standard

8.\tThe soft cable has excellent flexibility and insulation

9.\tIt has quick breaker for output

Model Type

rated voltage\tcharge type\tcharge time

per battery capacity(AH)\tpower rating\tcharacteristic

\t\t11hours\t\t

24v\tSCR-24/50\t360-420\t2.20 \tAUTO

\tSCR-24/60\t440-500\t2.60 \tAUTO

\tSCR-24/70\t520-600\t3.05 \tAUTO

\tSCR-24/80\t610-700\t3.50 \tAUTO

\tSCR-24/100\t720-900\t4.30 \tAUTO

36V\tSCR-36/40\t290-350\t2.60 \tAUTO

\tSCR-36/50\t360-420\t3.24 \tAUTO

\tSCR-36/60\t440-500\t3.89 \tAUTO

\tSCR-36/70\t520-600\t4.53 \tAUTO

\tSCR-36/80\t610-700\t5.18 \tAUTO

\tSCR-36/100\t720-900\t6.00 \tAUTO

48V\tSCR-48/40\t290-350\t3.50 \tAUTO

\tSCR-48/50\t360-420\t4.30 \tAUTO

\tSCR-48/60\t440-500\t5.00 \tAUTO

\tSCR-48/70\t520-600\t5.75 \tAUTO

\tSCR-48/80\t610-700\t6.50 \tAUTO

\tSCR-48/100\t720-900\t7.60 \tAUTO

72V\tSCR-72/30\t200-280\t3.24 \tAUTO

\tSCR-72/40\t290-350\t4.30 \tAUTO

\tSCR-72/50\t360-420\t5.40 \tAUTO

\tSCR-72/60\t440-500\t6.50 \tAUTO

\tSCR-72/70\t520-600\t7.55 \tAUTO

\tSCR-72/80\t610-700\t8.60 \tAUTO

\tSCR-72/100\t720-900\t11.00 \tAUTO

80V\tSCR-80/50\t360-420\t6.50 \tAUTO

\tSCR-80/60\t440-500\t7.60 \tAUTO

\tSCR-80/70\t520-600\t9.30 \tAUTO

\tSCR-80/80\t610-700\t11.00 \tAUTO

\tSCR-80/100\t720-900\t13.00 \tAUTO

\t\t\t\t

\t\t\t\t

Type\tlength\twidth\theight\t

D-1\t480mm\t400mm\t800mm\t
