Manztek Infrared Wireless pendant microphone system IR PA1

Product Overview

Description

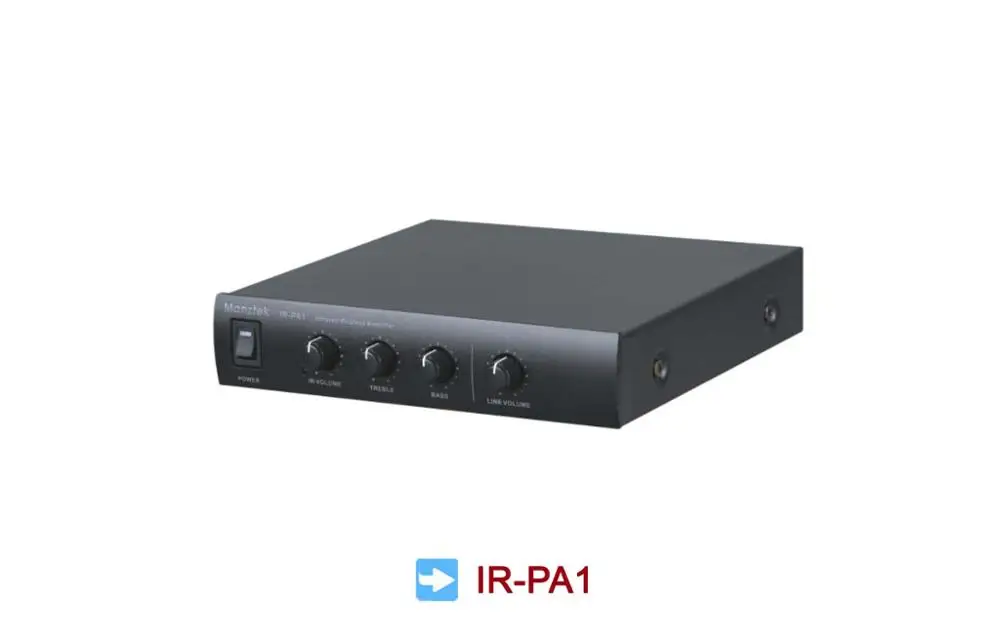

Manztek Infrared Wireless pendant microphone system IR-PA1

 Key Features

• High quality class D amplifier powered by 24V DC

• Built-in IR Receiving Module

• USB MP3 player feature

• School Broadcast Priority page in feature

• Built-in advanced feedback suppressor



Specifications



Modulation Mode	(IR) Frequency Modulated
CarrierFrequency Range	CHA 2.06 MHz, CHB 2.56 MHz
Audio Frequency response	75Hz~15KHz ±3dB
T.H.D.	< 1% @ 10KHzDeviation
S/N	>60dB(MIC 1.2.),  >70dB(LINE),  >100dB(IR MIC)
Working Range	> 100 square meter(15m line of sight )
Dynamic Range	100dB
RF Carrier Stability	±0.005% (-10℃-40℃)
RMS Output Power	Max 2x30W @ 8Ω
Input Sensitivity	1.5mV(MIC 1.2.),  150mV(LINE)
Pilot Tone	35Khz
AmplifierMain Frame Size	19*EIA Standard 1-Rack Unit
Receiver Power Supply	24V DC

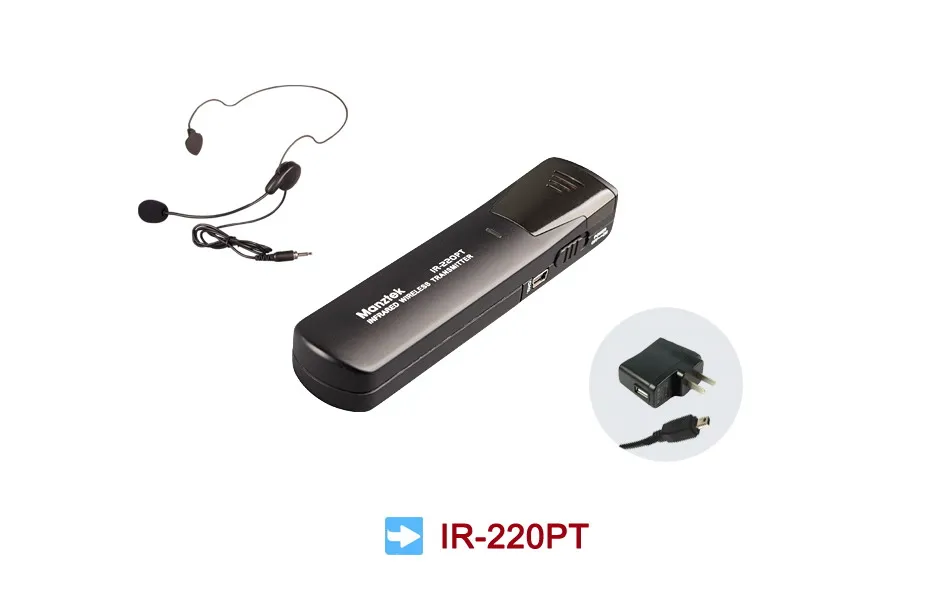

Pendant Transmitter(IR-220PT)



Sound Cartridge	Built-in Condenser-mic
BatteryType	Rechargeable Li-ion Battery (3.7 V)
Battery Duration	Up to 7 Hrs
Dimension	(H) 123 x (W) 30 x (D) 19mm
Weight	58g(including batteries)
Recharging Time	3 Hrs (1000mAh, Li-ionrechargeable battery)





IR Sensor(IRS-800)



-Multiple Array and Wide-Angle Infrared Sensitive LEDs

-High Quality Coaxial-type Cable

-Cable Length:15m

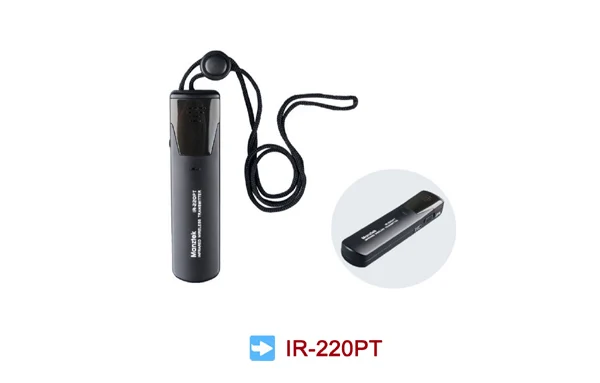

 Pendant Transmitter(IR-220PT)
