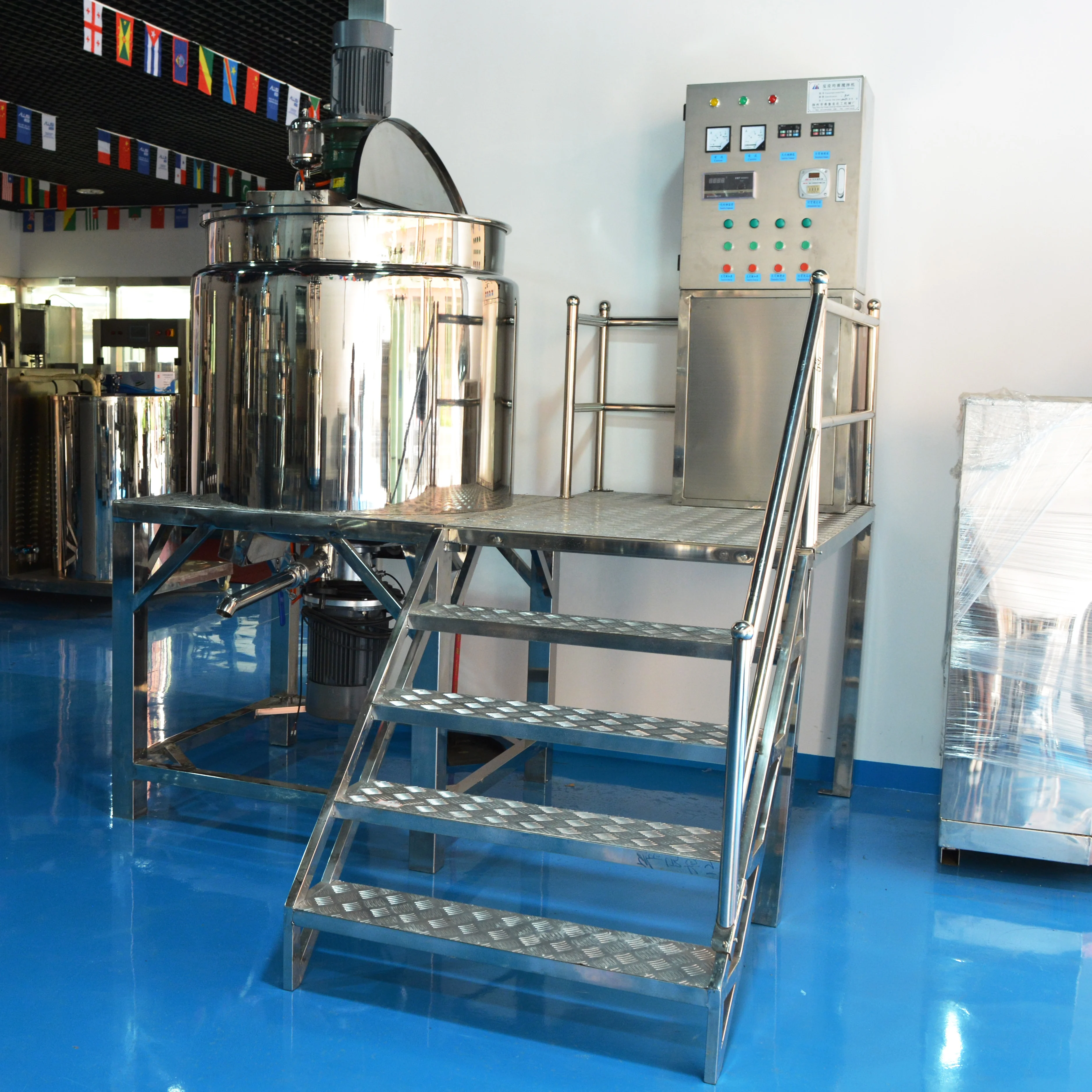

1000L Hair Color making machine/Styling gel mixer equipment homogenizing mixing blender
- Category: >>>
- Supplier: Guangzhou Ailusi Machinery Co. Ltd.
Share on (60666094446):
Product Overview
Description
Product Overview
AILUSI MACHINERY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard
Cosmetic industrial liquid detergent homogenizing mixer machine
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard
Cosmetic industrial liquid detergent homogenizing mixer machine
Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kind of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.
FEATURES AT A GLANCE
1. The Omnidirectional wall scraping and mixing adopts a frequency converter to adjust the speed. At low temperatures and high viscosity, it can reduce the formation of bubbles.
2. Jacket heating and cooling function (steam/electric heating)
3. The pot body is welded by three layers of stainless steel plates, mirror polished, in line with GMP requirements.
4. High-speed shearing homogenizer 3600rpm, strong mixing of solid and liquid raw materials.
5. Schneider switch control button, Delta inverter, Omron temperature control
Left elevation
OIverlook elevation
Back elevation
Product details

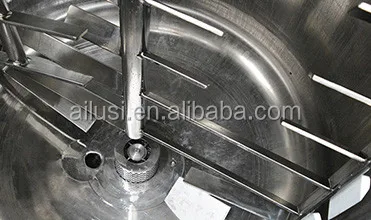

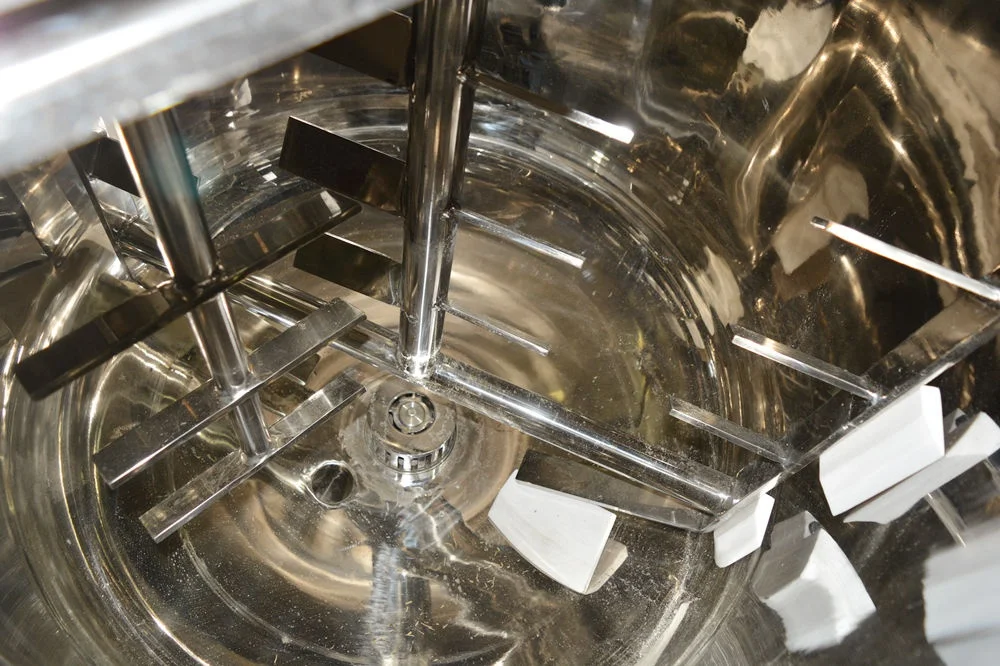

Mixing part
Mixing part: Frame oar scraping blender with 1 fixed oar
Material: SUS316L
Siemens motor + reducer provide strong and stable power for mixer, Panasonic brand frequency inverter, PTFE material scrape blade, Flange shaft coupling.
Bidirectional stirrer paddle: Stir up and down, mixing more evenly
Wall Scraper: Scraping off the materials that stick on pot wall, to make all materials mixing more evenly

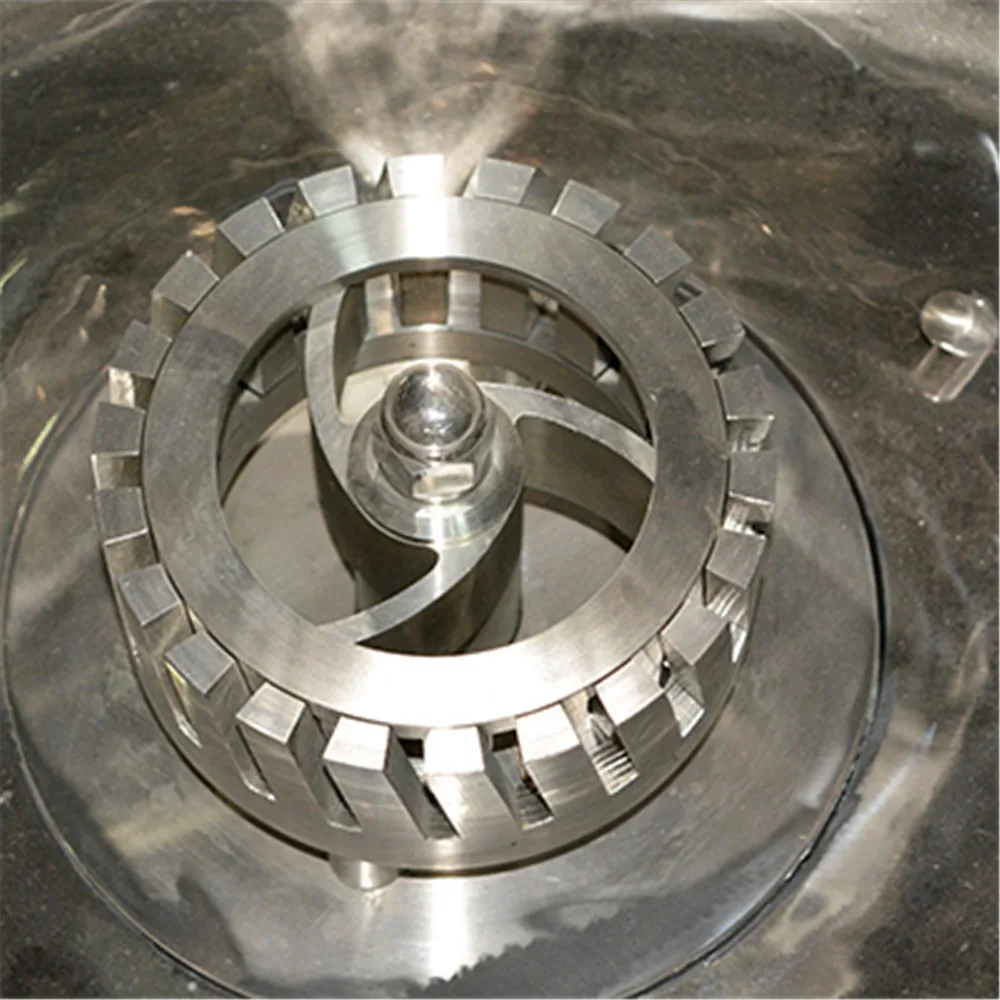

Homogenizer part
Name: High shearing homogenizer
Material: SUS316L
Speed: 0-3600rpm, frequency inverter
Rotor and stator high shearing homogenizer, soomth emulsion to 2μm, equipped Burgmann seal two sides tungsten seal. NSK bearing. water circulation cooling homogenizer.

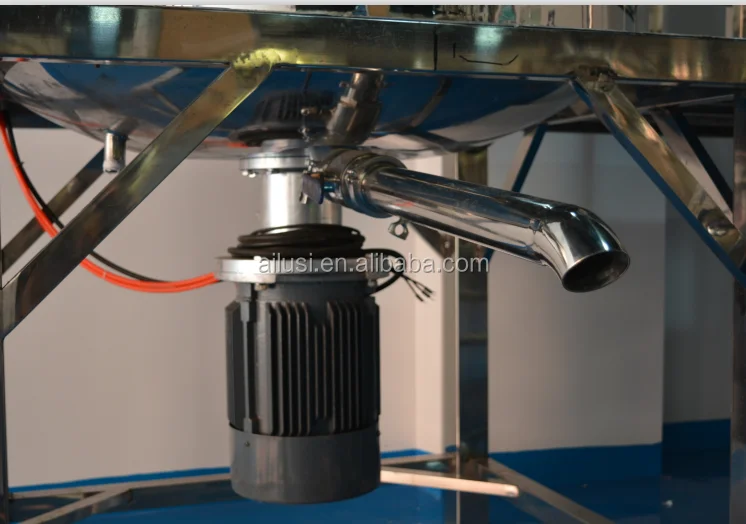

Discharge part
Name: Flat valve outlet
Size: DN50/63
Material: SUS316L
New designed flat valve for bottom discharge. Non residual, Angle of ourlet suitable for products dischage easily and completely. fast connection with pipes and pumps.
Flange part
Name: Flange
Material: SUS316L
Easy installtion, stable quality.
PRODUCT SPECIFICATIONS
Model | AHM-1000 | Working capacity | 1000L |
Heating method | Steam/electric | Working capacity | Frame wall scraper mixing |
Mixing motor power | 4KW | Mixing frequency | 4KW |
Mixing Speed | 0-65rpm | Homogenizer frequency | 7.5KW |
Bottom Homogenizer power | 7.5KW | Homogenizer type | Internal and external circulation(option) |
Control method | Button control | Frequency converter | Delta/Panasonic/Mitsubishi |
Electrical components | Schneider/Delixi | Tank materials | Inner layer 5mm/SUS316 Middle layer 5mm/SUS304 Outer layer 3mm/SUS304 |
PRODUCT CONFIGURATION
Siemens BEIDE Motor
Reducer
Delta Frequency inverter
Stator and rotor
rotor
Materials SUS304&316L(TISCO)
Burgmann Mechanical seal
NSK Bearing
Omron temperature controller
Indicator light, Schneider
Button , Schneider
Current Transformer,Delixi
Time Relay
Breaker
AC contactor
SIMILAR PRODUCTS
Packing & Delivery
Packaging | ||
Size | 2230(L) * 850 (W) *2400 (D) | |
Weight | 800KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Certifications
Material Sources
Successful Project
Project in Thailand
Project in India
Project in Russia
