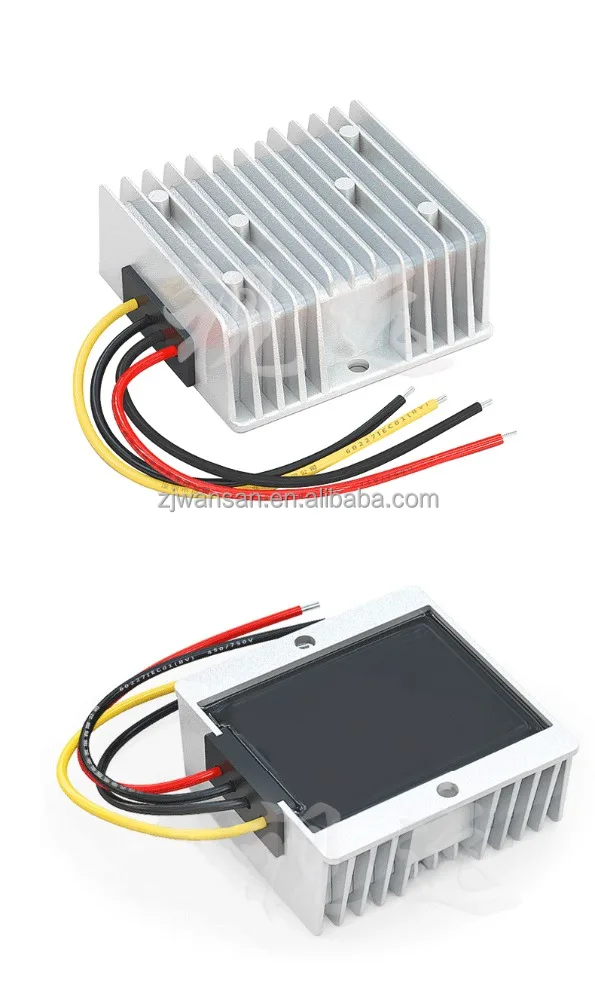

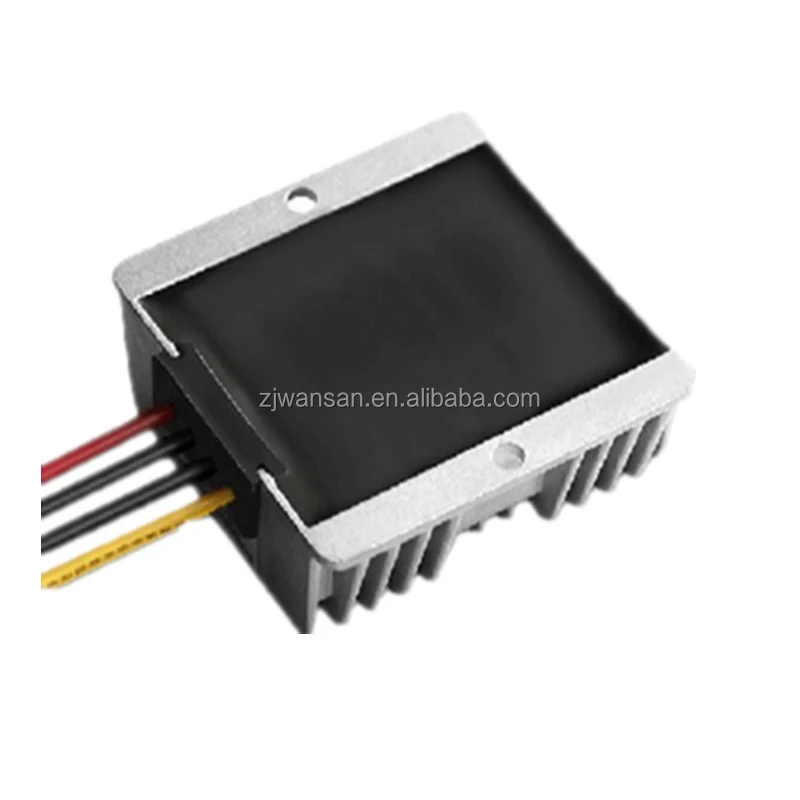

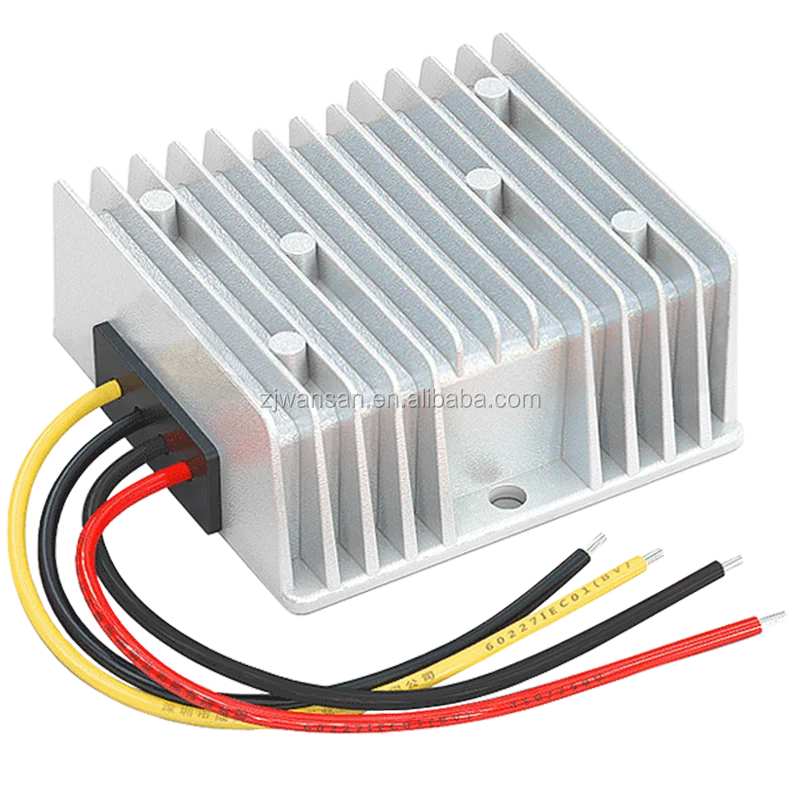

DC12V to 24V 10A Power Converter 240W BUCK BOOST WS 12T2410 DC DC CONVERTER

Product Overview

Description

Features

1. 100% full power & stablecurrent output

    2. 100% Imported components

    3. Wide input voltagefrom 9-16Vdc

    4. 100% waterproof & anti-shockprotection, Ultra compactsize, light weight

    5. Industry gradeDC12V to DC24V step-downconverter, efficiency up to 94%

    6. Waterproof level: IP68

    7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,

    8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery

    9. Non-Isolated Module

   10. 1 year warranty,lifetime up to 100,000 hours.



Specifications:

Model	WS-12S2410
Input rated voltage	12V DC
Input voltage range	9-16V DC
Efficiency	95% (half load) ; 94% (full load)
Output voltage	24V DC
Output current	10 Amps
Output rated power	240 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Short-circuit
Machine size	74*74*32mm
Package size	98*82*34mm
N. Weight	300g
W. Weight	310g
Cooling way	Free air convection
Other	White box packing

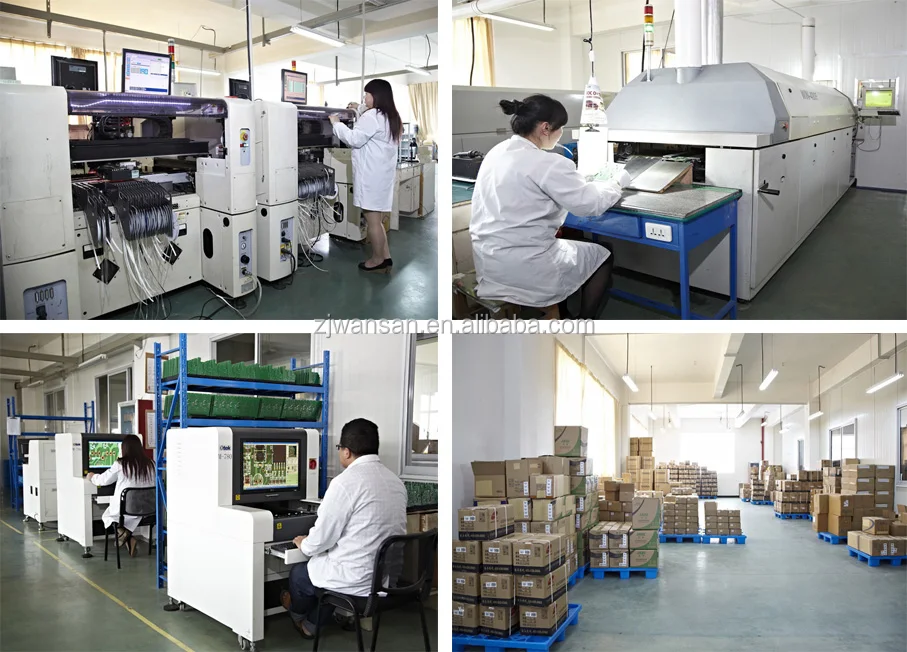

COMPANY INFORMATION

FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or the western union.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converters.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
