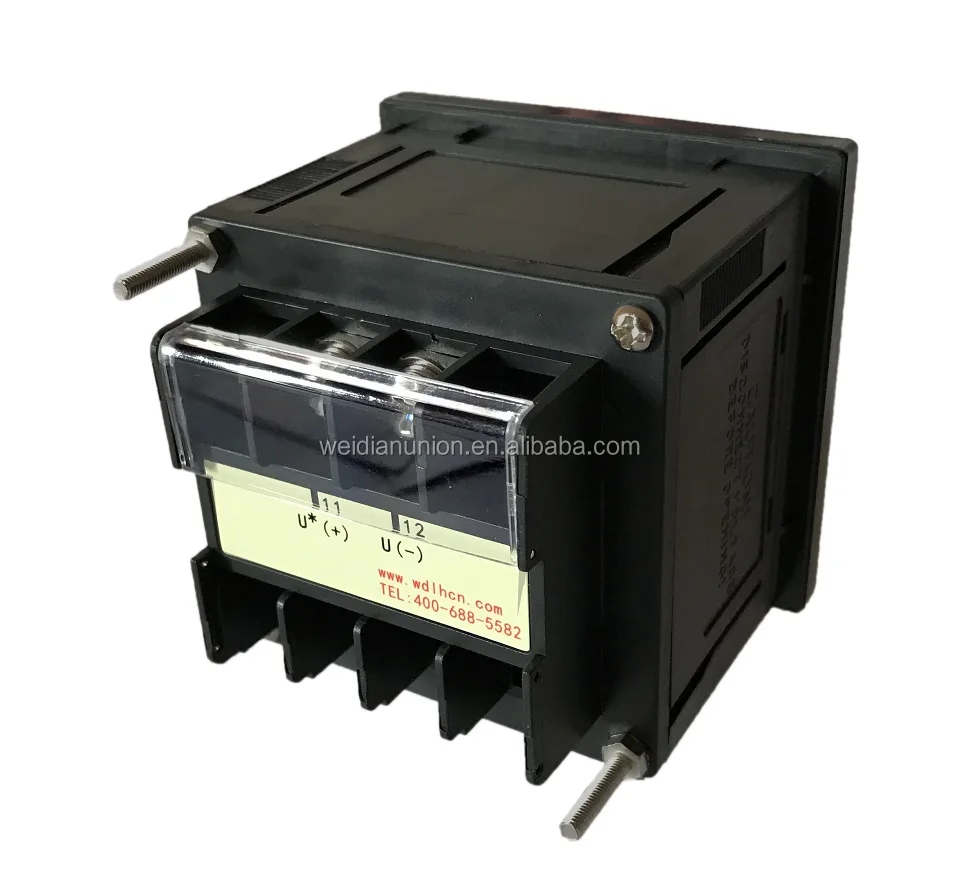

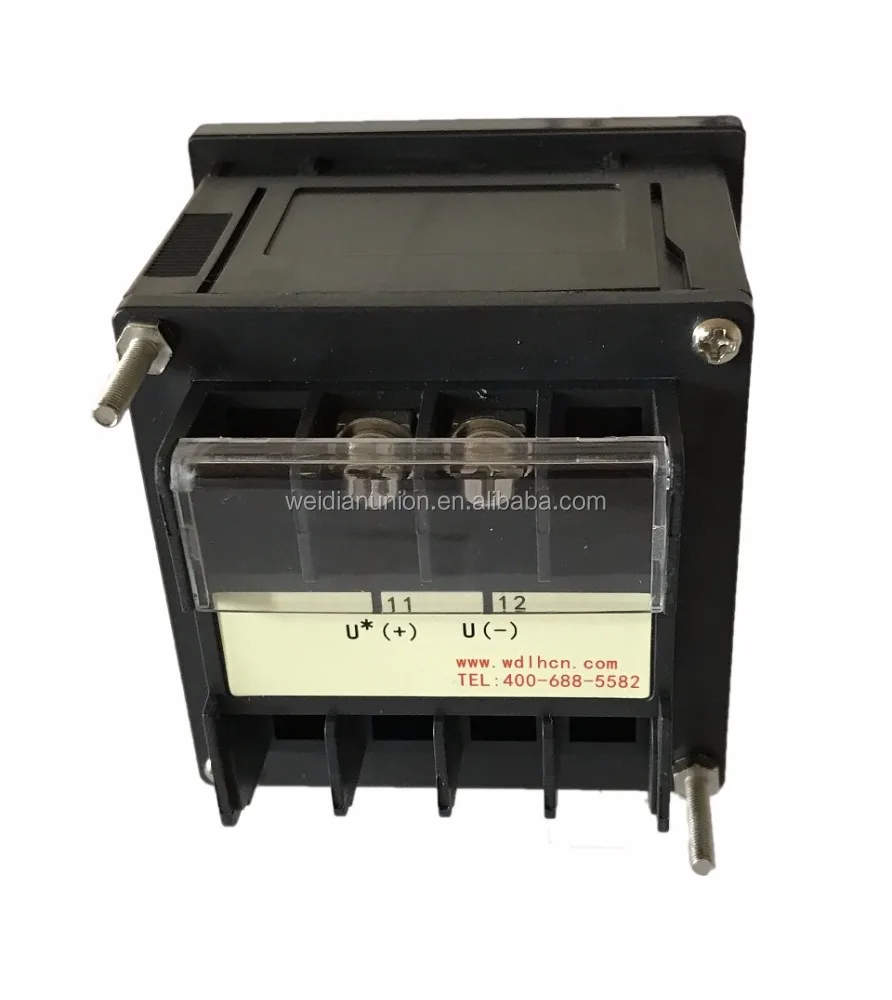

90 Degree Pointer Ampere Meter With Alarm

Price:RUB 4,162.32 - RUB 4,994.79

Quantity:

Product Description

Model	Dimension	Measurement Range
WDZ96B-ACA	96*96mm	0-30A, direct connection; 0-1000KA, by CT(2^rd current 5A/1A)
WDZ72B-ACA	72*72mm
WDZ96B-DCA	96*96mm
WDZ72B-DCA	72*72mm

Technical Parameters

1. Used for measuring AC/DC current, with alarm output;

2. Indicating angle: 90°;

3. Power Supply: 24VDC±25%, 100VAC, 220VAC±20%;

4. Power Consumption: Less than 2VA;

5. Contact output capacity: AC250V, 1A; DC28V,1A;

Option:

1. Transmitting 4-20mA output, accuracy class: 1%;

2. Scale board could be other non-electric unit, such as: temperature, pressure, etc.

3. With backlight function;

Wiring Diagram
