Automatic profile aluminium saw cutting machines with auto scrap collection facility

Product Overview

Description

Automatic profile aluminium saw cutting machines with auto aluminum scrap collection facility



Main features

This machine is mainly cutting for copper, aluminum extrusion, aluminum doors and windows, heat sinks, wood, water pipes, audio panels, etc. Use gas compressed liquid mode drives saw blade, air cylinder clamping tightly, and servo motor drive feeding. The device has the advantages of smooth cutting, precise feeding, simple and convenient operation, simple maintenance etc. Now it is the best choice for the domestic and international copper and aluminum precision cutting.

1.With linear guide automatic feeding, automatic clamping, automatic cutting function

2.With automatic stop, saw blade protection function.

3.Internal sawing can reduce noise.

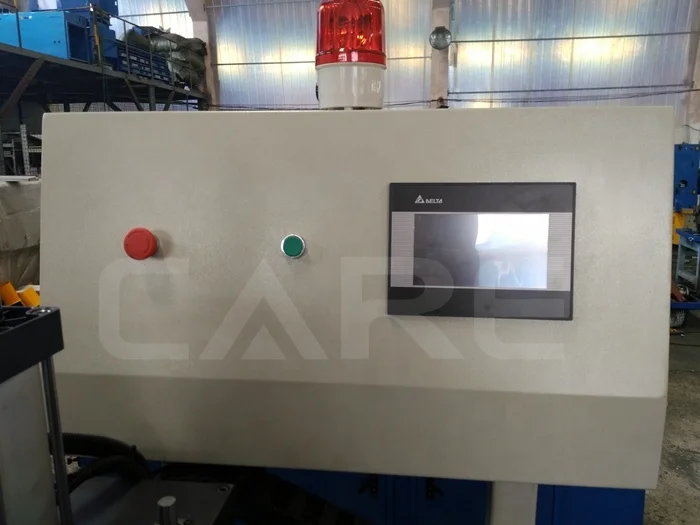

4.Using touch screen control, the interface is more humane.

5.Saw blade is feeding down and up stably with long using life, high cutting precision

6.Carefully designed feeding system, does not damage the surface of the workpiece, high feed accuracy.

7.Unique up and down, front and back for the clamp design, strong clamping force.

8.Configuration electronic cutting quantity counter.

9.Sawdust centralized treatment facilities.

10.Micro fuel injection system, improve the life of the blade, to avoid the pollution caused by saponification liquid.

 Technical parameter

Spec.	450CNC
Max. sawing width	220mm
Max. sawing thickness	115mm
Rotate speed of sawing shaft	3500RPM
Sawing speed	10-15cyle/min
Feeding speed	1m/second
Feeding tolerance	in 0.05mm
Working area	650×680mm
Working height	680mm
Motor power	4kw
Needed pressure	5-6kg/cm
Length of feeding frame	May be made to order.
Size of machine	2750×800×1480mm
Net/gross weight	800kgs

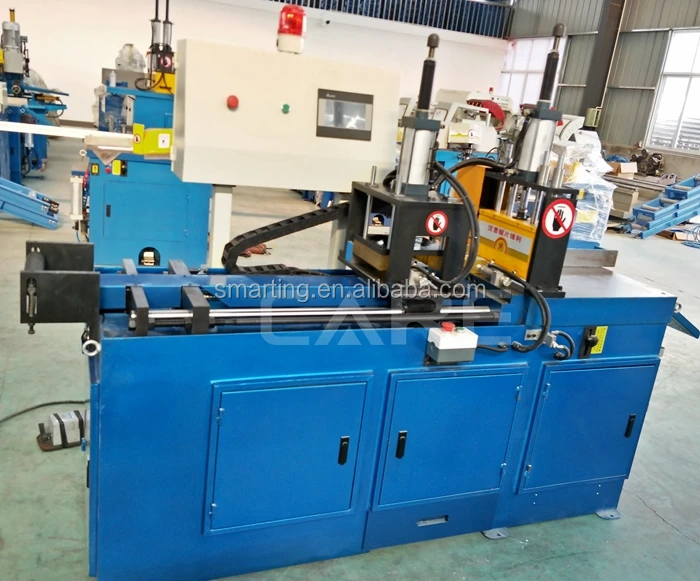

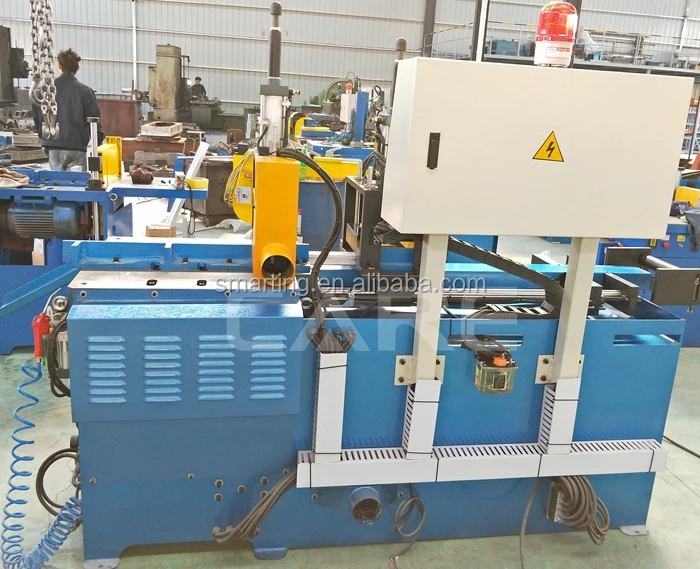

Machine photo with newest design

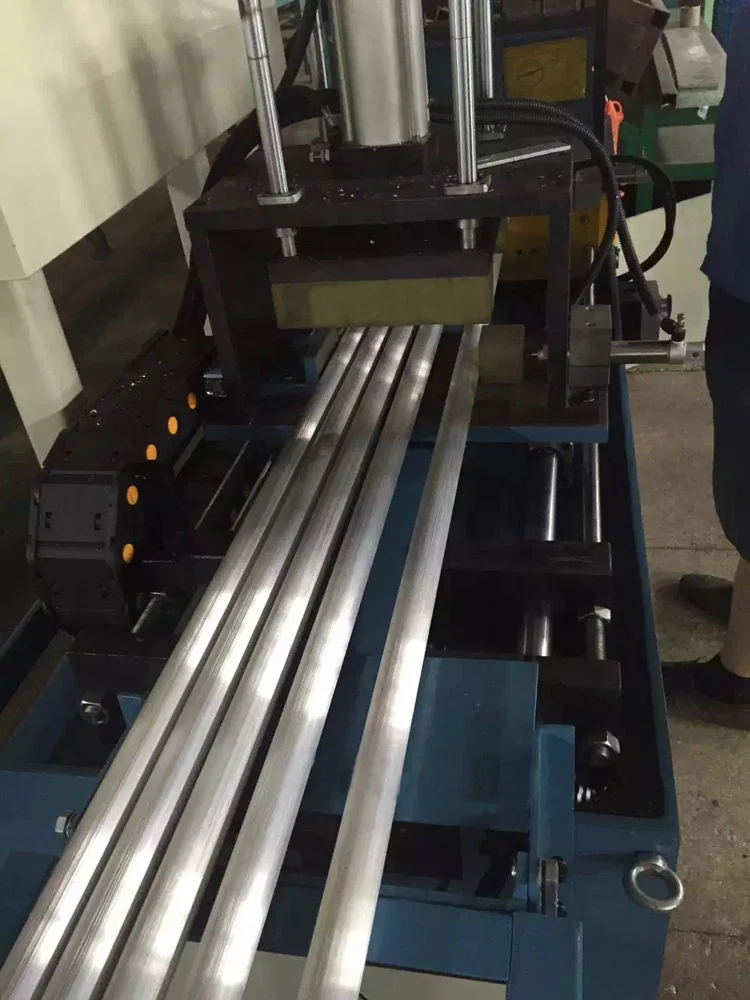

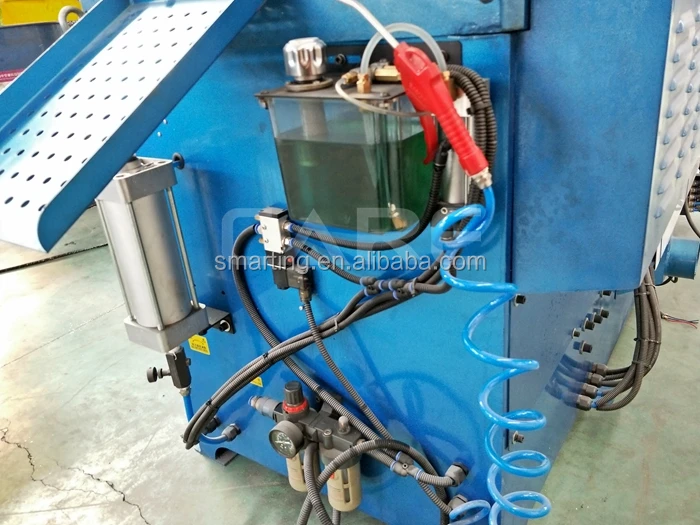

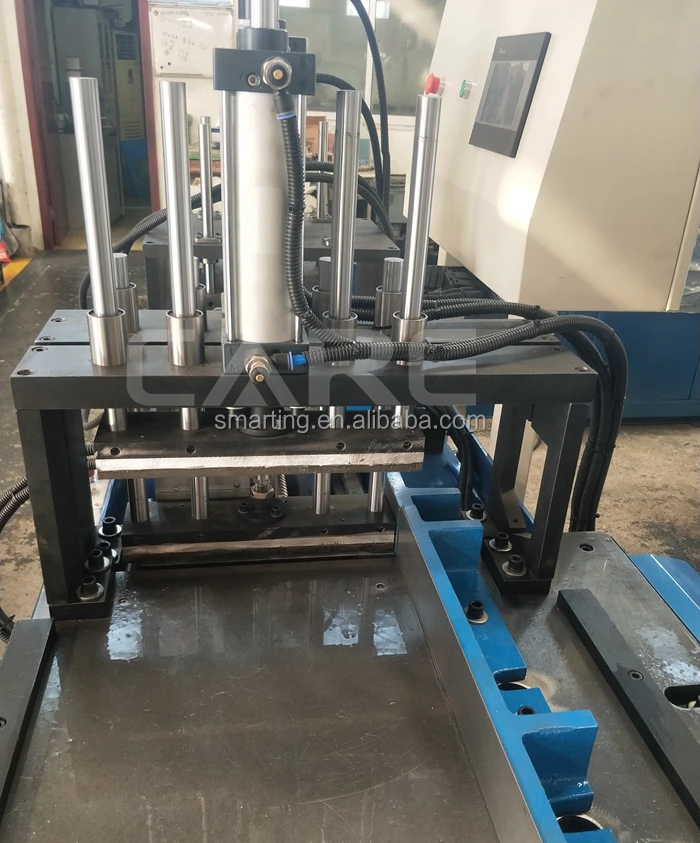

Main parts

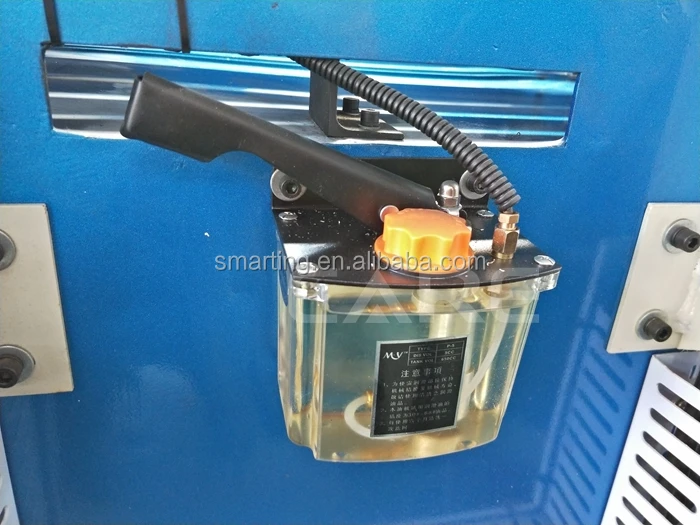

Auto lubrication system

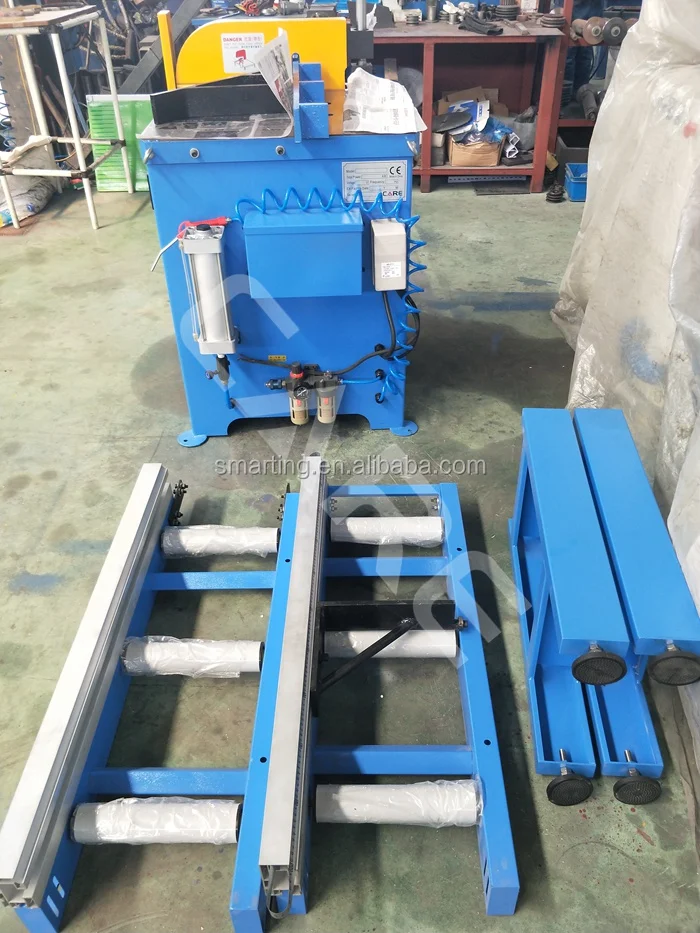

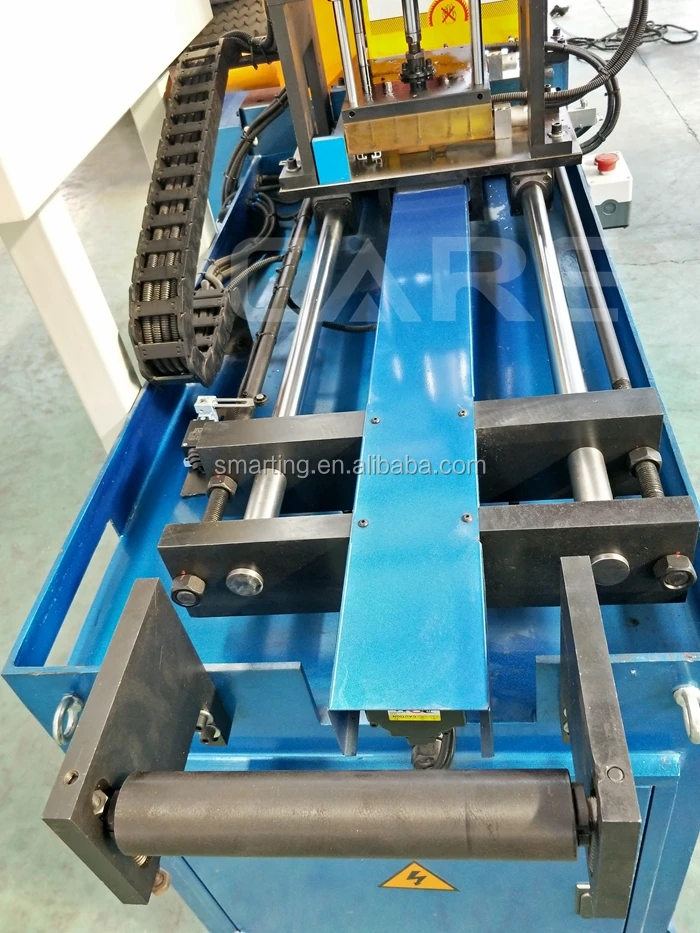

Automatic feeding frame is selectable

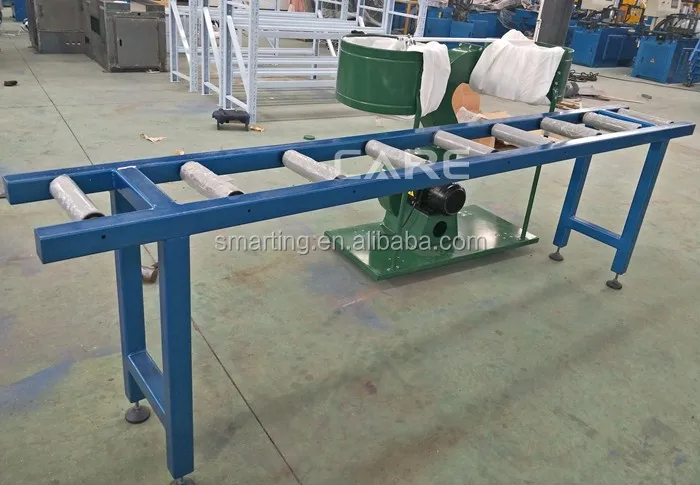

Auto aluminum scrap collection

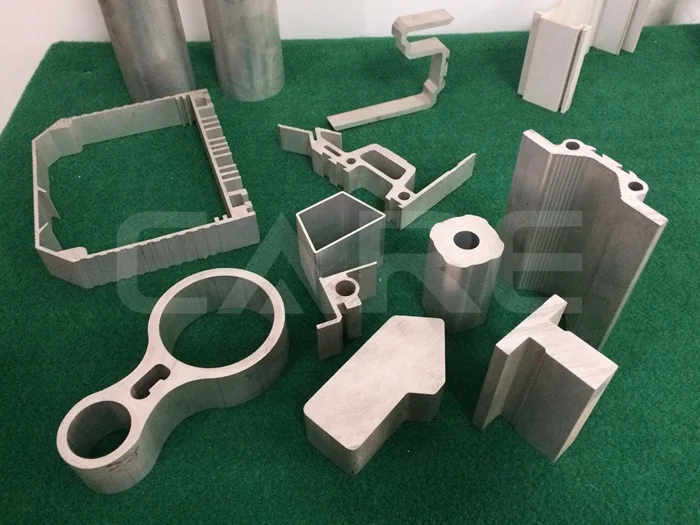

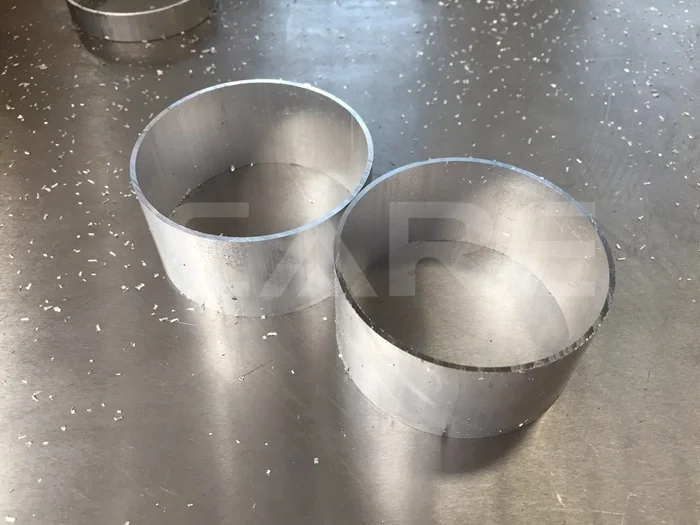

Pipe/profile samples





To know more information, please contact us at any time.
