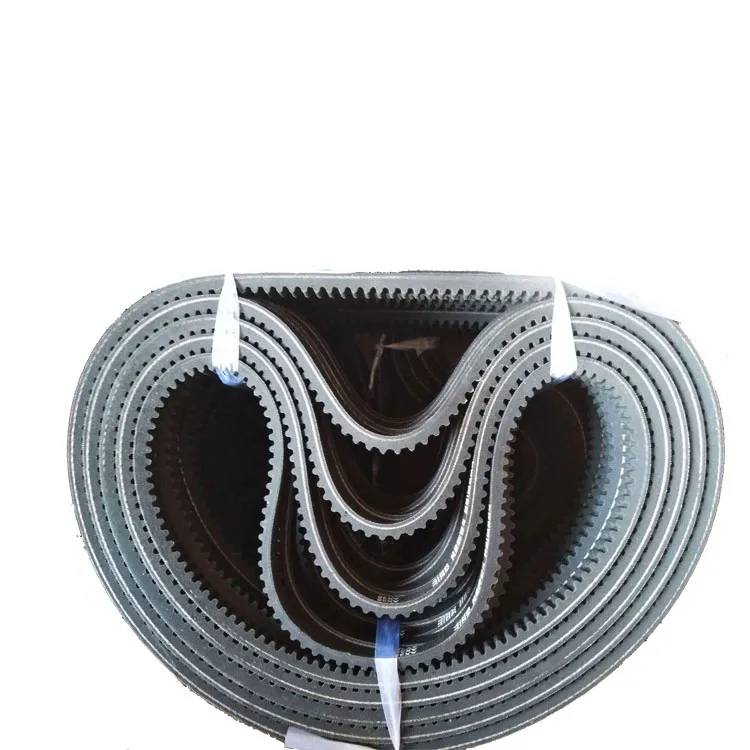

FMX/AX/BX/CX/ AVX10/AVX13/AVX17 Raw Edge Cogged v belt
- Category: >>>
- Supplier: Zhejiang Guangzheng Rubber Co. Ltd.
Share on (60666180891):
Product Overview
Description
Product Description
PRODUCT DESCRIPTION

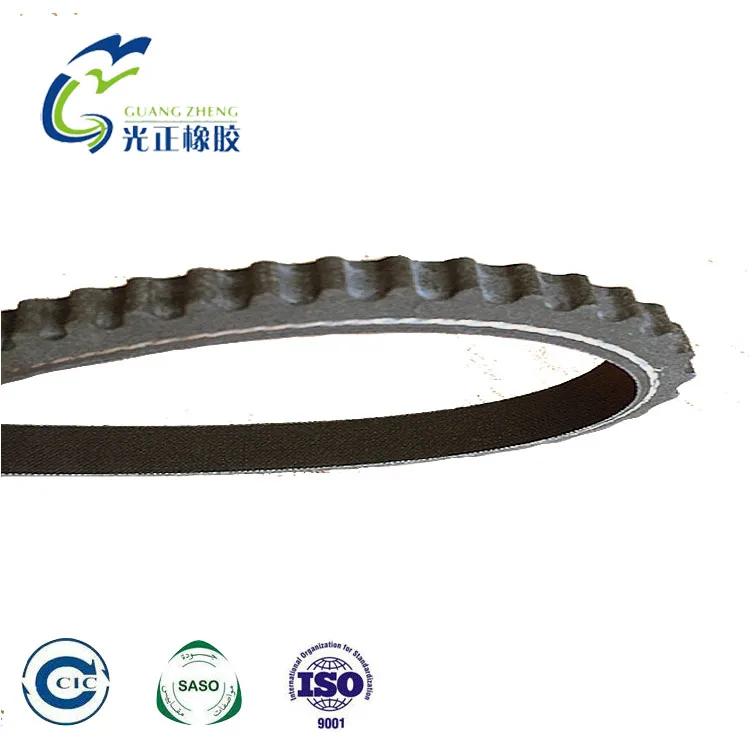

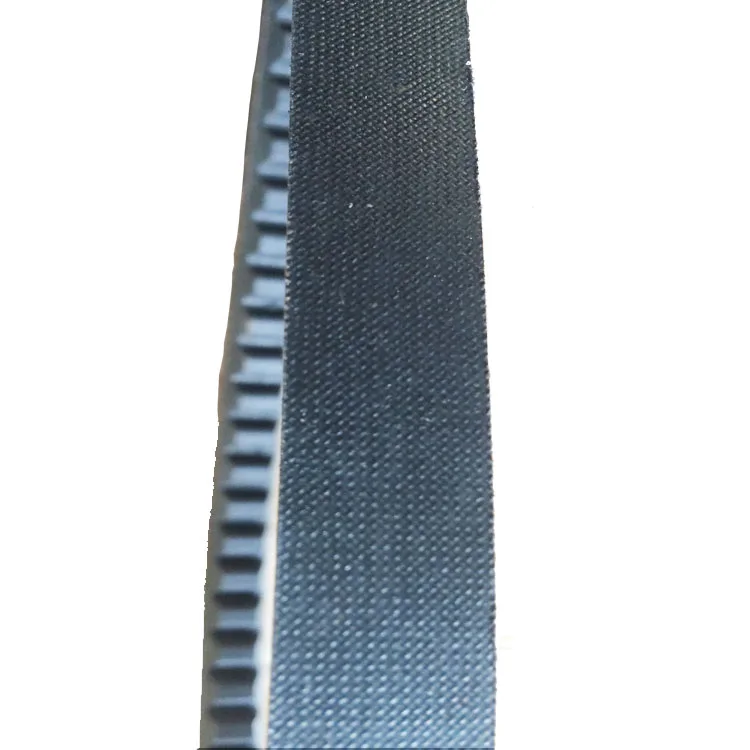

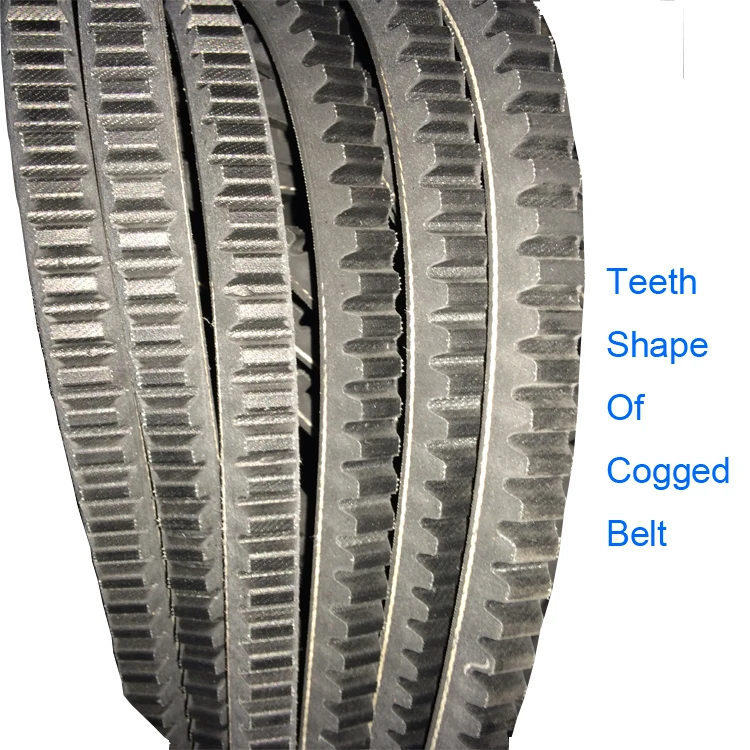

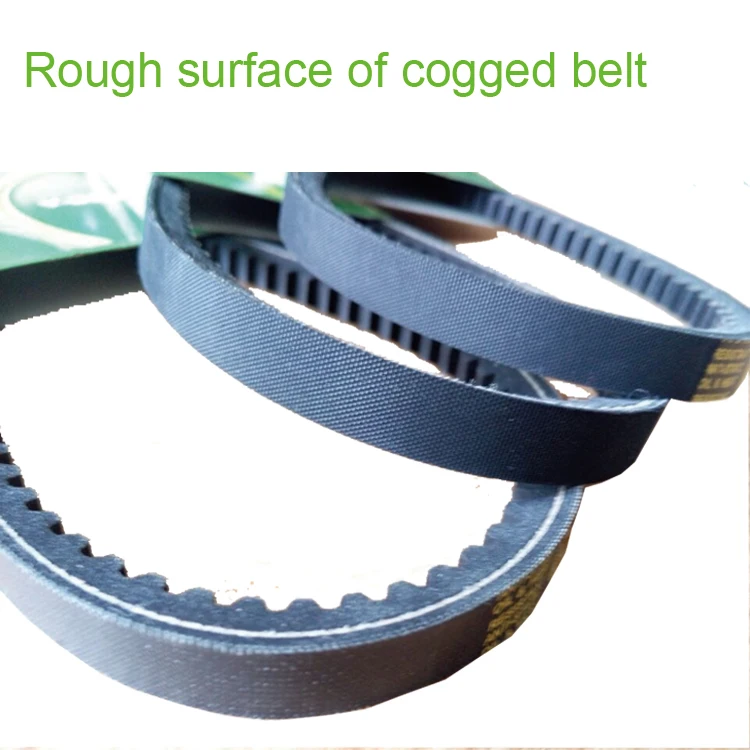

The Raw Edge cogged belt type with mould cog which is temperature and oil resistant as well as antistatic. The belts
are tolerance stable, such that belts with the same section and length marking can be used immediately in matched sets. The mould cog provides high flexibility and a good fit in the pulley grooves as well as lower operating temperature, which increase belts life.
APPLICATION
The Raw Edge cogged
has a wide range of applications with high belt speeds and small pulley diameters. The belt allows immediate improvement of existing drives which use wrapped bets, providing overall benefits with regards to economy as well as power transmission and reliability of operation.

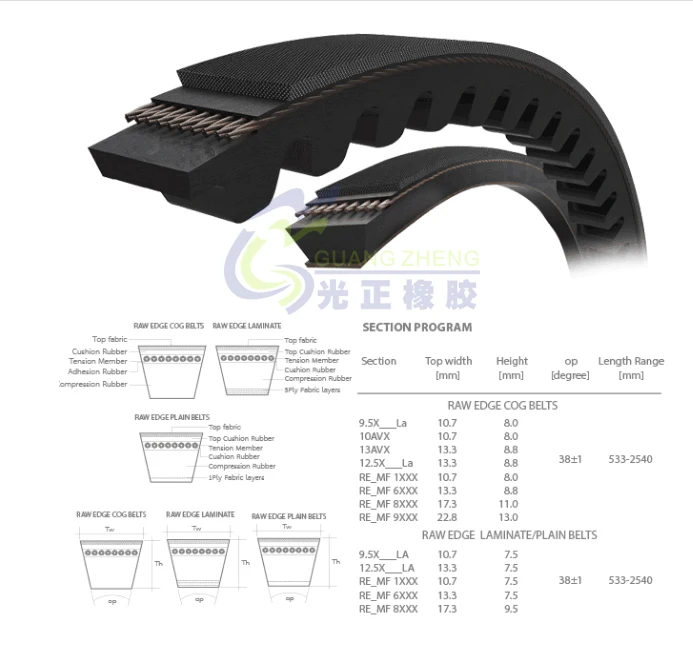

| RAW EDGE V BELT | ||||||
| TYPE | TOP WIDTH | THICKNESS | ANGLE(°) | |||
| WRAPPED | RAW EDGE | REF | REC | |||
| AV-10/9.5 | 10.0 | 8.0 | 7.5 | 7.5 | 8.0 | 40 |
| AV-13/12.5 | 13.0 | 10.0 | 8.5 | 8.5 | 9.0 | 40 |
| AV-15 | 15.0 | 9.0 | - | - | - | 40 |
| AV-17 | 16.5 | 10.5 | 9.5 | 9.5 | 11.0 | 40 |
| AV-22 | 22.0 | 14.0 | - | - | 13.0 | 40 |
| NARROW V BELT | |||
| TYPE | TOP WIDTH | THICNESS | ANGLE(°) |
| XPZ | 9.7 | 8 | 40 |
| XPA | 12.7 | 10 | 40 |
| XPB | 16.3 | 13 | 40 |
| XPC | 22 | 18 | 40 |
| 9NX/3VX | 9.5 | 8 | 40 |
| 15NX/5VX | 16 | 13.5 | 40 |
| 25NX/8VX | 25.4 | 23 | 40 |
| INDUSTRIAL RAW EDGE V BELT | |||
| TYPE | TOP WIDTH | THICNESS | ANGLE(°) |
| HM | 10.5 | 8.0 | 38 |
| AX | 13 | 8.0 | 38 |
| BX | 17 | 11 | 38 |
| CX | 22 | 14 | 38 |
| DX | 32 | 19 | 38 |
| EX | 38 | 23 | 38 |
| INDUSTRIAL V BELT | |||||
| SIZE NO | ISO RANGE | VALID LENGTH | SIZE NO | RMA RANGE | VALID LENGTH |
| XPZ | 600-1875 | 600-1875 | 3VX | 250-750 | 630-1905 |
| XPA | 732-2200 | 732-2200 | 5VX | 450-850 | 1130-2160 |
| XPB | 1016-2200 | 1016-2200 | |||
| XPC | 1016-2200 | 1016-2200 | |||
