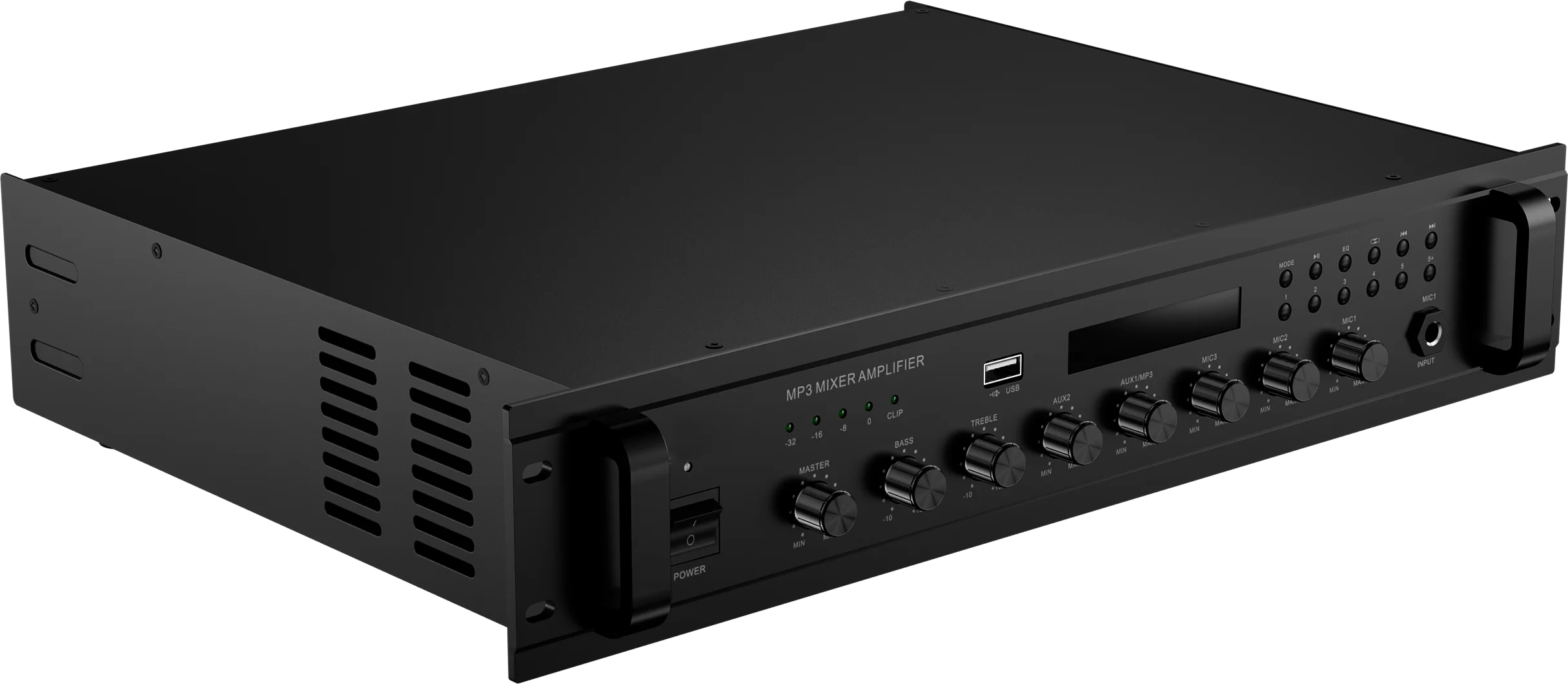

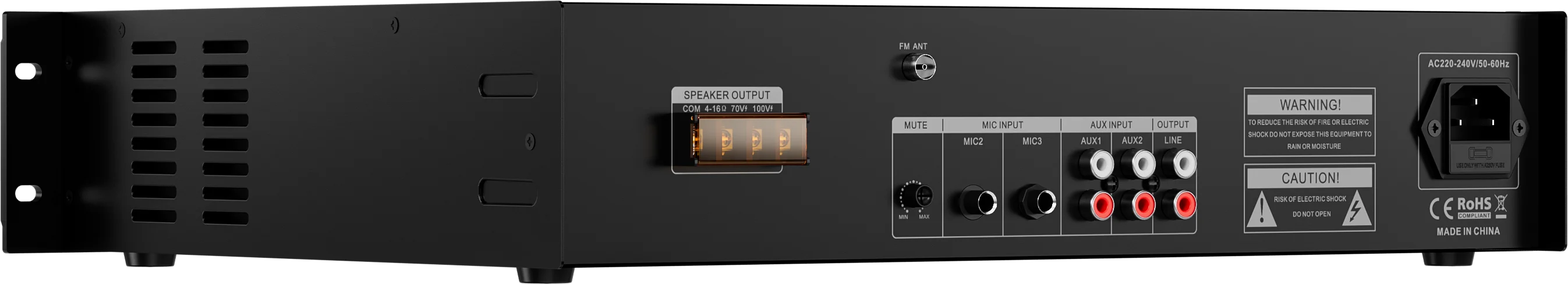

RH-AUDIO Built in U Disk MP3 Player FM Receiver BGM Amplifier with Mute Function for Sale
Product Description
The RH-AUDIO Series of MP3/FM Tuner 2U Rack-mount Amplifiers are designed for background music/paging and public address system installations,these units are exceptional values,and are easy to install in a variety of system designs.
The mixer amplifiers have features of built-in MP3 player with SD & USB slot for connecting
external audio source,and built-in FM receiver with frequency range 87.5 MHz~108 MHz.
And features three unbalanced mic. inputs and two line inputs,60/120/240/350/500 watts
of amplifier power are available with either 70/100-volt or 4 to 16 ohms(Ω) loads.

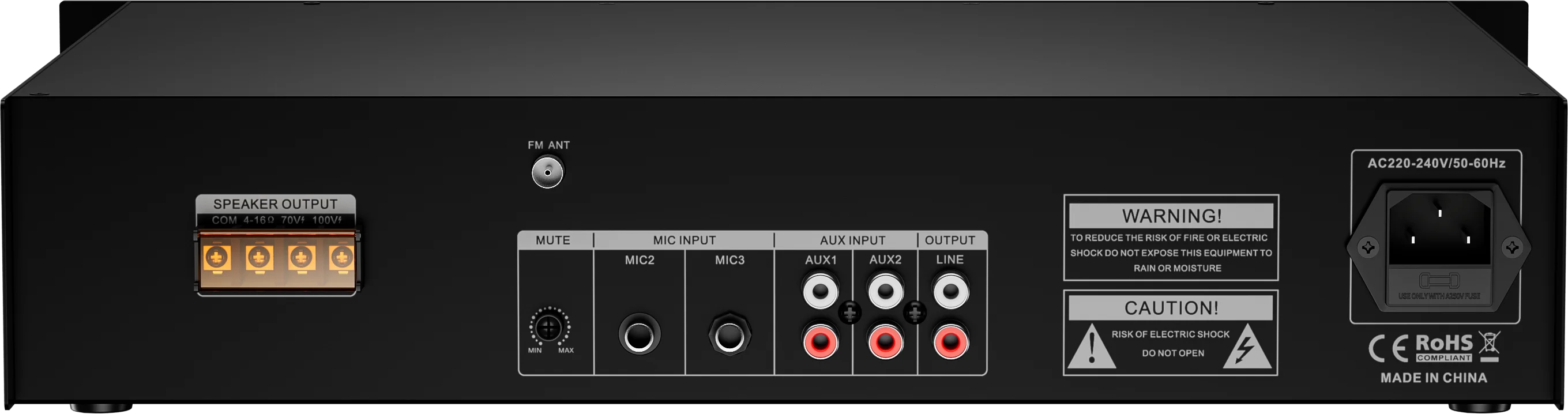

Also included a balanced line level output for adding additional power amplifiers.
The unit also features muting function that MIC1 overrides MIC2,MIC3 AUX1,AUX2
with 0~30dB attenuation.
And features complete protection is provided for output short circuit,overload,high temperature,
peak current limiters.
Widely used for any kind of public areas such as shops,supermarks,shcools,churches,stations,hotels etc.
1) Built-in USB MP3 player and FM radio with frequency range 87.5 MHz~108 MHz.
2) Power rates: 60W/120W/240W/350W/500W available.

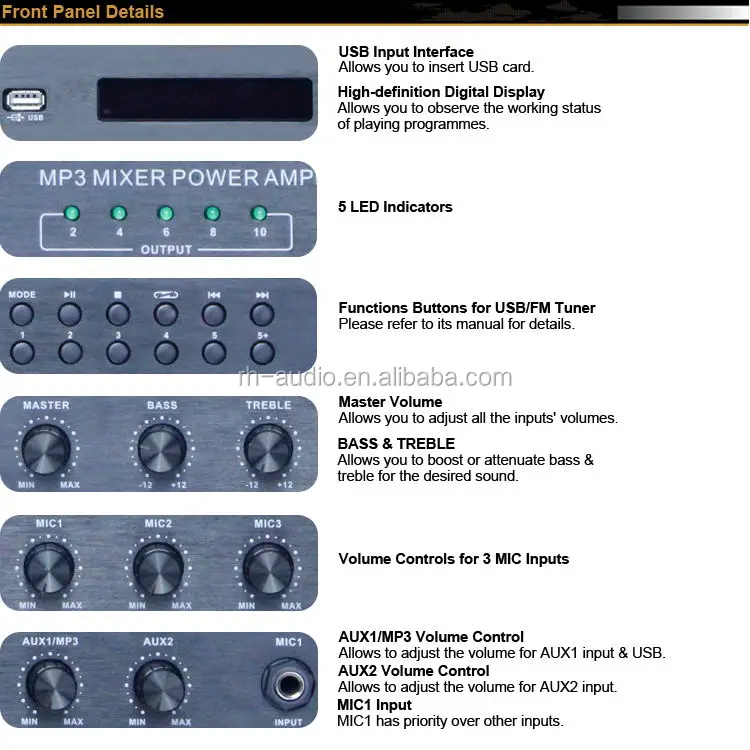

3) Luxury aluminium alloy front panel.
4) TOSHIBA amplifier transistors.
5) 100% pure copper toroidal transformers.
6) 70V/100V and 4~16Ω loads.
7) Standard 19" 2U height.
8) 3 MIC inputs,2 LINE inputs,1 LINE output.
9) Individual volume controller for MIC & AUX inputs.
10) MASTER volume controller.
11) BASS and TREBLE tone controller.
12) MIC1 has priority over other inputs.
13) Protections of short circuit,overload,high temperature.
2) Power rates: 60W/120W/240W/350W/500W available.
3) Luxury aluminium alloy front panel.
4) TOSHIBA amplifier transistors.
5) 100% pure copper toroidal transformers.
6) 70V/100V and 4~16Ω loads.
7) Standard 19" 2U height.
8) 3 MIC inputs,2 LINE inputs,1 LINE output.
9) Individual volume controller for MIC & AUX inputs.
10) MASTER volume controller.
11) BASS and TREBLE tone controller.
12) MIC1 has priority over other inputs.
13) Protections of short circuit,overload,high temperature.

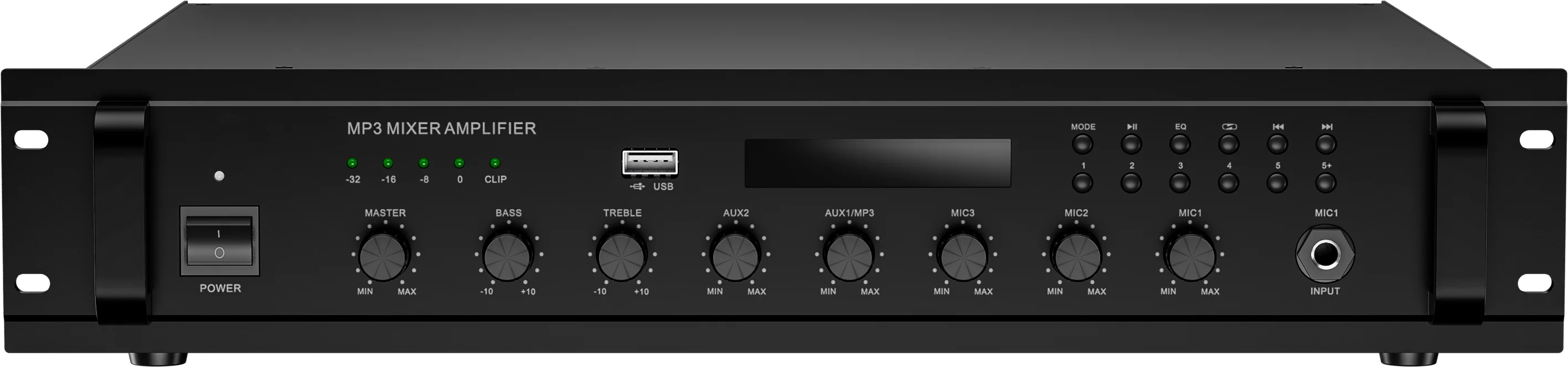

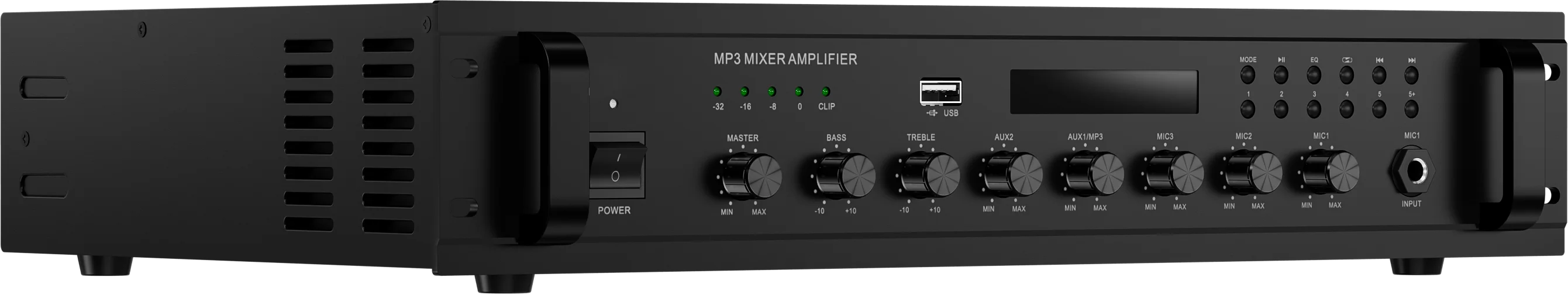

RH8 Series MP3 Mixer Amplifier are distinguished with front handle from RH28 Series but same function.
Specification
Rated Power | 60W | 120W | 240W | 350W | 500W | ||||
Output Mode | 4-16 ohms;70V/100V line voltage | ||||||||
MIC Input | MIC1/ MIC2/MIC3:600 ohms 5-8 mV , Unbalanced | ||||||||
AUX Input | AUX1/ AUX2:10k ohms 150-470 mV , Unbalanced | ||||||||
FM Frequency Range | 87.5 MHz~108 MHz | ||||||||
External Audio Input | USB slot,RCA connector | ||||||||
Frequency Response | 60Hz~15kHz(±3dB) | ||||||||
THD | <0.5% at 1kHz,1/3 rated power | ||||||||
S/N | Line:85 dB,MIC:>72 dB | ||||||||
Tone | BASS:100 Hz(±10dB),TREBLE:12kHz(±10dB) | ||||||||
Muting Function | MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation | ||||||||
Cooling | DC 12V FAN | ||||||||
Protection | AC fuse, short circuit,overload,high temperature | ||||||||
LED Indicators | POWER,SIGNAL, CLIP,PROTECT | ||||||||
Power supply | Optional | ||||||||
Power Consumption | 95W | 175W | 350W | 485W | 640W | ||||
Dimensions | 89(H)x483(W)x366(D)mm | ||||||||
Packing Size | 185(H)x520(W)x435(D)mm | ||||||||
Net Weight | 11.2Kg | 12.7Kg | 15.1Kg | 16.1Kg | 18.6Kg | ||||
Gross Weight | 11.8Kg | 13.6Kg | 16Kg | 17Kg | 19.8Kg | ||||
