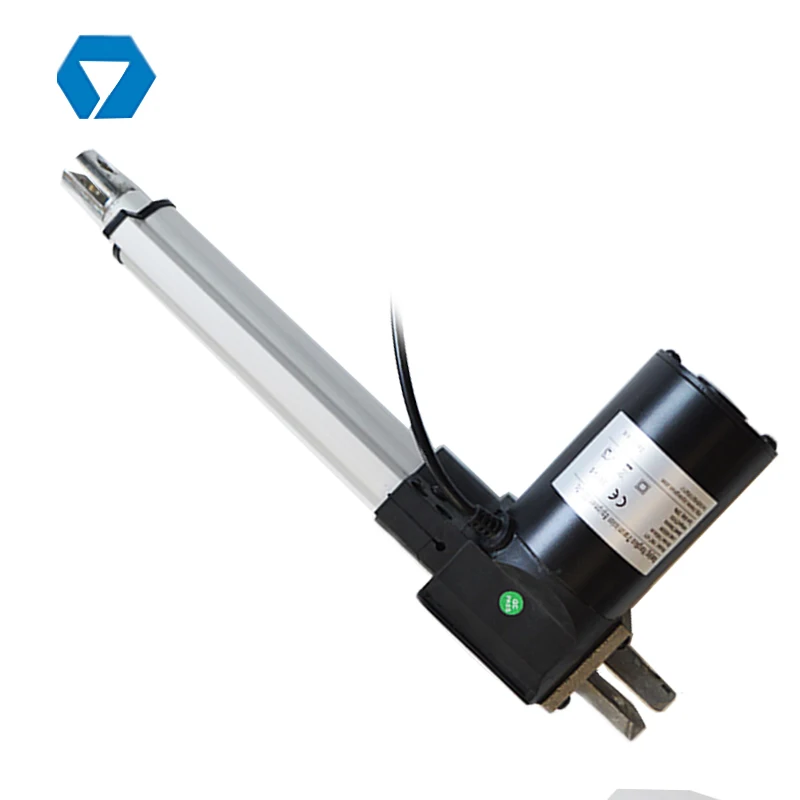

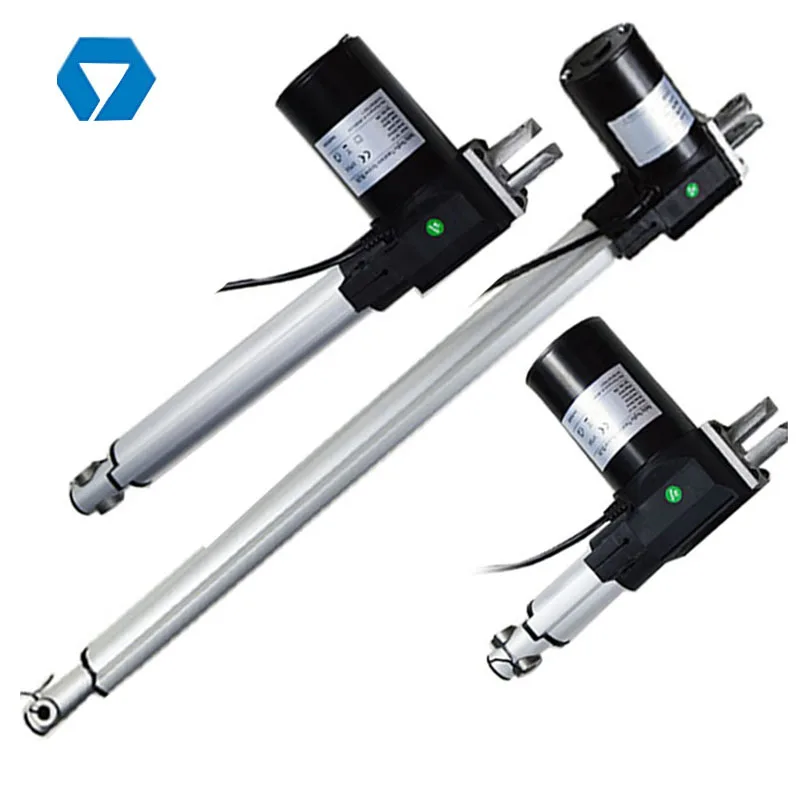

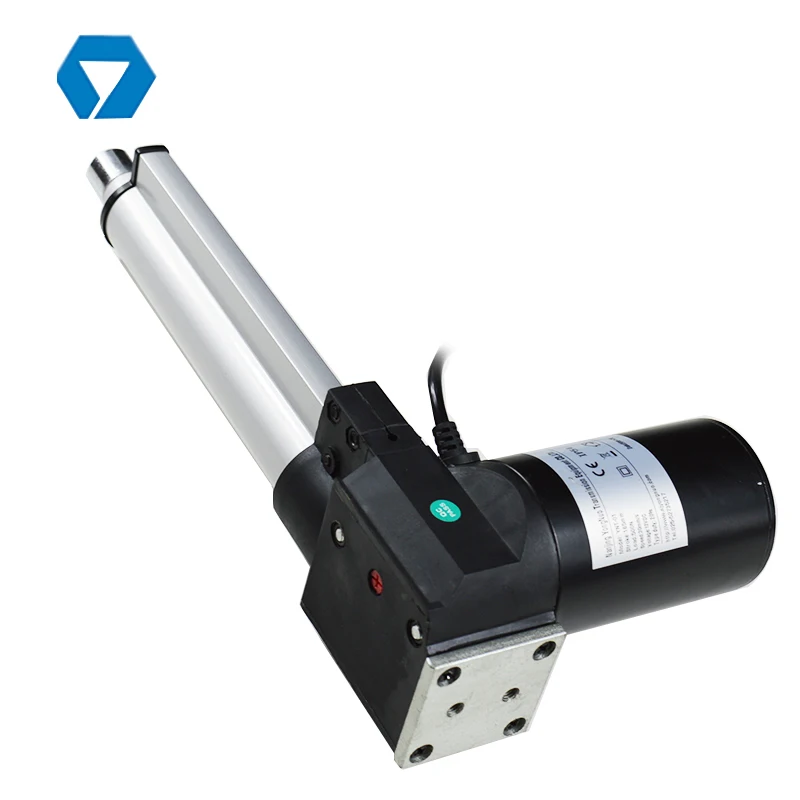

Top Standard satellite dish motor 24VDC mini Linear Actuator switch

Product Overview

Description

The  linear actuators are widely used in Construction machinery,Automotive field,Open various types of doors,electric care bed, electric operating bed, electric traction bed, electric massage chair, electric wheelchair, electric lift cabinet,Electric treadmill, LCD TV lift frame, bedside cabinet LCD TV intelligent hiding device, camera electric lift bar, wedding props push and pull institutions need to run linear Institutions of the occasion, the product design novel, self-locking performance is good, no steam source / oil, easy to install simple



LINER ACTUATOR YNT-01 TECHNICAL PARAMETER
Product Name	YNT-01 Linear Actuator	Input voltage	12/24VDC
Load capacity	Max6000N(push)/6000(pull)	Stroke	50mm~600mm(Customized Stroke Available)
Free load speed	30mm/s(500N)	Operation temperature	-26℃~+65℃
Full load speed	4mm/s(6000N)	Protection class	IP54
Duty cycle	20%(2 minutes continuous use in 8minutes)	Limit switch	Built-in
Output Power	60w	Noise level	<=50dB

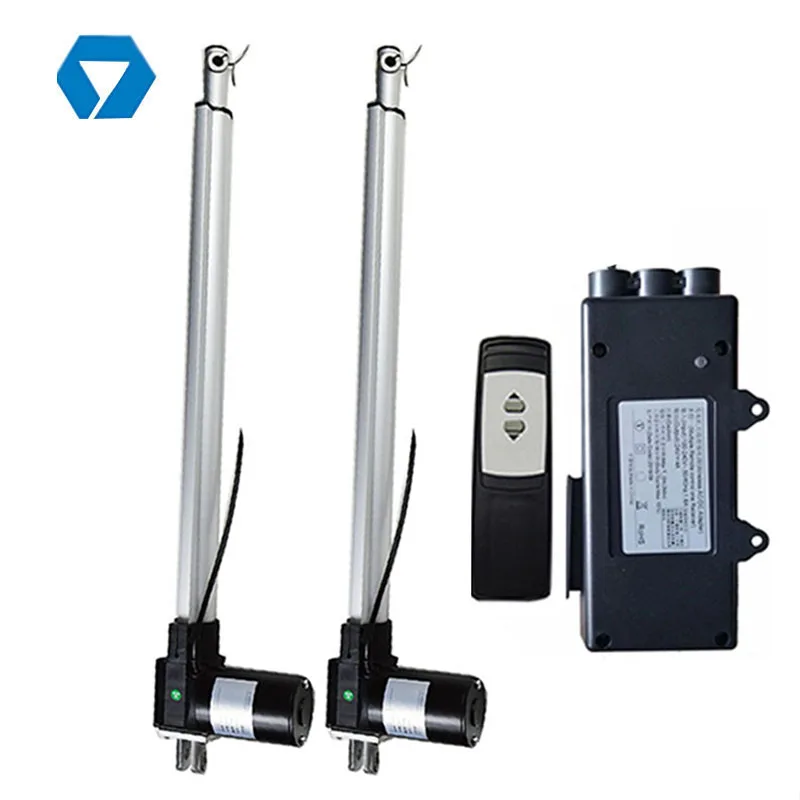

Pot	Shanghai/Ningbo	Control mode	wired or wireless
Certificate	CE, RoHS	Minimum installation distance	stroke+175mm

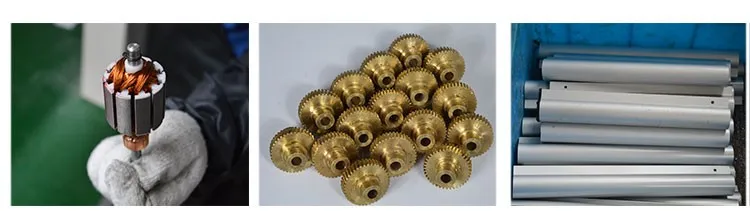

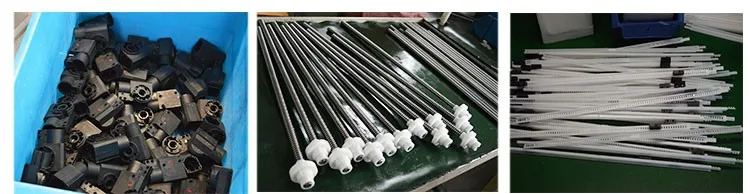

DC drive motor

Pure brass turbine (custom)

Aluminum alloy outer tube



chassis

Screw and turbine

Micro Switch

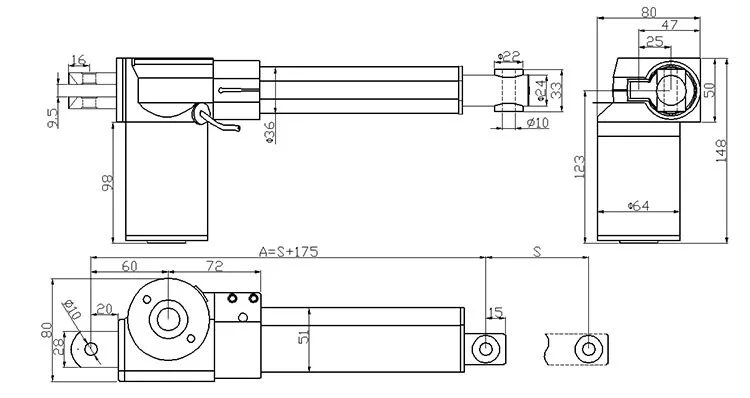

 Mounting Drawing in millimeter:





Common Standard Installation length:Customization



Stroke length (mm)	50	100	200	300	400	500	600
Installation Length (mm)	225	275	375	475	575	675	775
Weight(KG)	1.75	1.85	2.05	2.25	2.45	2.65	2.85

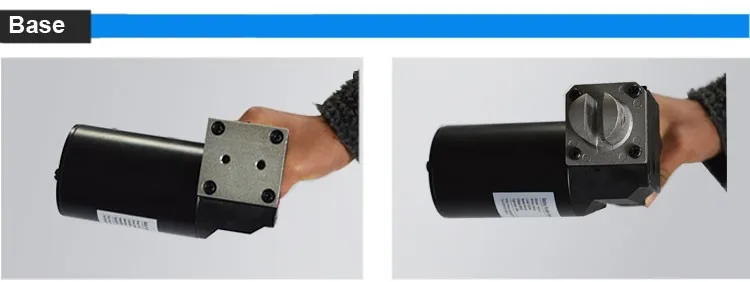

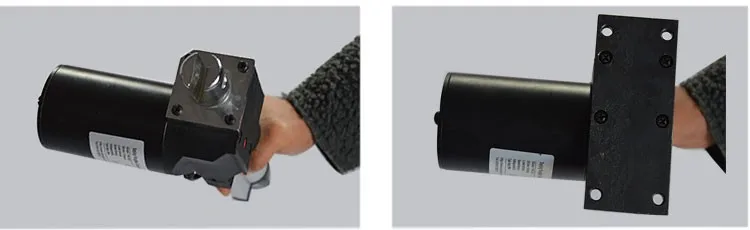

Square flat base

Aluminum base(standard)





Iron base

Black rectangular base

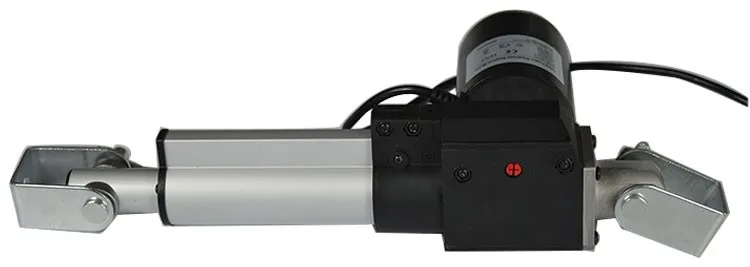

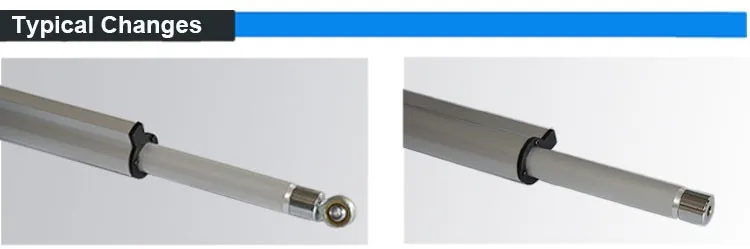

Rod ends bearing	Punch holes
Optional different specifications Rod ends bearings.	standard M8 holes or change the mounting Hole's Diameter.

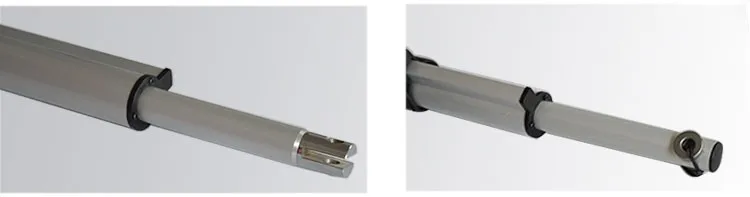

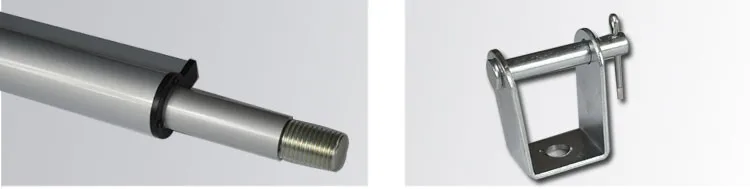

Inner Tube Slot connector	Increase the Installation length
standard x6mm slot	You can ask us to increase the installation length. e.g., sthoke length 100mm, the standard installation length is 275mm, we can make it for 300mm or more.



External thread   Batch can be customized external thread

Brackets & Holders





We also accept bracket & holder customization, please tell us your requirements, we will give out a 3D drawing and a good price for you.









YNT-01 linear actuator— Quality Certification:ROHS and CE







Our Company:

Welcome to YONGNUO!

  Nanjing Yongnuo Transmission Equipment Co., Ltd specialize in manufacturing linear actuator, control box and handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, Sanitation Sweeper, Special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success!

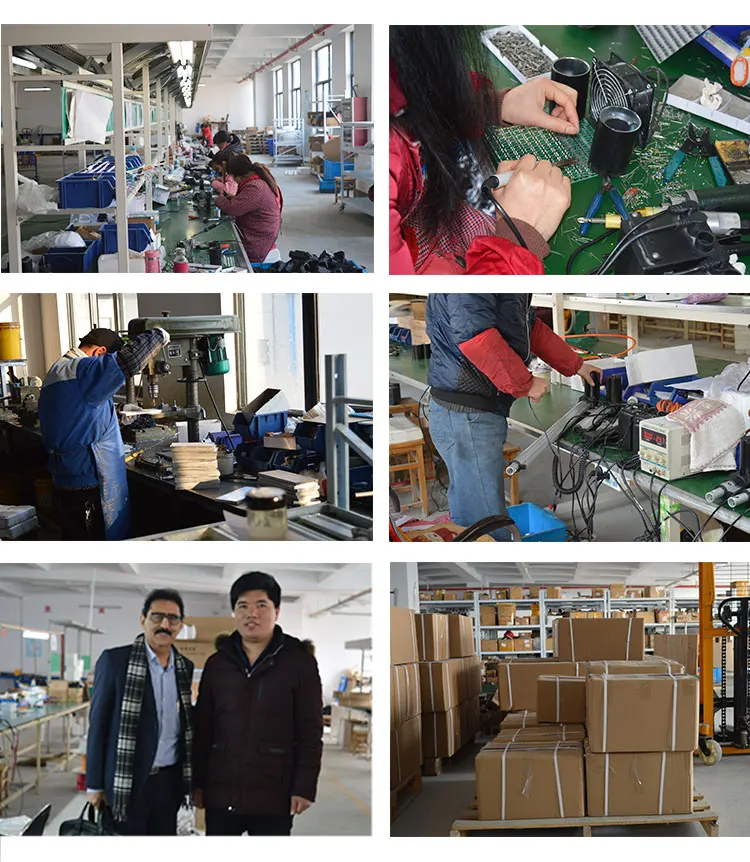

Company Photo

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How much is the packaging size?

A: Packing size is in accordance with your order, your product specifications to determine the package size.

Q: How much does shipping cost and what shipping methods do you support?

A: Shipping cost  is calculated based on the weight of the order and the distance it is travelling;

Transport of large trucks to the seaport and international transport cooperation

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide customized Functions ?

A: Yes, we can design and program as your requirements.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.



If you have another question, pls feel free to contact us
