Product Overview
Description

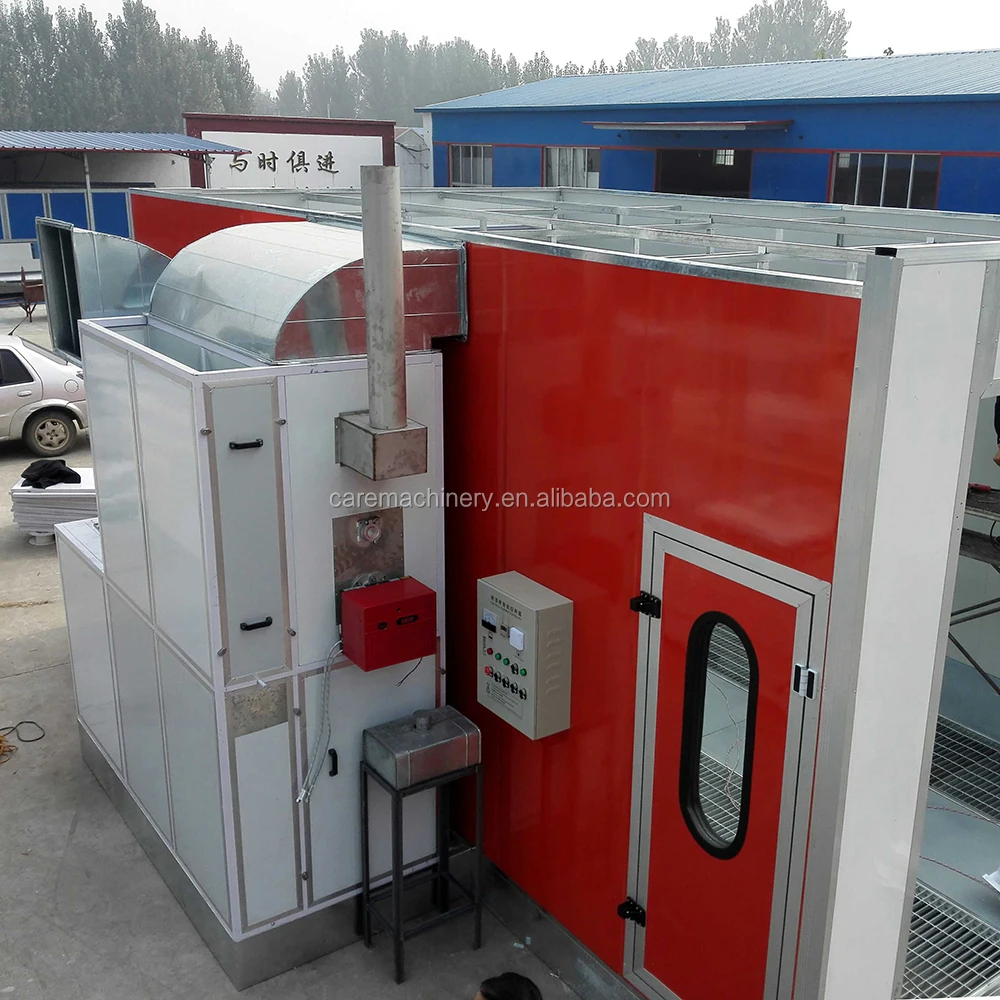

Engineered Finishing Solutions - PaintBooths/Spray Systems/leading paint spray
Product details
Product details
| Detailed Parameters | ||||
| Dimensions | Length (mm) | Width (mm) | Height (mm) | |
| Booth Outside | 7,000 | 5,200 | 3,600 | |
| Booth Inside | 6,900 | 3,900 | 2,750 | |

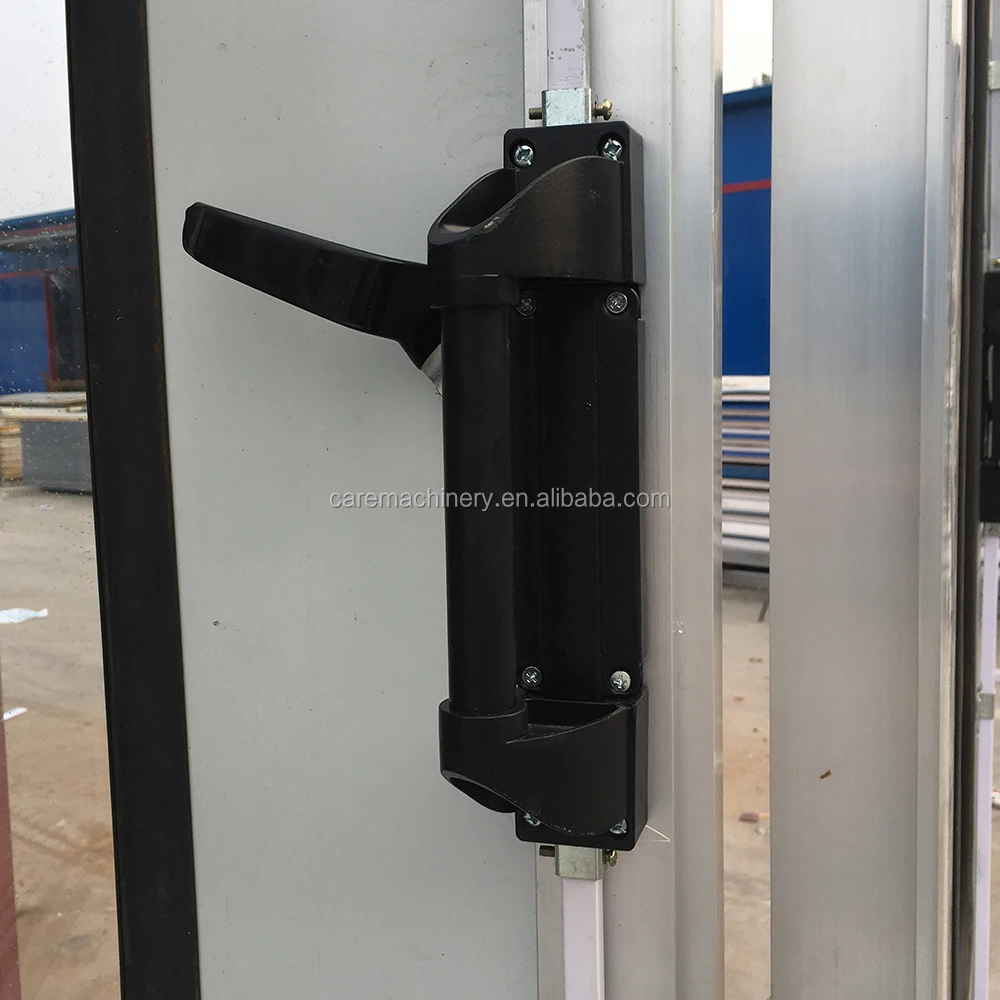

| Entrance Door | 3 folds,size is 3,000×2,700mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock | |||

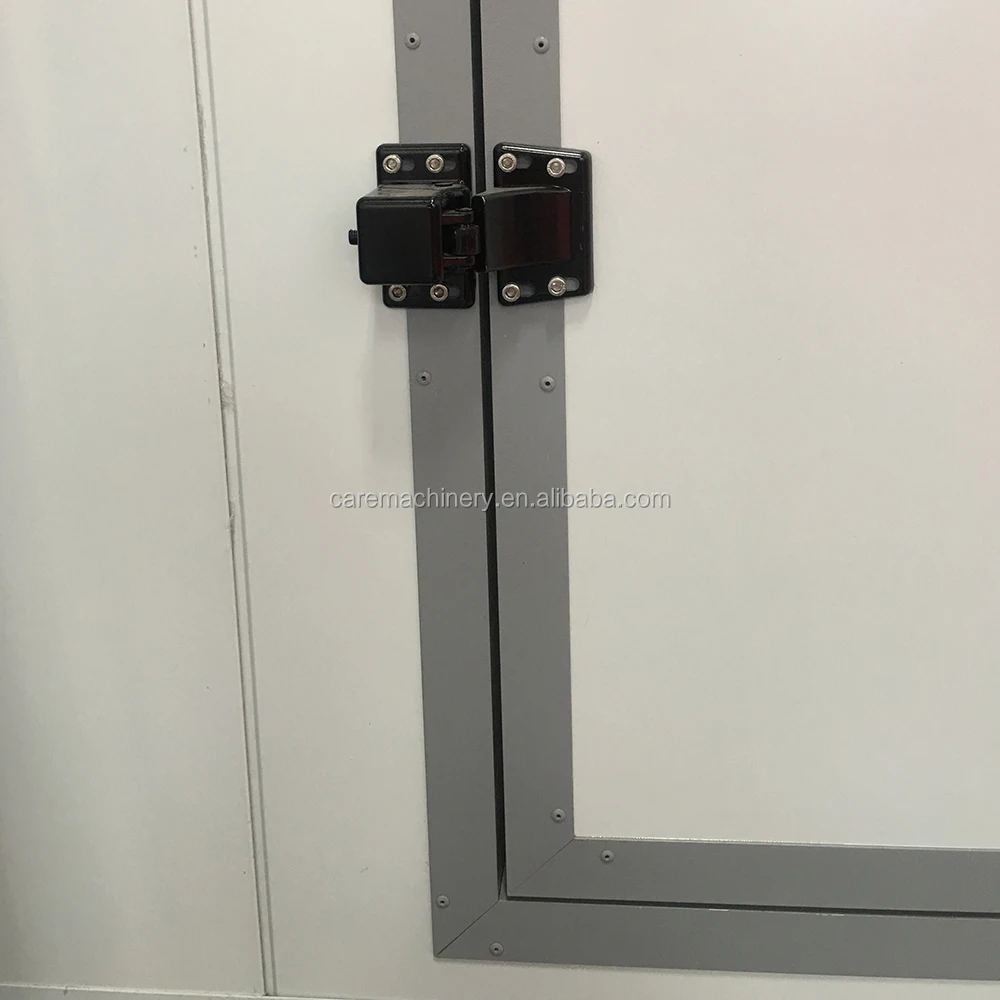

| Personnel Door | size is 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock | |||
| Plenum Chamber | 700mm high, all spare parts of plenum are made of galvanised bended steel and treated by white powder for long using life. | |||
| Walls Panel | 75mm thick and 1,000mm wide,insulation is EPS and covered by 0.476mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel. | |||
| Basement System | Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame.loading weight is 600KG/wheel | |||
| Diamond Plates (Powder Coated or Galvanized)* 3rows | ||||
| 2 ramps,each size 520x2,000mm(WxL) | ||||
| Heating System | Diesel Burner*1unit (Italy RIELLO, G20) heating capacity is 200,000Kcal/H | |||
| Heating Exchanger*1unit, made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M long bended galvanised steel chimney and 1 pc of rain shield. | ||||
| Cabinet*1unit,rock-wool insulation. Cabinet Frame is made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy. | ||||
| 4. Filter System | Primary Filter* 1set, filtering rate > 83% G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3) | |||
| Air-Intake Filter* 1set, filtering rate > 97% Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5) | ||||
| Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70% Fibre glass filter, G2 Grade(EU-3) | ||||
| 5. Air System | Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each | |||
| Air-Exhaust Fan* 1unit, Centrifugal Fans with 4 KW motor | ||||
| Belimo NMU230 20NM electric damper | ||||
| Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit | ||||

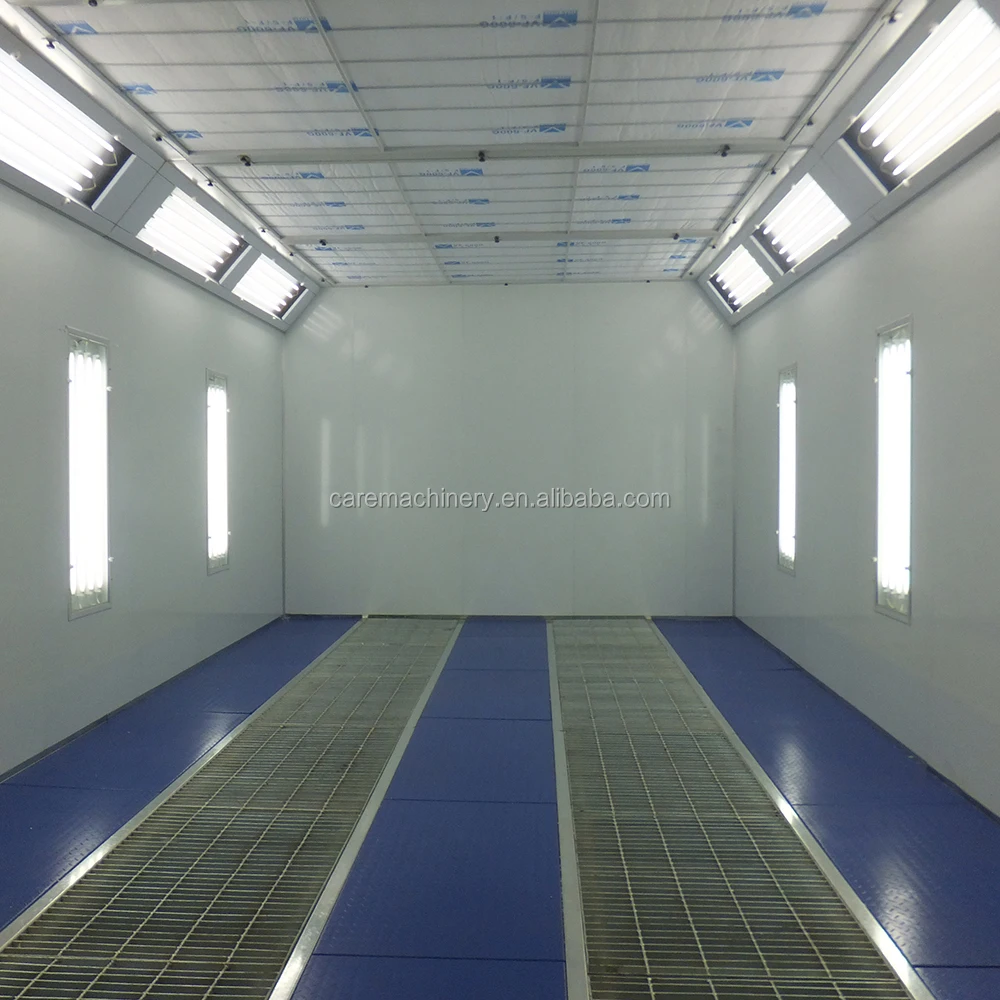

| 6. Illumination | Ceiling Lights * 32pcs, 20w LED lamp, with Light Fixtures, anti-explosion design | |||
| Side Lights * 32pcs,20w LED lamp, with Light Fixtures, anti-explosion design | ||||
| Illumination ≥800LUX | ||||
| 7. Control Panel | *1unit,Button type control box, with main switch, and set with normal temperature spraying, constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc. | |||
| ** Included | All Hardware, Fasteners, and Sealants | |||

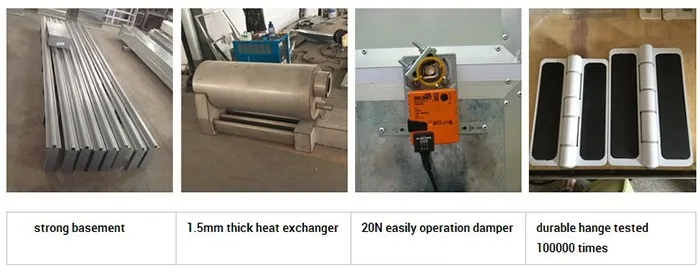

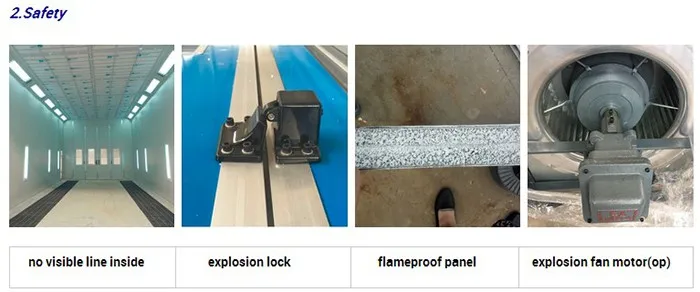

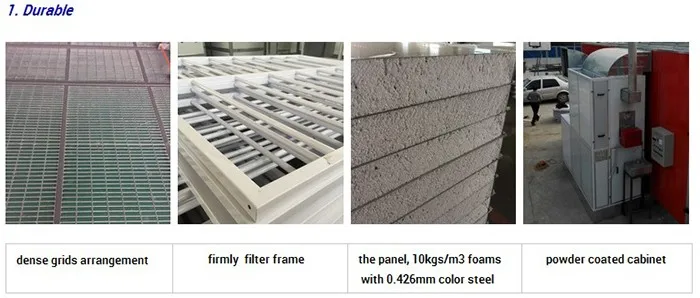

Features
Customized Booth
Certifications

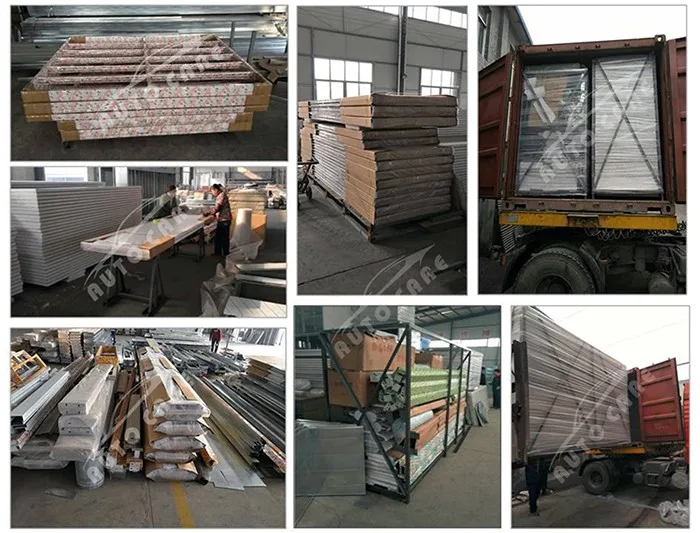

Packaging & Shipping
