Беспроводной 2D сканер штрих кодов с дальностью передачи 100 м, ручной сканер штрих кодов QR кода 2D для XB 6266 Мб
- Category: Scanners >>>
- Supplier: GUANGZHOU,SYBLE,CO.,LTD
Share on:
Product Overview
Description

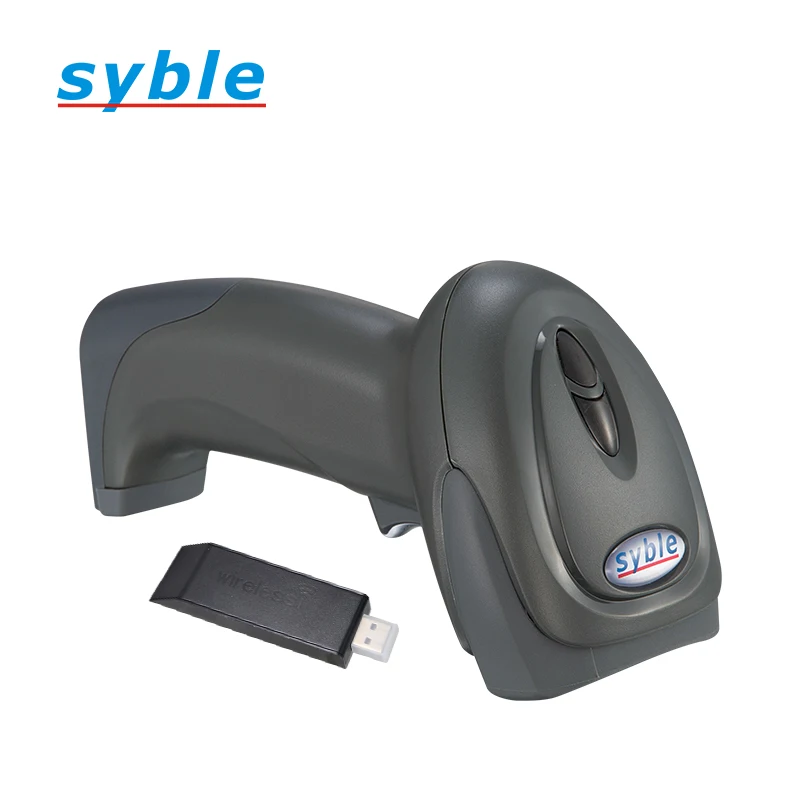

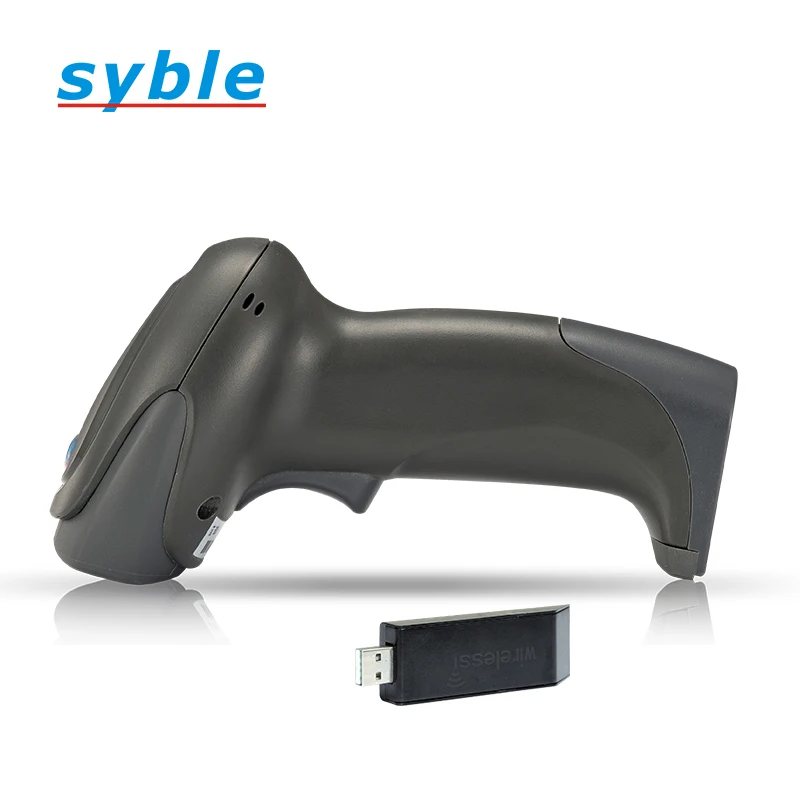

Transmission Distance 100M 2D Cordless Barcode Reader Handheld QR code 2D Barcode Scanner XB-6266MB
Product Description
Specification
Model Number | XB-6266MB |
| Performance Parameters | |
| Light Sources | 617nm LED Aimer,White LED |
| Supported Symbologies |
1D:Codabar,Code 11,Code 39/Code 93,UPC/EAN,Code 128/EAN128,Interleaved 2 of 5,Matrix 2 of 5,MSI Code,Industrial 2 of 5,GS1 Databa 2D:QR code,Data Matrix,PDF417 |
| Scan Type | Image COMS |
| Precision | 460*480 |
| Scan Method | Manual/Contnuous/Automatic Scintillation |
| Scan Angle | Yaw 60°,Rotation 360°,Pitch 60° |
| Precision | ≥5mil |
| Depth of scan field | EAN13 50-200MM (13MIL) ; QR 25-240MM(20MIL) ; PDF147 30-130MM(6.67MIL) |
Contrast | 20% |
| Error Rate | Less than 1/5 million |
| Interface | USB-HID |
Wireless Communication | Pairing dedicated receiver: 2.4G communication Pairing Mobile Wireless Devices: Wireless BLE 4.0 |
| Wireless Transmission Distance | 100M(Open yard) |
| Storage Ability | 512000Bytes |
| Pairing Model | One to one,Many to one(Max 7 channels) |
| Receiving End | Dedicated Wireless USB receiver, Android,IOS Mobile devices |
| Physical Parameters | |
| Dimensions | 85mm*62mm*154mm |
| Weight | 176g |
| Material | ABS+PC |
| Cable Length | 1M |
| Environmental Parameters | |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -40℃~70℃ |
| Relative Humidity | 5%~95%(Non-condensing) |
| Ambient lighting | 0~100000LUX |
| Shock Resistance | Withstands multiple times 1.5m drops to concrete |
| Electrical Parameters | |
| Voltage | DC5V±1% |
| Operating Current | 280mA |
| Standby Current | 0mA(Standby is to cut off battery power) |
| Battery Working Times | 7h |
| Charging Time | 5h |
| Lithium battery | 2200mA |
Features:
Can read a variety of 1D&2D bar code
Touch charging base
Stores about 512000 characters
Wireless Wireless open about 100 meters
Wireless receiving base, plug and play, easy to set up, fast to use
It can be used directly with the phone, tablet and laptop with Wireless function
Application
Company Information
Our Services
1. Self-induction charging & RF receiver in one.
2. Max. storage reaches 32000 codes; Max. scan 128 bit barcode, memory 32M.
3. Easy & simple settings & quick paired installation device.
4. Long communication distance; 50m indoor and 500m outdoor.
5. 433MHz wireless wifi receiver, high anti-interference.
6. Supporting network construction; 1 base to 254 readers or 15 bases to 1 reader; ID display.
7. Free of charging trouble; battery charging time 3-5 hours & constant working time over 6hours
8. Long lifespan & rechargeble 550mAH lithium battery. 9. Turn on and off automatically, improve working efficiency.
Packaging & Shipping
Packaging :
SYBLE Barcode Scanner Standard Package
1 x Desktop barcode scanner
1 x Connection cable
1 x English Manual
1 x Warranty card
Port:
GUANGZHOU ( by sea, air, or express, FEDEX, UPS, DHL, ARAMEX...)
Lead Time : 7~15 working days according order quantity.
Trade Shows
Certifications
FAQ
Q1. Do you have strict quality control procedures?
Yes, each step of production and packaging is carried out inspection by QC department before shipping.
Q2. What’s the warranty policy for the barcode scanners?
We provide 1 month replacement and 24 months maintenance warranties. Barcode scanners can be replaced during the first month if it is technical and quality problem. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order.
Q3. Is sample order of barcode scanners accepted?
Yes, welcome sample order to test the quality and check our service, which is also helpful for promotion.
Q4: Do your company is a trading company ?
We are professional manufacturer of Barcode Scanner ,have factory not a trading company
Q5: what is your quality policy after sale ?
The warranty on Wireless Barcode Scanner is 2years ,and cable is 6months
