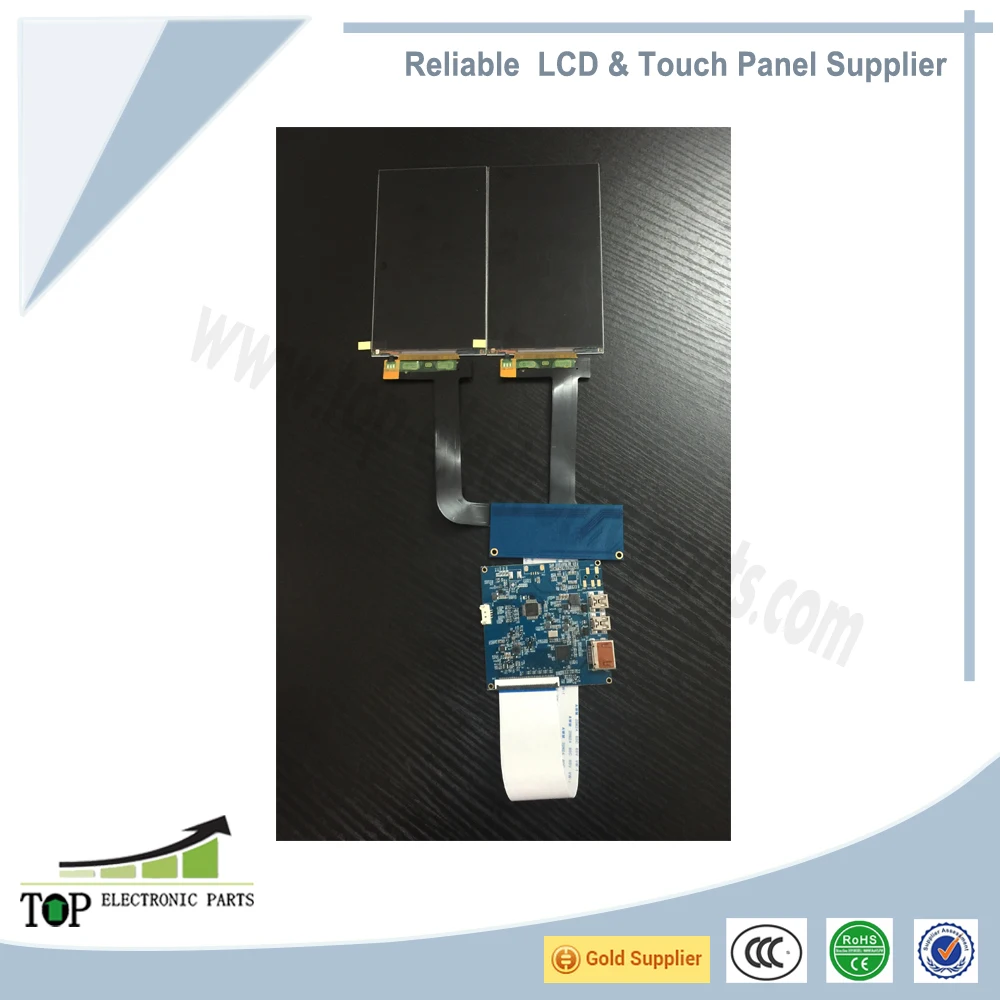

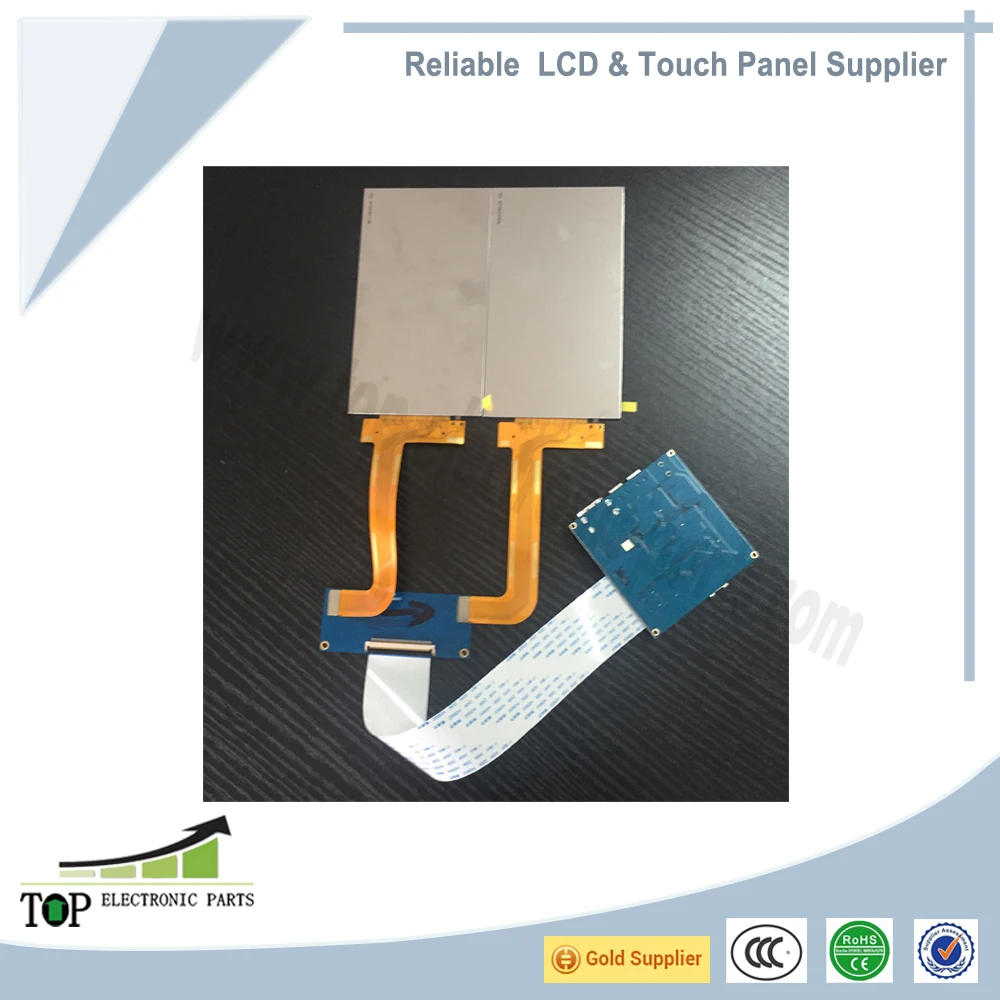

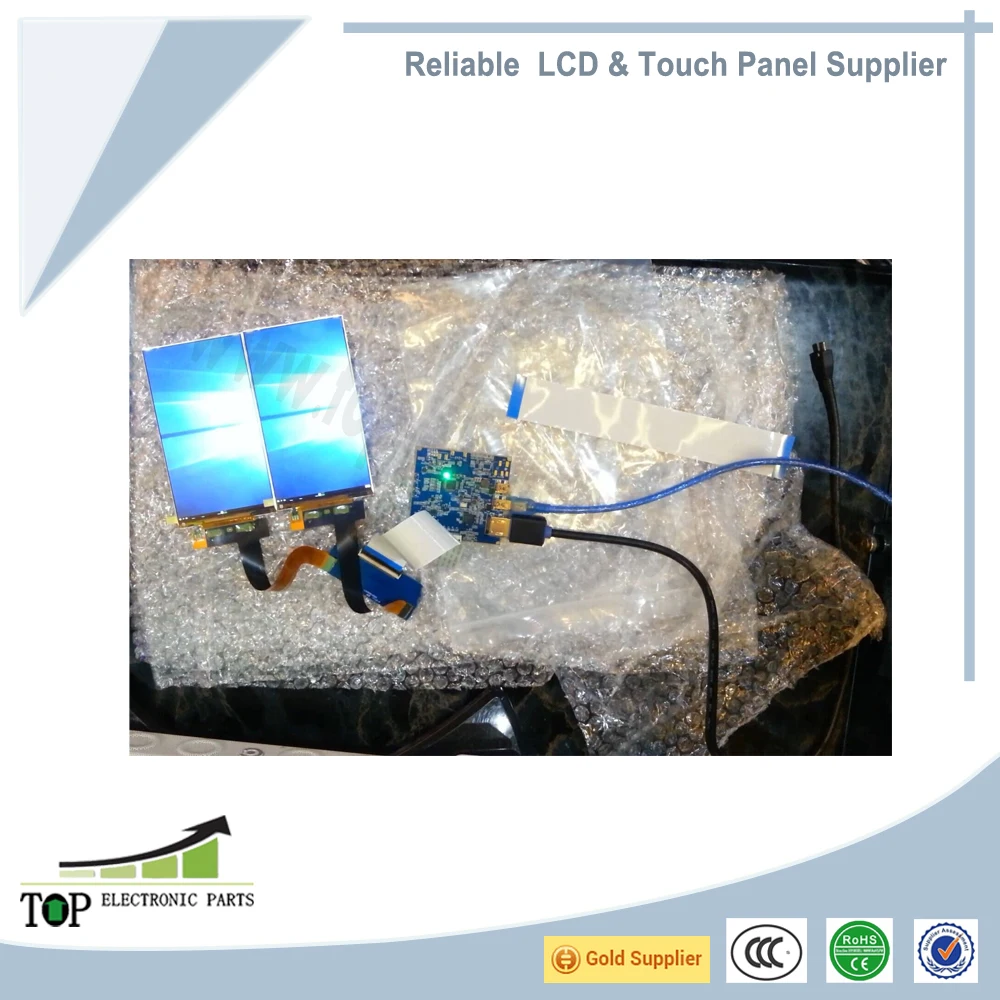

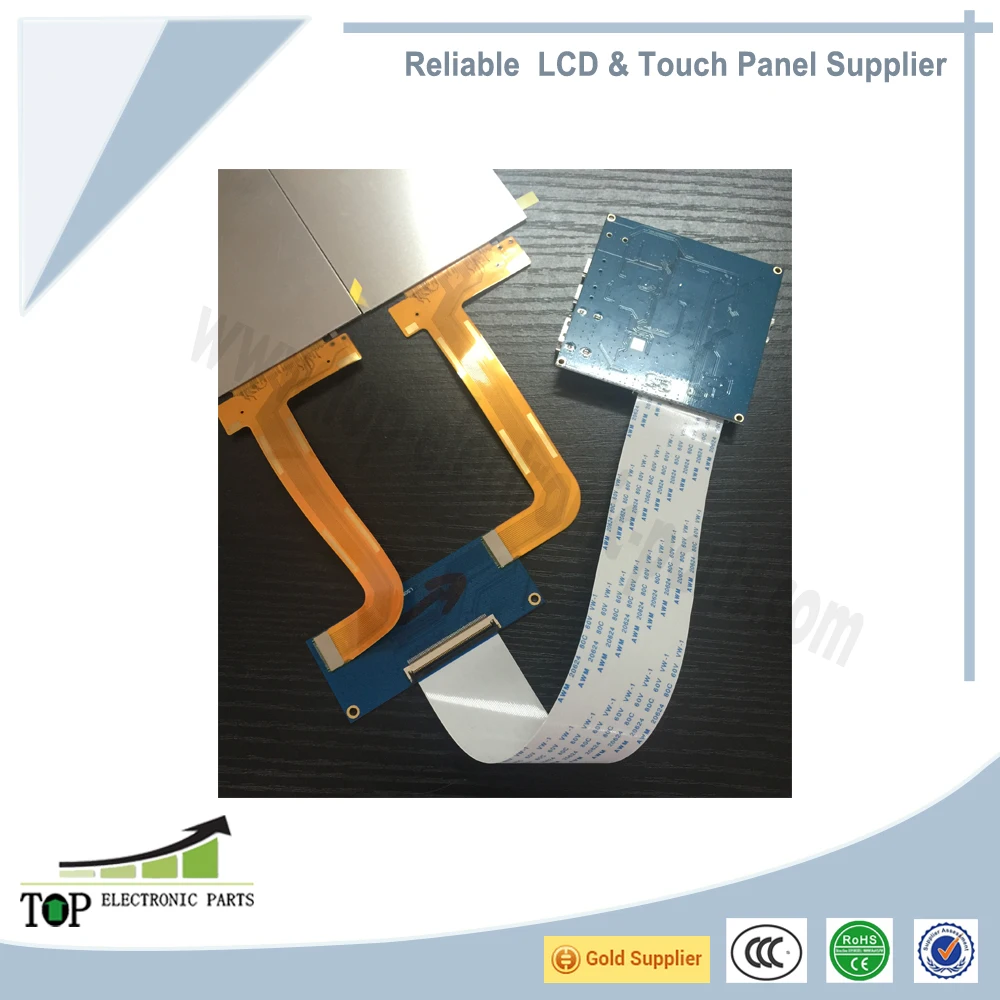

5.5 Inch TFT Lcd IPS Display Dual LCD Screen, 2K Color 1440*2560 MIPI DSI Interface 2 USB Port

Module Dimensions

70.94(W)mm*128.26(H)mm*1.35(t)mm(Excluding I/F -FPC and electronic components)

Active Area Dimensions

68.04(W)mm*120.96(H)mm(5.46”)

Pixel Pitch

0.04725(W)mm*0.04725(H)mm(538ppi)

Resolution

1440*2560

Color Pixel Arrangement

RGB Vertical Stripe

Display Mode

Transmissive Type,Normally Black Mode,In-Plane Switching Mode

Number of Colors

16,777,216 Colors

Backlight

Light Emitting Diode(LED),14LEDs are 2 parallel,7 series connection

Backlight current:20mA/LED(typ)

Power Supply Voltage

AVDD=5.5+/-0.1V AVEE=-5.5+/-0.1 V

Interface I/O Power supply

Note(1)

VDDI=1.8=/-0.1V

The same voltage as “H” level of a customer’s interface signal must be supplied to VVDI

LCD Driver IC

(Source and Power IC: Renesas SP Driver Inc.)

Interface

MIPI_DSI Video mode(4-Lan x2-port)

Method of Inversion

Column Inversion

Surface Treatment

HC-Polarizer(Hardness:3H)
