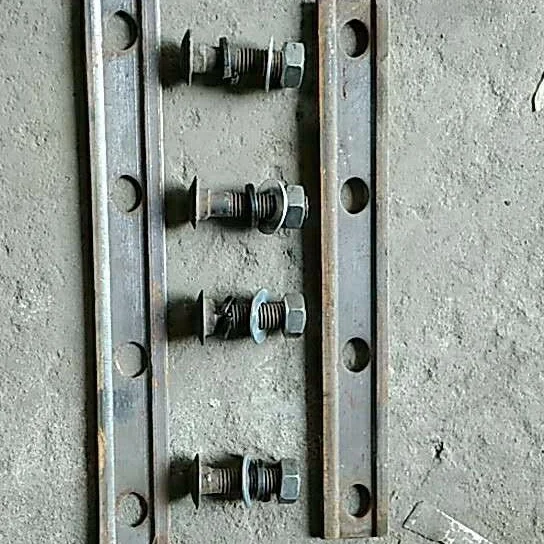

bolts and nuts for railway fishplate

Chinese TB Standard Fishplate

 Standard: TB/T2345-2008

 Material: 55#

 Type: 43kg, 50kg, 60kg, 75kg

 Chemical Component

         C                Mn                  Si                  S              P

0.52-0.60       0.50-0.80       0.17-0.37       <=0.035      <=0.035

Mechanical Property

Tensile Strength Rm: >=785 Mpa

Yield Strength Rel/ Rr0.2: >=520Mpa

Elongation A: >=9%

Cross-Section Shrinkage Z: >=20%

Hardness HBW10/3000 : HBW 227-388

Americal AREMA Standard Fishplate

 Standard: AREMA 2010

 Material: 55#

 Type: 115RE, 119RE, 132RE, 136RE, 141RE

 Chemical Component

         C                Mn                  Si                 P

0.35-0.60          <=1.2            <=0.040        <=0.050

Mechanical Property

Tensile Strength Rm: >=690 Mpa

Yield Strength Rel/ Rr0.2: >=480Mpa

Elongation A: >=12%

Cross-Section Shrinkage Z: >=25%

England BS Standard Fishplate

 Standard: BS47-1

 Material: 40#

 Type: BS75R, BS80A, BS90A, BS100A, BS113A

 Chemical Component

         C                  Mn                  Si                  S                P

0.27-0.48          <=0.94            <=0.38      <=0.058      <=0.058

Mechanical Property

Tensile Strength Rm: 550-650 Mpa

Elongation A: >=18%

UIC Standard Fishplate

 Standard: UIC864-4 & UIC864-8

 Material: 40#

 Type: UIC54, UIC60

 Chemical Component

      C                Mn                  Si                  S              P

0.37-0.44       0.50-0.80       0.17-0.37       <=0.035      <=0.035

Mechanical Property

Tensile Strength Rm: 550-650 Mpa

Elongation A: >=18%

DIN Standard Fishplate

Standard: DIN 5902-1995

 Material: Chinese steel grade q235 or q295

 Type: S30, S49

Chemical Component(Q235)

         C                Mn                  Si                  S              P

0.14-0.22       0.30-0.65          <=0.30      <=0.050      <=0.045

Mechanical Property(Q235)

Tensile Strength Rm: >=375 Mpa

Yield Strength Rel/ Rr0.2: >=235Mpa

Elongation A: >=21%

Chemical Component(Q295)

         C                Mn                  Si                  S              P

0.52-0.60       0.50-0.80          0.17-0.37      <=0.035      <=0.035

Mechanical Property(Q295)

Tensile Strength Rm: >=390 Mpa

Yield Strength Rel/ Rr0.2: >=295Mpa

Elongation A: >=23%

And other standard Fishplate can be supplied according to customer's request.

      Zhongxiang Steel Group has been engaged in steel trade and rail processing more than 20 years. We establish branch companies and processing plants in Shanghai, Henan, Hebei, Guizhou. We strive to provide customers with more convenient, thoughtful, high quality service. And our products have been exported to countries and regions over the world, like  Russia, India, Pakistan, Thailand, Korea, Brazil, South Asia and so on.

• Large Stock


• Processing: Shearing, CNC Cutting, Sawing


• Full-time Service


• Fast Delivery Time


• Professional Team


• Preferential Policy


• Good Corporate Reputation


• Competitive Price and High Quality

Quality assurance: mill test certificate is provided and third inspection is acceptable.

In order to ensure better quality, our products-the steel rails must pass several tests, including chemical composition test, tensile strength test, hardness test and the drop weight test.
