Top Precision High Speed Polyurethane Gas Pipe Production Line

I. Brief introduction

Based on CISSCO company's extremely mature precision small tube extrusion process technology and experience, through the successful cooperation with Japan terminal user, we have started gradually promotion for the high-end PU pipe extrusion line in the domestic auto parts market and other overseas regions.

II. Common information of machine line

—SXG series precision tube extrusion line meets the following requirements:

1. In view of operation safety, machine equipped with:

1.1 E-stop switch;

1.2 Control system to prevent machine from damaged at abnormal condition;

1.3 Flash lamp and voice show machine is under abnormal running condition;

1.4 The parts which probably cause damage to operation staff are all designed with protection.

2. The following technical documents included in the content of purchasing object:

2.1 Installation layout diagram of machines;

2.2 Circuit diagram of machines;

2.3 Operation manual of machines;

2.4 Certificate of machine quality;

2.5 Certificate of machine warranty by supplier;

3. Name and model: SXG-65T Precision PA/PU tube HIGH SPEED extrusion line

3.1 Output:  20-100Kg/h,  expected producing speed: 0–80 m/min;

3.2 Environment:  Indoor, humidity 0.85, no condensation point, temperature≤40℃;

3.3 Power supply:  380V 50HZ, 3-phase 4wires; Install power ≤80KW;

3.4 Circulation water flow:  8-12.0m3/h;

3.5 Compressed air:  0.6-0.7Mpa.

3.6 Operation direction of production line is from right to left direction;

3.7 Core height of production line is 1100mm;

3.8 Install space:  18.0m x 3.5m x 3.0m (length x width x height);

3.9 Color of machine: RAL 7035; Or according to client appoint color.

III. Specifications of tube

PA tube production standard technology can reach as follow:

Diameter precision standard: (Model SXG-65T for example)

Outwards appearance requirement:

Internal and external surface of pipe should be smooth and single color, should be uniform wall thickness, no manufacturing defect and air bubble, shrinkage, crack, non-uniformity etc.

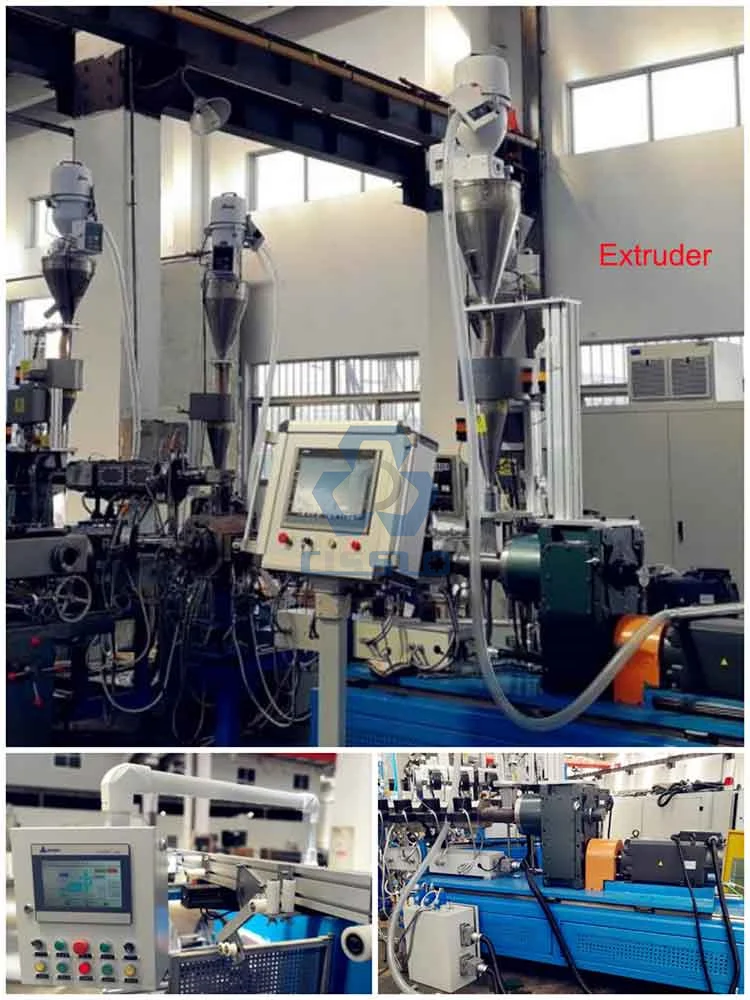

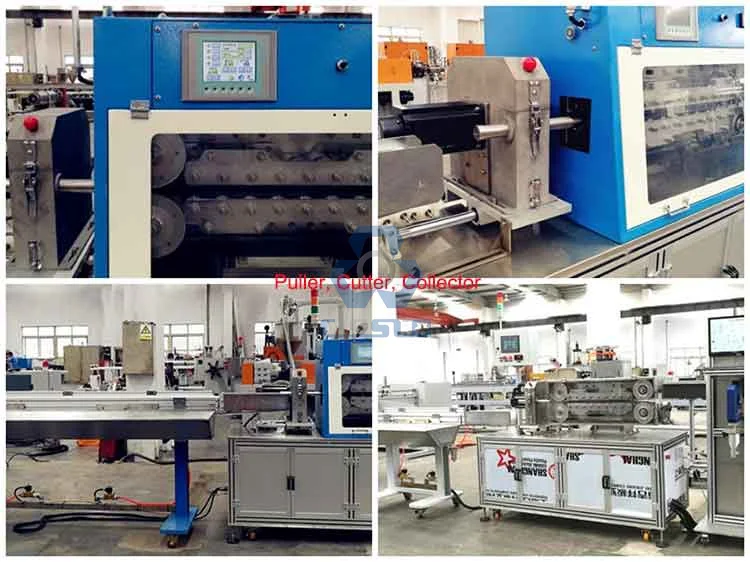

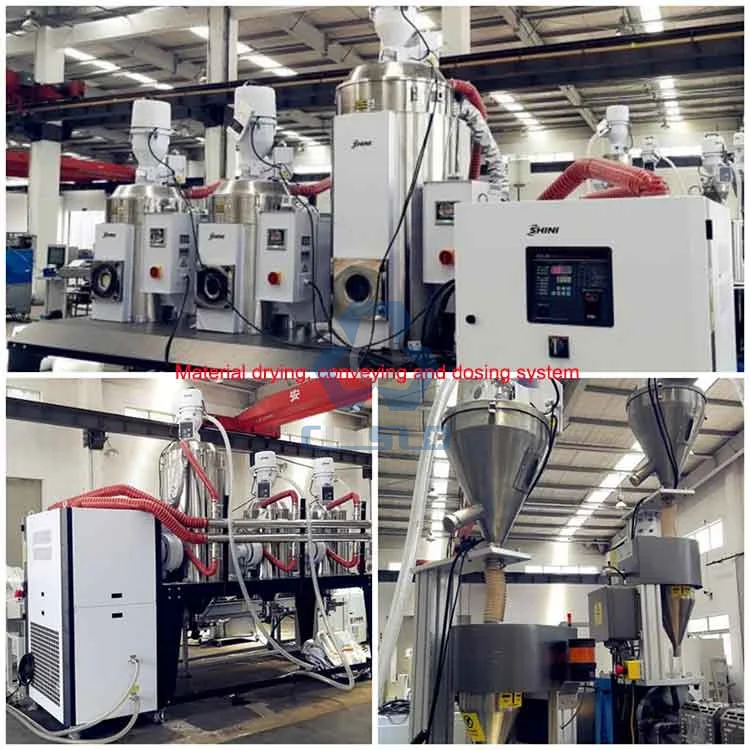

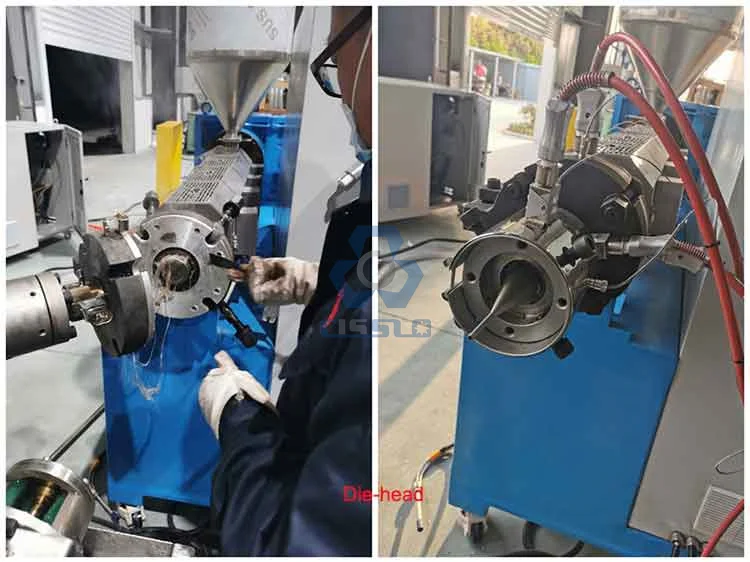

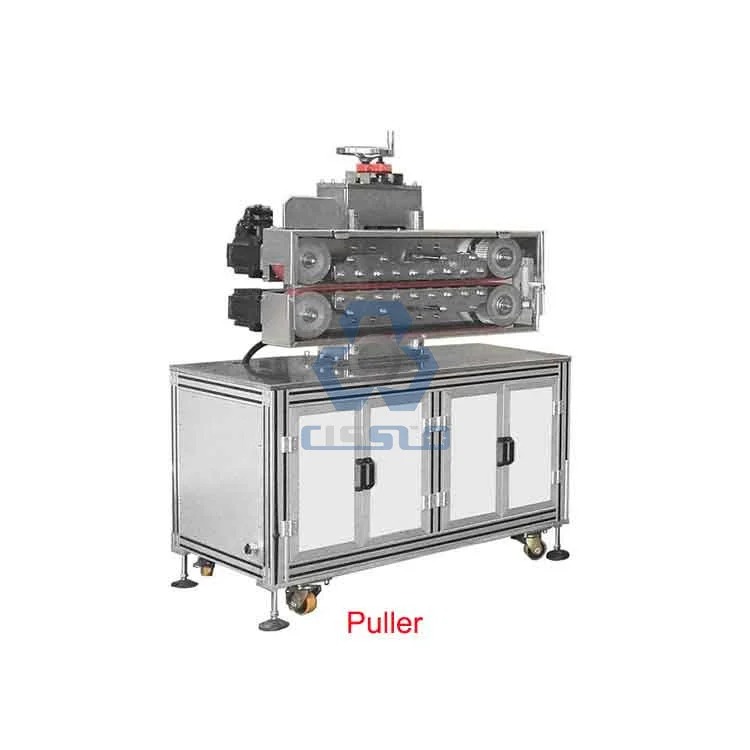

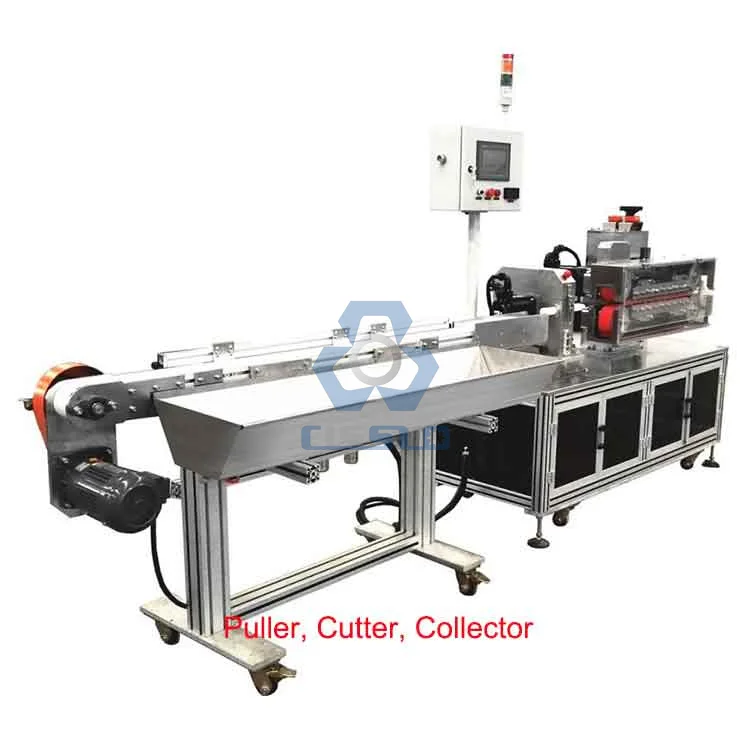

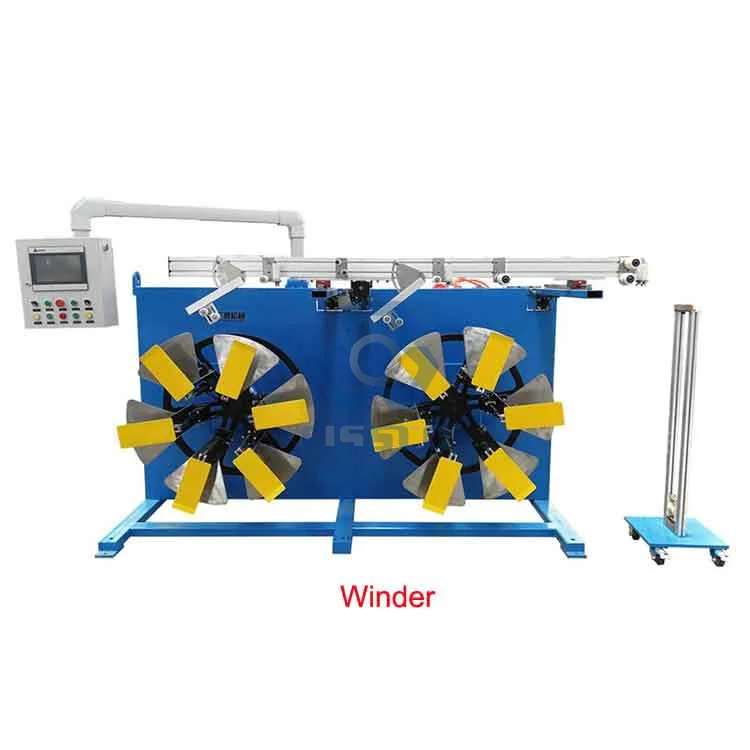

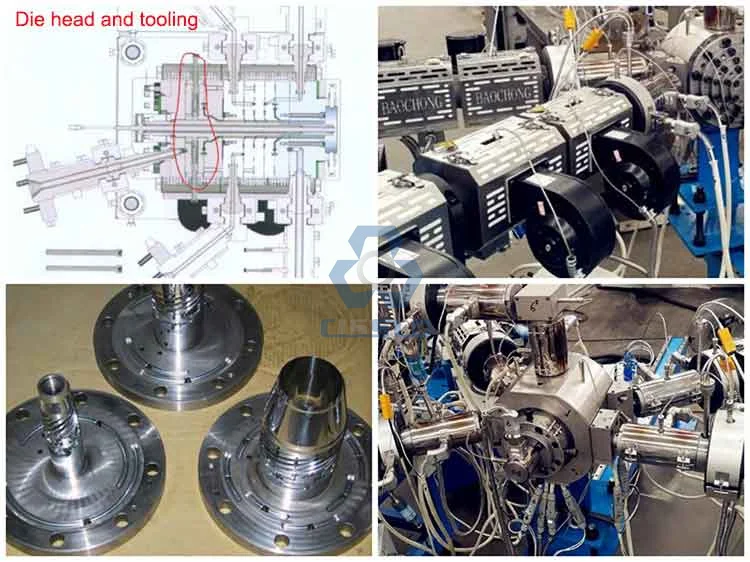

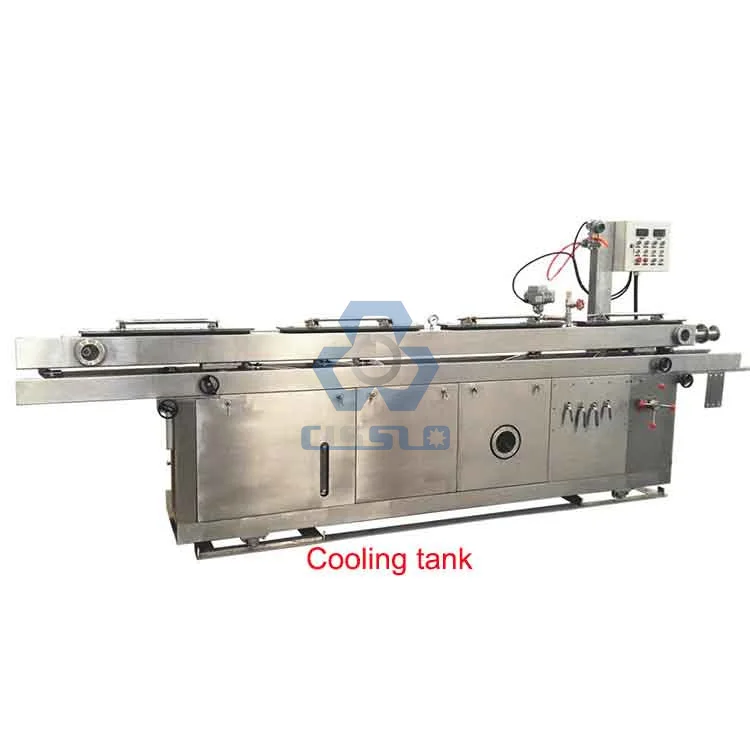

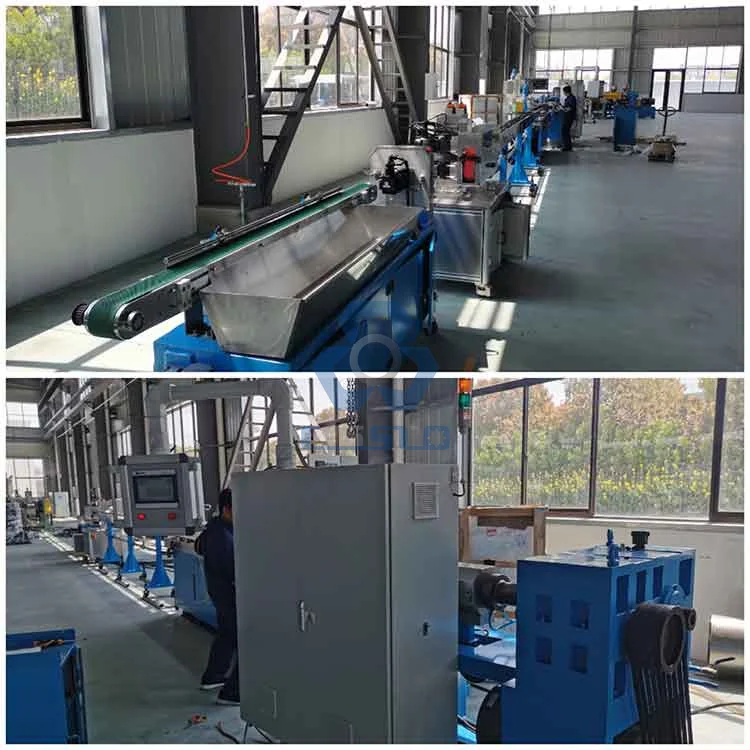

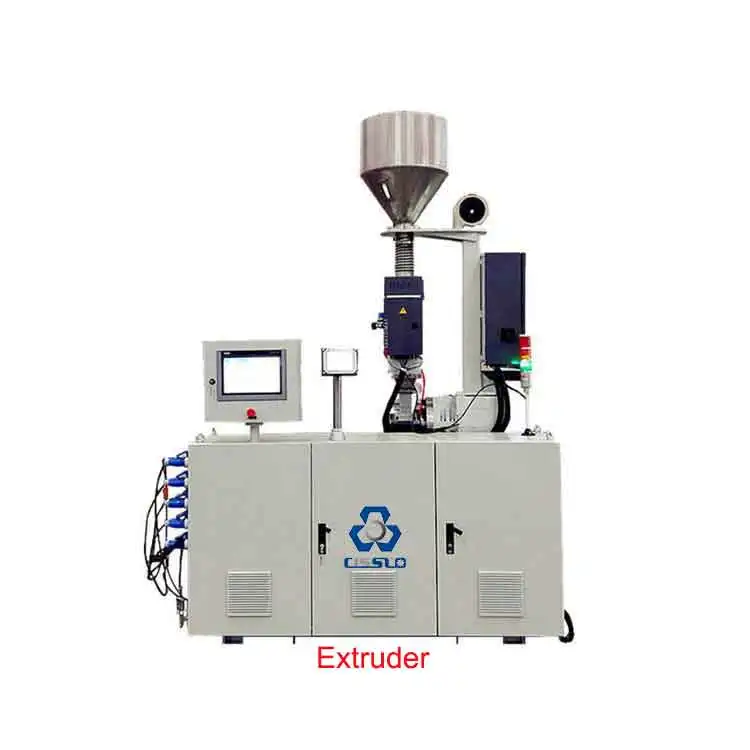

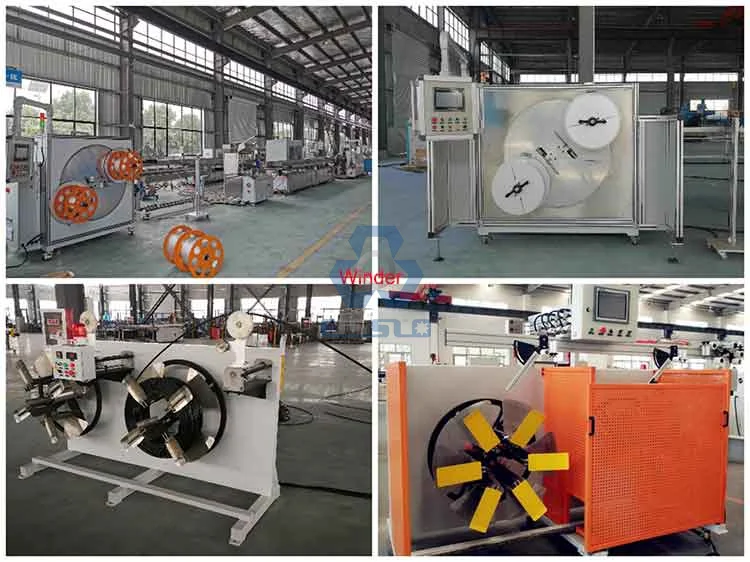

IV. Pictures of machine

CissCo Machinery is a fast forward professional supplier of complete plastic precii]sion extrusion equipments and systems.

At CissCo, we design, engineer and manufacture customized PLASTIC EXTRUSION LINES. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.

To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world.

we are using the high technology from European. From the pictures, you can find the similarity between our machine and theirs. Our technical advantages are as follows,

1. European pipe extrusion technology;

2. 20 years plastic extrusion experiences;

3. Easy to operate, Stable production performance, Low production cost, Good quality pipes;

4. Quicker production speed, bigger output;

5. Good steel material and well-known brand electrical parts;

6. Good appearance of machine, beautiful;

7. Free training for technical process, formula and know-how;

8. Full time and high level after-sale services.

• What kind of tube that you want to make?


• What's the usage of tube?


• What kind of material to use?


• What's the diameter of tube?
