Silicone sealant mixer making machine production line
US $600.00-$650.00
Chemical Sanitizer Shampoo Mixing Tank Double Jacketed Electric Heating Liquid Soap Detergent Making Machine with Agitator
- Category: Mixing Equipment >>>
- Supplier: Guangzhou,Guanyu,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Recommended by seller
Product configuration

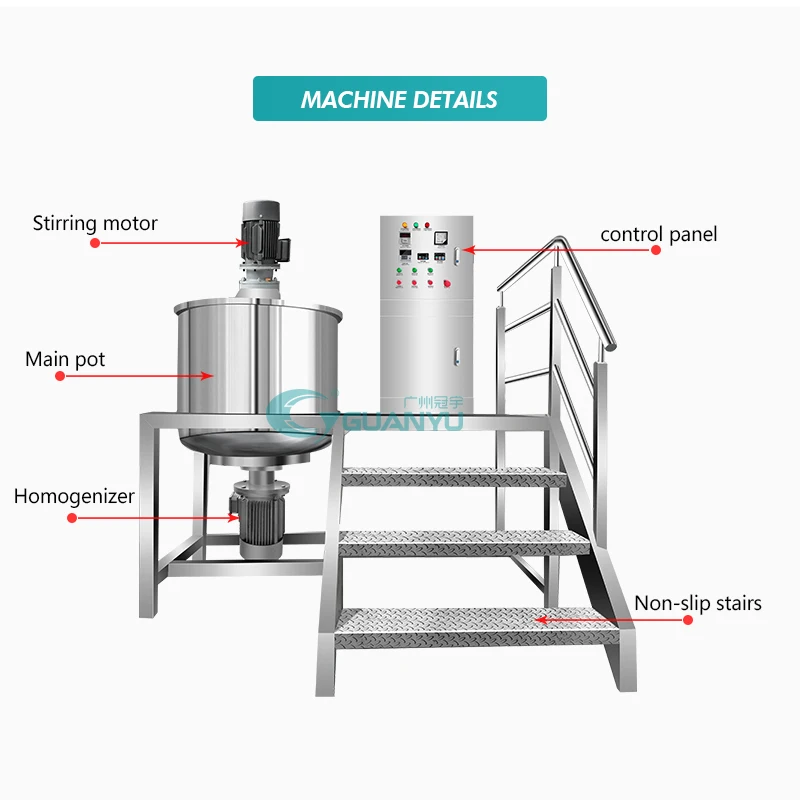

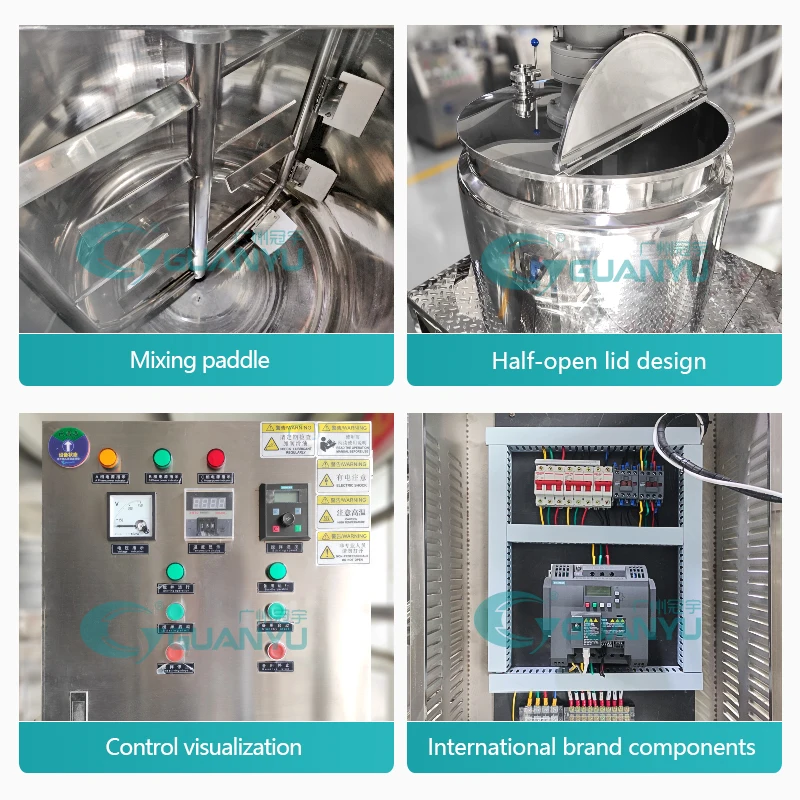

◭Stainless Steel Mixing Tank has mixing agitator,bottom homogenizer,stainless steel jacket tank shell,motor,electric control box,operation platform,staircase,etc.
◭The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve
manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm,the shear degree is about 0.2~5um.
◭The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.
◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
◭We can choose PLC automatic control system ,or manual button control box,it depends upon your demand.
◭The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve
manyindissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period. High Shear Homoegnizer adopts German Technology, 0~3500rpm variable speed, and maximum speed can reach to 4500rpm,the shear degree is about 0.2~5um.
◭The tank body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.
◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
◭We can choose PLC automatic control system ,or manual button control box,it depends upon your demand.
Model | Working Volume (L) | Mixing power (kw) | Mixing speed (r/min) | Homogenizing power (kw) | Homogenizing speed (r/min) | Heating method |
GYM-100 | 100 | 1.1 | 0~63 | 2.2 | 0~3500 | Electric Heating |
GYM-200 | 200 | 1.5 | 0~63 | 2.2~3.0 | 0~3500 | Electric Heating |
GYM-300 | 300 | 2.2~3.0 | 0~63 | 3.0~4.0 | 0~3500 | Electric Heating |
GYM-400 | 400 | 2.2~3.0 | 0~63 | 4.0~5.5 | 0~3500 | Electric Heating |
GYM-500 | 500 | 3.0~4.0 | 0~63 | 5.5~7.5 | 0~3500 | Electric Heating |
GYM-1000 | 1000 | 4.0 | 0~63 | 7.5~11 | 0~3500 | Steam Heating/ Electric Heating |
GYM-1500 | 1500 | 5.5 | 0~63 | 11-15 | 0~3500 | |
GYM-2000 | 2000 | 7.5 | 0~63 | 15-18.5 | 0~3500 | |
GYM-3000 | 3000 | 11~15 | 0~63 | 18.5-22 | 0~3500 | |
GYM-5000 | 5000 | 15~22 | 0~63 | 22~30 | 0~3500 |
Product configuration
Dear all, thank you for visiting our web. Hope you can find what you need here. For a more efficient communication, please refer to the following question when sending the inquiry.
1. What is your product? (liquid soap, or shampoo or ?)
2. What is the capacity you need?
3. Is your product highly corrosive?
4. Does the product needs heating when mixing?
1. What is your product? (liquid soap, or shampoo or ?)
2. What is the capacity you need?
3. Is your product highly corrosive?
4. Does the product needs heating when mixing?
