MC 400CNC Steel Cold Saw CNC Automatic Pipe Tube Cutting Machine with gear machine head for durable use

Product Overview

Description

MC-400CNC Steel Cold Saw CNC Automatic Pipe Tube Cutting Machine with gear machine head for durable use

1.HSS saw blade (Φ250-Φ400mm) is applied, standard Φ400mm. Automatic feeding by servo motor, automatic clamping and cutting

2. Feed upwards and downwards to the vertical slide, making saw cutting more stable and ensuring high service life and high precision of cutter.

3. European-style design, multiple units of gear drive suitable for heavy cutting, stable precision

4. Well-designed feed system, no damages to surface of parts and high feed precision

5. Unique design of main clamp, strong clamping force.

6. It is controlled by PLC control with touch screen and can be maintained simply.

7. Automatic circulation of cooling fluid ensures smoothness of cutting face of parts.

8. Control buttons are concentrated on panel, which facilitates to operation.

9. Cutting length display device, cutting quantity setting and counting device and shutdown device are provided.

Technical parameter

Specification/Model		MC-400CNC
sawing scale	Applicable sawblade 250-400
	rectangle pipe	160mm x 80mm
	square pipe	125mm×125mm
	round pipe	120mm
	round bar	90mm
	square bar	80mm×80mm
Size	2200×1100mm×1700mm
Spindle motor		4.5/5.5Kw
Main shaft speed(RPM)		88/44Rpm
Saw blade		HSS Saw blade, 250-400,     center hole 32mm
Feeding length Standard		6-1000*time after time
Oil motor system		2.2KW motor,18L pump
Cooling system		0.09KW motor

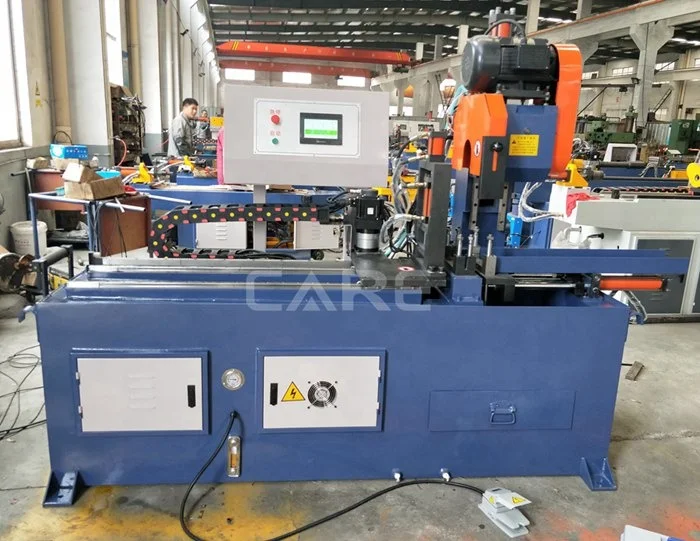

Machine photo(Standard type)

Extension feeding length 2000mm

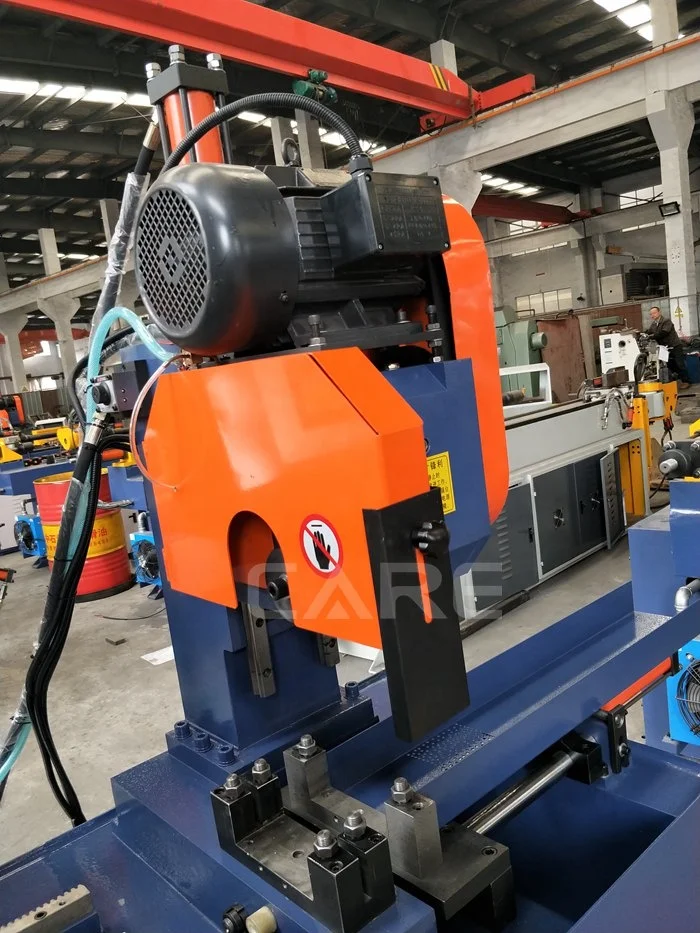

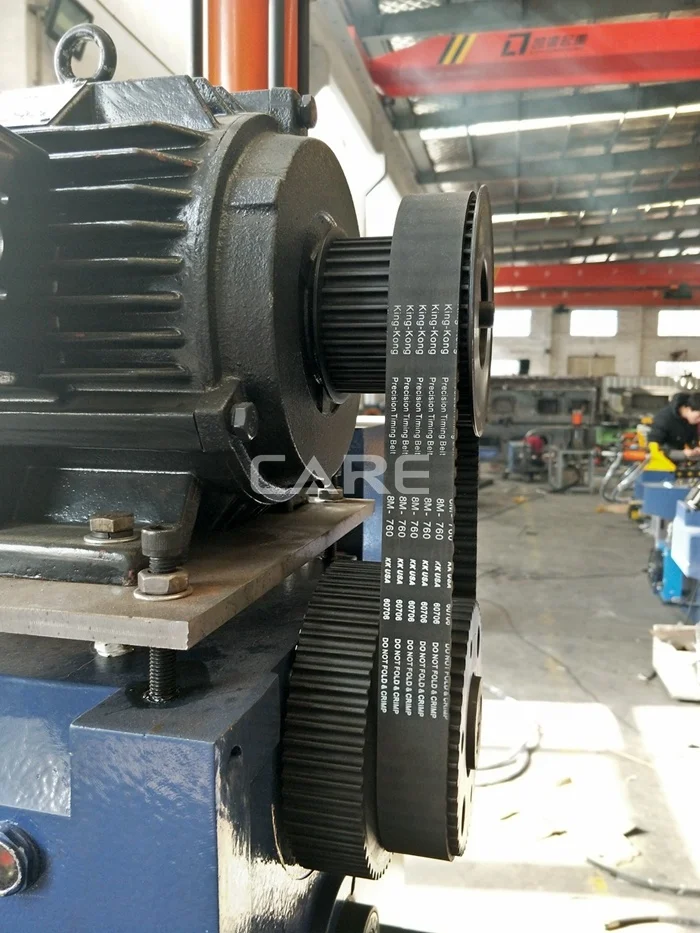

Importing gear machine head

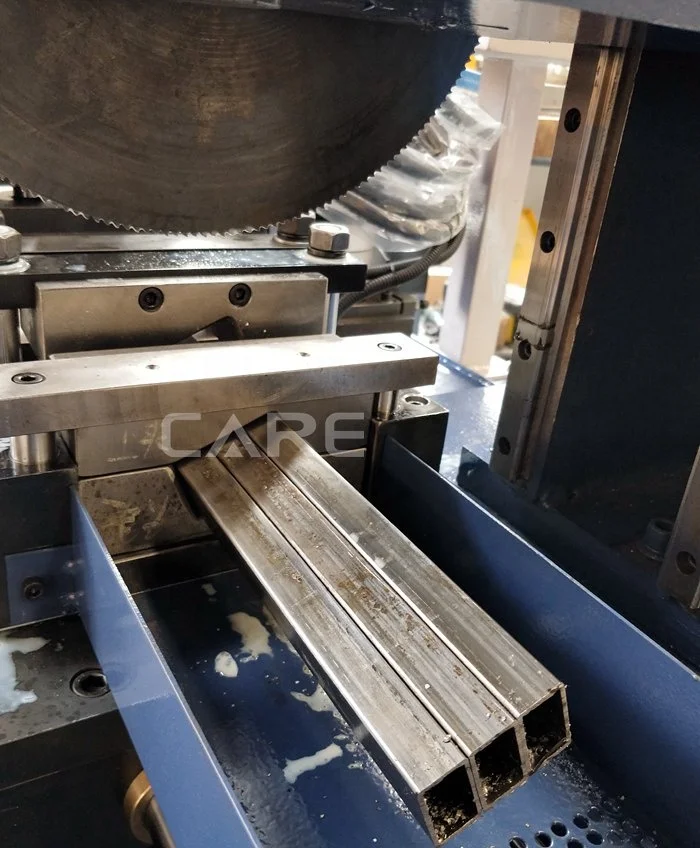

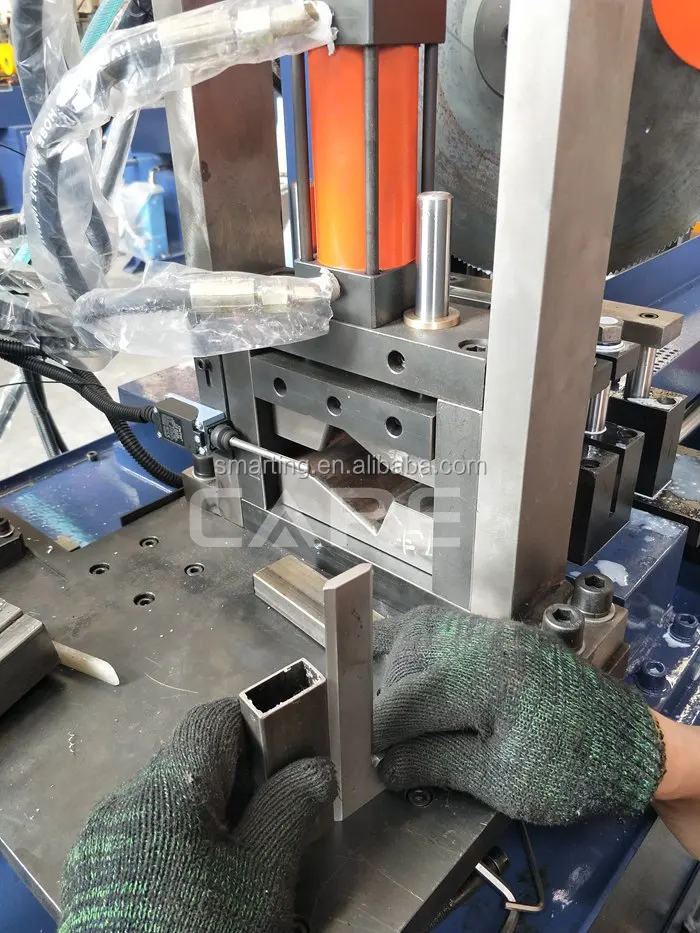

Special clamp molds

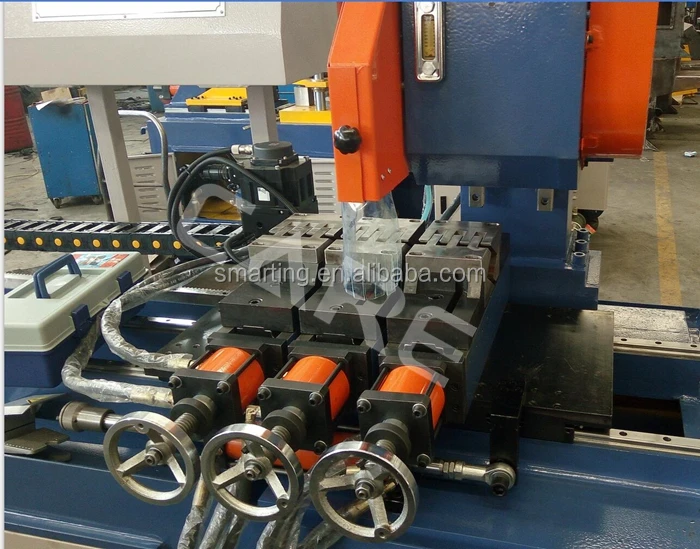

Universal clamp molds
