ANPR camera License plate recognition parking management system
- Category: >>>
- Supplier: Guangzhou Coma Electronics Co. Ltd.
Share on (60666594774):
Product Overview
Description
Product Description
Car Parking System for Entrance and Exit
Guangzhou Coma Ltd.offers a reliable range of automated access control systems tailored to car park application. The integrated solutions includes ticket systems,swipe cards,Automatic Number Plate Recognition(ANPR) or Radio Frequency Identification(RFID) A well designed car parking system can be a successful revenue generator.
Specification

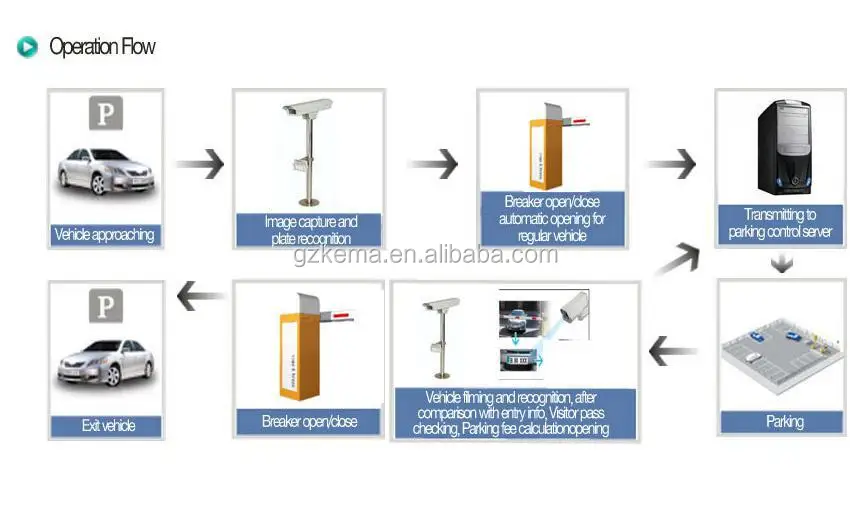

Work flow of central payment model(include payment machine):
A: Registered parkers- license plate recognition enter and leave.
B: Temporary parkers(Visitor)
ENTER: come to the entrance,presence at the coils sensor, press the button of ticket dispenser, to take a barcode ticket, camera will take a snapshot to store in the system, barrier gate open, vehicle entered, boom of barrier gate will lay down automatically
Pay at the automatic payment machine or central manual payment point
Exit: come to the exit, scan the barcode ticket, confirm the payment,take a snapshot,store in the system,
barrier gate will open,vehicle passed, boom will lay down automatically.
B: Temporary parkers(Visitor)
ENTER: come to the entrance,presence at the coils sensor, press the button of ticket dispenser, to take a barcode ticket, camera will take a snapshot to store in the system, barrier gate open, vehicle entered, boom of barrier gate will lay down automatically
Pay at the automatic payment machine or central manual payment point
Exit: come to the exit, scan the barcode ticket, confirm the payment,take a snapshot,store in the system,
barrier gate will open,vehicle passed, boom will lay down automatically.
How ANPR(also known as LPR) car parking system works
1. Entrance procedure
A vehicle stops in front of the entrance, just before the barrier. The sensor detects its presence and a dedicated camera
automatically recognizes and records the number plate, date and time of entry. The remote management system captures the data
provided by the camera and enters it into the database. If already registered, the subscriber’s membership information and
reservation data are added. The entrance barrier rises allowing the driver access to the car park. The barrier lowers
automatically, once a vehicle passes the safety sensor.
Drivers of vehicles registered with an online account can enter and exit nominated car parks unimpeded. Parking charges are
automatically debited from their nominated credit/debit cards at regular intervals via an online account.
2. Exit procedure
A vehicle stops at the exit, just before the barrier. The sensor detects its presence and the dedicated camera verifies the number
plate against payment information, or the listing of the vehicle on the database (e.g. subscribers). The management system
validates correct payment, or entitlement to park without payment to enable exit. The exit barrier rises, allowing the driver to
leave the car park. The barrier lowers automatically once a vehicle passes the safety sensor.
1. Entrance procedure
A vehicle stops in front of the entrance, just before the barrier. The sensor detects its presence and a dedicated camera
automatically recognizes and records the number plate, date and time of entry. The remote management system captures the data
provided by the camera and enters it into the database. If already registered, the subscriber’s membership information and
reservation data are added. The entrance barrier rises allowing the driver access to the car park. The barrier lowers
automatically, once a vehicle passes the safety sensor.
Drivers of vehicles registered with an online account can enter and exit nominated car parks unimpeded. Parking charges are
automatically debited from their nominated credit/debit cards at regular intervals via an online account.
2. Exit procedure
A vehicle stops at the exit, just before the barrier. The sensor detects its presence and the dedicated camera verifies the number
plate against payment information, or the listing of the vehicle on the database (e.g. subscribers). The management system
validates correct payment, or entitlement to park without payment to enable exit. The exit barrier rises, allowing the driver to
leave the car park. The barrier lowers automatically once a vehicle passes the safety sensor.
Automatic payment machine
Parking payment kiosk is used to automatically manage the parking calculation, collection, change and small ticket printing charge
of equipment, 24-hour continuous operation, placed in indoor, configuration control, intercom and other security components .
of equipment, 24-hour continuous operation, placed in indoor, configuration control, intercom and other security components .
ANPR Parker
1. Enter license plate no. ( support fuzzy search), if license plate is ABCDEF, you can enter ABC, BCD or DEF, it displays related license plate no., selects your plate no.and click “confirm” .
2. When enter partial plate no., it shows all related plate no., if your license plate no. can’t be found in first page, click “ previous page” or “next page” to look for. Select your license plate picture, click “ confirm”.
3. Payment information will display as below:
After payment is made, APM will give change and print a receipt. The driver must leave parking lot within grace time (Usually is 15 minutes grace time), if driver leave the lot exceed grace time, system will calculate parking fee again.
When payment is done, system will return to standby interface and waiting for next parker.
Also, you can go to manual payment station, hand over barcode ticket and pay parking fee.
When payment is done, system will return to standby interface and waiting for next parker.
Also, you can go to manual payment station, hand over barcode ticket and pay parking fee.
Packing & Delivery
Reinforce export package

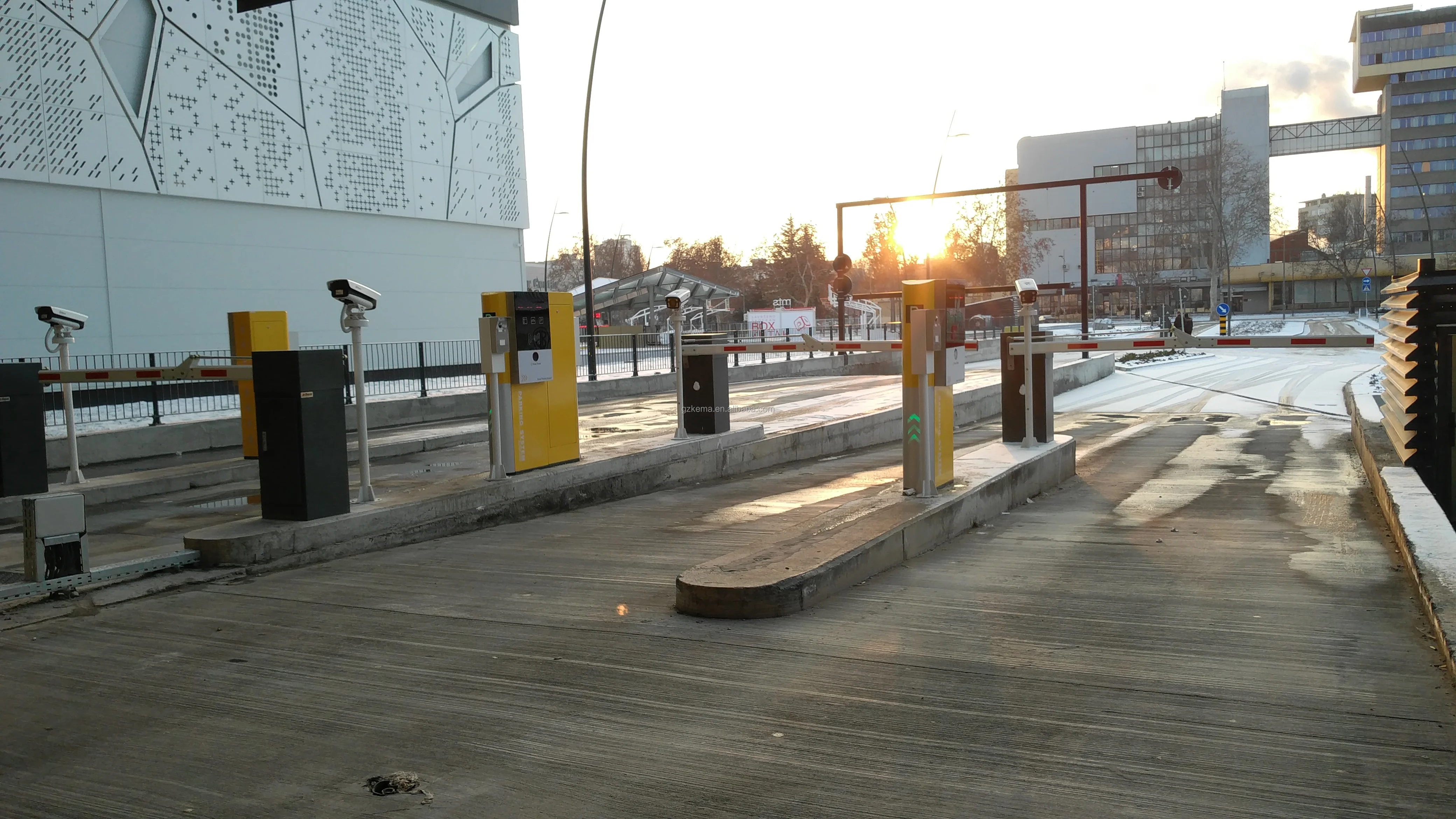

Customer Photos
Exhibition
Company Profile
COMA Group manufacture automated car parking & access control equipment and provide solution for car access control. The company has more than 20 years experience in the industry of car parking and car access control. With R&D team composed of hardware, software and firmware engineers, COMA Group is capable to provide flexible product customization service to customers, to confront ever-changing market demands.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to Southeast Asia(25.00%),South America(20.00%),Africa(20.00%),Domestic
Market(15.00%),Mid East(10.00%),North America(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Access Management System/Car Parking System/Parking Meter/Parking Lock/Parking Barrier Gate
4. why should you buy from us not from other suppliers?
We have been specializing in car parking system and security equipment for twenty years ,and we have our own factory and brand.We
are one of top five in this industry in China. What`s more ,our products are very popular with intentional markets!!
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2008,sell to Southeast Asia(25.00%),South America(20.00%),Africa(20.00%),Domestic
Market(15.00%),Mid East(10.00%),North America(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Access Management System/Car Parking System/Parking Meter/Parking Lock/Parking Barrier Gate
4. why should you buy from us not from other suppliers?
We have been specializing in car parking system and security equipment for twenty years ,and we have our own factory and brand.We
are one of top five in this industry in China. What`s more ,our products are very popular with intentional markets!!
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese
