Product Description

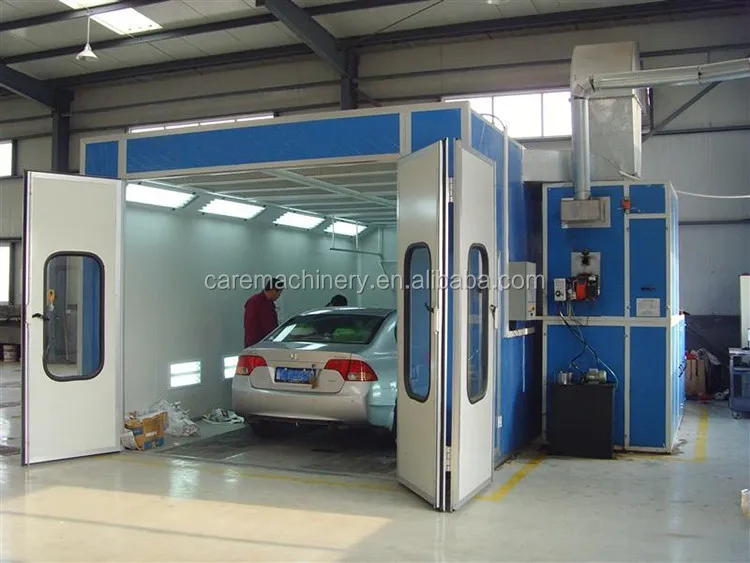

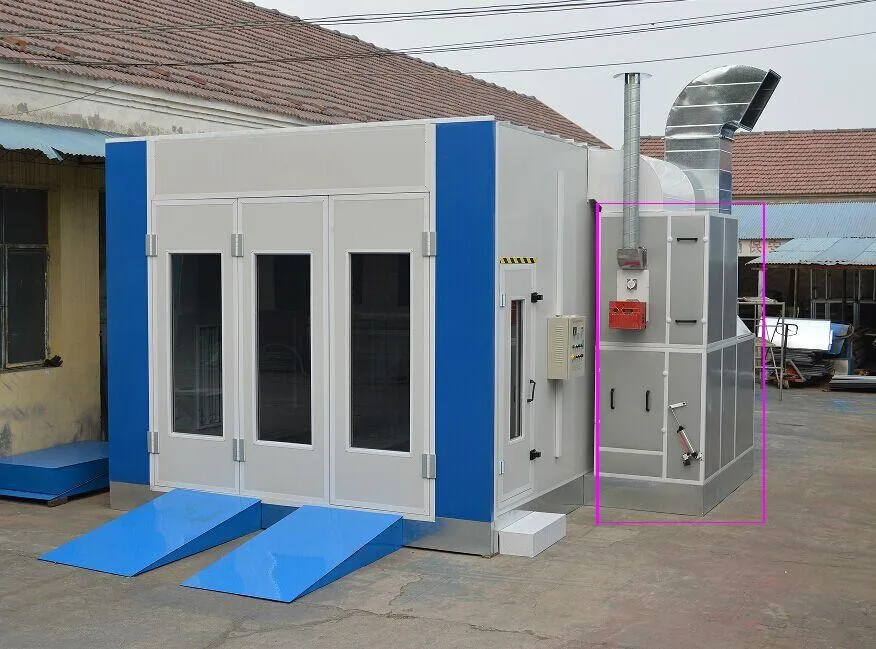

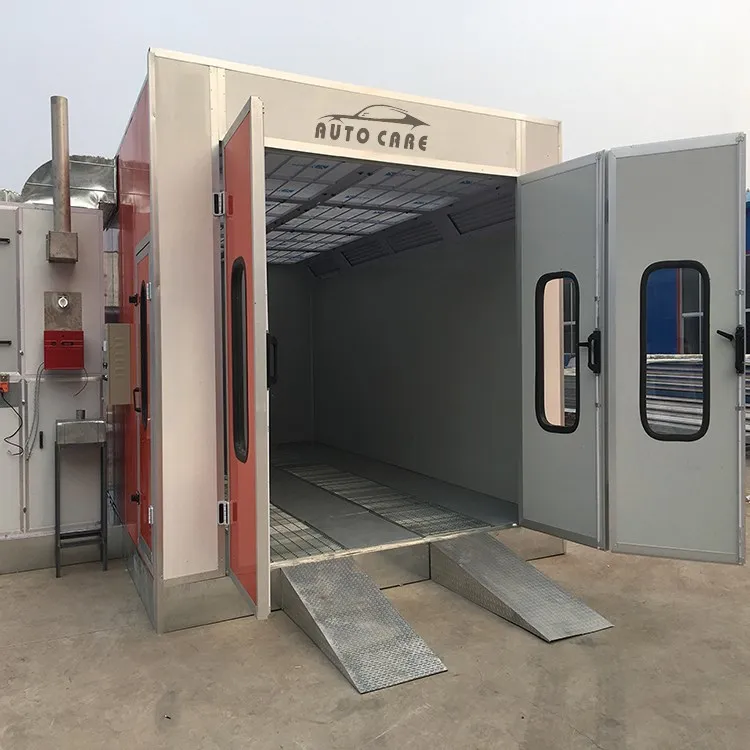

Autocare CE Approved AC-6900 Spray Booth
\t
SPECIFICATIONS For AC-6900 Spray Booth
\t
Dimensions
\t
Length (mm)
\t
Width (mm)
\t
Height (mm)
\t
Booth Outside
\t
7,000
\t
5,200
\t
3,600
\t
Booth Inside
\t
6,900
\t
3,900
\t
2,650
\t

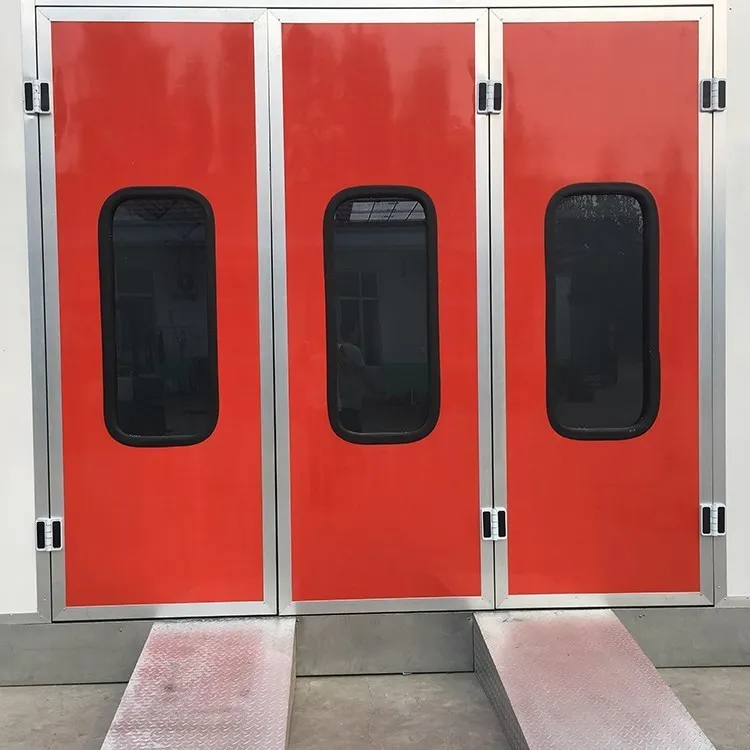

Entrance Door
\t
3 folds,size is 3,000×2,700mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock
\t
Personnel Door
\t
Size: 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock
\t
Plenum Chamber
\t
700mm high, all spare parts of plenum are made of galvanised bended steel
and treated by white powder for long using life.
\t
Walls Panel
\t
75mm thick and 1,000mm wide,insulation is EPS and covered by 0.476mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel.
\t
Basement System
\t
Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame.loading weight is 600KG/wheel
\t
Diamond Plates (Powder Coated or Galvanized)* 3rows
\t
2 ramps,each size 800x2,000mm(WxL)
\t
Heating System
\t
Diesel Burner*1unit (Italy RIELLO, G20) heating capacity is 200,000Kcal/H
\t
Heating Exchanger*1unit 200kw, made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M long bended galvanised steel chimney and 1 pc of rain shield.
\t
Cabinet*1unit,rock-wool insulation. Cabinet Frame is made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.
\t
Filter System
\t
Primary Filter* 1set, filtering rate > 83%
G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3)
\t
Air-Intake Filter* 1set, filtering rate > 97%
Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5)
\t
Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70%
Fibre glass filter, G2 Grade(EU-3)
\t
Air System
\t
Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each
\t
Air-Exhaust Fan* 1unit, Centrifugal Fans with 5.5 KW motor
\t
Belimo NMU230 20NM electric damper
\t
Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit
\t

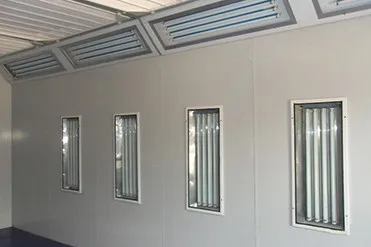

Illumination
\t
Ceiling Lights * 32pcs, 20w LED lamp, with Light Fixtures, anti-explosion design
\t
Side Lights * 32pcs,20w LED lamp, with Light Fixtures, anti-explosion design
\t
Illumination ≥1000LUX
\t

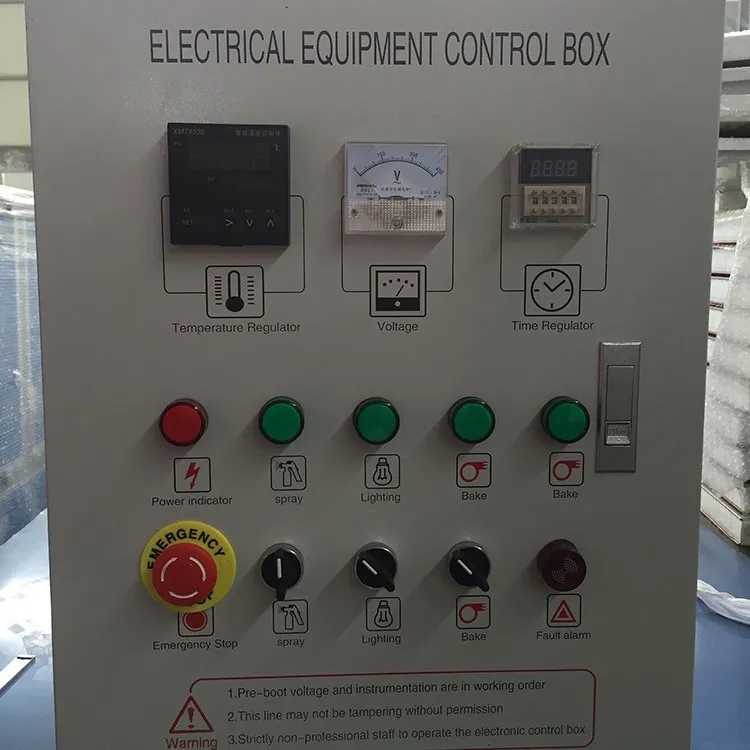

Control Panel
\t
*1unit,Button type control box, with main switch, and set with normal temperature spraying, constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc.
\t
** Included
\t
All Hardware, Fasteners, and Sealants, Installation CD Video, and Drawing.

From our full down draft to our side draft, Autocare creates every automotive booth imagineable to fit your company's needs. Our industrial designers can help create the perfect production line for your budget! Whether standad or premium.

Detailed Images
\t

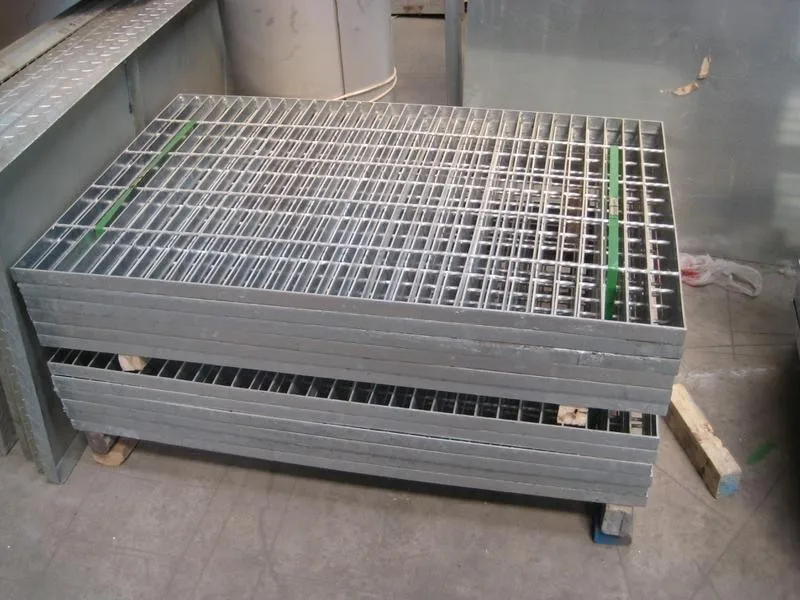

Grid Plate 30*4mm
\t

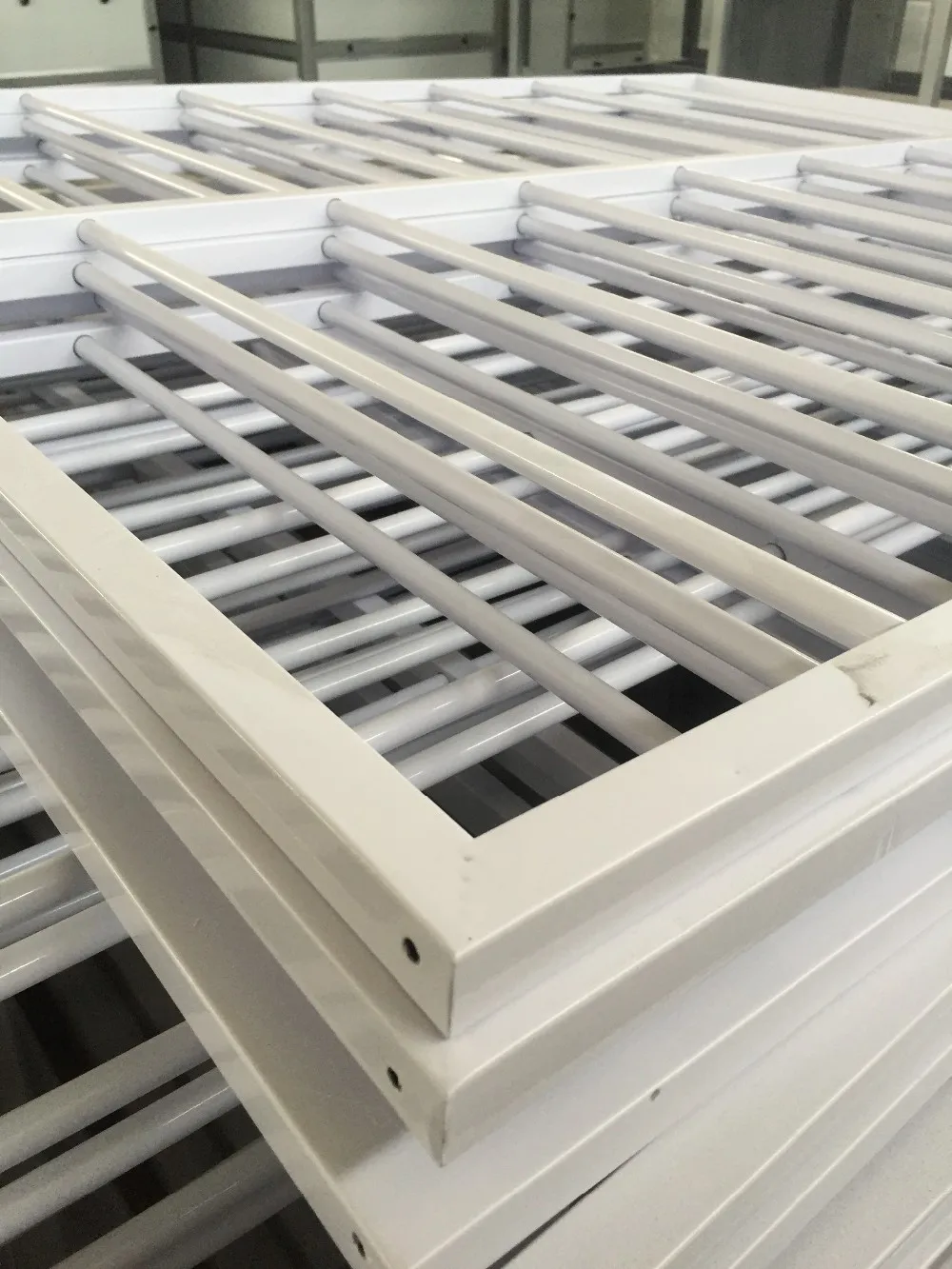

Ceiling Filter Frame
\t

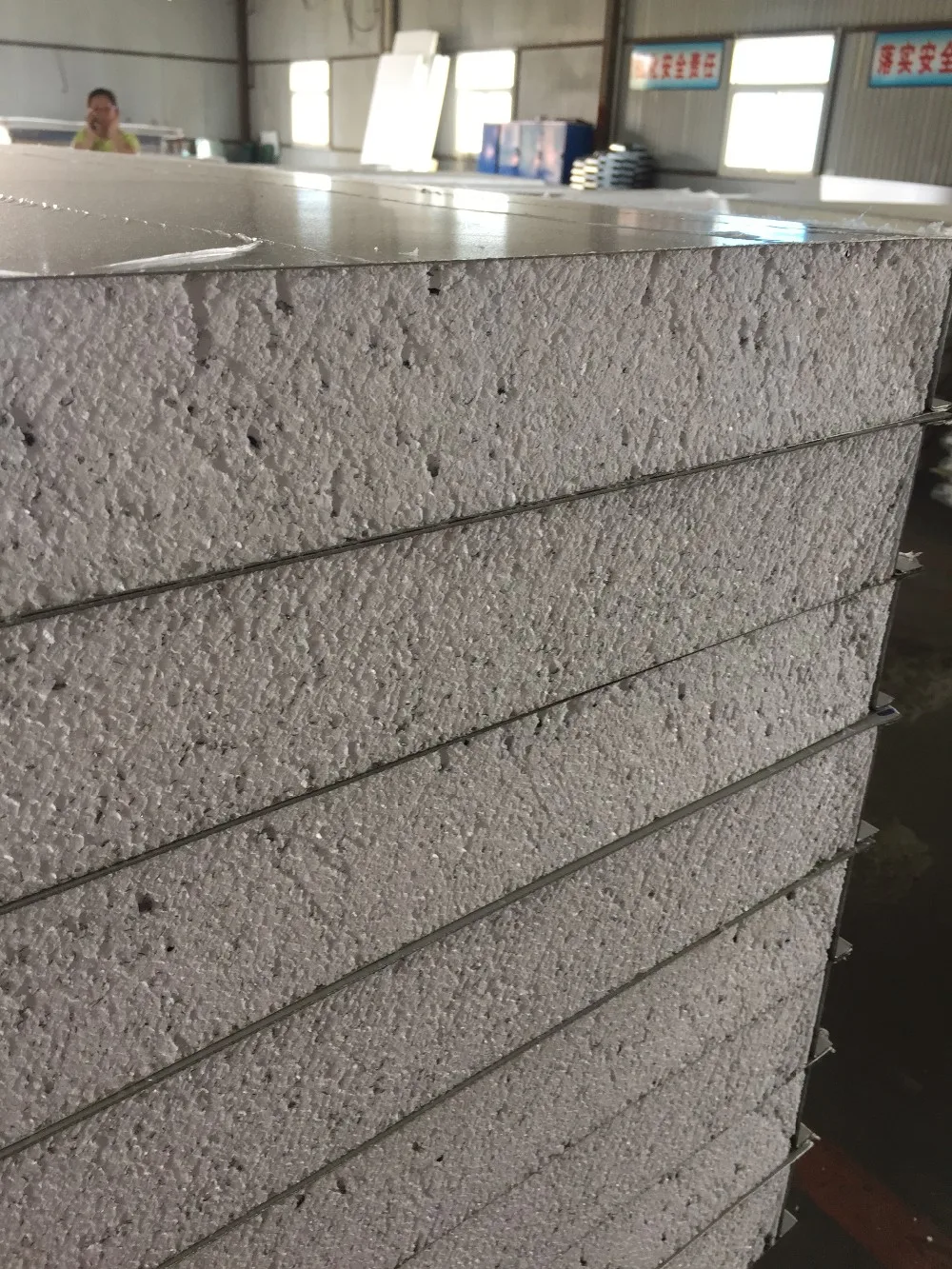

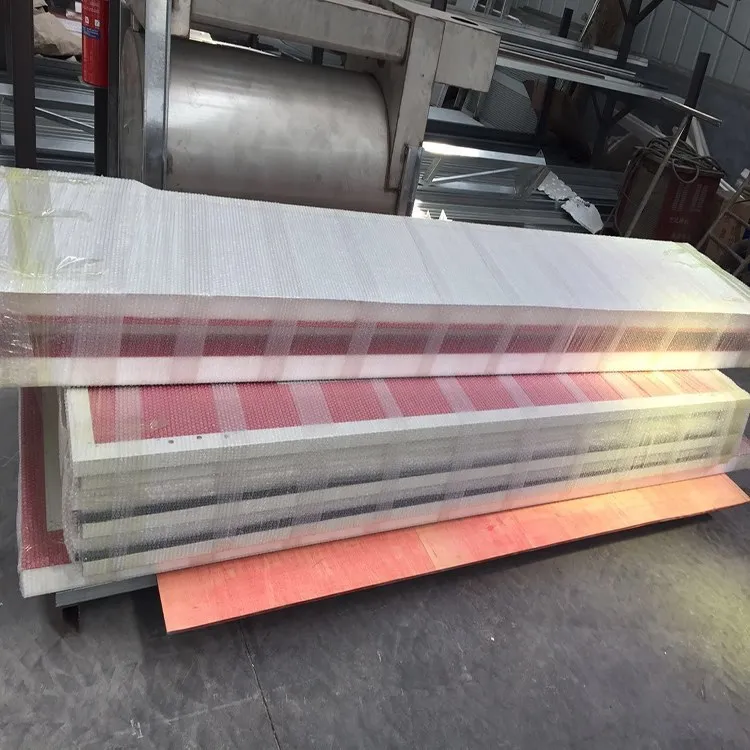

Wall Panel
12kgs/m3 foams 0.426mm color steel
\t
Powder Coated Cabinet
\t

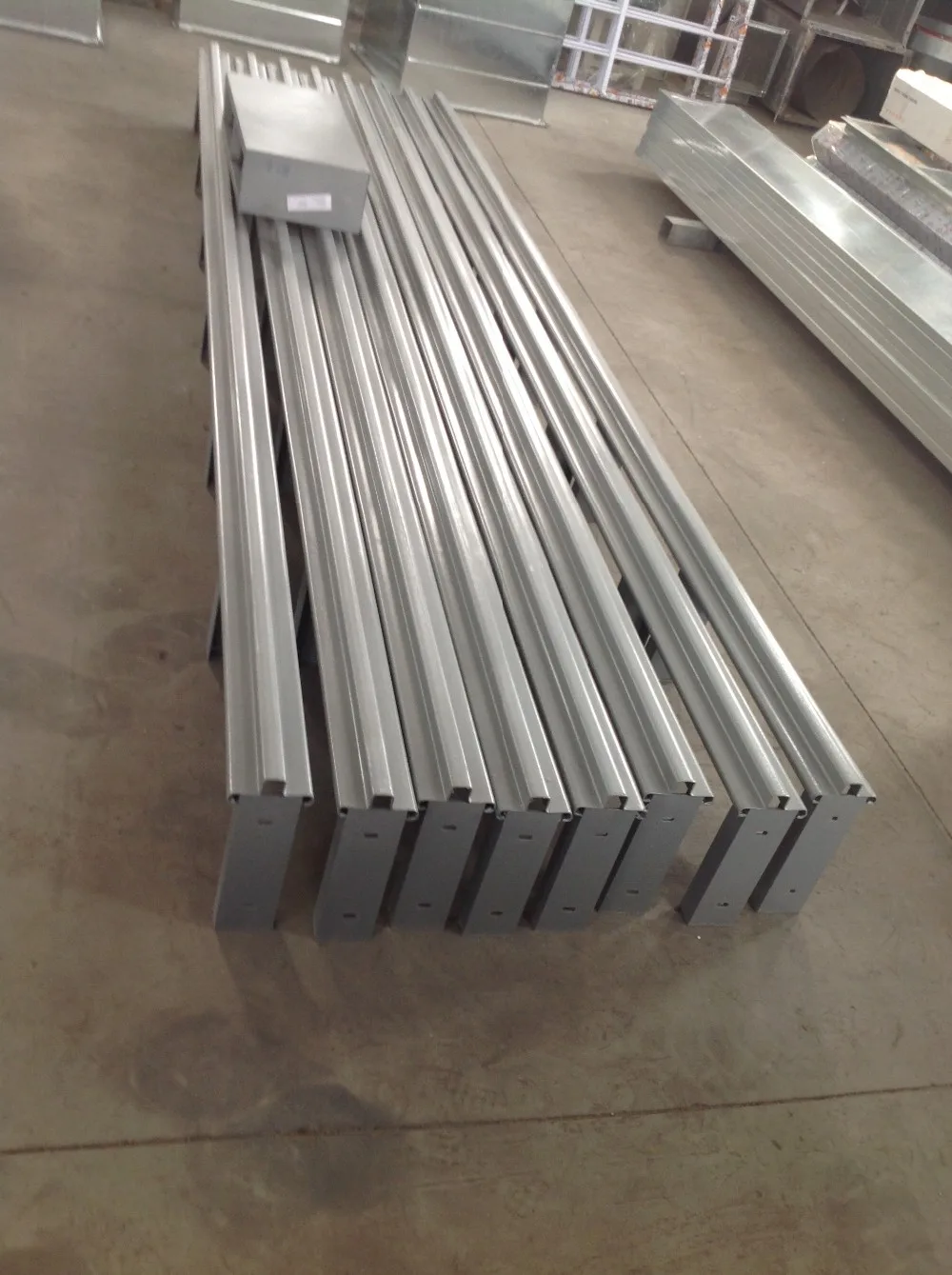

Strong Basement
\t

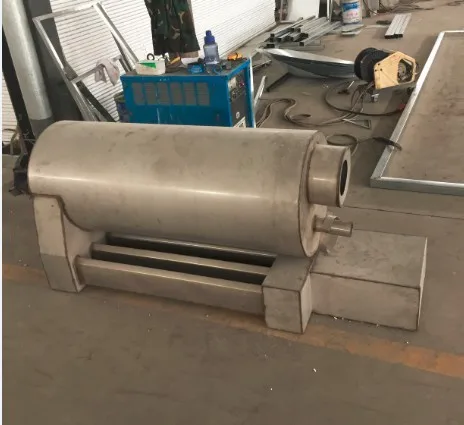

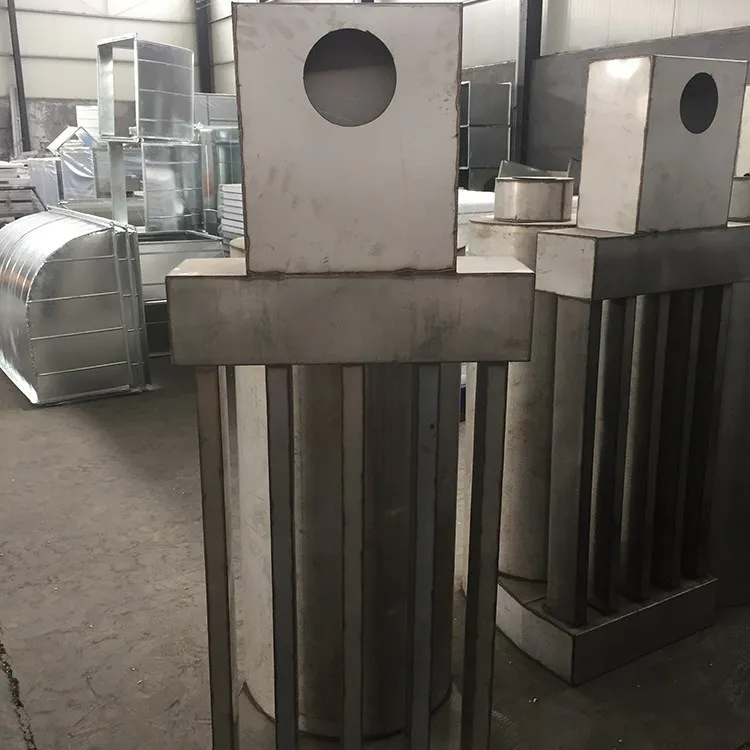

Heat Exchanger
Thickness: 1.5mm
\t

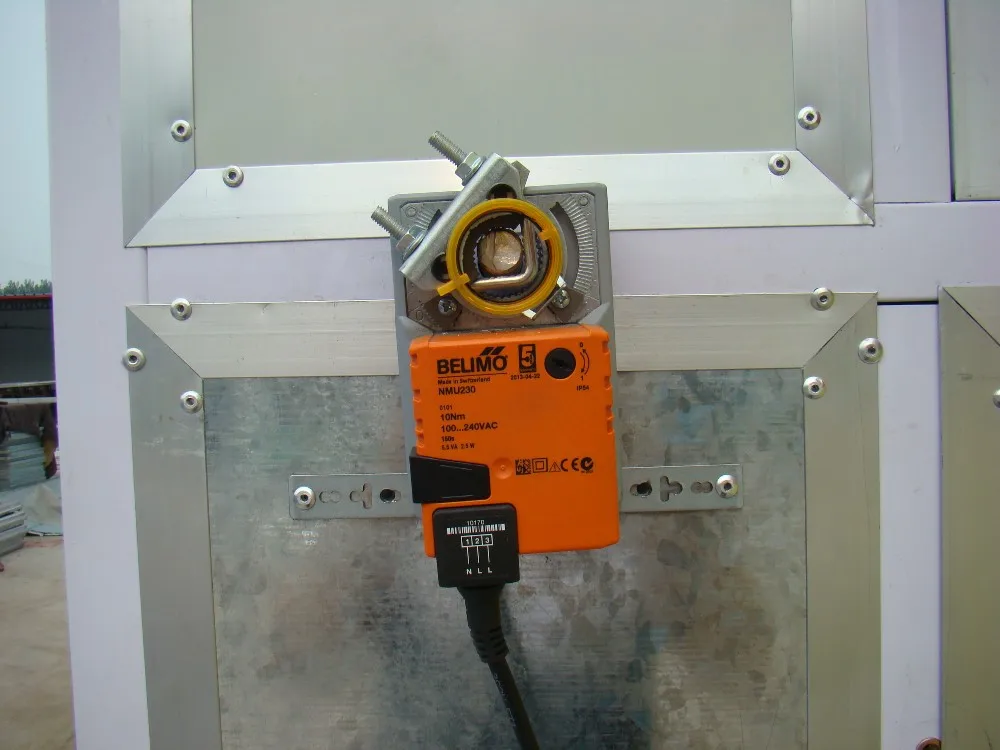

Operation Damper 20N Belimo Brand
\t

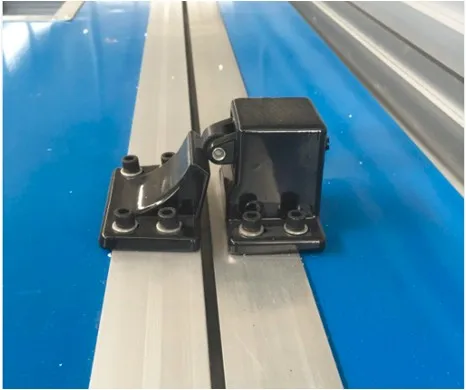

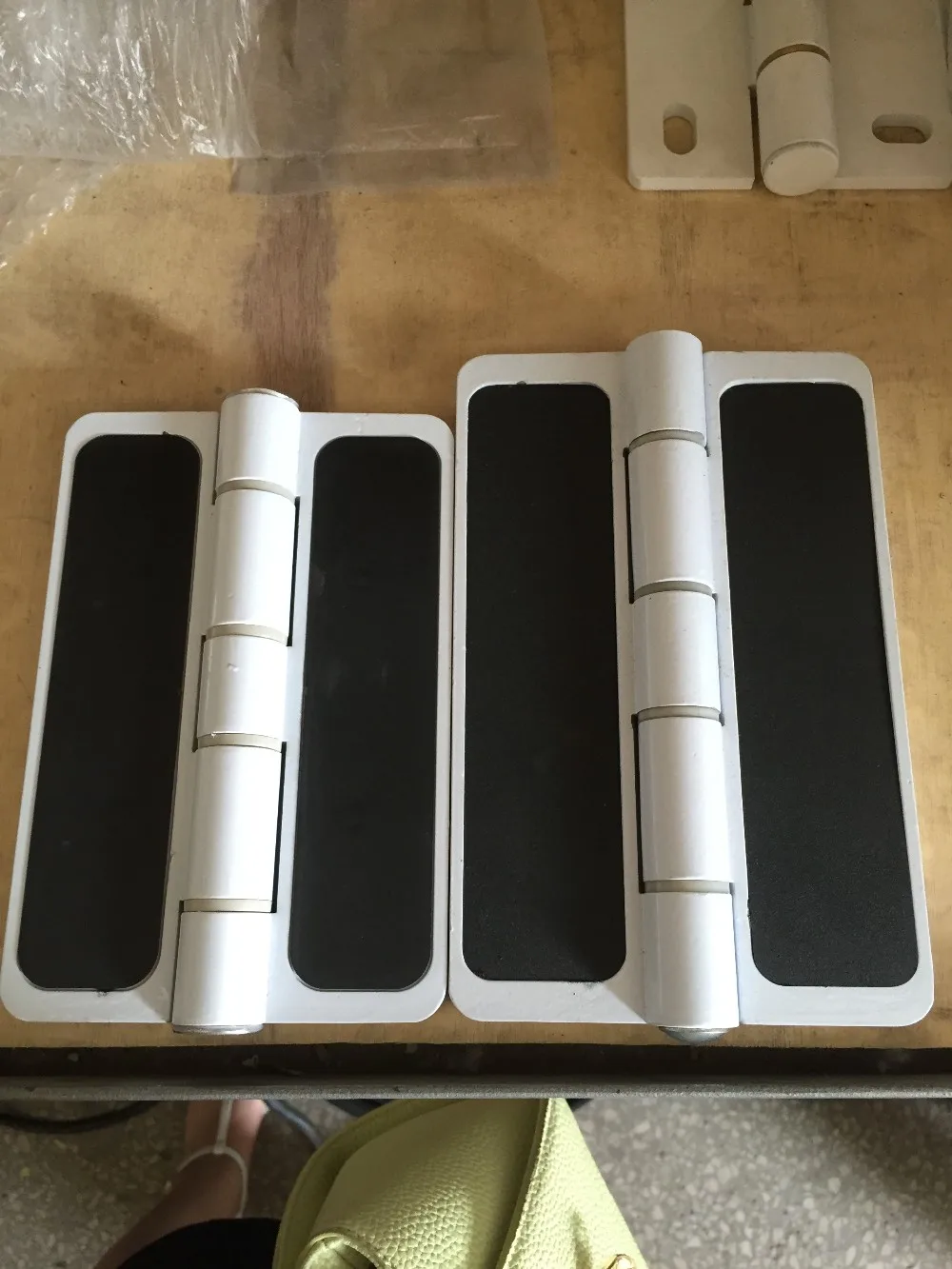

Durable Hange
Tested 100000 times
\t

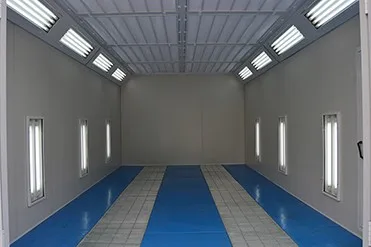

 No Visible Line Inside
\t
Explosion Lock
\t

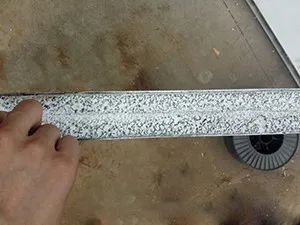

Anti-fire Panel
\t

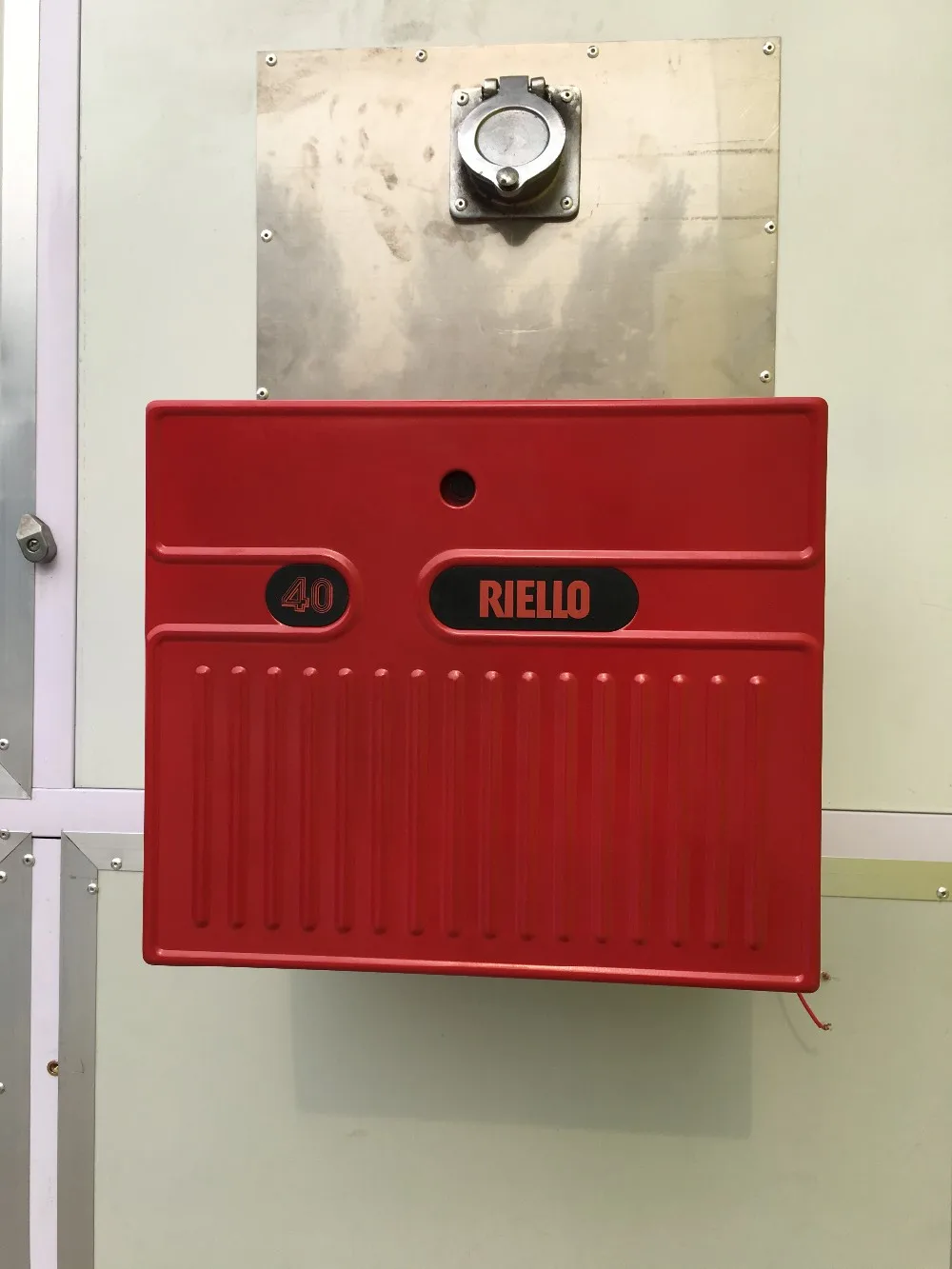

Riello Brand G20 Burner

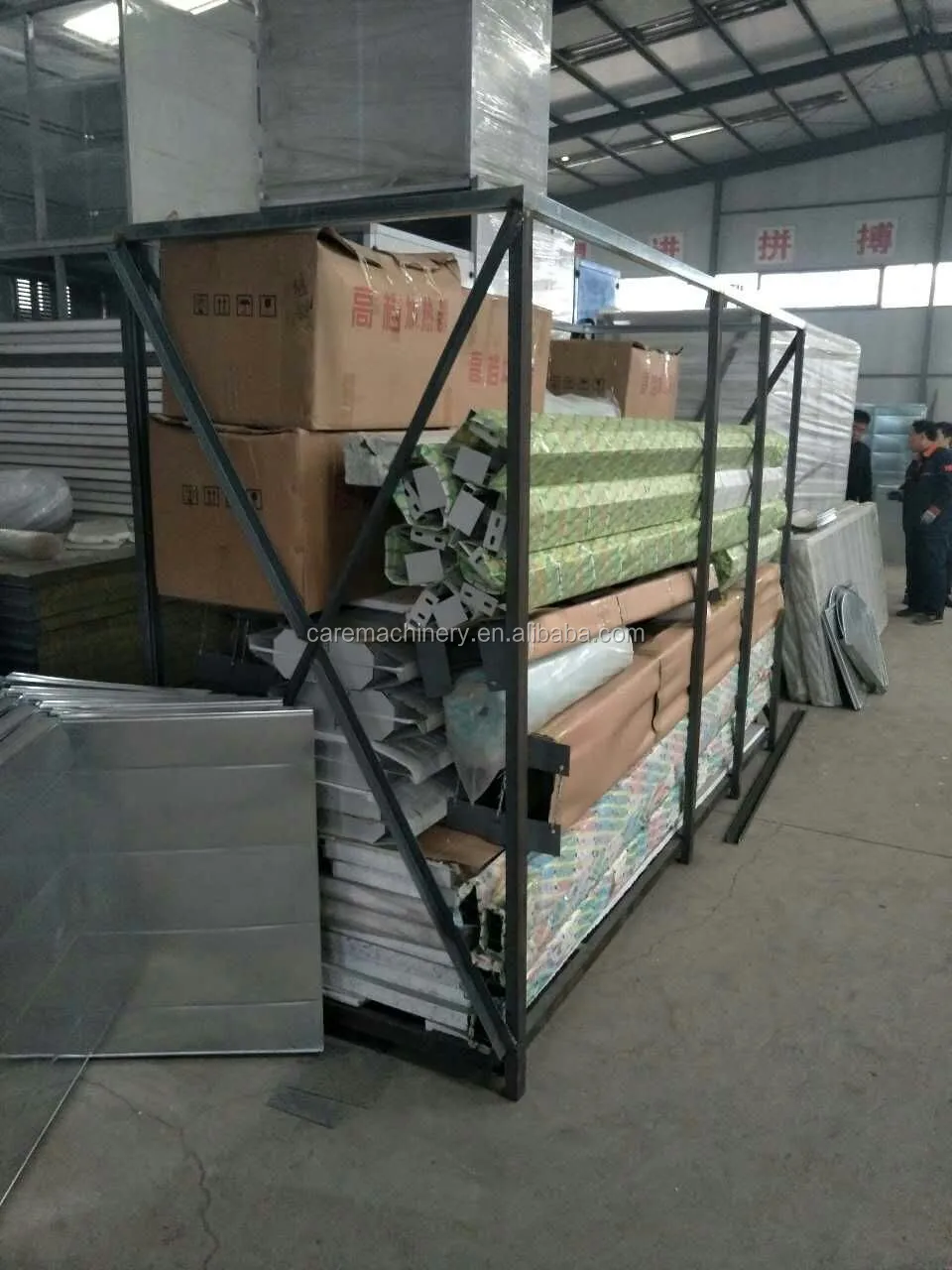

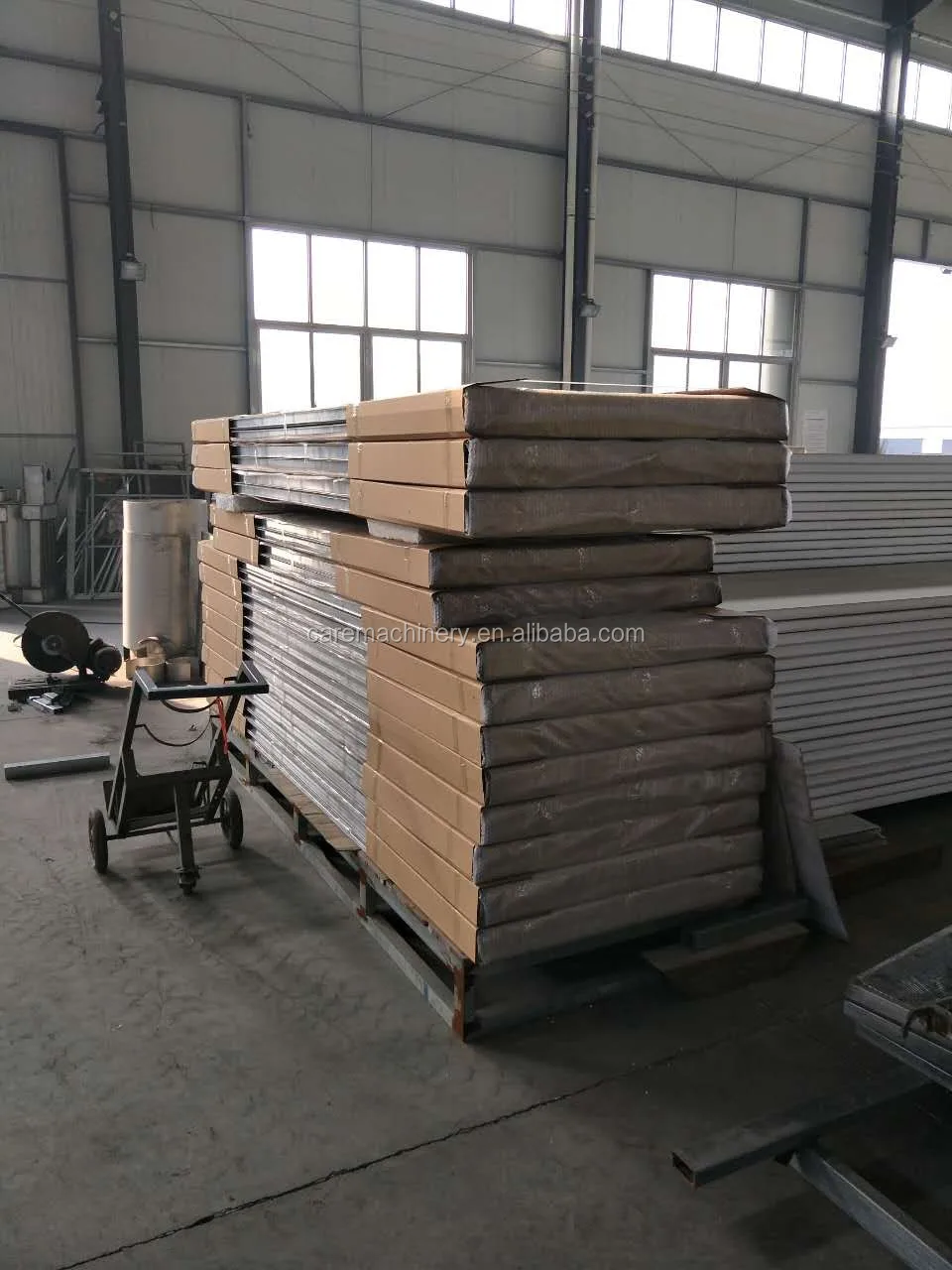

Packing & Delivery

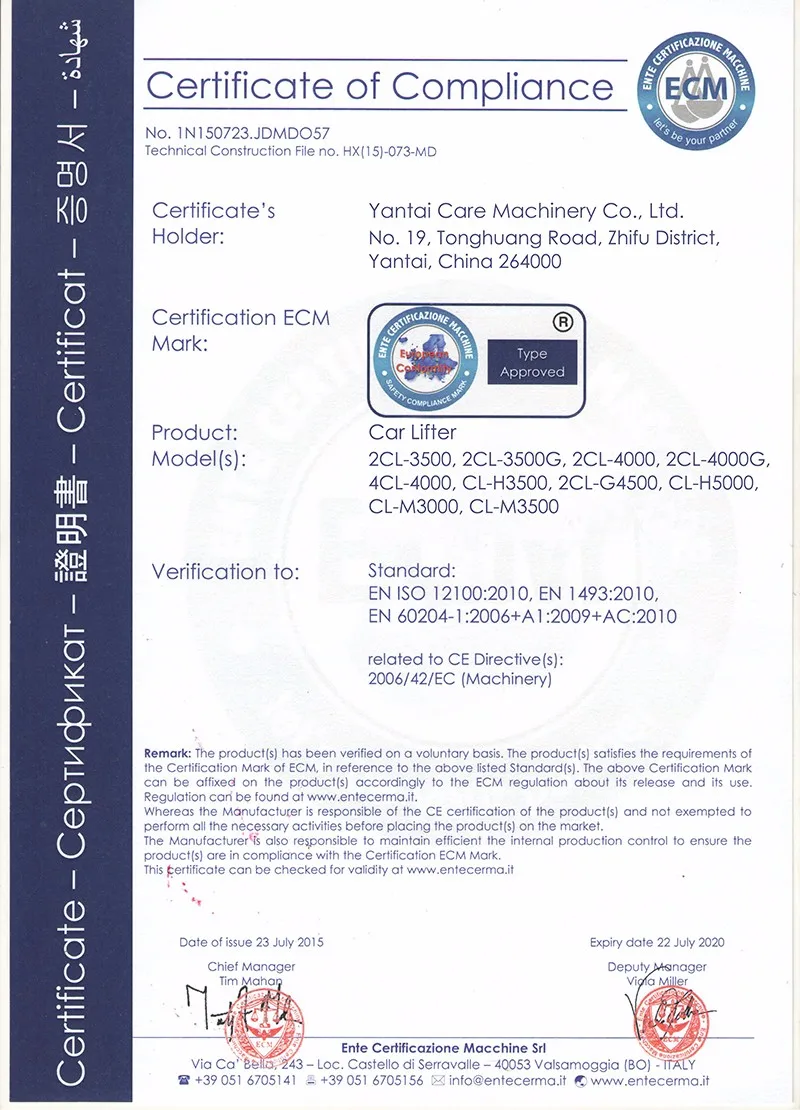

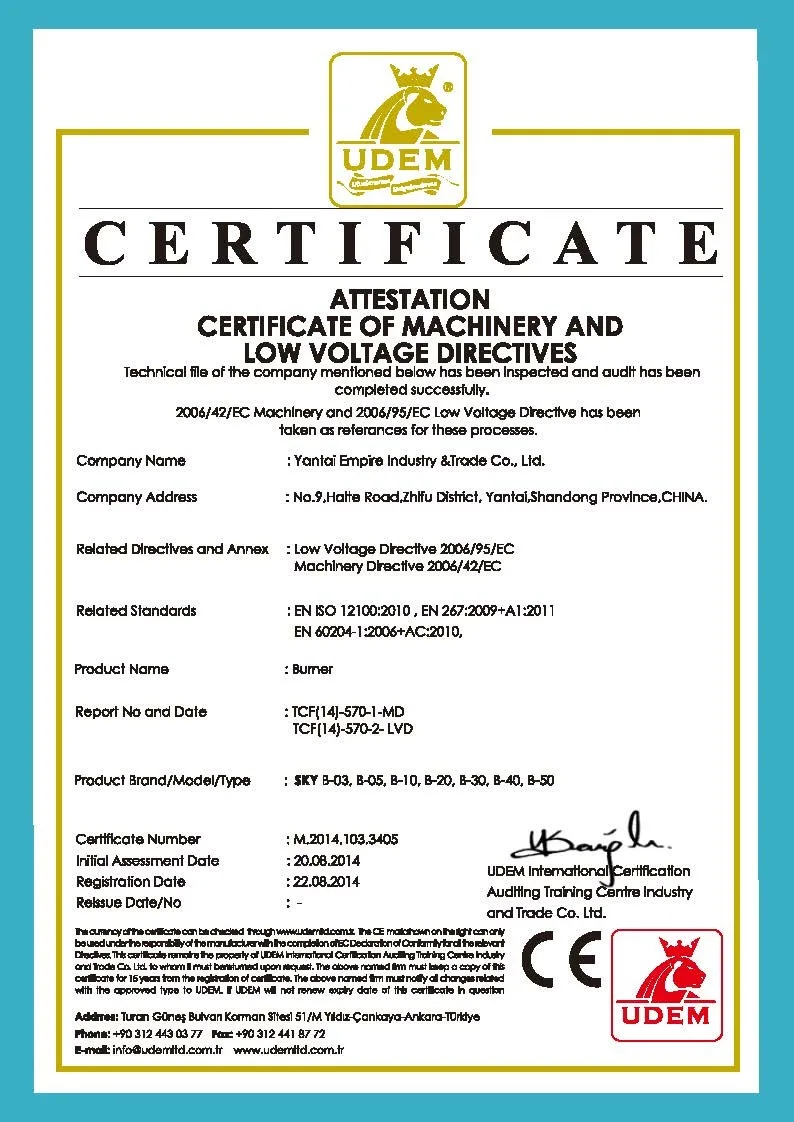

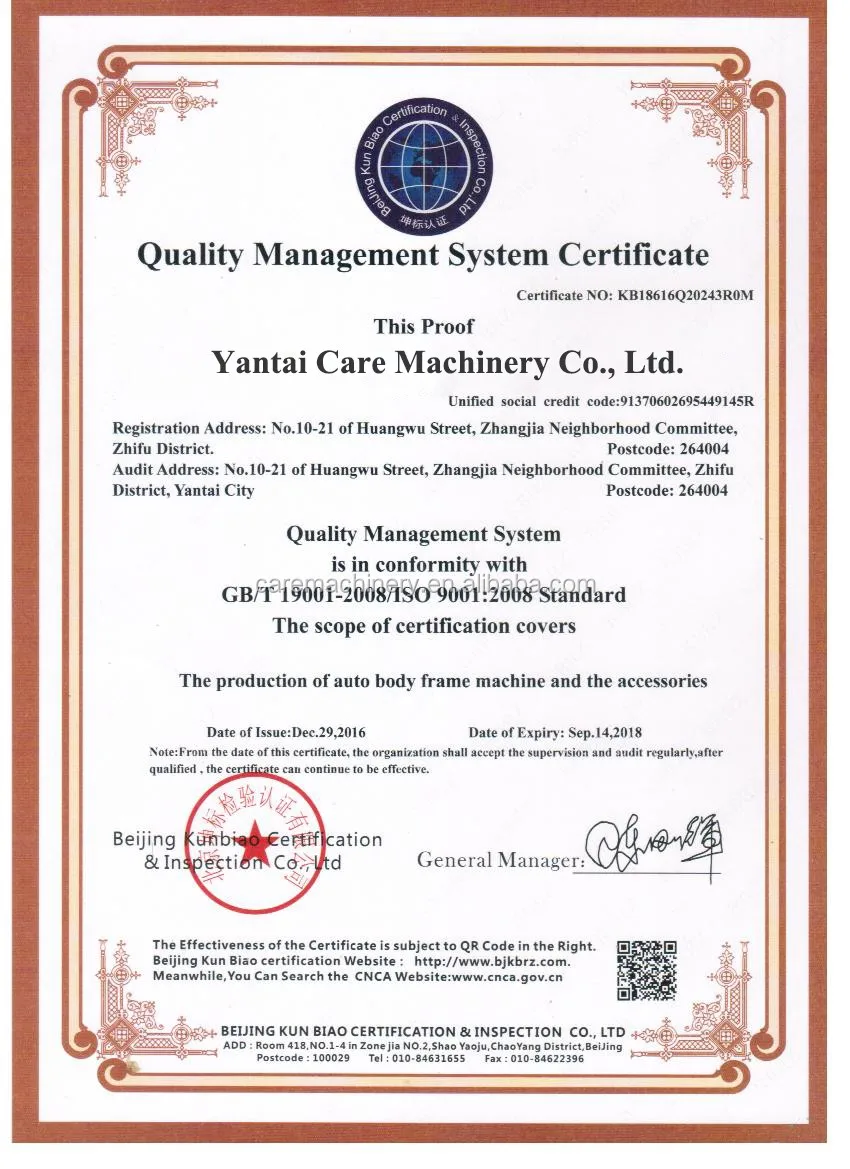

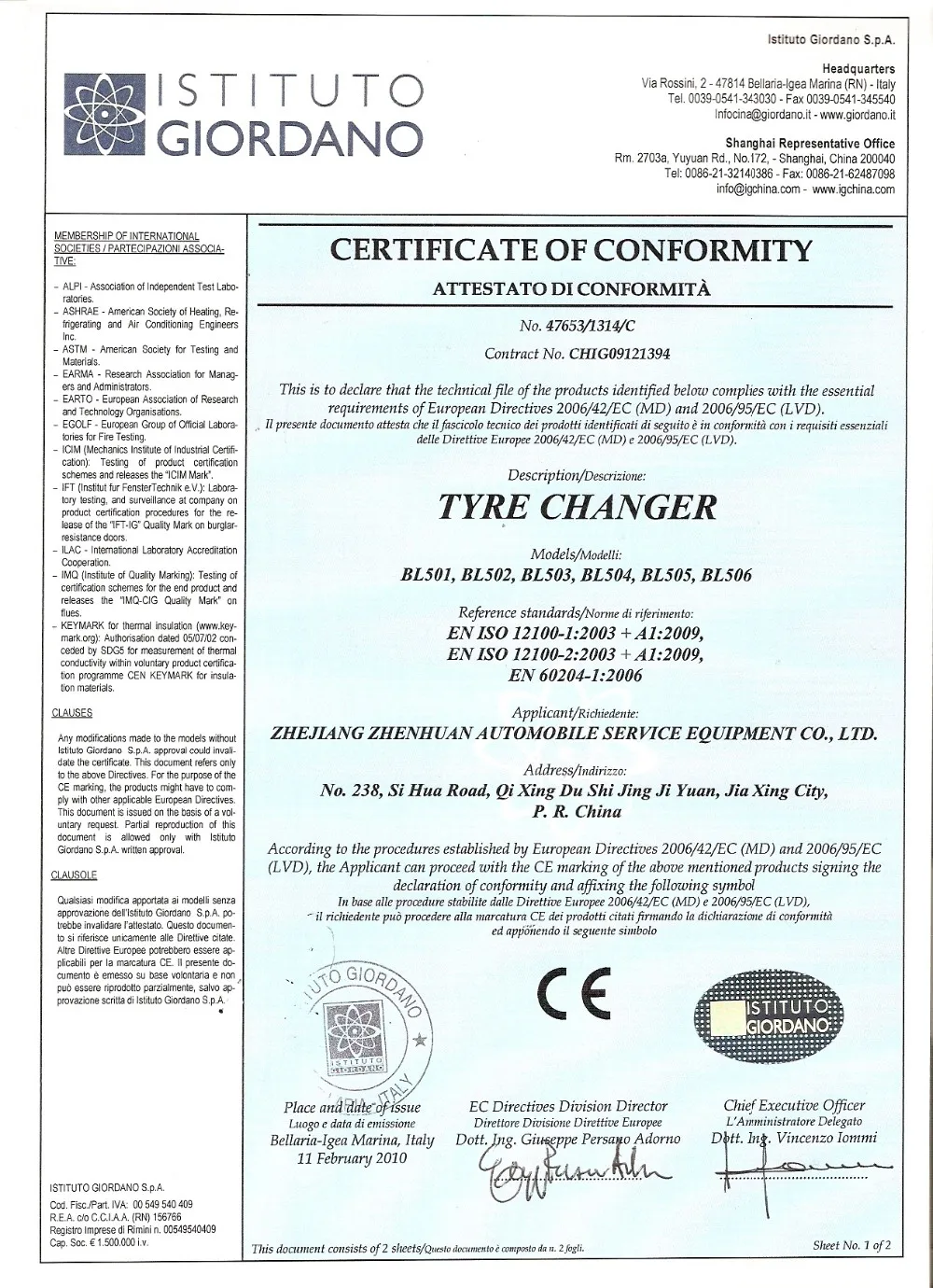

Certifications
Our Service
1. All the machines will be full tested before shipment;
2. The total machine guarantee is 12 moths;
3. 24 Hours technical support, email, telephone or video online;
4. User-friendly english manual for machine using and maintaining;
5. Several sets wearing parts will be free for you.


FAQ

1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own sales team, possess the experience of auto repair field for 6 years.

     More skillful to offer you a project plan according to clients' request.

2.Q:Where is your company located? How can I visit there?
A:Our company is located in Yantai.All clients, from home and abroad, are warmly welcomed to visit us.

    You can visit us by air to the YANTAI port. Then we will pick you up there.

3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material sources,
our products are excellent in performance and craftsmanship, got a good feedbacks by customers from more than 96 countries.

4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide different
standards according to your market and favor.

5.Q:What’s the MOQ for each items?
A:We accept 1 set of each machine once time.

6.Q:What’s the delivery time?
A:When order confirmed, the machine with our standard configurations, it’s 7 workdays.

Related Products

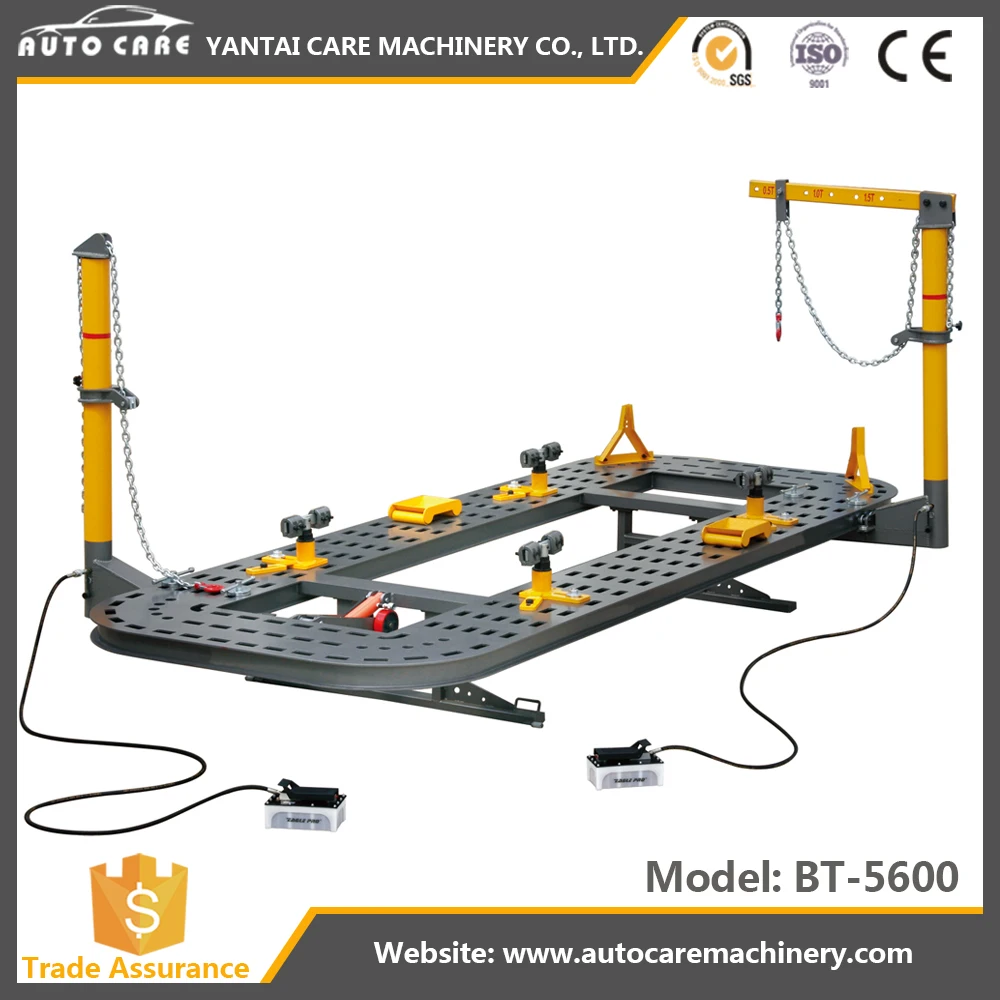

Car Bench

Tyre Changer

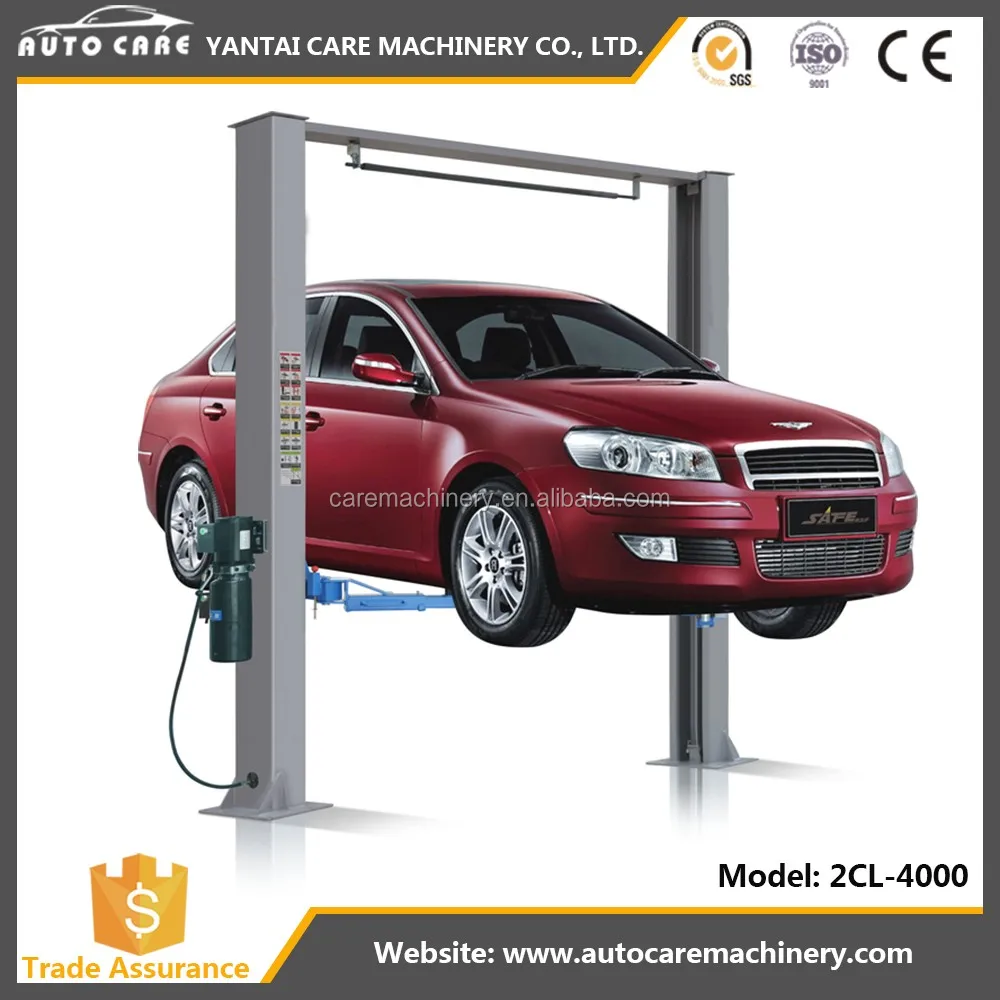

2 Post Car Lift
