XQ series sucker rod tong/Well servicing tongs/workover power tongs
- Category: Oilfield Drilling Rig >>>
- Supplier: Dongying Xincheng Petroleum Technology Co. Ltd. [Shandong China]Dongying
Share on (60666826310):
Product Overview
Description
1,The main parameters:
Model | XQ89/3Y3YC | XQ114/6YB | XQ140/12Y | XQ140/12Y-T | ||
Applicable range main tong | mm | 60-89 | 60-114 | 60-140 | 48-140 | |
in | 23/8~31/2 | 23/8~41/2 | 23/8~51/2 | 1.9~51/2 | ||
Applicable range backup tong | mm | 60-114 | 73-141.5 | 73-156 | 60-156 | |
in | 27/8~41/8 | 27/8~51/8 | 27/8~61/8 | 23/8~61/8 | ||
Hi-gear rated tofque | kN.m | 1100 | 1500 | 2600 | 2600 | |
ft.lbf | 811 | 1106 | 1918 | 1918 | ||
Lo-gear rated tofque | kN.m | 3300 | 6000 | 12000 | 12000 | |
ft.lbf | 2213 | 4425 | 8851 | 8851 | ||
Ratek Speed | High gear | rpm | 90 | 85 | 72 | 72 |
Low gear | rpm | 30 | 20 | 14 | 14 | |
Rated pressure | MPa | 10 | 11 | 12 | 12 | |
psi | 1450 | 1595 | 1740 | 1740 | ||
Max.oil supply | L/min | 80 | 100 | 120 | 120 | |
gpm | 21 | 26 | 32 | 32 | ||
Size | mm | 650×430×550 | 750×500×600 | 1024×582×539 | 1050×620×900 | |
in | 25.6×16.9×21.7 | 29.5×19.7×23.6 | 40.3×22.9×21.2 | 41.3×24.4×35.4 | ||
Weight | kg | 158 | 220 | 480 | 480 | |
lb | 348 | 485 | 1060 | 1060 | ||
2, Company information:
Dongying Xincheng Petroleum Technology Co., Ltd. was established in 2003 and located at the second oilfield
of China —Shengli Oilfield. We have the specialized technicians, senior engineers and peofessional marking team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments, the main products include : Petroleum equipments & tools such as drilling equipments, production equipment,tubular goods, Wellhead quipments, downhole equipments, well control equipments, cementing tools etc.;Petrochemicals.
We have established a complete quality control system, all products& equipments manufactured as per international standard and API standard.

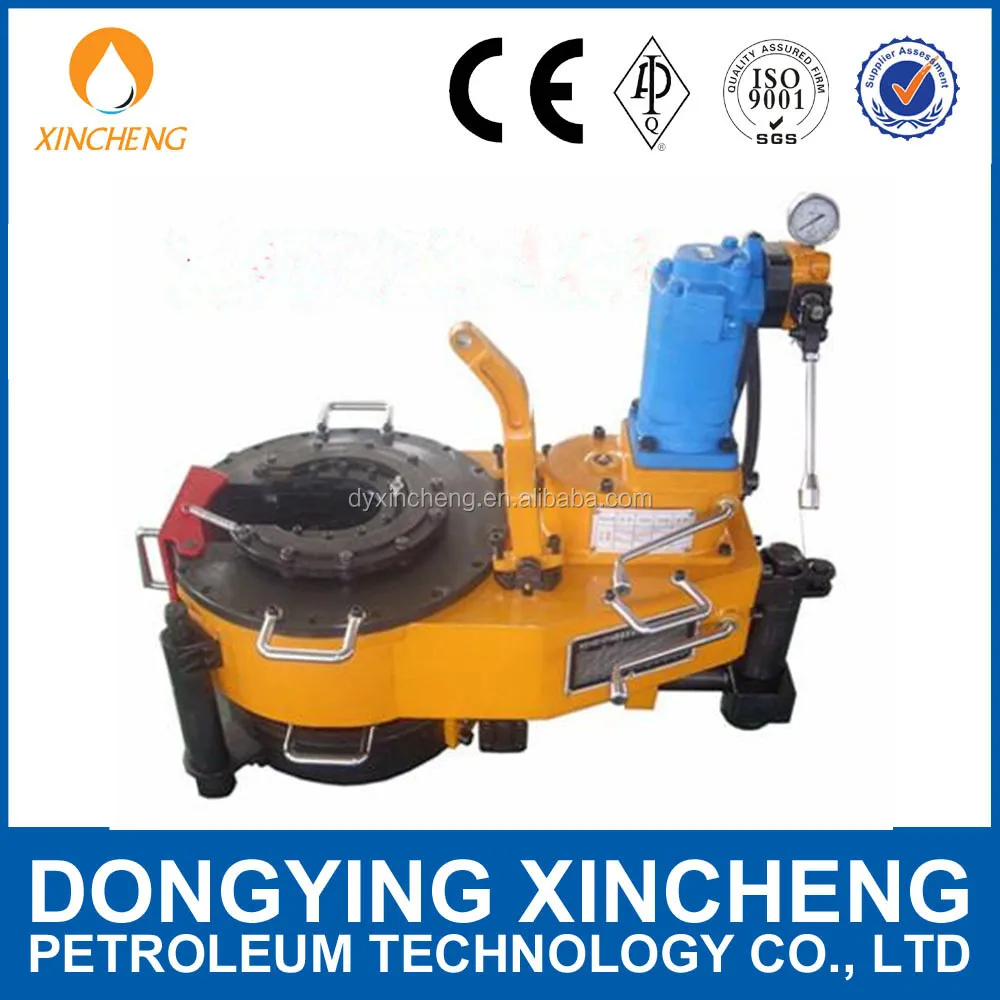

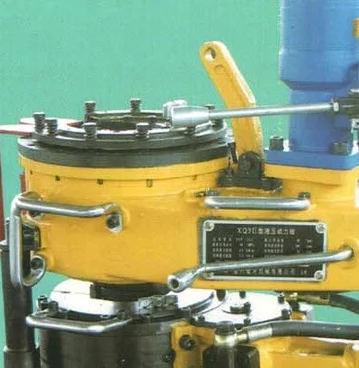

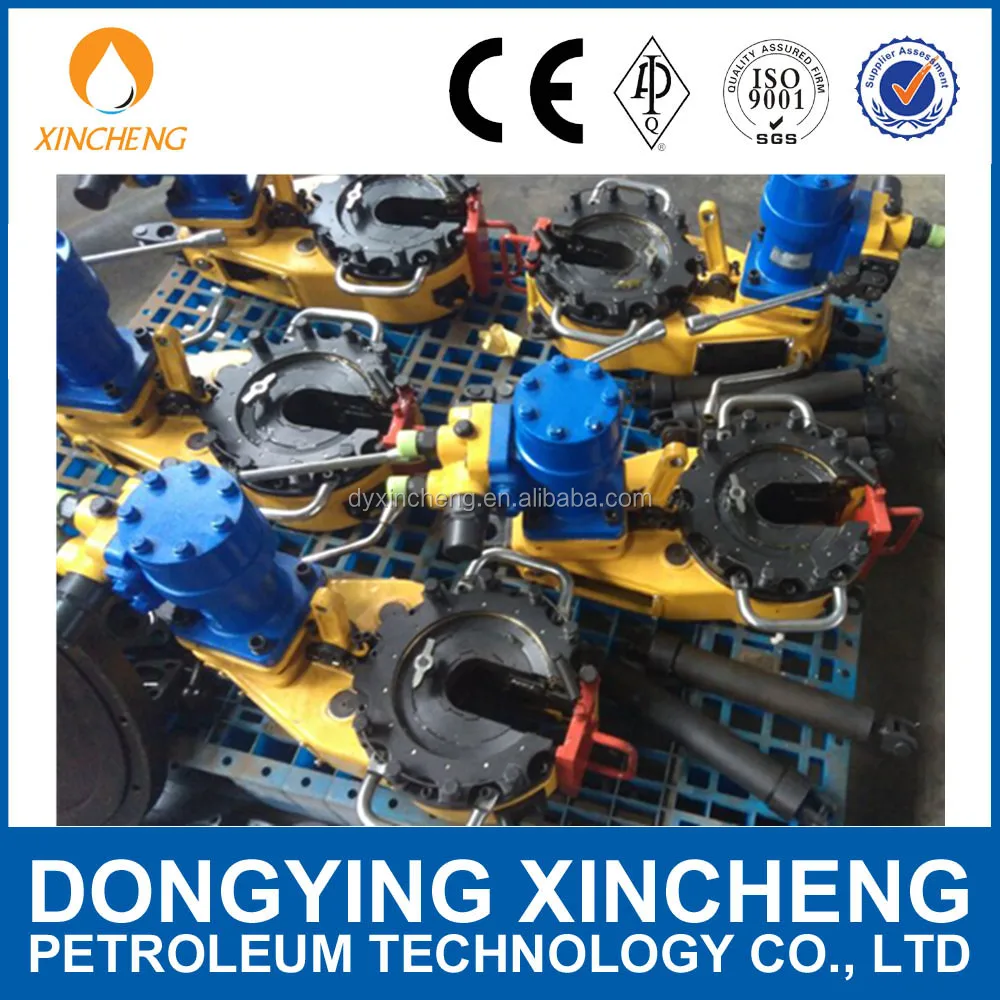

3,Pictures:
