3M9735AX150 Cylinder head and block grinding machine
- Category: Surface Grinding Machines >>>
- Supplier: Tengzhou Uni-Tech Co. Ltd.
Share on (60666868992):
Product Overview
Description
3M9735A Cylinder head and block grinding machine
Product Description
Features:
1.Spindle use high precision bearing with high machining precision.
2.3M9735A Cylinder head and block grinding machine run smoothly and with small resistance.
3.Working table movement use frequency conversion stepless variable speed, suitable for machine different material parts.
Main specification
Specifications:
| Model | 3M9735A×130 | 3M9735A×150 | 3M9735B× 130 | 3M9735B× 150 |
| Dimensions of working table(mm) | 1300x500 | 1500×500 | 1300×500 | 1500×500 |
| Max. length of processing(mm) | 1300 | 1500 | 1200 | 1500 |
| Max. width of processing(mm) | 350 | 350 | 350 | 350 |
| Max. height of processing(mm) | 800 | 800 | 800 | 800 |
| emery wheel disc moving travel(mm) | 60mm | 60mm | 60mm | 60mm |
| emery wheel disck diamter(mm) | 360mm | 360mm | 360mm | 360mm |
| spindle speed(r/min) | 1400/700 | 1400/700 | 1400/700 | 1400/700 |
| Moving speed of working table(mm/min) | 40~900 | 40~900 | 40~900 | 40~900 |

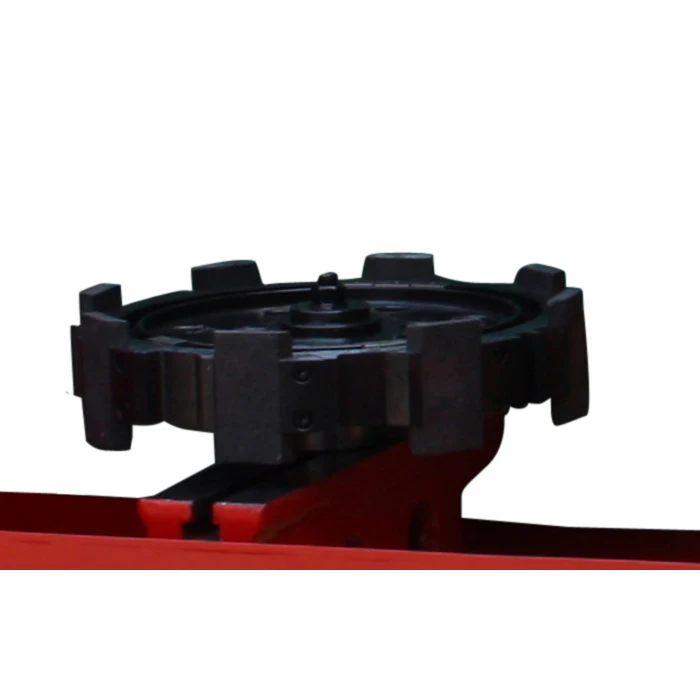

| Grinding segment Plate dia.(mm) | 360 | 360 | 360 | 360 |
| Main motor power(kw) | 1.5/2.4 | 1.5/2.4 | 1.5/2.4 | 1.5/2.4 |
| Overall dimension(LxWxH)(mm) | 2700*1000*1960 | 2950*1000*2100 | 2700×1000×1960 | 2950×1000×1960 |
| N.W./G.W.(kg) | 2200/2500 | 2300/2600 | 2200/2500 | 2300/2600 |
Detailed Images

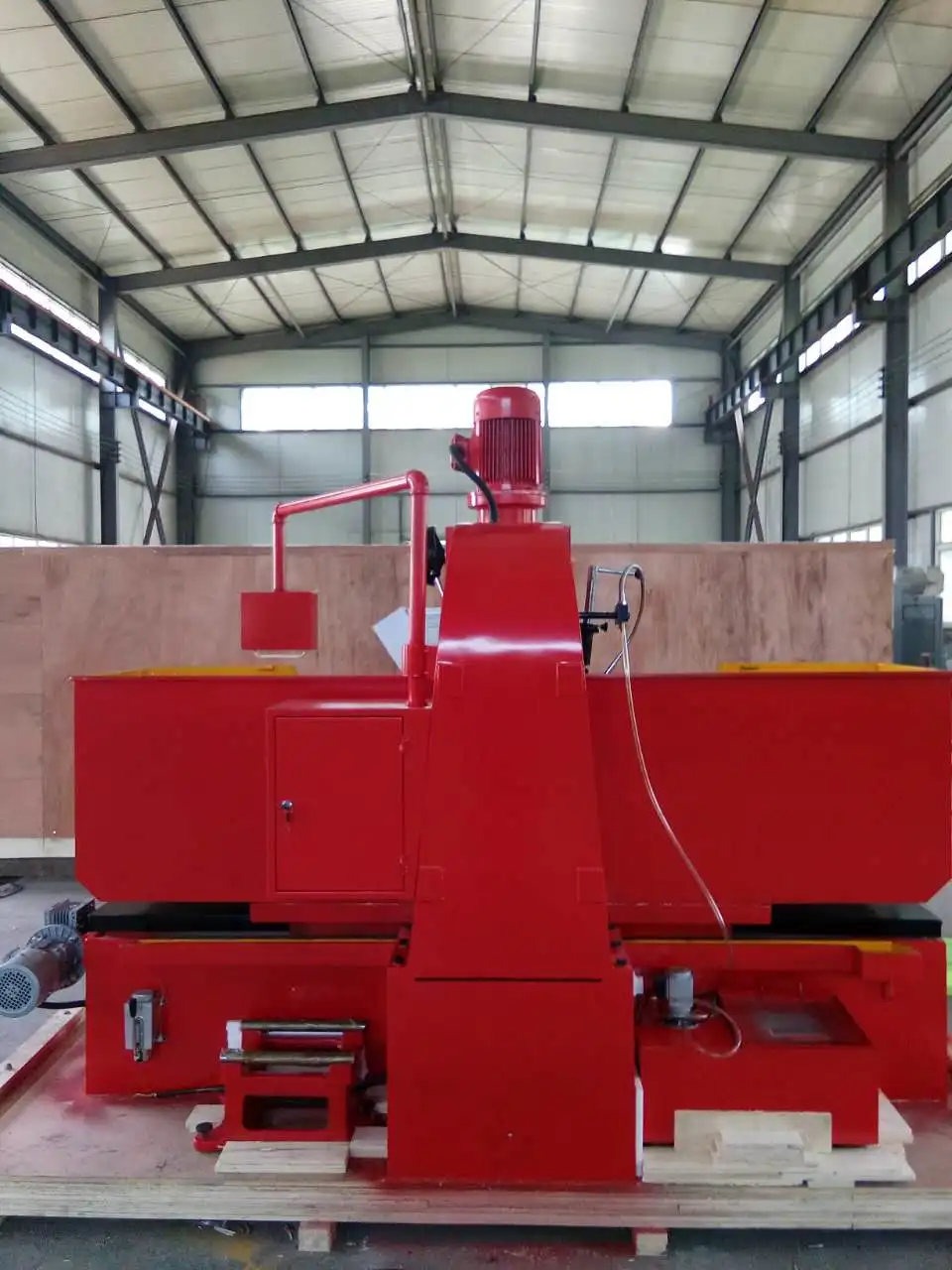

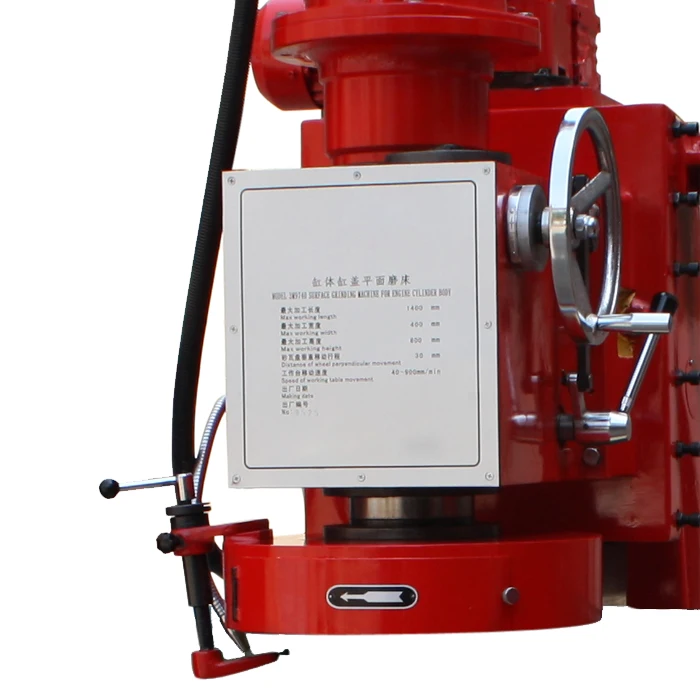

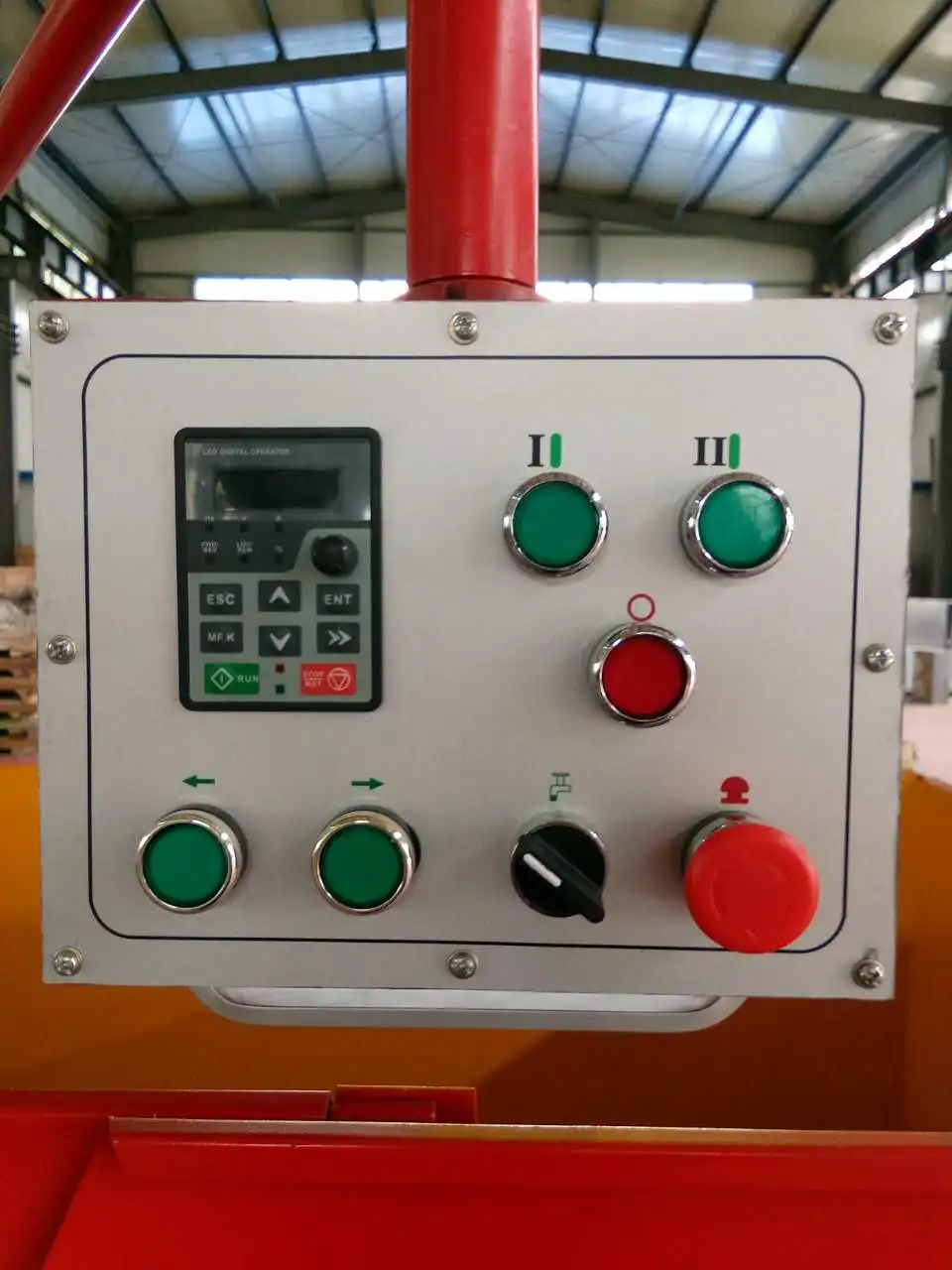

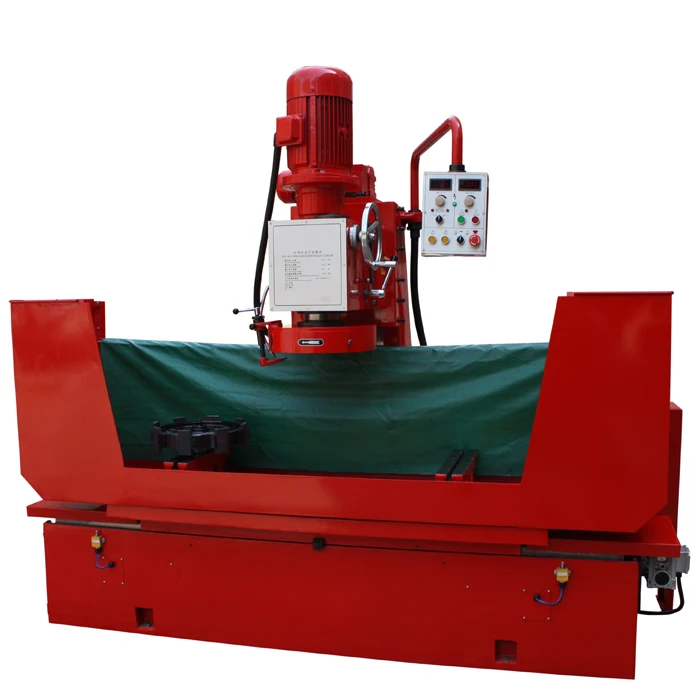

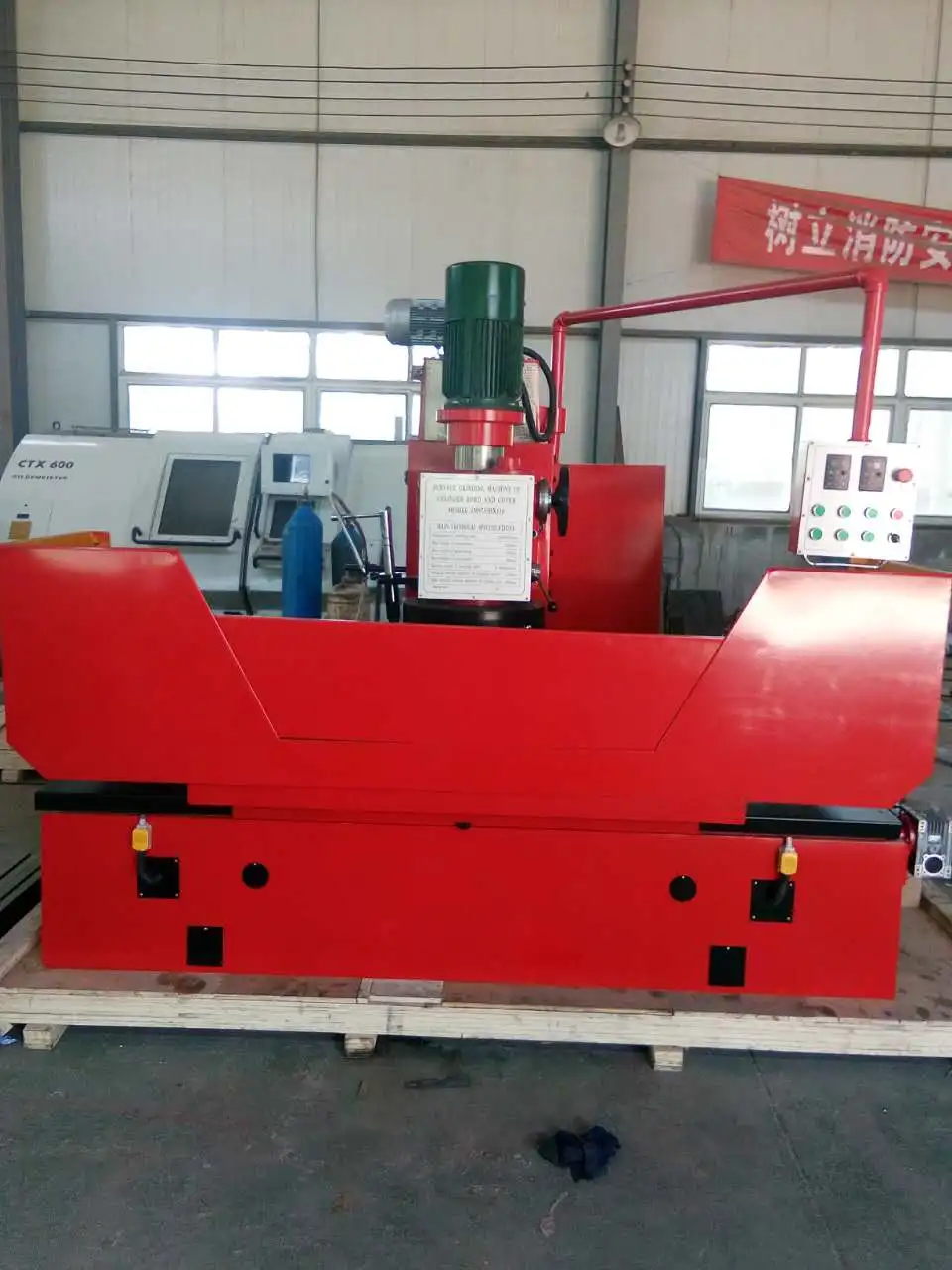

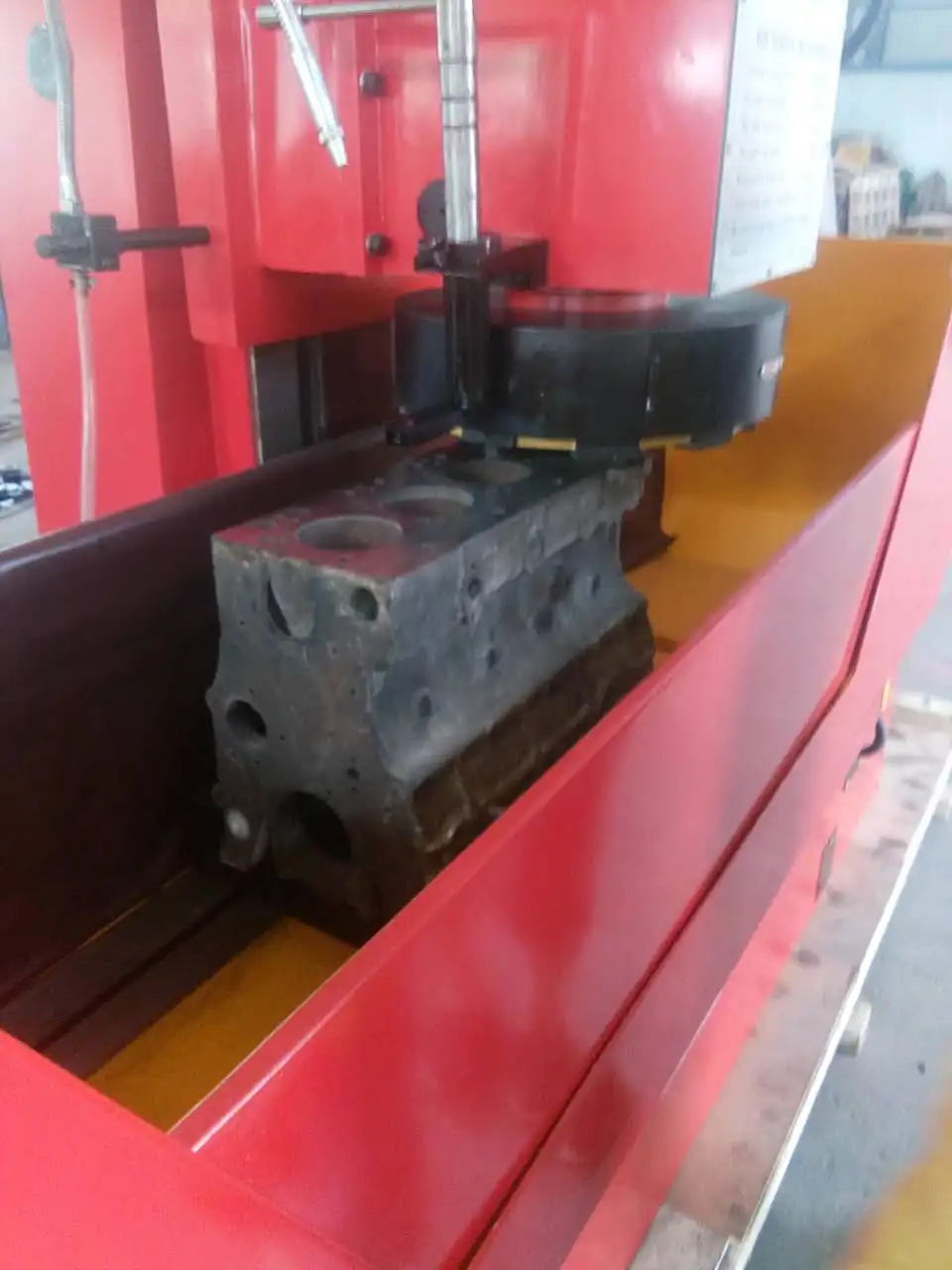

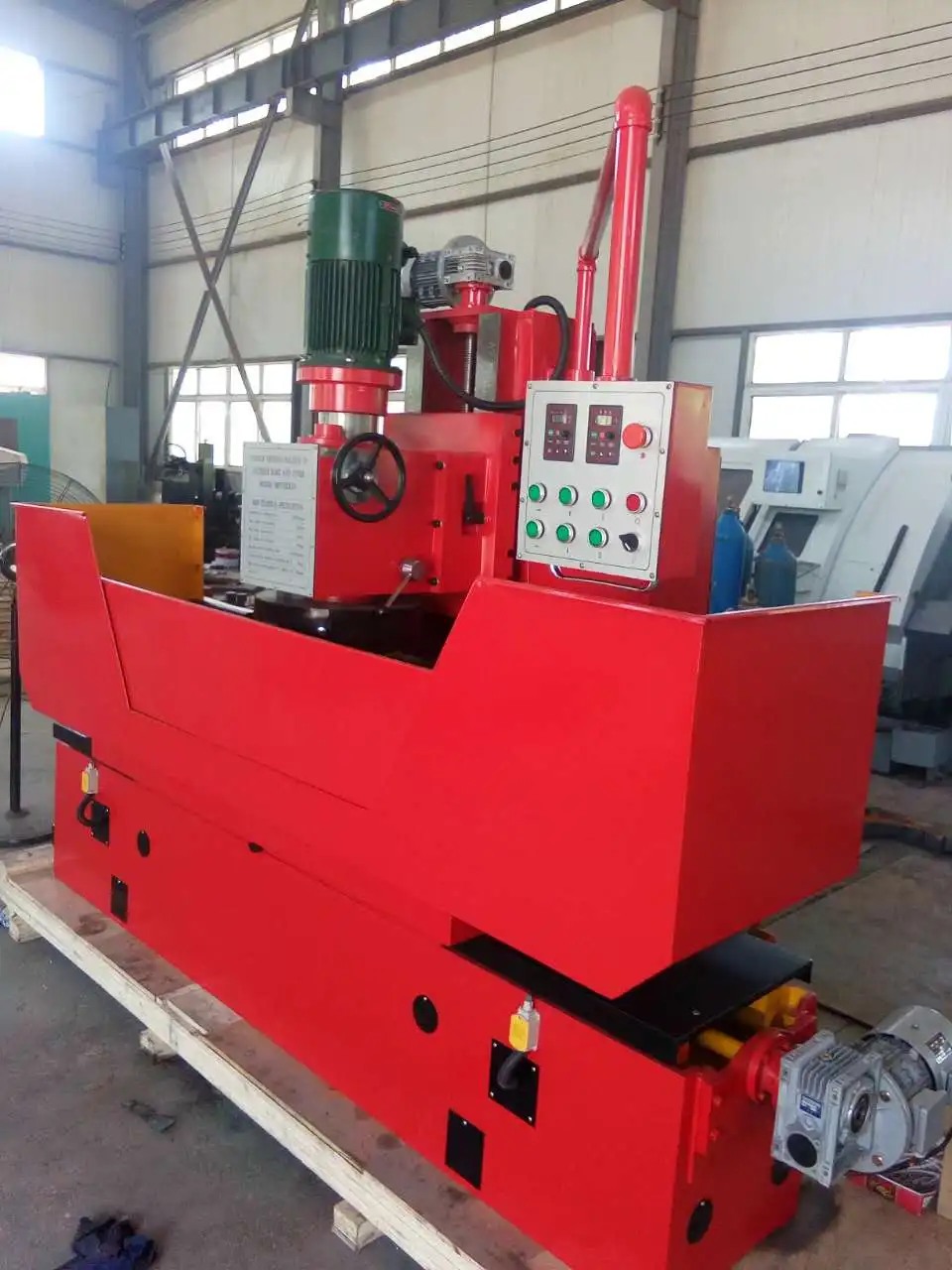

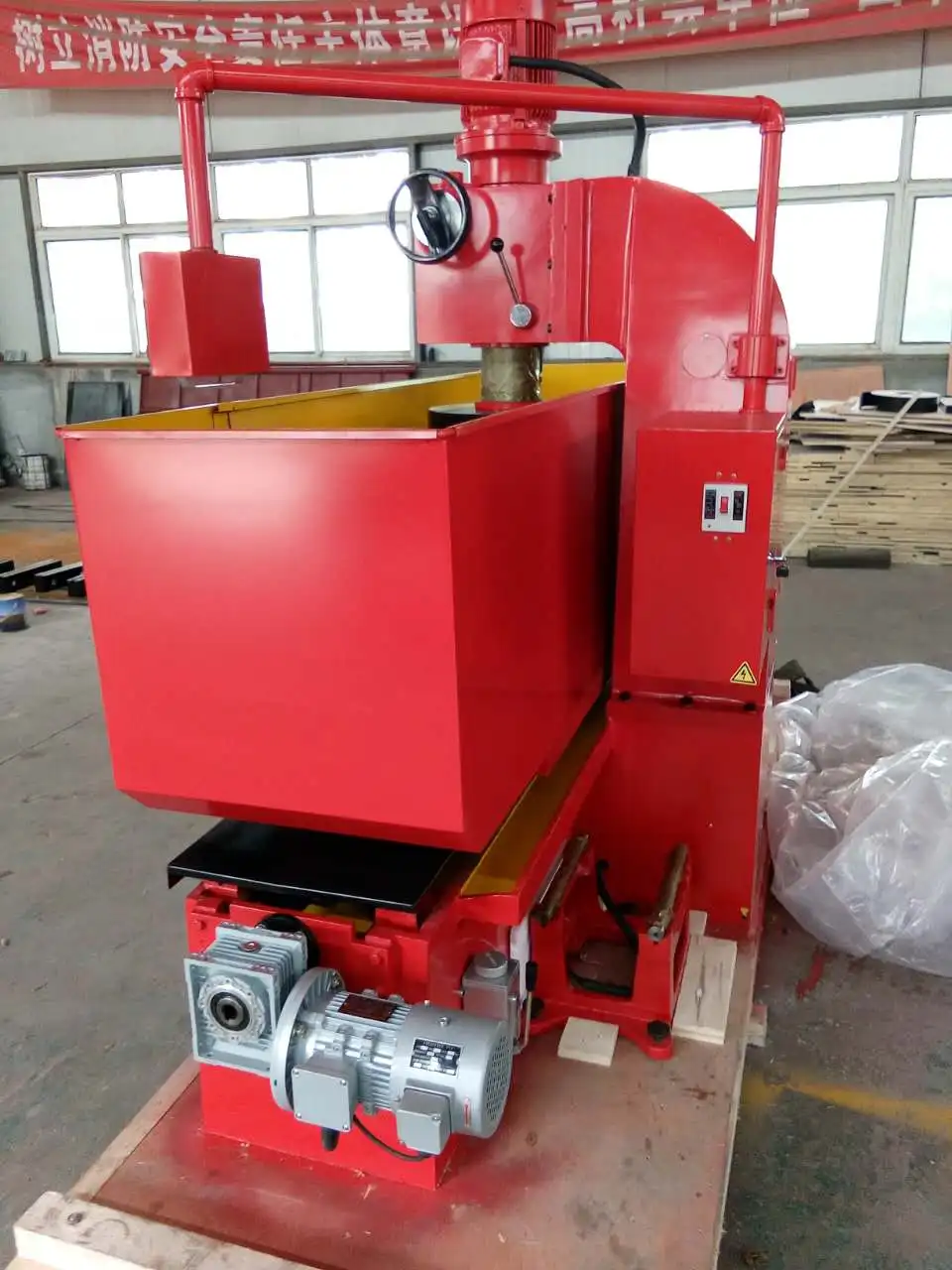

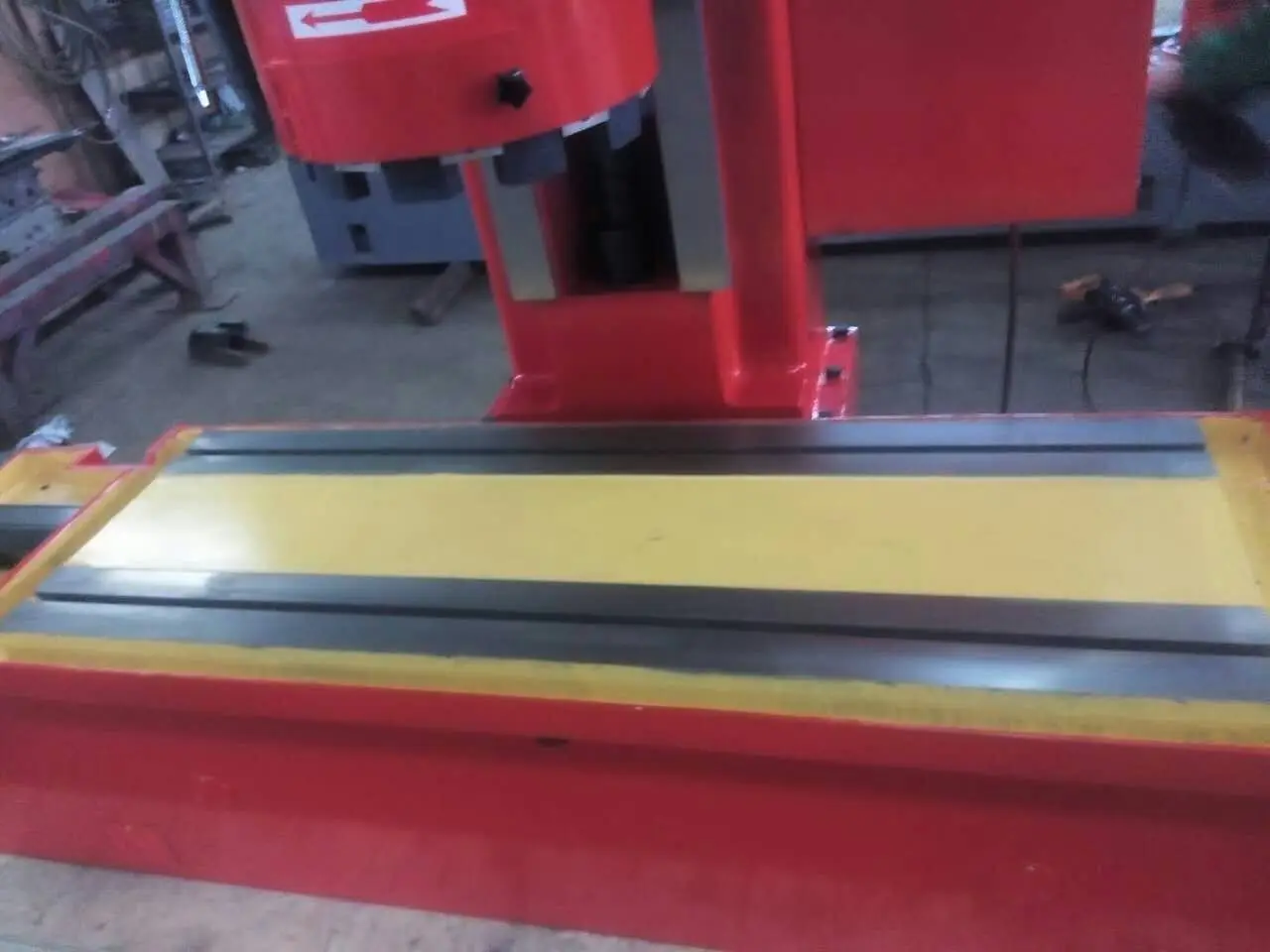

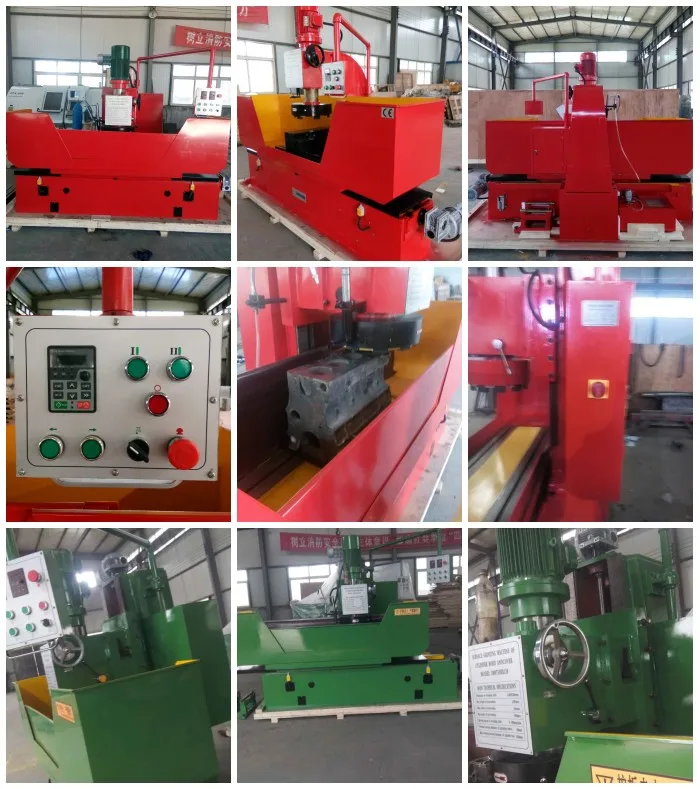

Please check the detailed pictures of our 3M9735A Cylinder head and block grinding machine as following:
Packaging & Shipping
3M9735A Cylinder head and block grinding machine
Packing size: 2950*2000*2100mm
Package: plyw/case or pallet
Our Services
We also would like to let you know our warranty about 3M9735A Cylinder head and block grinding machine as following:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
Company Information

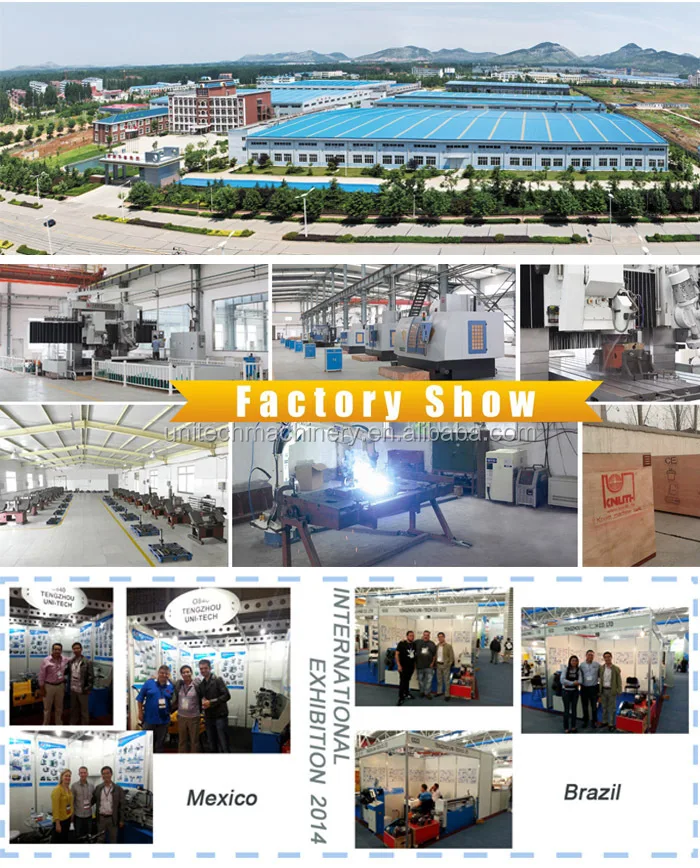

Every month, we will export almost 100 sets 3M9735A Cylinder head and block grinding machine in the worldwide. We think we can give you the most comprehensive support not only service but also techniques.Because we are a know-how machinery expert.
FAQ
PAYMENTS:
1.T.T 30% before production, T.T 70% after the BL copy
2.L/C at sight.
COLOR, VOLTAGE, POWER according to your requirements .
If you have any questions, please don't hesitate to contact me.
