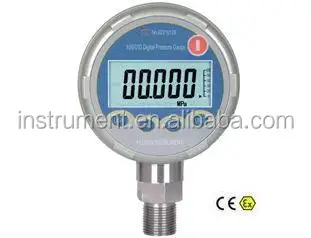

Digital Pressure Gauge

Digital pressure gauge adopts micro power components and unique software processing technology.Adopting Lithium battery power,it could work 24 hours continuously for one year.With 5-digit large crystal screen,the date could be showed more clearly.Every digital pressure gauge has passed the high and lower temperature aging thus to ensure more reliable precision.The compact industrial design and advanced technology makes it an ideal pressure measurement tool.

Digital pressure gauge is designed to offer a truly compact cost effective digital pressure gauge to cover a widely range of applications.The product has been used in the industries of power,chemical ,petrol,metallurgy,metering,etc.It mainly used for calibrating the Precision Pressure Gauge,General Pressure Gauge and so on.

Characteristics

l High Accuracy to 0.05%F.S

l Rang from vacuum to 10000psi /700bar

l Low Power Consumption

l Rugged aluminum alloy cover

l 5 Digit big LCD with high resolution

l Various Pressure Units selectable

l Temperature compensating

l Zero Point,Full Scale calibration function

l White backlight would be turned off automaticallly after 5s

l Adopt the special software treatment technology,unnecessary to preheat

l RS232 Communication port,which could communicate with the computer

l % indication with bar graph scale scale for visual reference

l Overload alarm function

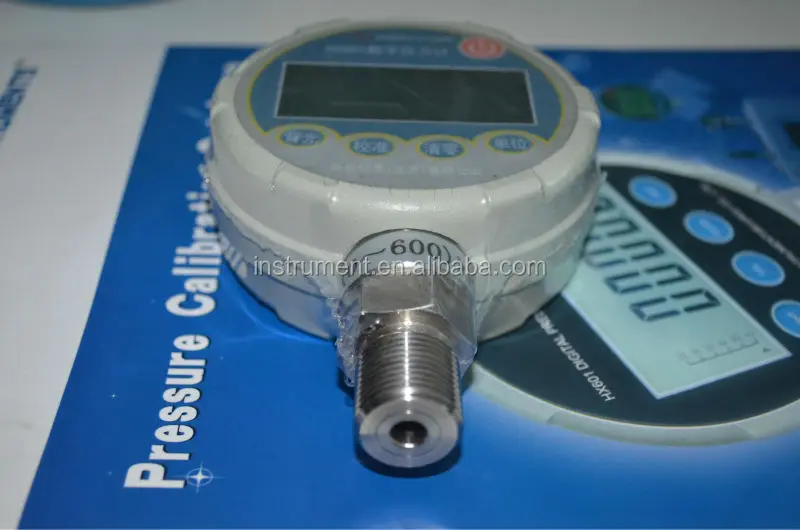

l Stainless steel bottom connection for robustness

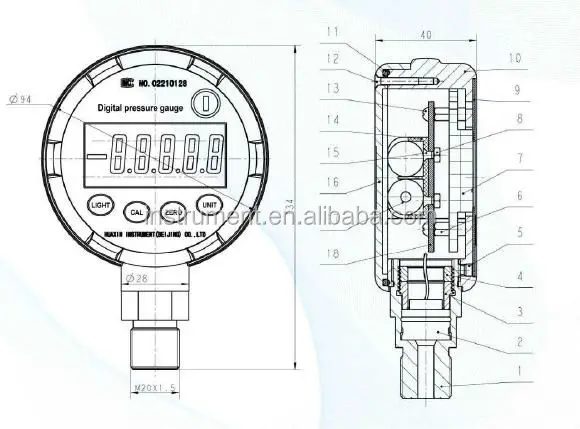

l Dimension:Φ93mmx41mm

l Total height:134(mm)

2.Technical Specification

l Pressure measurement range

   (-1-700)bar (pls see the selection table)

l Accuracy

    ±0.05%F.S

    ±0.1%F.S

    ±0.2%F.S

    ±0.5%F.S,etc

l Gauge types

    Gauge pressure

    Compound pressure

    Absolute pressure

    Differential pressure

l Work medium

    Oil, water&noncorrosive gases

    Over pressure alarm

    110%Full Scale

l Disply

5 digits big LCD with backlight

     3 readings per second(Default setting)

    Numberal display height:14mm

l Working Environment

    Compensated temperature:

    (-10-50)℃

    Operatingtemperature:

    (-10~50)℃

    Relative Humidity: <95%

    Storing temperature:(-20-70)℃

    Barometric Pressure: (86~106)kPa

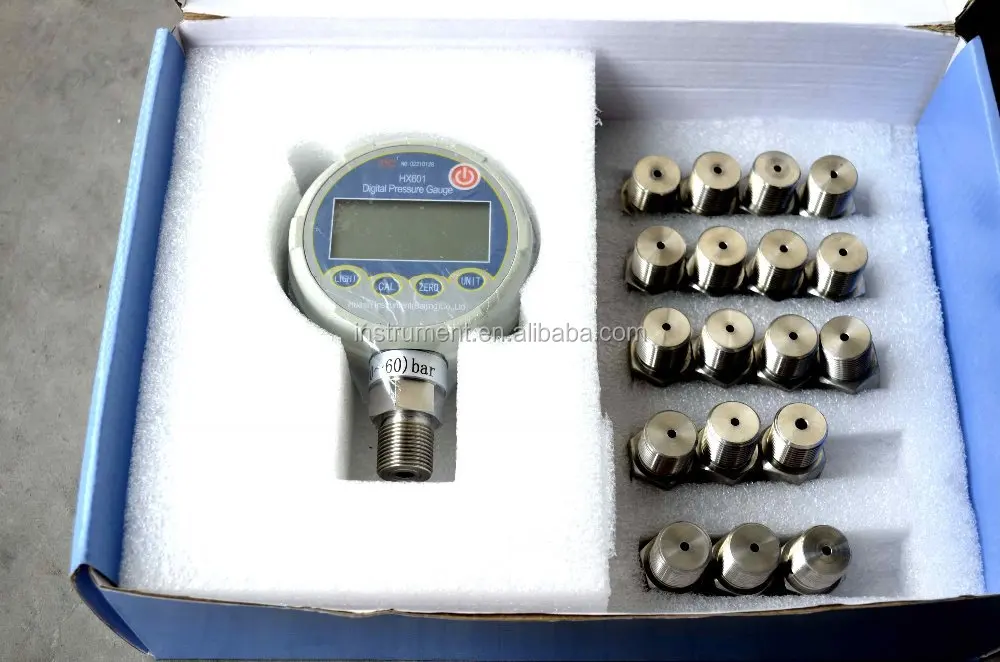

l  Pressure connection

    1/4NPT male

    M20X1.5

    Other connections customized
