Automatic pneumatic control double end chamfering machine bolt chamfering machine
- Category: >>>
- Supplier: Zhangjiagang Smarting Import&export Co. Ltd.
Share on (60666893045):
Product Overview
Description
Automatic pneumatic control double end chamfering machine bolt chamfering machine
Main specification
It is easy to adjust the cutting feeding speed.
Dies clamper and cutter head are special designed, can chamfer internal angle, external angle and flat angle at the same time.
Rotate speed can be adjustable according to the change of belt pulley, suit for all kinds of metal material pipes.
Technical parameter
MODEL | DEF-FA/52 |
SPEC. | |
Main motor | 2x1.5kw/4P (for steel, iron tube/pipe) |
2x1.5kw/1.0, 2/4P (for aluminum, bronze) | |
2×1/0.75kw,4/8P (for SS) | |
Hydraulic motor | 2HPx4P |
Air pressure | 0.6-0.8Mpa, 120ml/min. |
Cutter head range | Φ9-Φ50mm for steel pipe Φ9-Φ25mm for steel rod |
Workpiece length | 18-700mm |

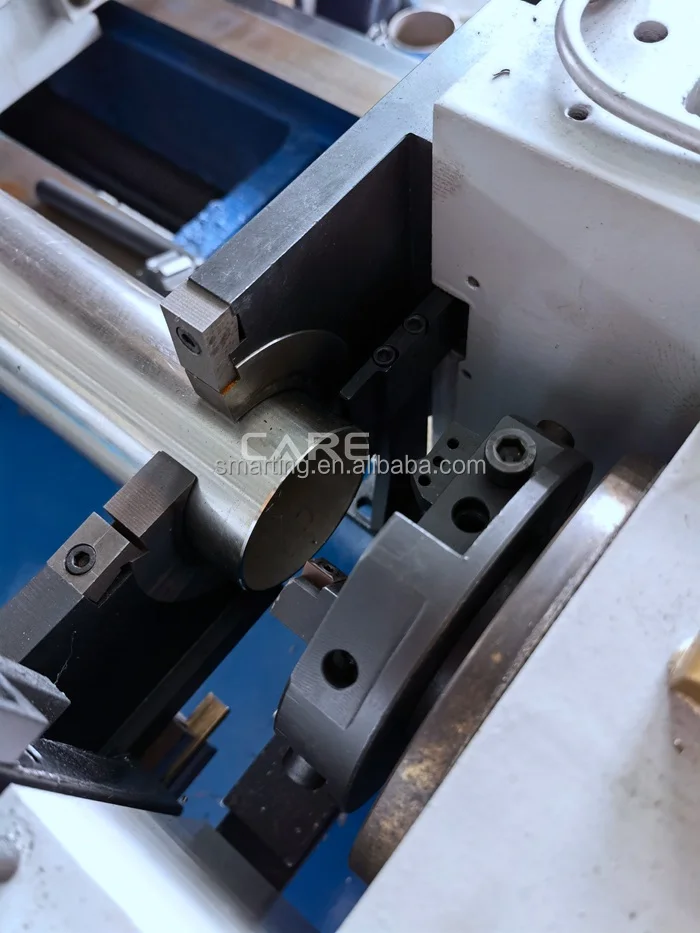

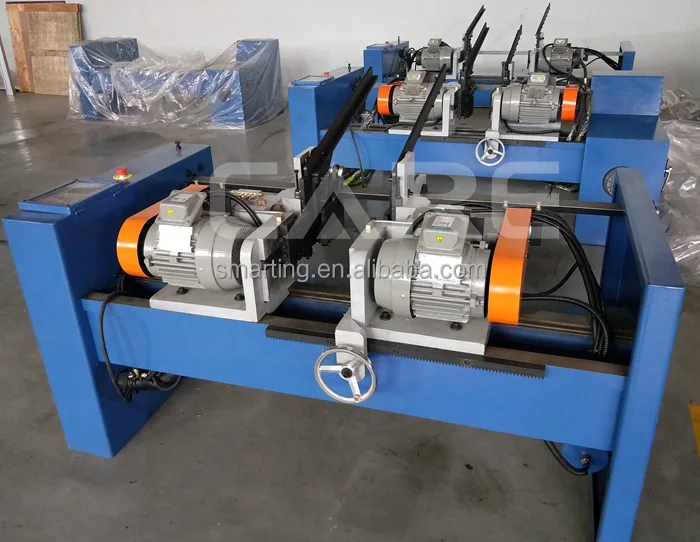

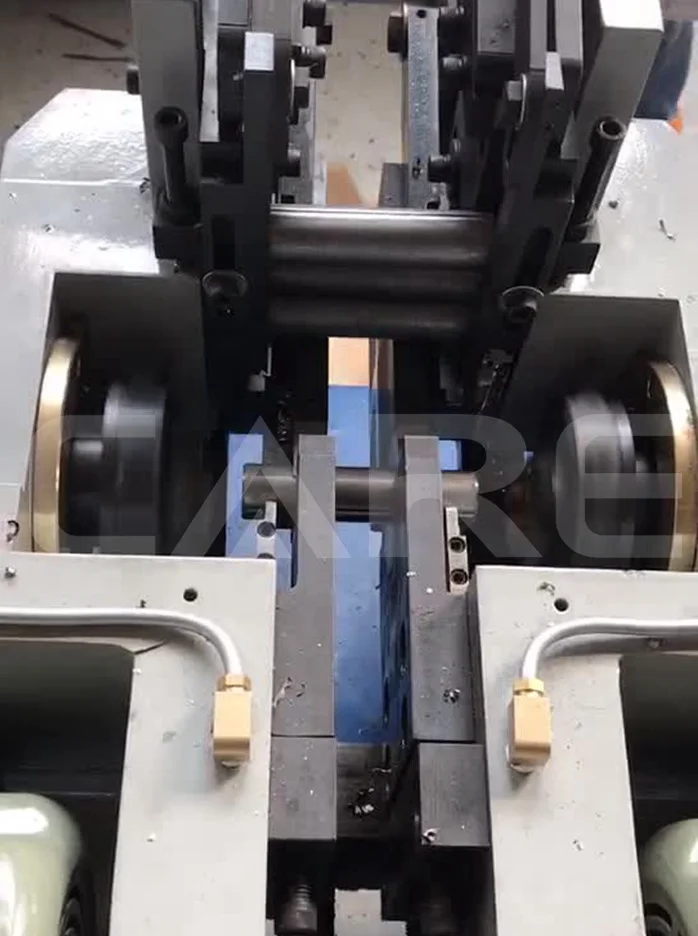

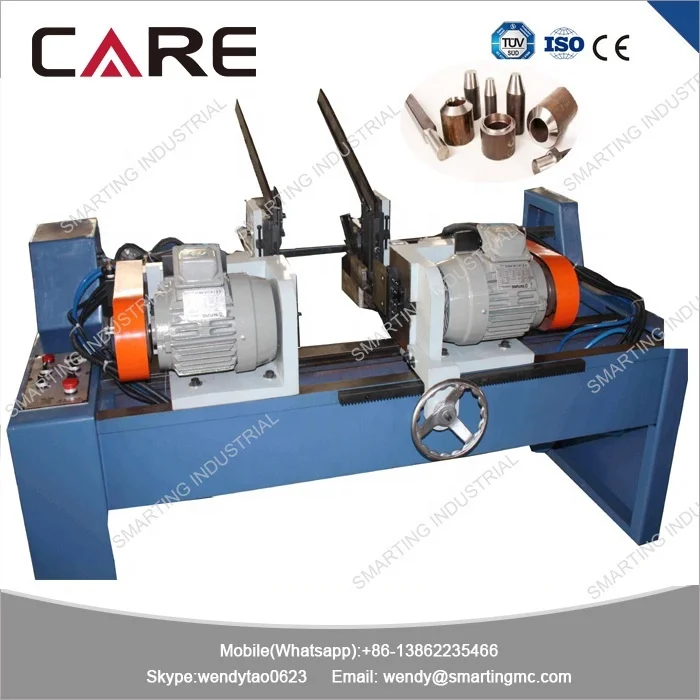

Machine photo

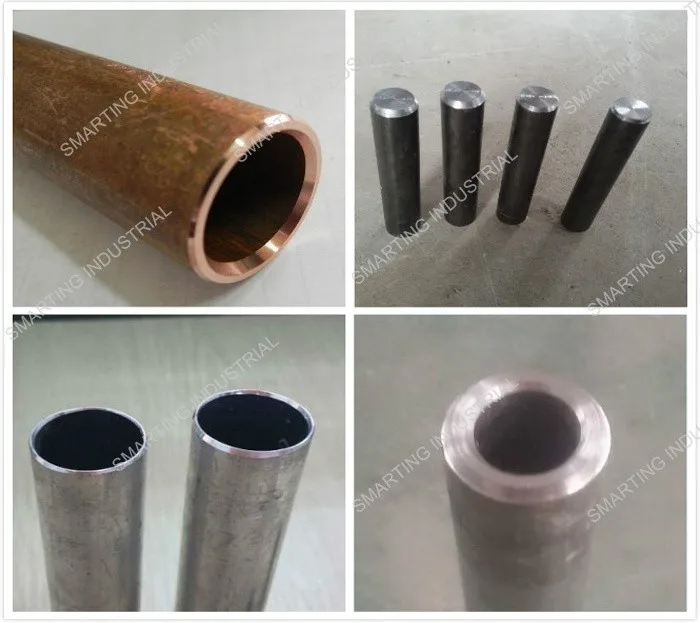

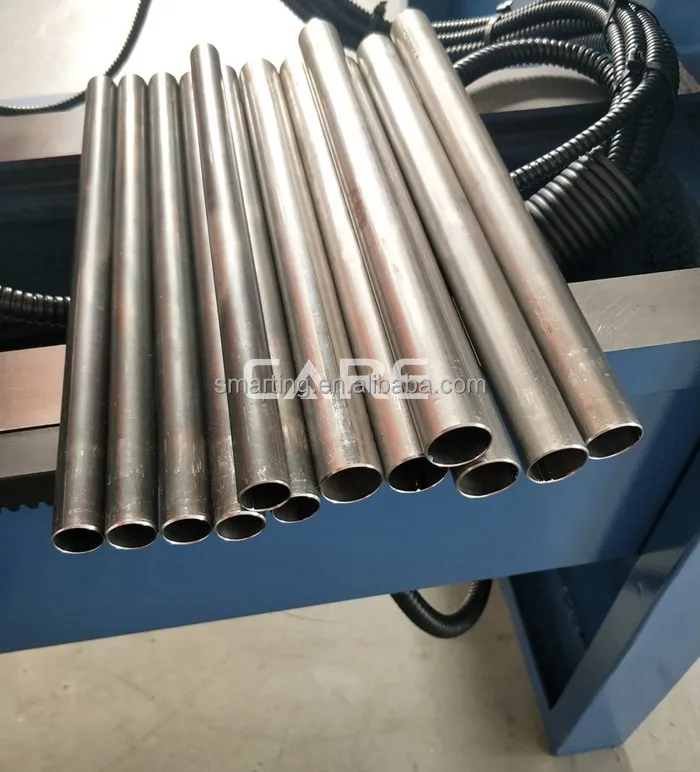

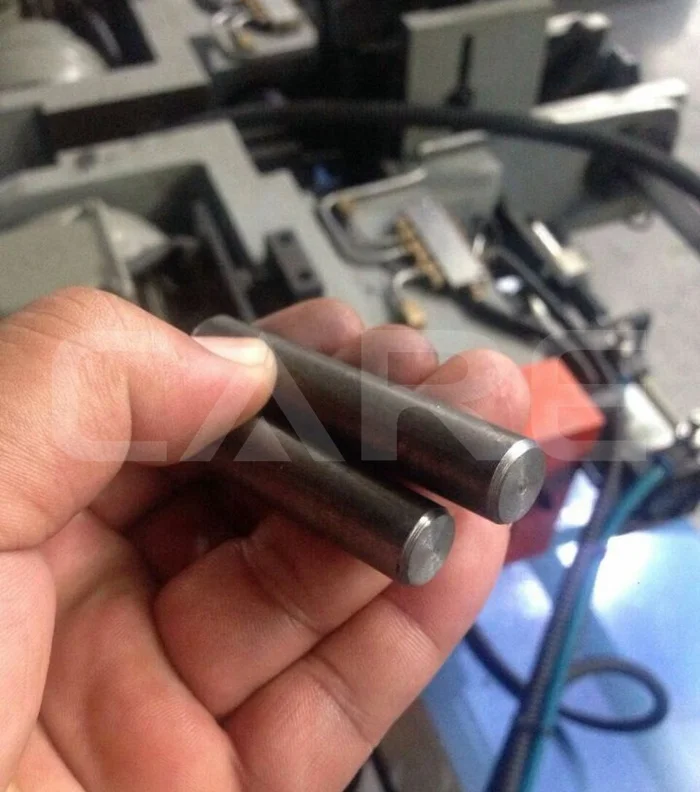

Pipe/rod sample
To know more information, please contact us at any time.
