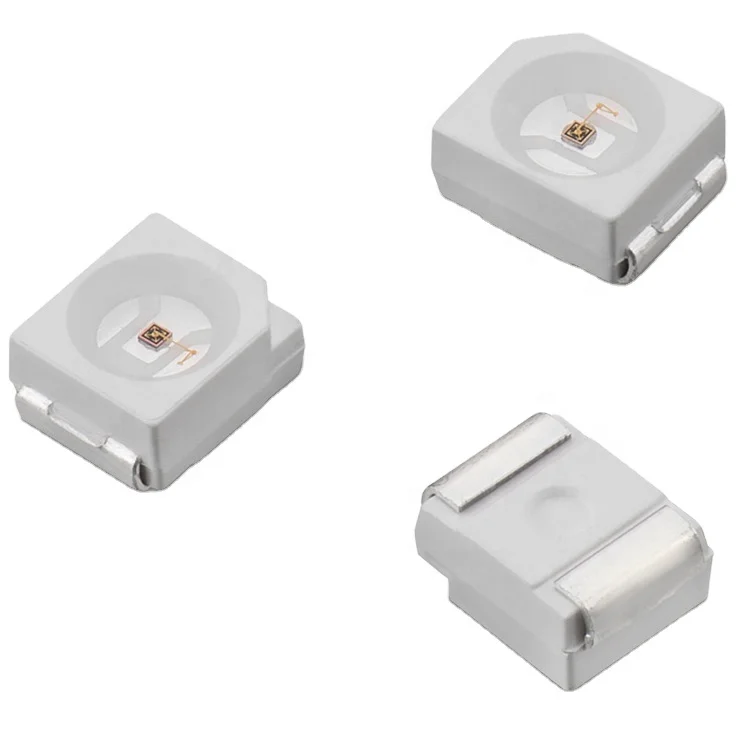

Yingfeng Custom Made Chip 0.2w 0.5w 5050 850nm 940nm 830nm760nm 980nm3528 ir smd led

Product Overview

Description

Order Code	Voltage (V)	Peak     Wavelength (nm)	Radiant   Power (mW)	Radiant Intensity (mw/sr)	Current (mA)	Half Width (nm)	Angle (0)
HYS36E15N365RP-D1	3.5-4.0	365-370	15-20	/	20	10	120
HYS36U13P380RP-D1	3.2-3.6	380-385	15-20	/	20	13	120
HYS36E15P400RP-D1	3.0-3.4	400-405	15-20	/	20	20	120
HYS36U13P410RP-D1	3.0-3.4	410-415	15-20	/	20	17	120
HYS36E14N660RP-D1	2.0-2.4	655-665	20-30	125	100	16	120
HYS36G14N680RP-D1	2.0-2.4	670-690	50-70	/	100	17	120
HYS36G14N700RP-D1	2.0-2.4	690-710	50-70	/	100	20	120
HYS36E14N730RP-D1	1.8-2.2	720-740	20-30	10	100	22	120
HYS36L14N760RP-D1	1.6-2.0	760-780	70-90	12.9	100	26	120
HYS36L14N780RP-D1	1.6-2.0	780-800	80-100	14	100	26	120
HYS36L14N800RP-D1	1.4-1.8	800-820	70-90	14.8	100	29	120
HYS36G14N820RP-D1	1.6-2.0	820-830	70-90	15.7	100	30	120
HYS36E14N850RP-D1	1.4-1.8	840-860	50-70	13.3	100	35	120
HYS36L14N880RP-D1	1.4-1.8	870-890	60-80	13.7	100	39	120
HYS36L14N910RP-D1	1.4-1.8	900-920	70-90	14	100	42	120
HYS36L14N940RP-D1	1.2-1.6	930-950	120-140	13.5	100	45	120
HYS36L14N970RP-D1	1.2-1.6	960-980	50-70	13.3	100	50	120
HYS36L14N1000RP-D1	1.0-1.4	1000-1100	35-45	13	100	60	120
HYS36G17N1070RP-D1	1.0-1.4	1070-1080	50-70	18	100	50	120
HYS36L14P1200RP-D1	0.5-1.0	1200-1400	25-35	/	100	50	120
HYS36L14P1300RP-D1	0.5-1.0	1300-1400	15-20	8	100	80	120
HYS36L14N1400RP-D1	0.5-1.0	1400-1500	15-20	7	100	90	120
HYS36L14N1500RP-D1	0.5-1.0	1500-1600	15-20	/	100	90	120
HYS36L14N1600RP-D1	0.5-1.0	1600-1700	15-20	/	100	90	120

Warm Tip:The above parameters are for reference. Wavelength Angle, PCB can be Customized Eccording to requirements

 Applications

Our products are widely used in various applications such as medical, life science, Industrial Equipment, non-destructive testing, and analytical equipment.

Substance / Matter Analysis//Hyperspectral Imaging
Machine Vision //Sorting Units (by raw material, by colour, etc.)
Detection of Foreign Matter//Blood Oxygen Saturation Analysis
Endoscopic Procedures//Photo Dynamic Therapy
Instrument Diagnostics and Research Execution//Spectroscopy
