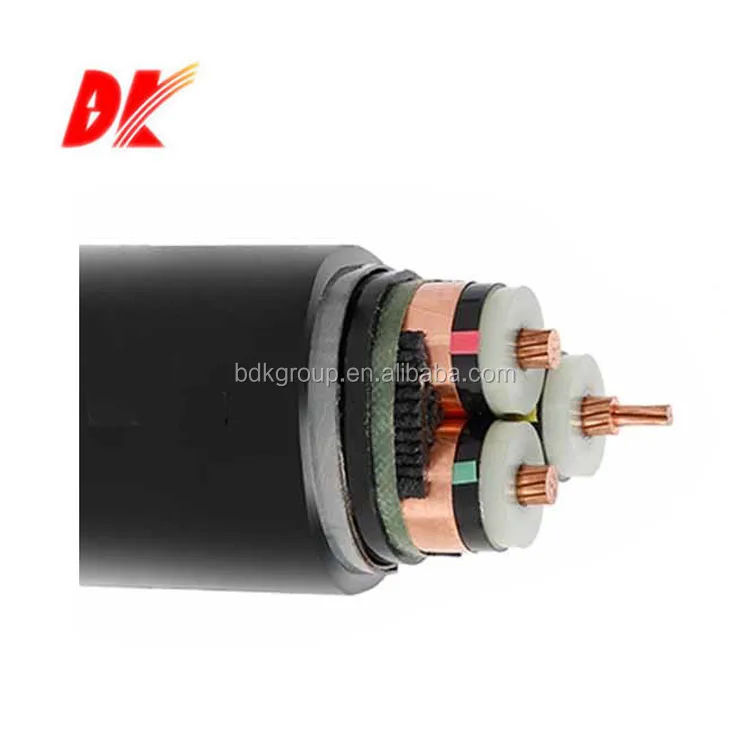

BS 6622 XLPE / PVC Medium Voltage 19/33 (36)kV Cable
- Category: >>>
- Supplier: Shenzhen Bendakang Cables Holding Co. Ltd.
Share on (60666971783):
Product Overview
Description
Angelalin one
Product description
| Type | BS 6622 XLPE / PVC Medium Voltage 19/33kV Cable | |
| Voltage Rate | 3.6/6-26/35kv | |
| Application | Power cables for power networks, underground and in cable ducting. | |
| Standard | BS 6622 | |
| Constructions | Conductor: | stranded copper conductor |
| Conductor Screen | Semiconductive XLPE | |
| Insulation: | XLPE | |
| Insulation Screen | Semiconductive XLPE | |
| Bedding | PVC (Polyvinyl Chloride) Type TM1 according to BS EN 50363 | |
| Sheath | PVC (Polyvinyl Chloride) Type TM1 according to BS EN 50363 | |
| Armour | Single core: AWA (Aluminium Wire Armoured) Multi-core: SWA (Steel Wire Armoured) | |
| Max. Operating Temperature | 90°C | |
| Sheath Colour | Red Black | |
Main Manufacturing Procedure
1,Copper wire drawing and annealing.
2,Copper wire stranding .
3,PVC insulation extruding.
4,Cores Twisting.
5, Outer sheath extruding and labeling
6,Spooling
Company Overview
Shenzhen Bendakang cables.Co.,LTD. is the NO.1 largest professional electric wires and cables manufacturer in south China certified by ISO9001, ISO14001, OHSMS28001 ,CE,CB,SAA . Also we are a leading company with many years’ export experience and we have a very good reputation internationally. We can produce thousands of electric wires and power cables as per different standards, such as IEC, BS, UL, AS/NZS, VDE, etc.
