20Pin IDC Socket Connector 1.27mmX2.54mm Pitch with Strain relief
20Pin IDC Socket Connector 1.27mmX2.54mm Pitch with Strain relief
20Pin IDC Socket Connector 1.27mmX2.54mm Pitch with Strain relief

20Pin IDC Socket Connector 1.27mmX2.54mm Pitch with Strain relief

Share on (60667008498):


Price:

Quantity:


Product Overview

Description

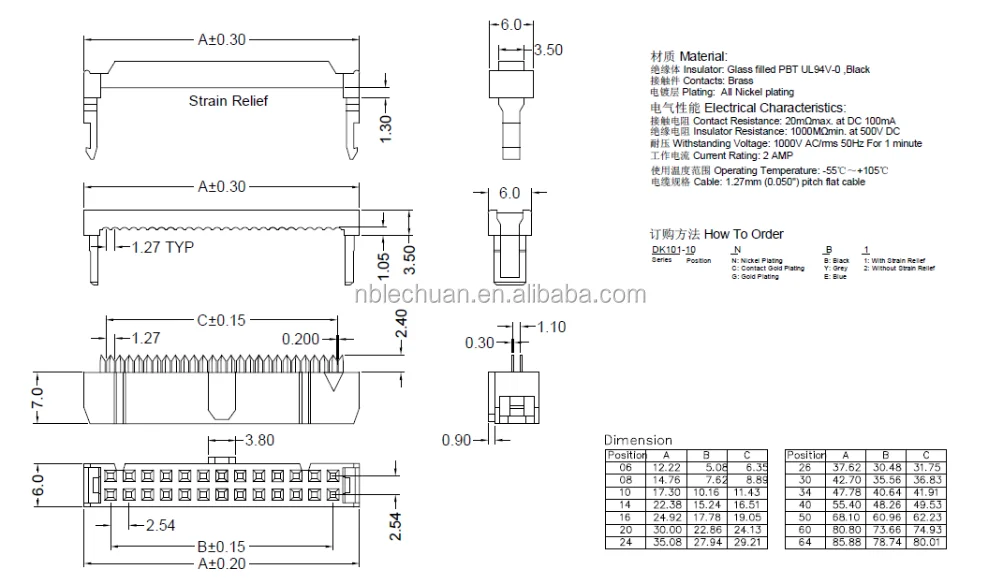

Product Description
\t
Product Name
\t
20Pin IDC Socket Pictch 1.27mm X2.54MM
\t
Material
\t
Insulator: Glass filled PBT UL94V-0 ,Black
\t
Contacts: Phosphor Bronze
\t
Plating: Contact Gold plating over Nickel
\t
Color
\t
Black
\t
Electrical Characteristic
\t
Contact Resistance: 20mΩmax. at DC 100mA
\t
Insulator Resistance: 1000MΩmin. at 500V DC
\t
Withstanding Voltage: 500V AC/rms 50Hz For 1 minute
\t
Current Rating: 1 AMP
\t
Environment
\t
Operating Temperature: -40℃~+105℃
\t
\t
Cable: 0.635mm (0.025") pitch flat cable
Products Show
Our Company

Workshop

Automation assembling line

Workshop

Automation assembling line

Packing & Shipping
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory and trading company.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge, Freight cost should be collected.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
