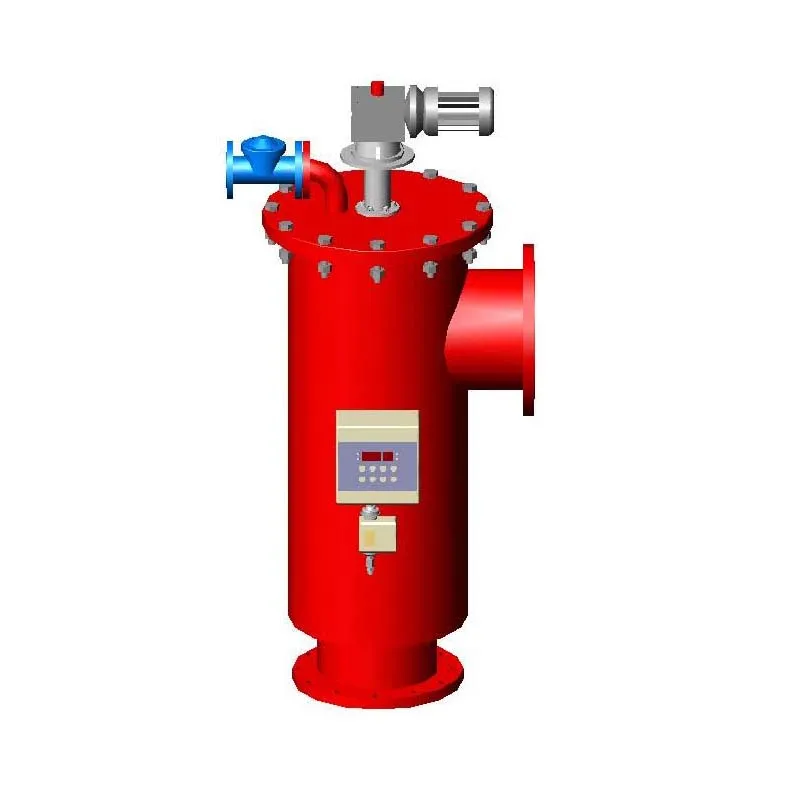

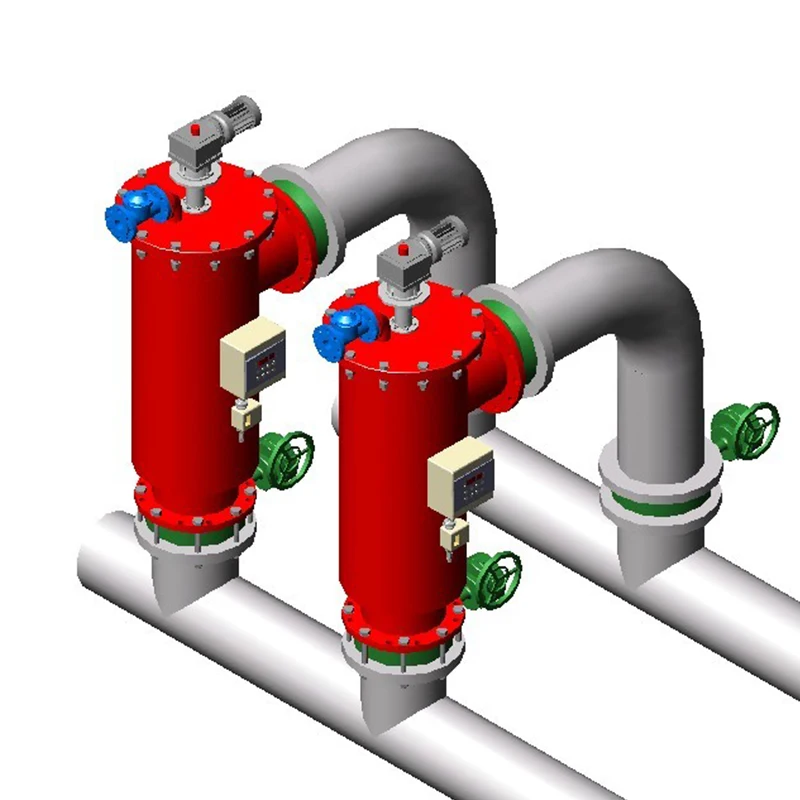

Cooling Tower Bypass Filtration Large-scale Water filter/cooling water filtration

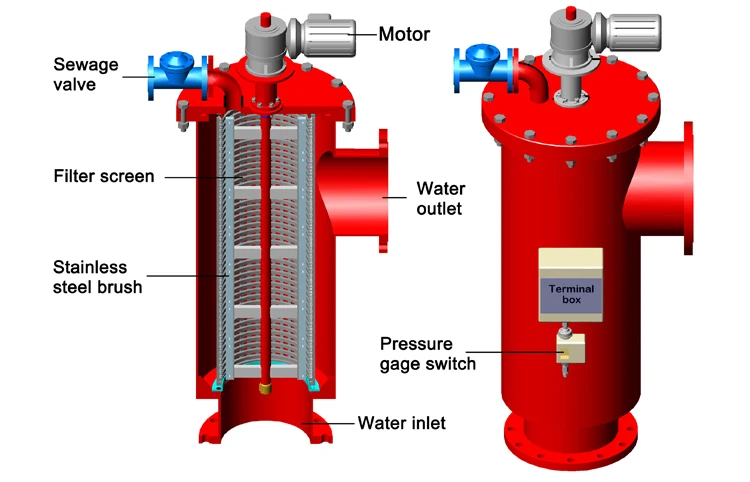

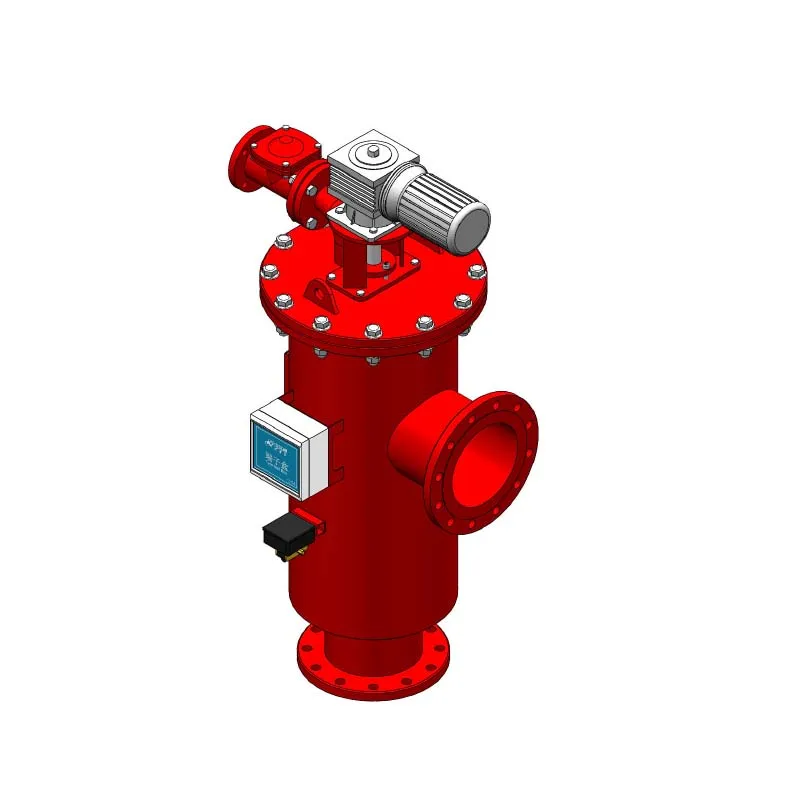

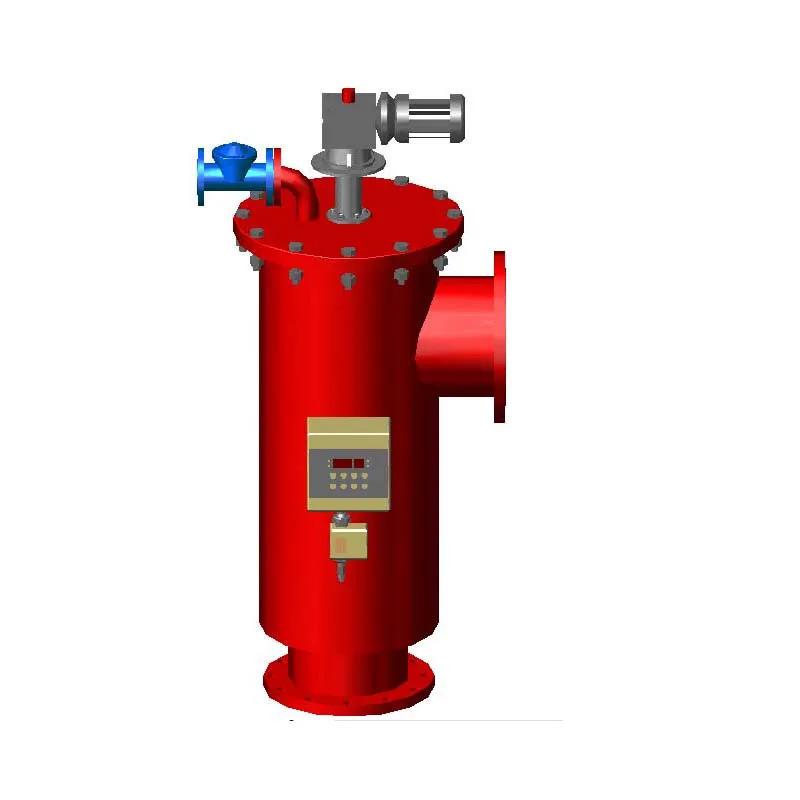

The A600 series is vertical self cleaning filter, small footprint saves valuable installation space. The cleaning mode is motor brush with good cleaning effect.
Operation
The Filtering Process

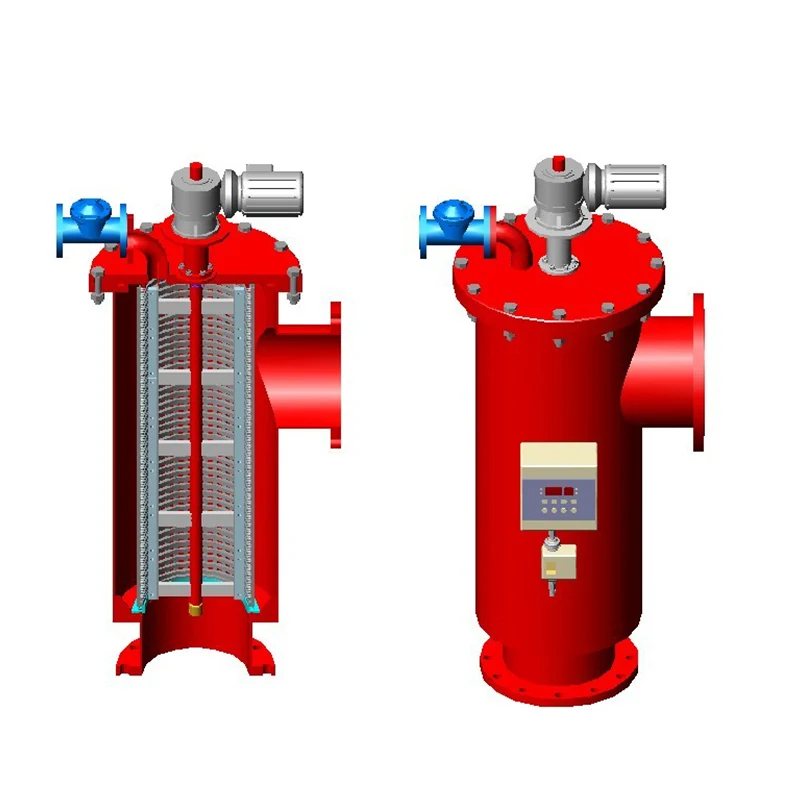

Raw water enters the inside of the screen-cylinder from the filter’s Inlet and flows through the screen to the filter’s Outlet. The dirt particles are trapped on the inner screen surface and formulate a “filtration cake” that causes a differential pressure across the screen.
A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process begins.
The Self Cleaning Process
During the self cleaning process, filtered process water continues to flow. The Drain Valve opens and the Motor rotates the stainless steel brush which sweeps the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.
The whole process takes 20-30 seconds.
During the whole process water supply is uninterrupted.
The Control System
Two types of control boards are available for the A600 filters: PLC/Timer.
The self cleaning cycle begins under any one of the following conditions:
1. Receiving a signal from the Pressure Differential Switch
2. Time interval parameter set at the control board
3. Manual Start
Technical Parameter
Filter flow | 80-4200 m³/h |
Max. recommended working pressure | 10 bar/16 bar/25 bar |
Min. operating working pressure during backwash | 2.5 bar |
Water temperature range | 0 ~ 65 °C |
Available filtration | From 50micron |
Pressure loss | < 0.1 bar |
Connections | Flange |
Backwash time | 20-30 seconds |
Water consumption during backwash | 1%-3% of filtered water |
Control model | DP/Timer/Manual |
Cleaning way | Brush |
Drive way | Motor drive |
Filter element | Stainless steel 304 mesh |
Filter housing material of construction | Carbon steel ST37-2/SS304/SS316 |
Sewage way | Fully automatic |
Installation | Vertical |
Rated operating voltage | 3ph/380V/50Hz or Customized |
Product Parameter
Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.
Mode | DN | Flow | Dimensions | ||||||||||

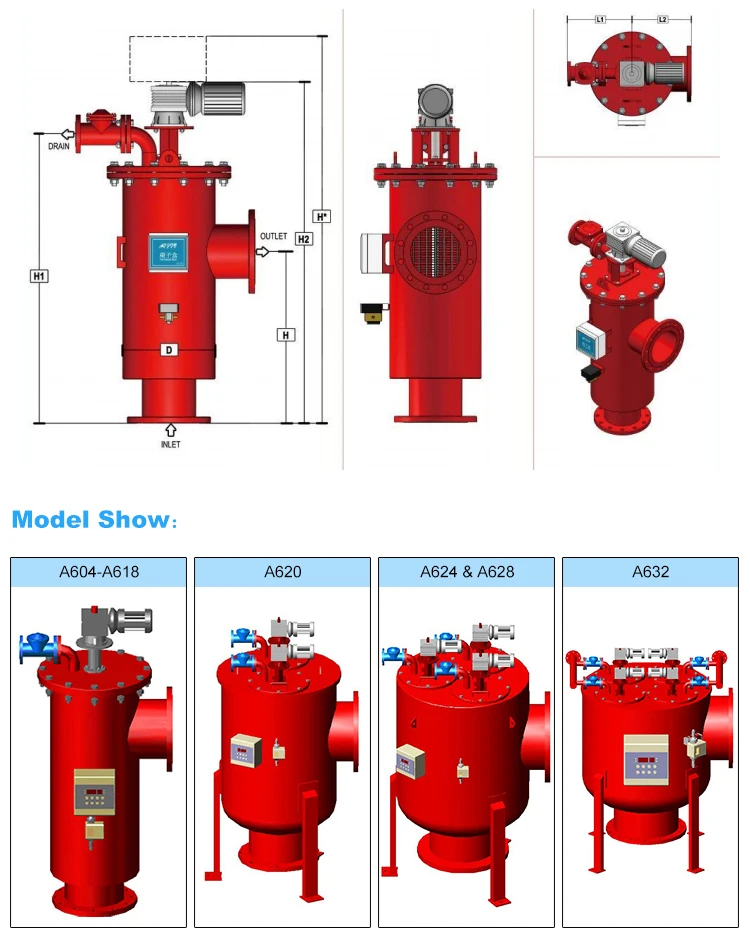

Filtration Area | Weight | Number of motors | D | H | H1 | H2 | H2* | L1 | L2 | ||||
inch | mm | m³/h | cm2 | Kg | mm | ||||||||
4 | 100 | 80 | 3530 | 175 | 1 | 377 | 500 | 875 | 1088 | 1350 | 373 | 350 | |
A606 | 6 | 150 | 150 | 3530 | 180 | 1 | 377 | 500 | 875 | 1088 | 1350 | 373 | 350 |
A608 | 8 | 200 | 300 | 5650 | 210 | 1 | 377 | 700 | 1175 | 1388 | 1950 | 373 | 350 |
A610 | 10 | 250 | 400 | 7910 | 305 | 1 | 480 | 700 | 1195 | 1398 | 1950 | 403 | 420 |
A612 | 12 | 300 | 600 | 10880 | 340 | 1 | 480 | 1000 | 1495 | 1698 | 2550 | 403 | 420 |
A614 | 14 | 350 | 900 | 13820 | 540 | 1 | 610 | 1000 | 1545 | 1749 | 2600 | 443 | 480 |
A616 | 16 | 400 | 1100 | 13820 | 555 | 1 | 610 | 950 | 1545 | 1749 | 2600 | 443 | 500 |
A618 | 18 | 450 | 1500 | 13820 | 730 | 1 | 720 | 950 | 1555 | 1749 | 2600 | 443 | 550 |
A620 | 20 | 500 | 2000 | 21760 | 1120 | 2 | 1016 | 1200 | 1933 | 2136 | 3600 | 403 | 700 |
A624 | 24 | 600 | 2800 | 32640 | 1570 | 3 | 1220 | 1200 | 2000 | 2203 | 3060 | 723 | 800 |
A628 | 28 | 700 | 3200 | 41450 | 2250 | 3 | 1420 | 1300 | 2370 | 2573 | 3350 | 828 | 900 |
A632 | 32 | 800 | 4200 | 55360 | 2935 | 4 | 1620 | 1400 | 2450 | 2653 | 3450 | 780 | 1050 |

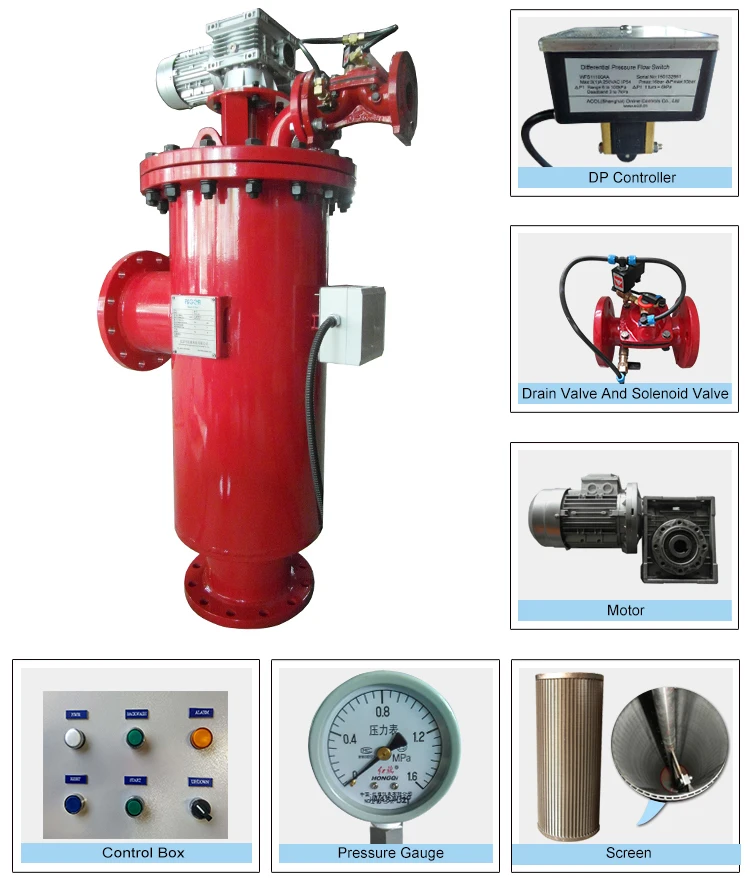

Product Details

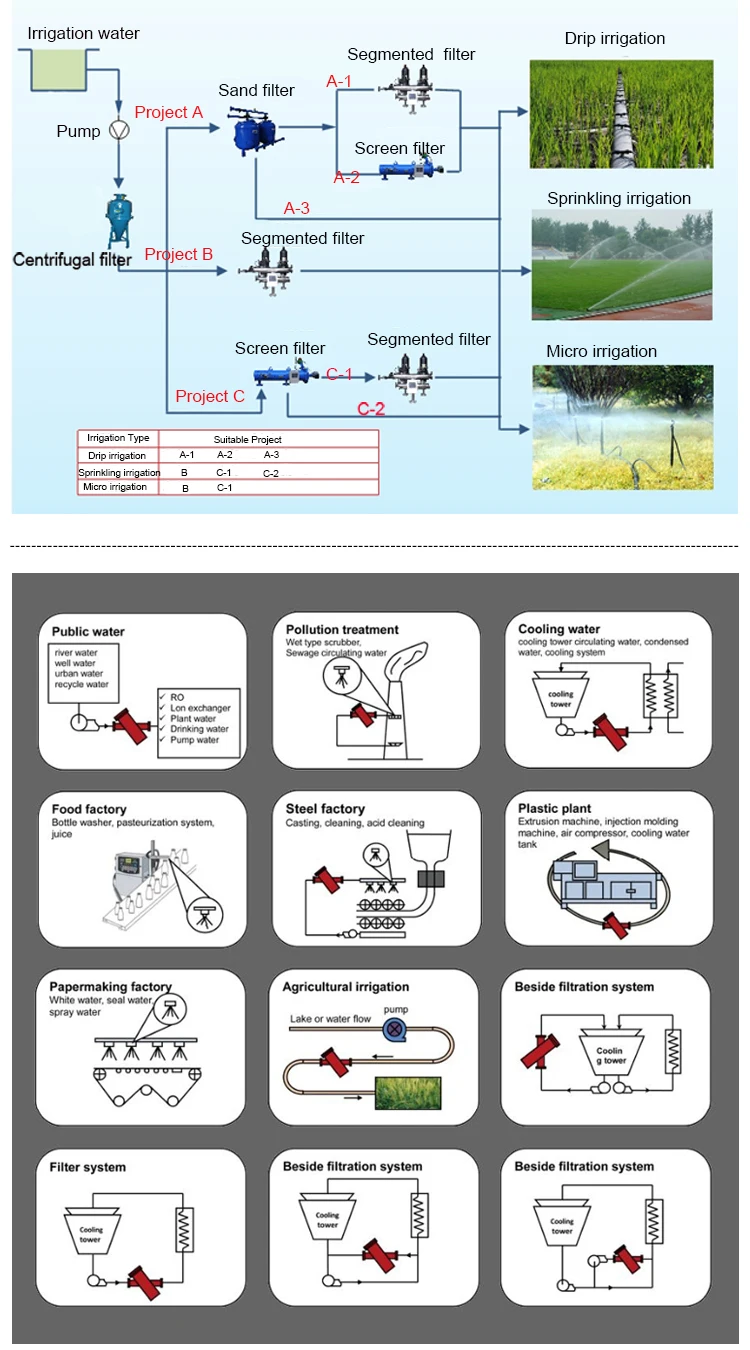

Application Area
AIGER Self-Cleaning Filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.
Packaging & Shipping
Packing :
The equipment is wrapped in plastic film and then loaded into the wooden box.
Our Services
About us
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25 days, and it is also according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
