Node MCU ESP8266 ESP 12E V1.0 Wifi ,Integrated power 32 bit MCU

Product Overview

Description

Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU

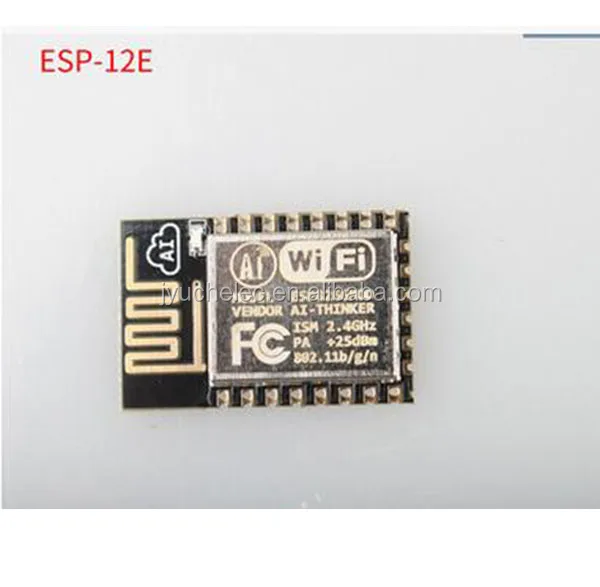

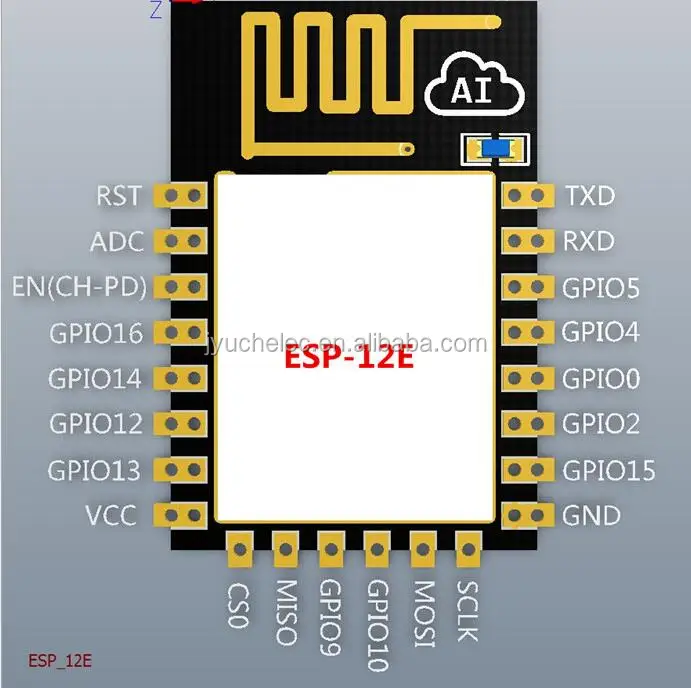

ESP8266-12E is an enhanced version of ESP8266-12, perfect peripheral circuit, enhanced impedance matching, signal output better, whether it is stability or anti-jamming capability, have been greatly improved! For those who choose ESP-12 before, even if the product has been made it does not matter, enhanced version is fully compatible with the firmware before the pin in the ESP-12 on the basis of the addition of six IO port, SPI port leads, the development more convenient, More extensive

Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU

Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU

Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU



Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU





Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU

         The module core processor ESP8266 integrates the industry-leading Tensilica L106 ultra low power 32-bit micro MCU in a smaller package with 16-bit lean mode with 80 MHz and 160 MHz support, RTOS support, integrated Wi- Fi MAC / BB / RF / PA / LNA, onboard antenna. The module supports the standard IEEE802.11 b / g / n protocol, the complete TCP / IP protocol stack. Users can use this module to add networking capabilities to existing devices, or to build standalone network controllers.
       Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU

          The ESP8266 is a high-performance wireless SOC that provides maximum utility at the lowest cost and unlimited possibilities for WiFi functionality embedded in other systems

Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU



Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU





Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU



• 802.11 b / g / nNode MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Built-in Tensilica L106 ultra low power 32-bit micro-MCU, clocked at 80 MHz and 160 MHz support RTOS
Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU

• Built-in 10 bit high precision ADC Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Built-in TCP / IP protocol stack Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Built-in TR switch, balun, LNA, power amplifier and matching network  Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Built-in PLL, regulator and power management components, +20 dBm output power in 802.11b mode   Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• A-MPDU, A-MSDU aggregation and 0.4 s protection interval   Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• WiFi @ 2.4 GHz, supporting WPA / WPA2 security mode    Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Supports AT remote upgrade and cloud OTA upgrade   Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Supports STA / AP / STA + AP operation mode   Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Support for Smart Config features (including Android and iOS devices)   Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO     Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• The deep sleep hold current is 10 uA and the shutdown current is less than 5 uANode MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Wake up, connect and deliver packets within 2 ms   Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Standby power consumption less than 1.0 mW (DTIM3)    Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
• Operating temperature range: -40 ° C to 125 ° C    Node MCU ESP8266 ESP-12E V1.0 Wifi ,Integrated power 32-bit MCU
