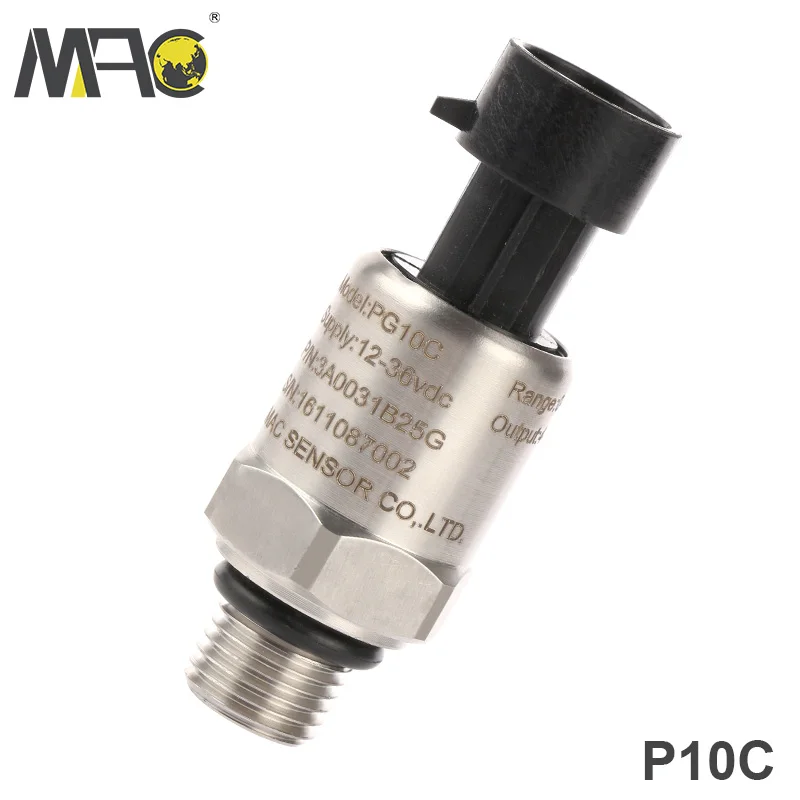

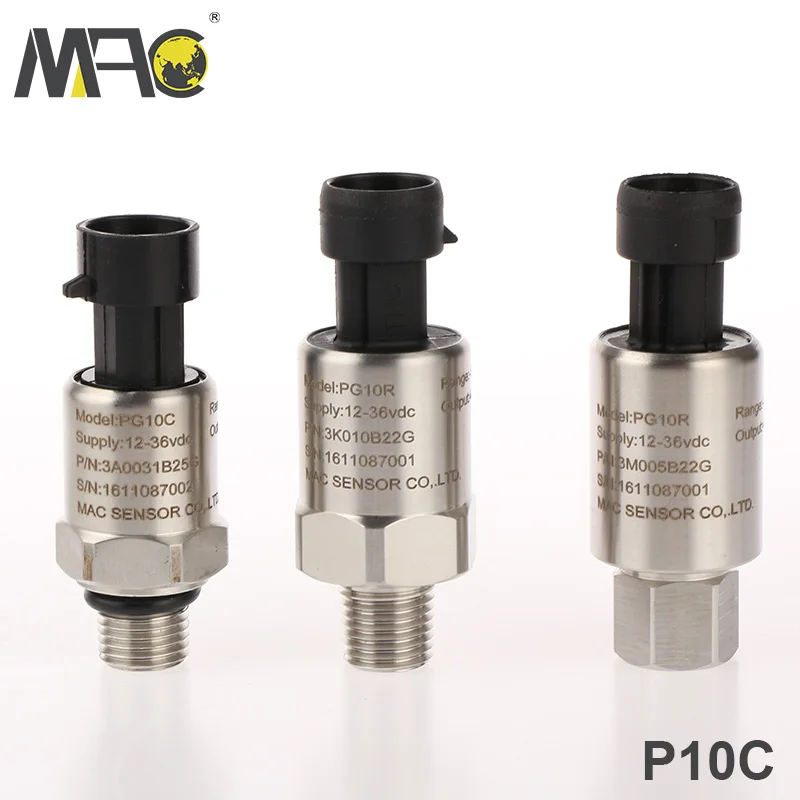

Macsensor Industrial refrigerant digital pressure sensor

Characters:

Accuracy: ≤±0.5%F.S.

 Wide working temperature scope

 Automation temperature compensation.

 Excellent overload, Shock and erosion.

 Anticorrosive diaphragm and port.

 OEM economic selection

 Mini dimension types

 2 times range standard overload.

 3 times range burst pressure

 CE approved

Applications:

 Engine Fuel Pressure measurement

 Refrigeration and Air Compressor

 Hydraulic pressure controller

 Petrochemical industry

 HAVC System Application

 Pressure meter

 Laboratory equipment

 Water pressure measurement

 Saving water to irrigate

 Liquid and Gas pressure measurement

Model:

P10 Series

Pressure Range:

-1-0-1 Bar.....600 Bar Optional

Pressure Type:

Gauge pressure; Negative pressure; Absolute pressure optional

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±1.0%F.S (Standard)

≤ ±0.5%F.S (Customized)

Optional.

Medium Temp:

-30℃~85℃

Ambient Temp:

-30℃~80℃

Storage Temp:

-40℃~85℃

Temperature Compensation:

0℃~50℃

Overload:

150% F.S.

Housing material:

304 Stainless Steel

Diaphragm material:

Ceramic

Process material:

SUS304 Stainless Steel or by customized

Medium compatible:

Compatible with 304/316 Stainless Steel

Electronic Wire:

2 or 3 wires

3 Wires

Output:

4~20mA

0~5V/1~5V

0~10 V

0.5~4.5 V Ratiometric

Special customized

Power Supply:

12~36 V DC

8~36 V DC

15~36Vdc

5 V DC

Special customized

Insulate resistance:

>100M Ω  @50V

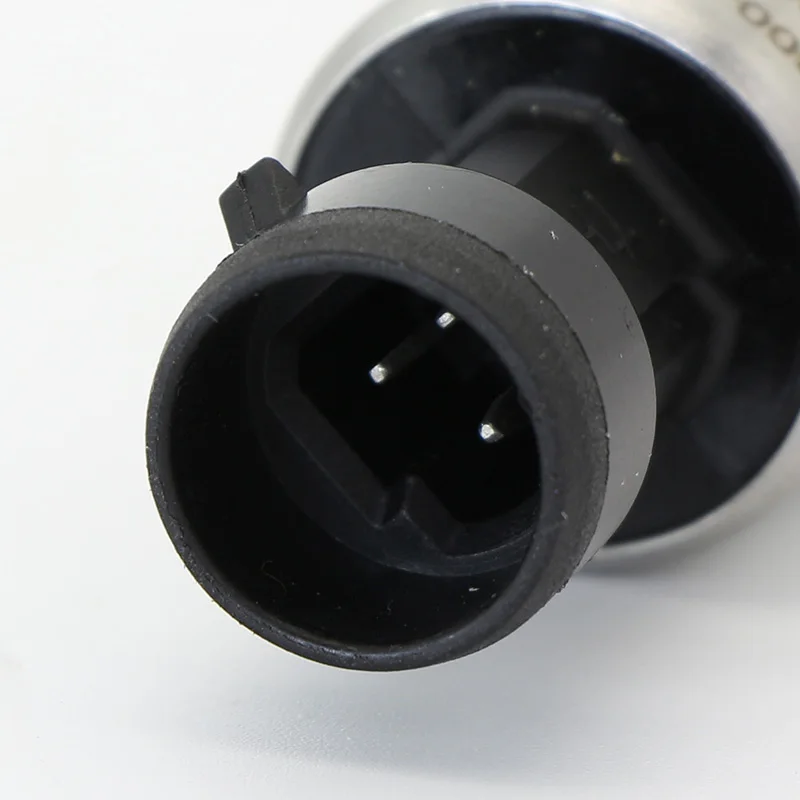

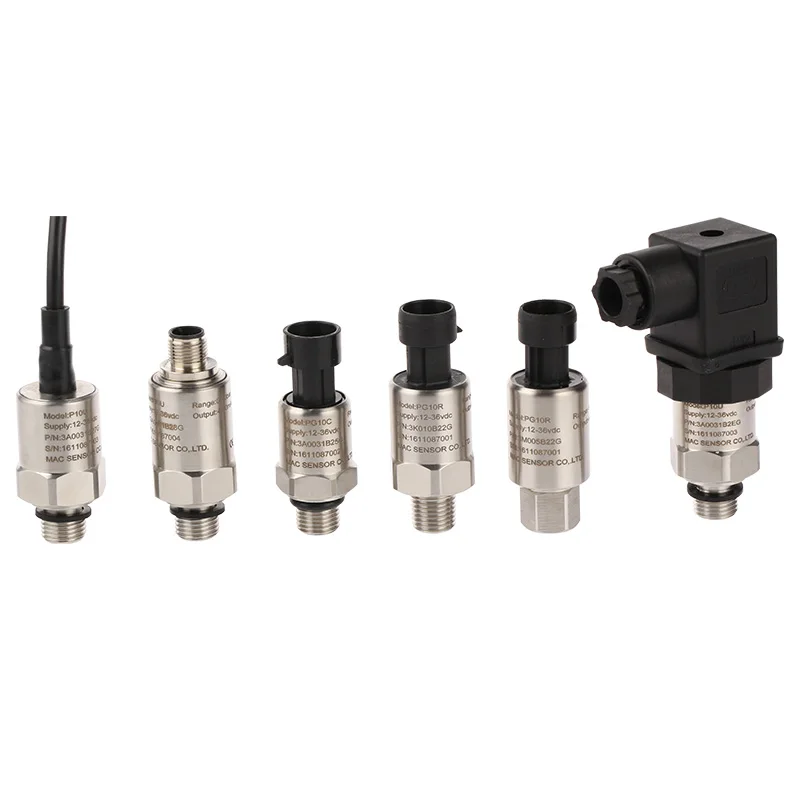

Electronic connection:

Terminal Box (DIN43650 Hirschman Connector, IP65);   Directly sealed cable IP67;

M12 4 Pins connector IP65;  Packard 3 Pins Connector IP67 are optional.

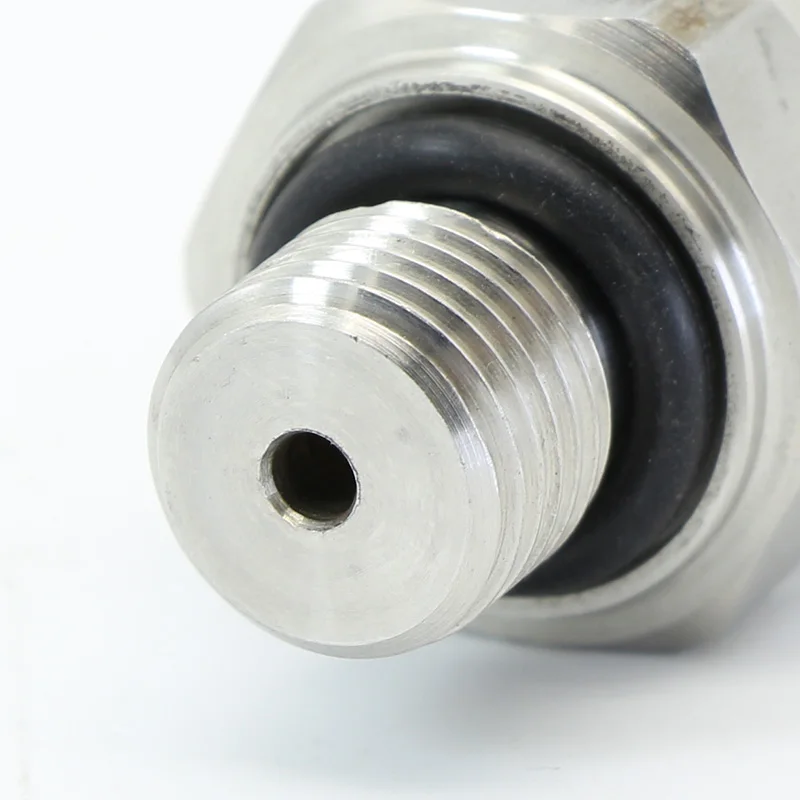

Pressure

connect port:

1/8’’NPT male, 1/4’’NPT male 1/4’’NPT Female, G1/2’’ male, G1/4’’male/female,

7/16’’-20 UNF male/female are optional. (by Customized)

Certificate approving:

CE Certificate.

Water Proof:

IP65 to IP67

Weight:

Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable)

Remarks:

Special applications request by Customized
