AP DC 2452 60C Automatic cleaning Static electricity Two fan Overhead Ionizing Air Blower
- Category: >>>
- Supplier: Shanghai Zunkin Technology Co. Ltd.
Share on (60667146083):
Product Overview
Description

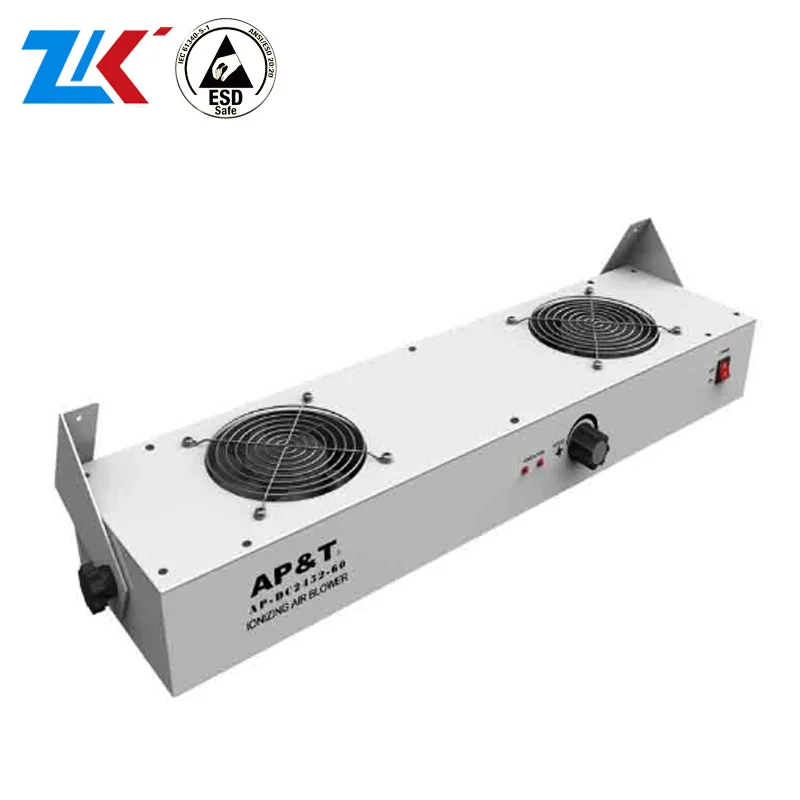

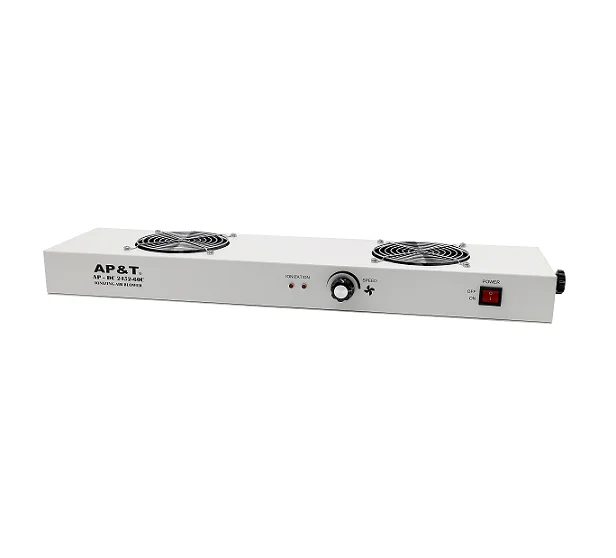

AP-DC-2452-60C Automatic cleaning Static electricity Two-fan Overhead Ionizing Air Blower
| Model | SP-AP-DC2452-60C |
| Input voltage | AC220V/50Hz or 110V/60Hz |

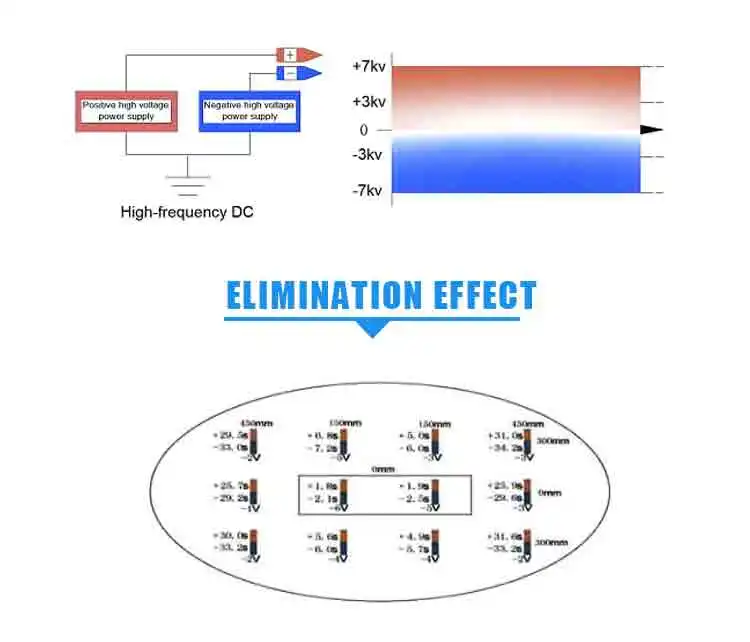

| Working voltage | ±DC4000-DC7000V |
| Power | 15W |
| Ion balance | -1OV~+10V(450mm testing center from the air outlet) |
| Discharge speed | ≤3s (300mm testing from the air outlet) |
| Effective working range | 900*600mm(L*W) |
| Air volume | 2*95CFM (adjustable) |
| Noise | ≤55db (150mm from the air outlet) |
| Ozone thickness | ≤0.02ppm (150mm from the air outlet) |
| Working temperature | 0-50℃ |

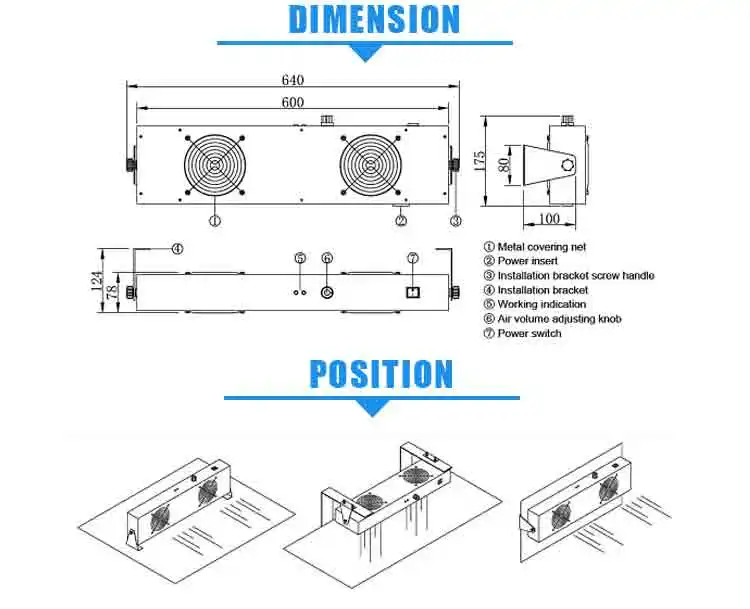

| Dimension | 640*175*124mm (L*M*H) |
| Net weight | 3350g(Including power cord bracket accessories) |
| Feature | with automatic brush clean function |
Product Feature
1, Fit for static elimination in large area
2, Auto cleaning function.
3,The combination of multi-units independent ion transmitting
4,Stepless adjustment of the air volume and longer lifetime of the fan
5,Fast speed of the elimination and stable performance of the circuit
6,Detachable cover net both front and back, convenient to clean and maintain
Industry Applications
Widely Used in electronics, optoelectronics, semiconductors, plastics, films and printing industries
Testing instrument :3M-711 Static tester
Testing standard :SJ/T10694-2006,GB/T14437-97
Testing voltage :±1000 — ±100V Attenuation
Testing environment :Humidity30%—50% Temperature20±5℃
Zunkin Technology is committed to providing full range of automation control products, integrated
solutions and technical services, anti-static security control.
Our main agent of the United States AMCELLS, Germany HBM, Japan YAMATO, Japan NTS, South
Korea DACELL, Dr.Storage and other companies, is a Chinese mainland dealers.
Main products as like Load cell, pressure sensor, Pull pressure sensor, Torque Sensor, Dew point
instrument ,displacement transducer, weigher , Dry Cabinet, Ionizers , ESD Magazine Racks, cleanroom
so on .
solutions and technical services, anti-static security control.
Our main agent of the United States AMCELLS, Germany HBM, Japan YAMATO, Japan NTS, South
Korea DACELL, Dr.Storage and other companies, is a Chinese mainland dealers.
Main products as like Load cell, pressure sensor, Pull pressure sensor, Torque Sensor, Dew point
instrument ,displacement transducer, weigher , Dry Cabinet, Ionizers , ESD Magazine Racks, cleanroom
so on .
Related Products
 |  |  |  |
 |  |  |  |
FAQ
1) is it ESD or None ESD ?
Yes, our material are permanent Antistatic .
2) What 's good resistance for ESD material ?
range at 10e4-9ohm
3) is it meeting ANSI/ESD 20.20 standard or IEC 61340-5-1
Yes, our products are all meeting china local and international standard .
4) is any warranty for ESD Magazine Racks , Dry Cabinet or Ionizers ?
Warranty one year , According to ISO 9001 : 2008 quality system .
5) what's size for ESD Box, ESD Trays, ESD Bags, ESD Gloves, or others ?
Most of them can be customized as per customers request
1) is it ESD or None ESD ?
Yes, our material are permanent Antistatic .
2) What 's good resistance for ESD material ?
range at 10e4-9ohm
3) is it meeting ANSI/ESD 20.20 standard or IEC 61340-5-1
Yes, our products are all meeting china local and international standard .
4) is any warranty for ESD Magazine Racks , Dry Cabinet or Ionizers ?
Warranty one year , According to ISO 9001 : 2008 quality system .
5) what's size for ESD Box, ESD Trays, ESD Bags, ESD Gloves, or others ?
Most of them can be customized as per customers request
