i.MX6UL Linux Board With Dual Ethernet Ports 4.3' Resistive LCD GPS module
- Category: >>>
- Supplier: Baoding Forlinx Embedded Technology Co. Ltd.
Share on (60667188432):
Product Overview
Description
Product Description

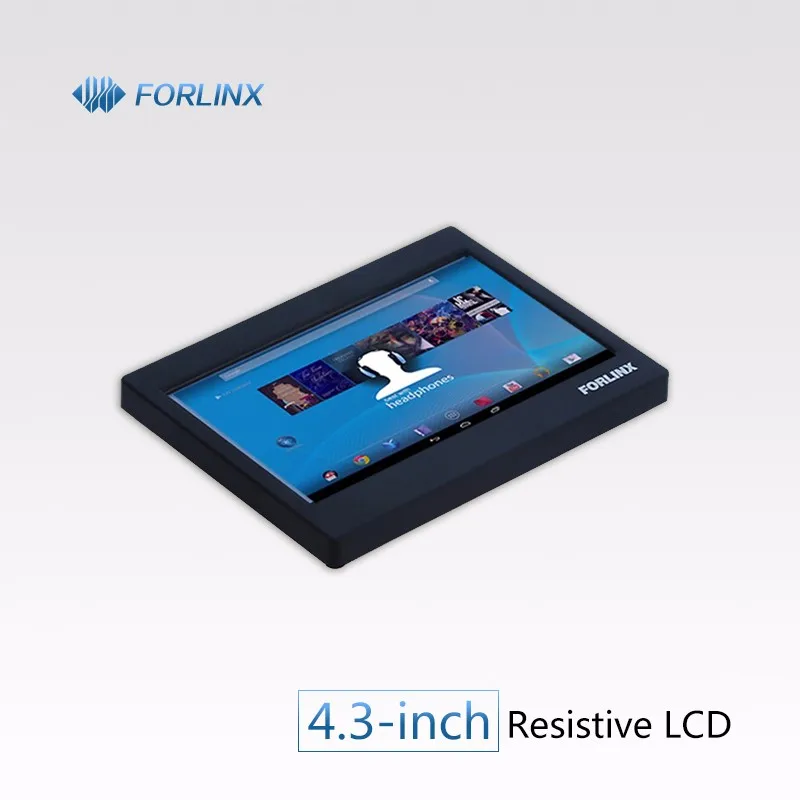

i.MX6UL Linux Board With Dual Ethernet Ports + 4.3'' Resistive LCD + GPS module
OKMX6UL-C1 is an embedded Linux motherboard designed Freescale i.MX6Ultra Lite Cortex-A7 processor, it is with 512M LvDDR3 and 4G eMMC. It is a complete, ready-to-use embeddedsystem development board consisting a CPU module with based board, its CPU module is with compact size even smaller than NXP original SoM. OS Linux is well supported. This item aims at low power applications such as automotive telematics, IoT gatewaym HMI, home energy management systems, smart energy concentrators, intelligent industrial control systems, electronics POS device, smart appliances, financial payment systems, etc.

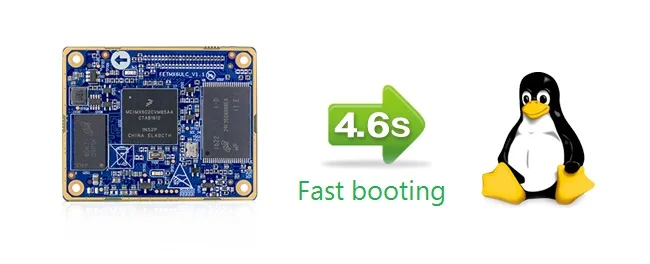

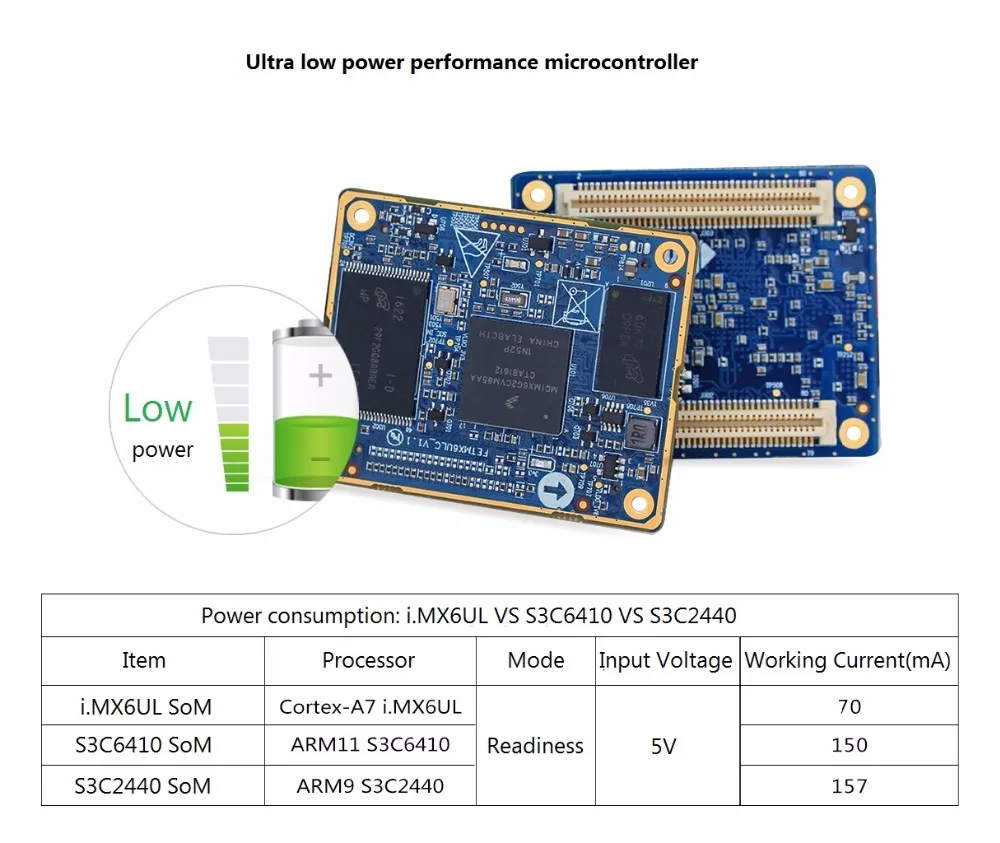

FETMX6UL-C1 SoM Features | ||||||
CPU | Freescale i.MX6Ultra Lite | CAN | 2-ch | |||
Architecture | Cortex-A7 | USB Device | 2-ch | |||
Main Frequency | 528MHz | SD/MMC/SDIO | 2-ch | |||
RAM | 512M LvDDR3 | Ethernet | 2-ch, 10/100M adaptive | |||
Flash | 4G eMMC | UART/IrDA | 8-ch | |||
Working Voltage | 5V | EINT/GPIO | supported | |||
GPU | PXP | Video Codec | software codec | |||
Dimensions | 50mm*40mm | EBI | supported | |||
Connection Type | board-to-board connection | JTAG | supported | |||
OS | Linux 3.14.38 | Camera | 1-ch, 5.0M Megapixel parallel interface | |||
LCD | RGB 888 | PWM | 8-ch | |||
Audio | 3-ch | ADC | 10-ch | |||
IIC | 4-ch | ISO7816-3 | 2-ch | |||
SPI | 4-ch | Keypad Port | 8*8 | |||
QSPI | 1-ch | SPDIF | 1-ch | |||

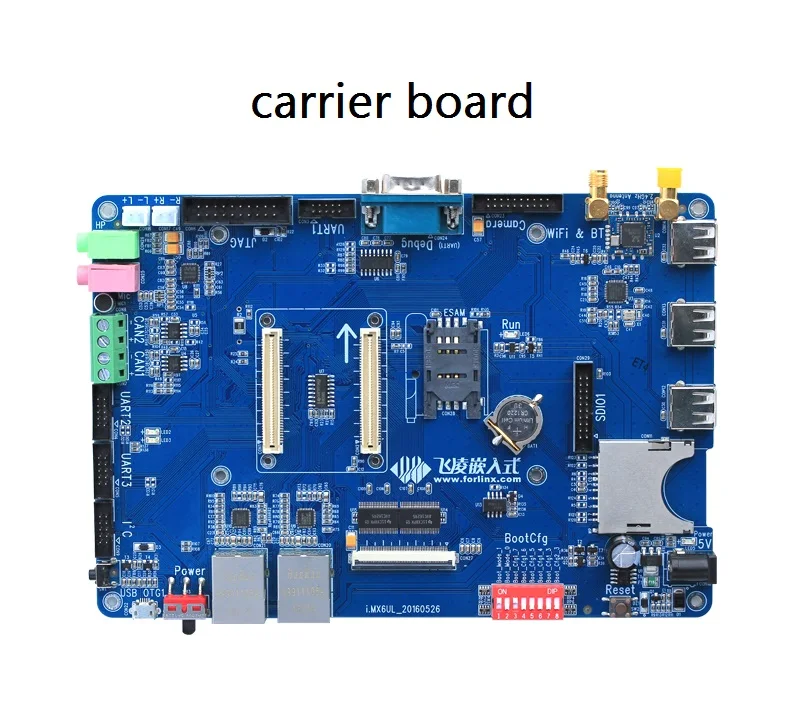

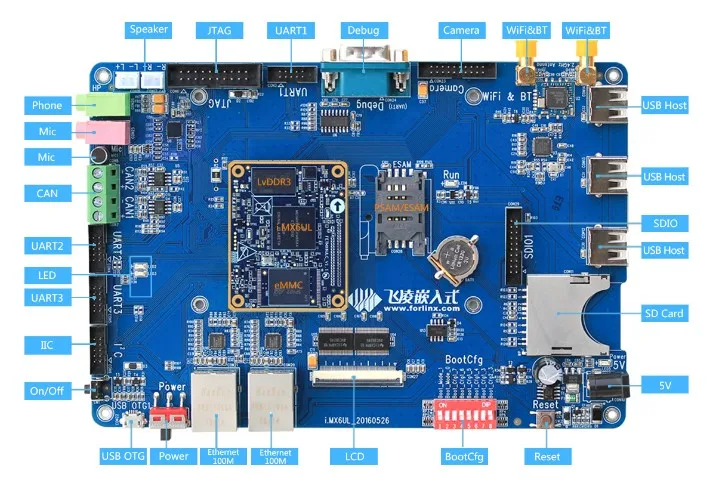

OKMX6UL-C1 Carrier Board Features | ||||||
Audio | 1x phone, 1x MIC, 1x speaker | JTAG | supported | |||
IIC | 2-ch | ADC | 4-ch for resistive touching | |||
SPI | supported | DIP | 8 | |||
CAN | 2-ch | Reset | 1 | |||
Camera | 1-ch, 5MP parallel interface camera OV5640 | PWM | 1-ch, for LCD backlight | |||
SD/MMC/SDIO | 1 | LCD | 1-ch | |||
USB Host | 3-ch, USB 2.0 | EINT | supported | |||
USB Device | 1-ch, USB 2.0 | GPIO | supported | |||
Ethernet | 2x 10/100M Ethernet, RJ45 | EBI | supported | |||
Serial Port | 3-ch | WIFI&BT | 1-ch | |||

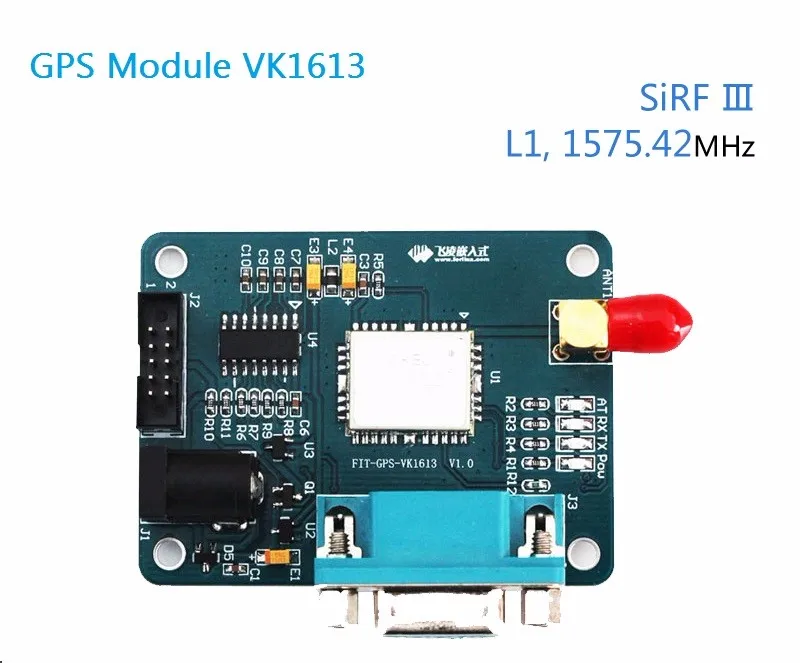

Power Input | 5V | GPS | serial port GPS module | |||
LED | 4-ch | 3G | USB 3G | |||
RTC | supported | |||||
Linux Console / Linux QT4.8.5 | ||||||
Cross-compiler | arm-fsl-linux-gnueabi-gcc-4.6.2 | (Linux QT) ARMv7 instruction set, hardware floating point arthmatic | ||||
OS image flashing | Flash image to eMMC via SD card, USB OTG | SD card / OTG brush | ||||
single or multiple files flashed via SD card | ||||||
EXT4 system file flashing | ||||||
U-boot | booting modes selection (eMMC) | |||||
RSM: 512M LvDDR3 | ||||||
Uboot booting logo | ||||||
version: linux-3.14.38 | ||||||
files system: EXT4/NFS/FAT32/NTFS, etc. | ||||||
eMMC | ||||||
watchdog driver | ||||||
RTC | ||||||
IO | ||||||
SPI | ||||||
camera OV 5640 | ||||||
PWM | ||||||
LCD back light driver, 255-rating | ||||||
LCD (standard definition: 7'' resistive LCD) | ||||||
Linux kernel USB host driver: U-disk, USB hub, USB keyboard, etc. are all supported | ||||||
USB device driver | ||||||
TF / SD / MMC card: up to32G | ||||||
serial interface | ||||||
audio driver: video recording and playing are both supported, ALSA interface, D amplifier | ||||||
Ethernet (RJ45, 100/10Mbps) | ||||||
3G driver | ||||||
USB to serial port driver | ||||||
WIFI configuration tool | source code provided by sourcing orginasition | |||||
Telnet | provided with source code | |||||
RTC testing | provided with source code | |||||
Flexcan | provided with source code | |||||
IP / MAC setting | provided with source code | |||||
Sqlite | source code provided by sourcing orginasition | |||||
TTL to RS232 | provided with source code | |||||
audio recording / playing testing (ALSA) | provided with source code | |||||
GPRS network | provided with source code | |||||
3G network | source code provided by sourcing orginasition | |||||
USB camera testing | source code provided by sourcing orginasition | |||||
speaker tesing | provided with source code | |||||
RGB LCD back light testing | provided with source code | |||||
video displaying and mp4 file testing | provided with source code | |||||
watchdog | provided with source code | |||||
MMC/TF/SD card and U-disk auto mounting and uninstalling | provided with source code | |||||
FTP network tool | provided with source code | |||||
Bos web server | provided with source code | |||||
Detailed Images
Packing & Delivery
one piece a box, box dimensions: 24*19*10cm
parcel could be sent out by express or air solution within 5 working days after receipt of full payment.
both freight prepaid and collected are optional
Our Company
1. We are an original manufacturer in business line of ARM technology based embedded single board computer/development board, system on module, and related expand module since 2007;
2. ISO certificate
3. We have an independent R&D team for product design and after-sale technical support
4. we are authorized IDH of Fresscale and TI Sitara
5. Product certificated by CE&FCC
