UL Certificate ventilation system Spark Arrestor Filter

Product Overview

Description

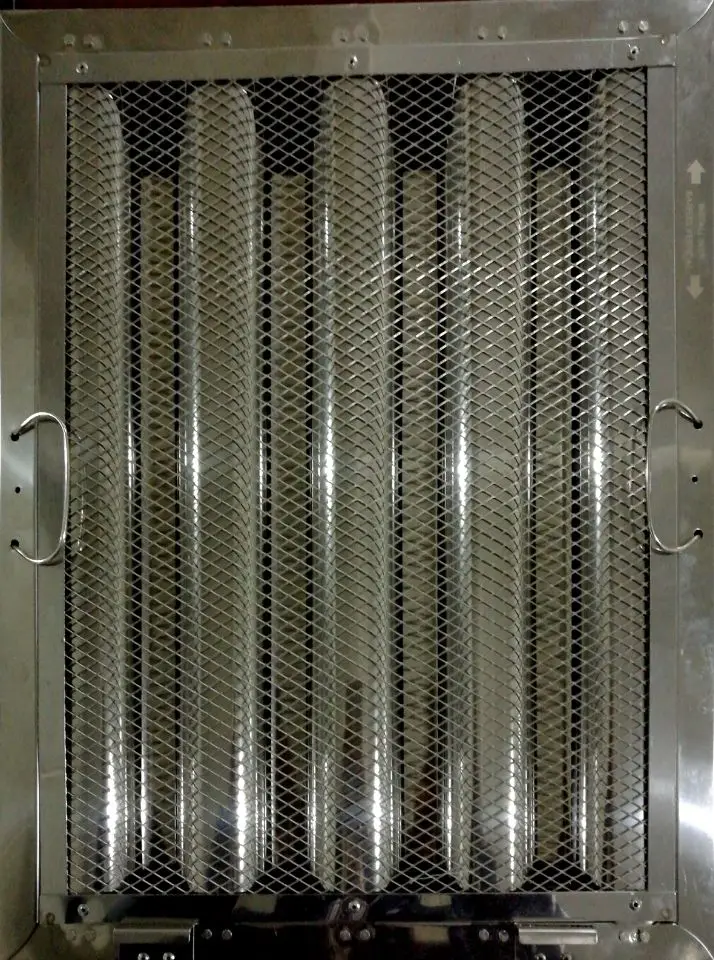

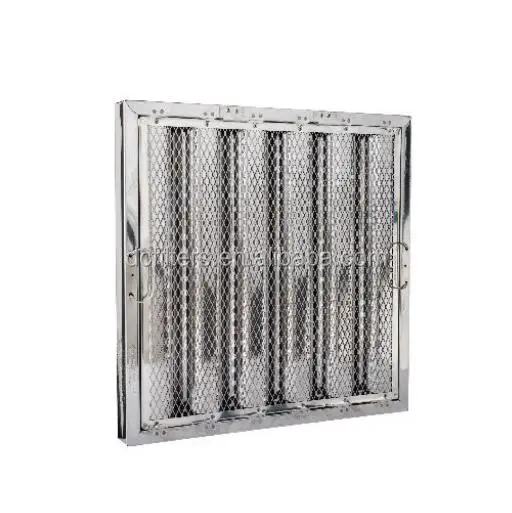

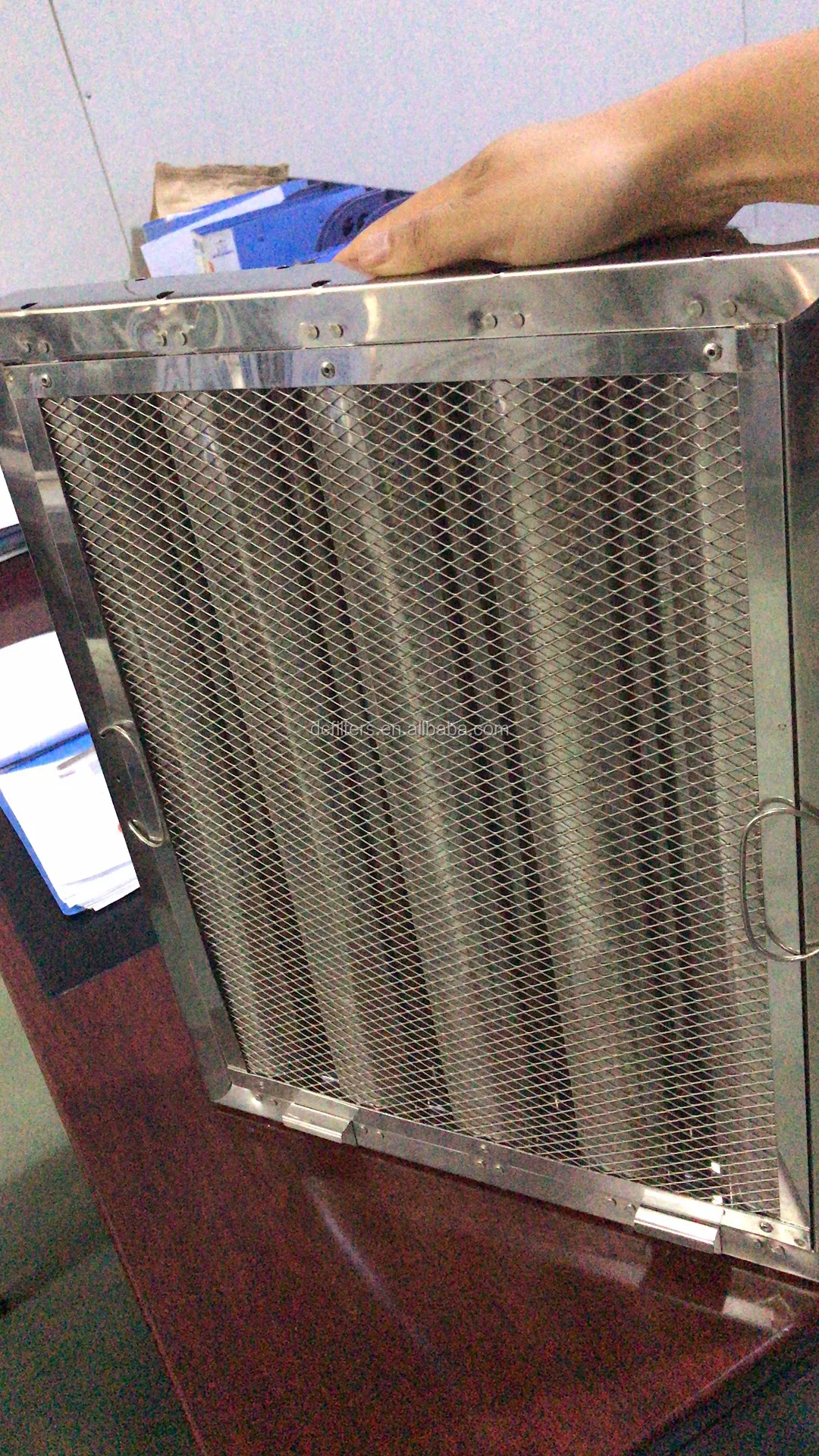

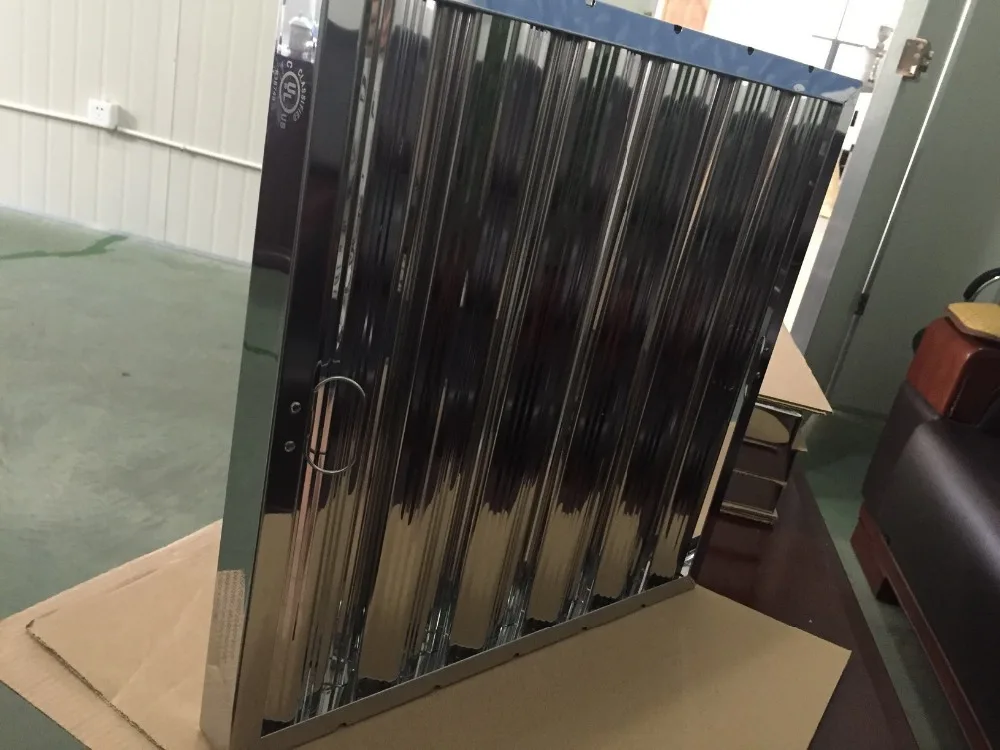

UL Certificate rventilation system Spark Arrestor Filter







The Green Leef spark arrestor filter meets NFPA 96 standard for solid fuel cooking applications and has UL Certification.



Green Leef Spark Arrestor grease filters are required in solid fuel cooking applications where airborne sparks and embers are generated. Spark Arrestors prevent sparks or embers from entering the baffle filter, range hood and air ventilation system for optimum safety and performance.



Model #      Description                                SIZE(HXWXD)

UW1016     10”x16”Standard With Spark ArrreStor Screen   9-5/8x15-3/4x1-3/4

UW1020     10”x20”Standard With Spark ArrreStor Screen   9-5/8x19-5/8x1-3/4

UW1025     10”x25”Standard With Spark ArrreStor Screen   9-5/8x24-5/8x1-3/4

UW1216     12”x16”Standard With Spark ArrreStor Screen   11-5/8x15-3/4x1-3/4

UW1220     12”x20”Standard With Spark ArrreStor Screen   11-5/8x19-5/8x1-3/4

UW1225     12”x25”Standard With Spark ArrreStor Screen   11-5/8x24-5/8x1-3/4

UW1616     16”x16”Standard With Spark ArrreStor Screen   15-3/4x15-3/4x1-3/4

UW1620     16”x20”Standard With Spark ArrreStor Screen   15-3/4x19-5/8x1-3/4

UW1625     16”x25”Standard With Spark ArrreStor Screen   15-3/4x24-5/8x1-3/4

UW2016     20”x16”Standard With Spark ArrreStor Screen   19-5/8x15-3/4x1-3/4

UW2020     20”x20”Standard With Spark ArrreStor Screen   19-5/8x19-5/8x1-3/4

UW2025     20”x25”Standard With Spark ArrreStor Screen   19-5/8x24-5/8x1-3/4

UW2516     25”x16”Standard With Spark ArrreStor Screen   24-5/8x15-3/4x1-3/4

UW2520     25”x20”Standard With Spark ArrreStor Screen   24-5/8x19-5/8x1-3/4
