Horizontal 2Ton Steam Boiler, 2Ton Oil Gas Fired Steam Boiler for Food
Smoke Flow Diagram of Horizontal 2Ton Steam Boiler, 2Ton Oil Gas Fired Steam Boiler for Food
Question 2: What is horizontal triple-pass fire-tube boiler?
1. WNS series automatic oil / gas fired steam boiler adopts the structures of corrugated furnace, flue triple-pass and wet back.
2. The fuel combustion in the furnace, the high-temperature flue gas passes back to the combustion chamber along the furnace liner into the first flue pipe, through the compression type of front smoke box turning 180 degrees into the second flue pipe, then it is discharged into atmosphere after convection heat.
Product Parameters of Horizontal 2Ton Steam Boiler, 2Ton Oil Gas Fired Steam Boiler for Food
Horizontal 2Ton Steam Boiler Specification
Item
Unit
Data
Name
Unit
Data
Rated Evaporation
t/h
2
Hydraulic test pressure
Mpa
1.65
Rated Steam Pressure
Mpa
1.25
Rated steam temperature
℃
193.3
Feed Water Temperature
℃
20
Boiler water volume
m³
4.5
Boiler Maximum Shipping Weight
7.6t
Boiler Maximum Shipping Size
4310*2250*2380 (mm)
Outline dimensions of boiler main engine after installation
5350*3270*3524 (mm)
Note: We provide customized service! More technical problem, please contact us for assistance.

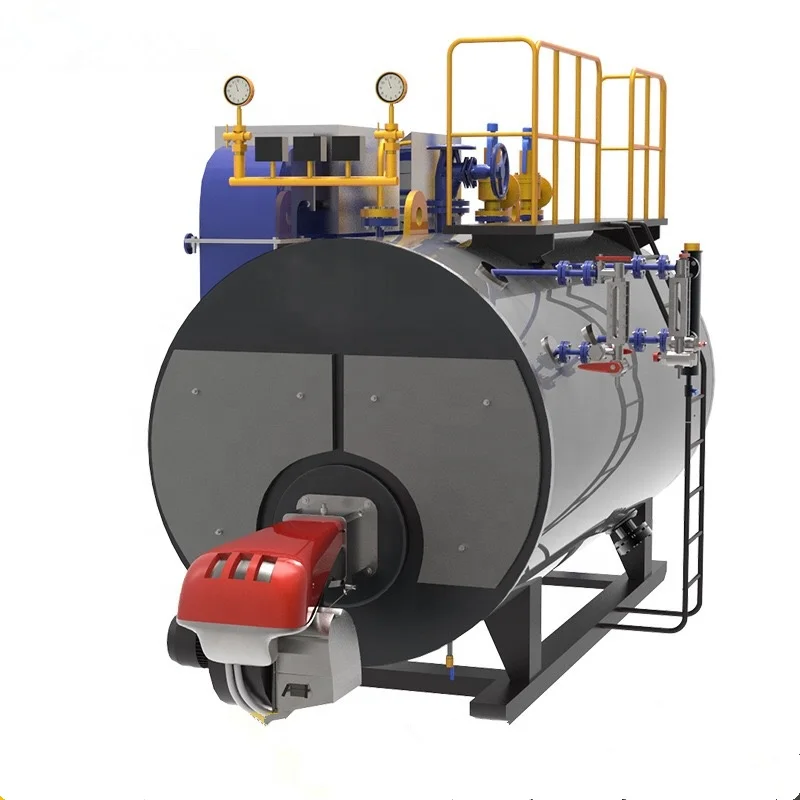

Horizontal 2Ton Steam Boiler, 2Ton Oil Gas Fired Steam Boiler for Food Display
The overall structure is reasonable and compact, which belongs to the boiler island type, which is in line with the fast loading and unloading conditions. This product has three major components: the boiler host, the chimney and the piping system
NO. 2 High boiler efficiency
Advanced design, the main engine of the boiler belongs to the overall structure, the burner is assembled on the front smoke box cover, the main body include the heating area and combustion chamber.
Packing & Delivery
2Ton Oil Gas Fired Steam Boiler Packing
Boiler host is packaged with dust bag.
Boiler Accessories is packaged in wood box.

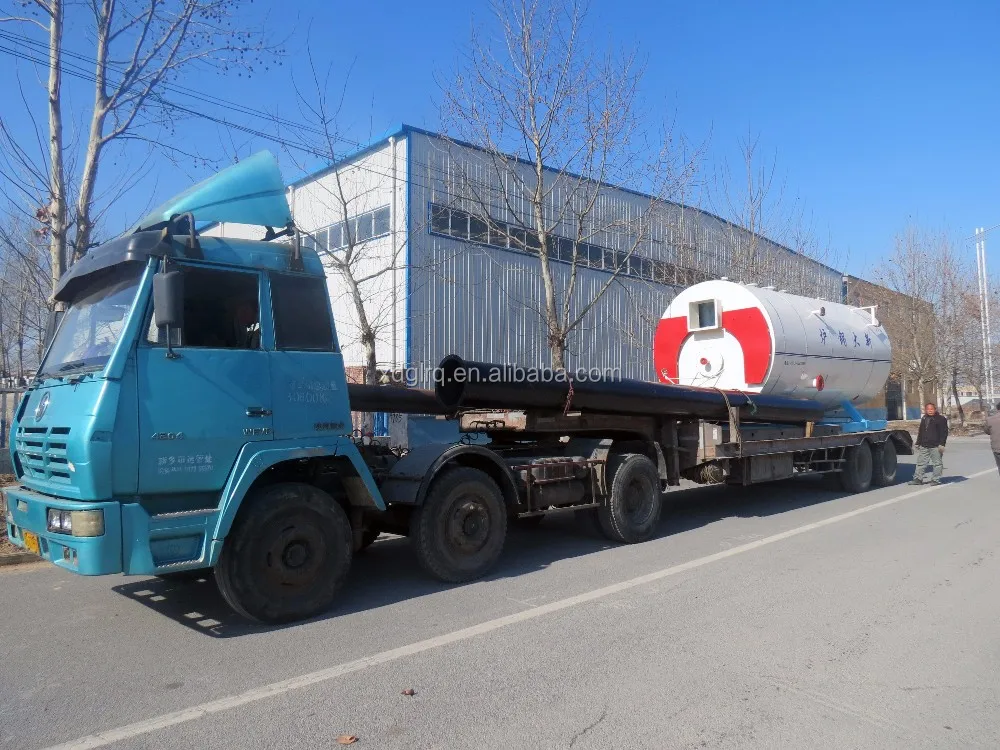

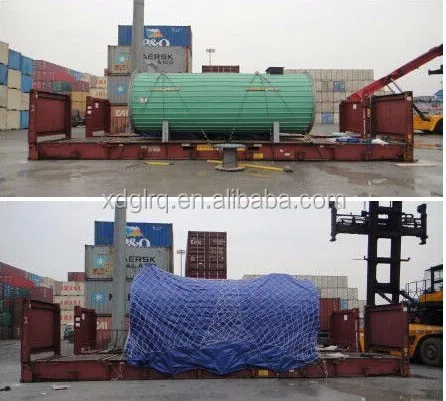

2Ton Oil Gas Fired Steam Boiler Delivery
Cart transport to Qingdao port, Tianjin Port and Shanghai port.
Why Choose Us
1. Xinxiang Xinda Boiler Container Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of boiler.
2. We are located in Xinxiang city, Henan province, with convenient transportation access.
3. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
4. Our workshop area is more than 150,000 square meters, have300 sets large high precision production machine and have more than 60 experienced senior engineer and 1200 staffs, we keep good cooperation with famous universities and authoritative research institutions.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001 CE, Class B Boiler Manufacturing License and Class D1 & D2 pressure container manufacturing license.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
