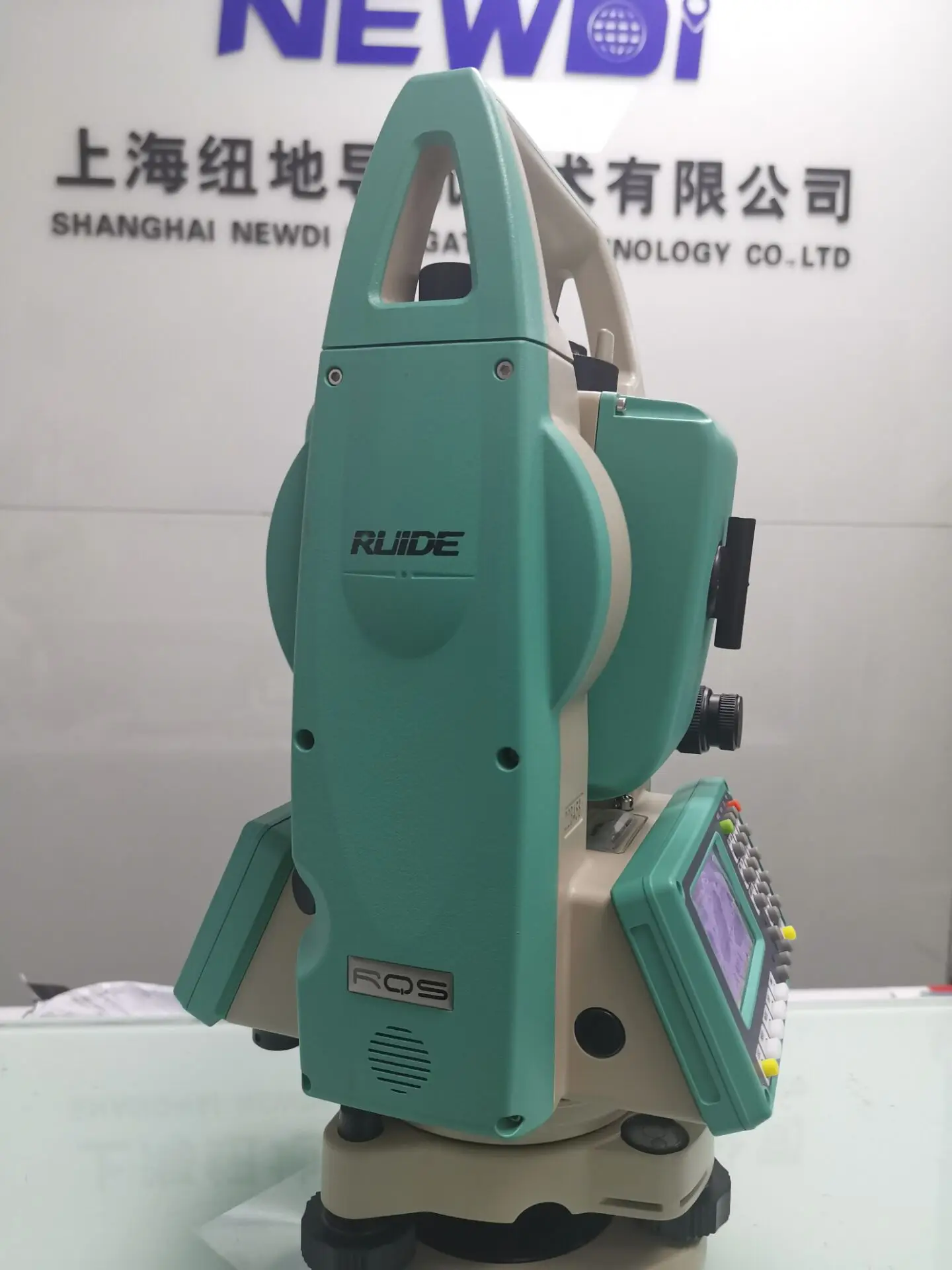

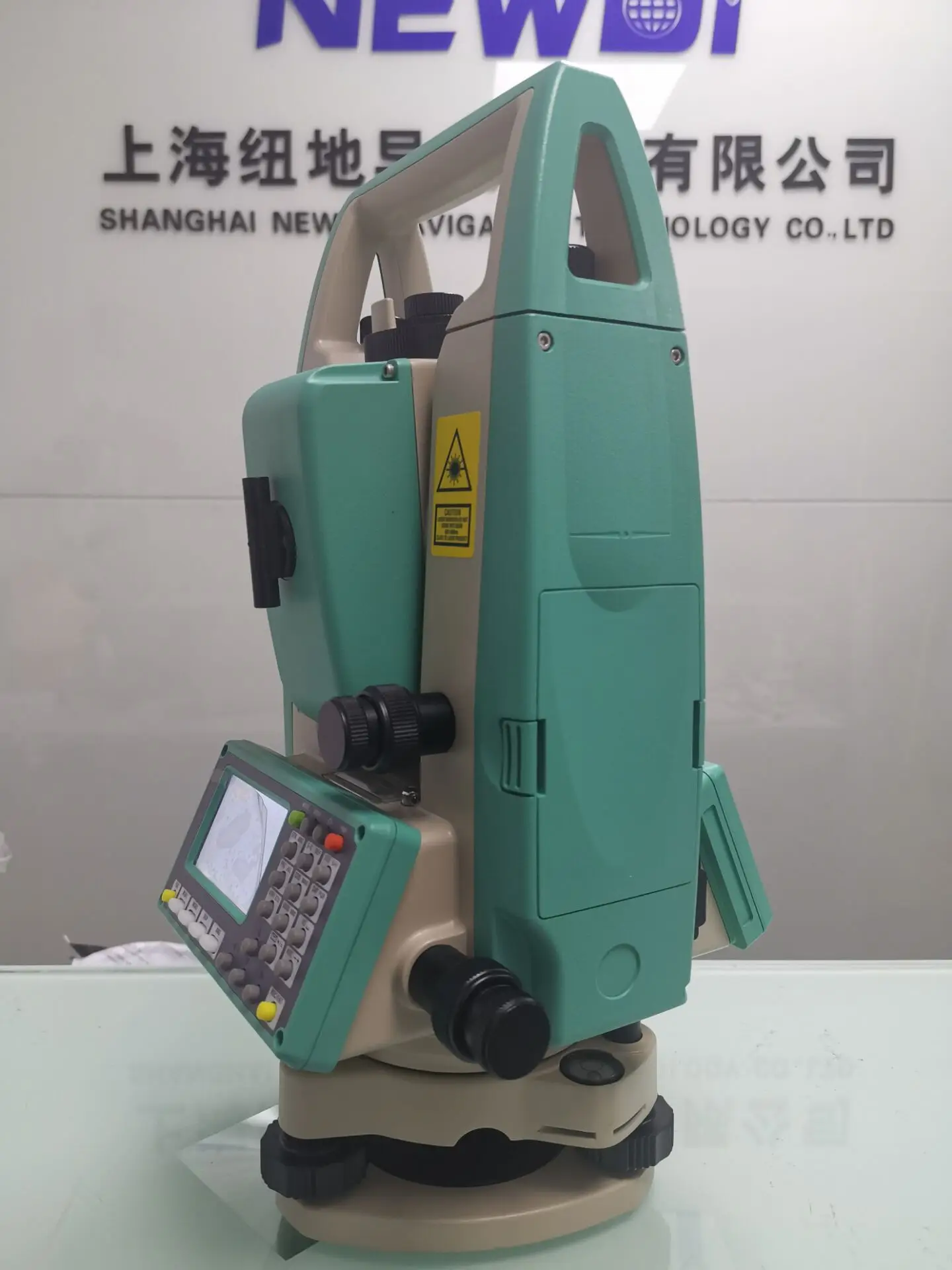

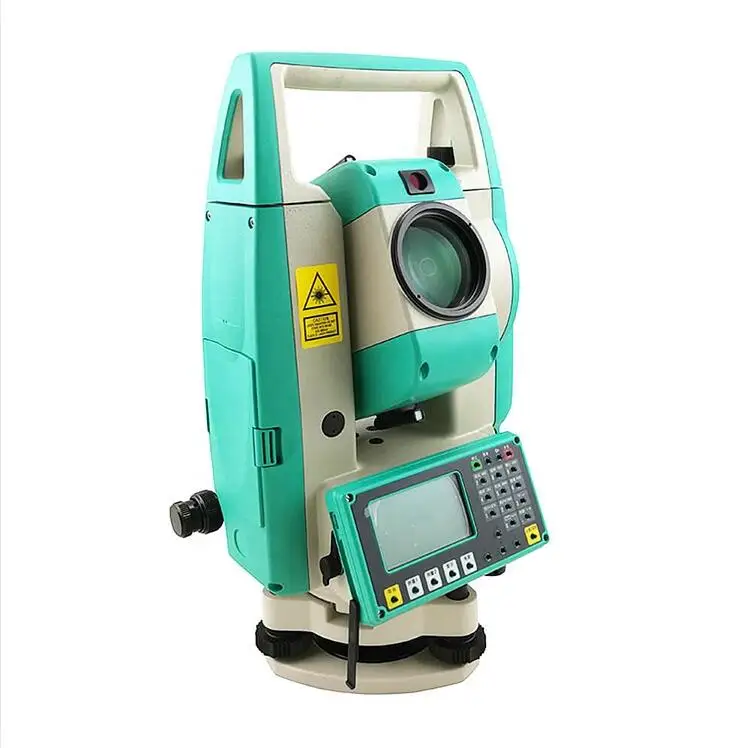

600M Reflectorless RUIDE RQS Total Station, GNSS ruide

Product Overview

Description

Description:



The all-new RQS Series, developed from RTS-822 series, now delivers longger range and longger operation time, and ease-of-use like always.



Key features:



1. Non-prism measuring distance range up to 600m, RIS can be up to 1000m

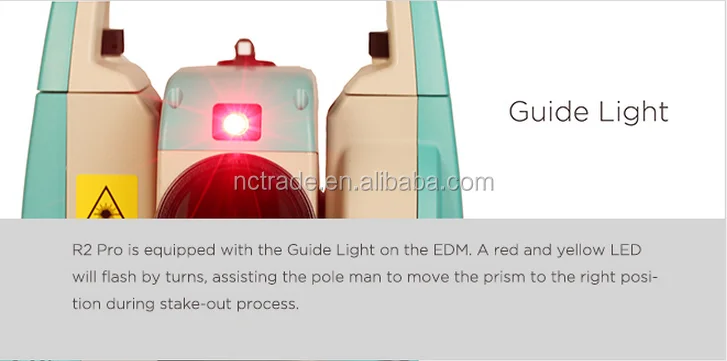

2. Guide light helps move to the right position quickly, useful for point survey and stake out.

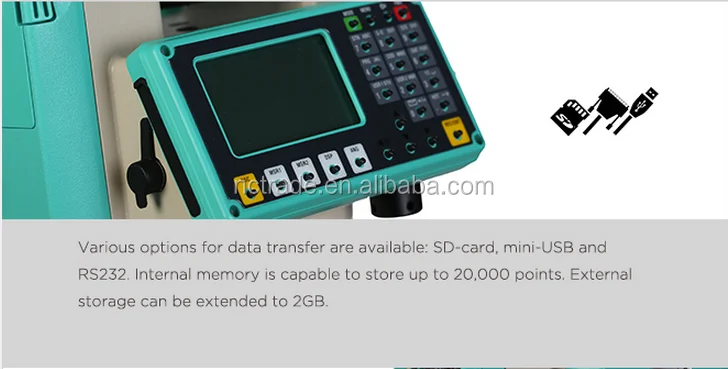

3. 20,000 points storage ability, and extensibale extenal memory up to 2GB



4, Temperature and Pressure auto-sensor, help to calculate precise PPM value and correct the final positioning result.



Technical specification:

Ruide Total Station
Model	RQS
TELESCOPE
Length	154mm
Objective Lens Diameter	Telescope:45mm Distance Meter: 50mm
Magnification	30X
Image	Erect
Field of View	1°30’
Resolving Power	3"
Min. Focus	1.0m
DISTANCE MEASUREMENT
Single Prism	5000m*1
Non-prism	600m*2
Accury  -Prism Mode	±(2mm+2ppm x D) m.s.e*3
-Non-prism Mode	±(3mm+2ppm x D) m.s.e*3
Measuring Time	Fine:0.6s,Normal: 0.5s	Fine: 0.3s, Normal: 0.2s
Meteorologic Correction	ATMOSense (Auto Sensing)
Prism Constant	Manuual Input
ANGLE MEASUREMENT
Method	Absolute Encoding
Detecting System	H: 2 sides,V:2 sides
Min. Reading	1"/5"
Accuracy	2"
Diamater of Circle	79mm
Vertical Angle 0°	Zenith 0°/ Horizontal: 0°
Unit	360°/400gon/6400mil
DISPLAY
Display Unit	Graphic LCD 160 x 90 Dots with White Backlight
No. of Unit	2 sides
Keyboard	Alphanumeric Key
TILT CORRECTION
Tilt Sensor	Dual Axis
Method	Liquid Electric
Range	±4'
Setting Unit	1″
LEVEL SENSITIVITY
Plate Level	30″/2mm
Circular Level	8'/2mm
OPTICAL PLUMMET (OPTIONAL:INTERNAL LASER PLUMMET)
Image	Erect
Magnification	3X
Focusing Range	0.3m~∞
Field of View	5°
DATA STORAGE & INTERFACE
Internal Memory	>10,000 points or >20,000 coordinates
Data Interface	RS 232/SD-card/Mini-USB
GENERAL
Guide Light	No	Yes
Weight & Dimension	5.4kg,340mm(H) x 160mm(W) x 150mm(L)
Working Temperature	-20℃~+50℃
Batter Type	Rechargeable Li-on Battery 3000mAh
Batter Voltage	DC 7.4V
Working Time	16h
