KHT13625 hydraulic casing power tong with API

Product Overview

Description

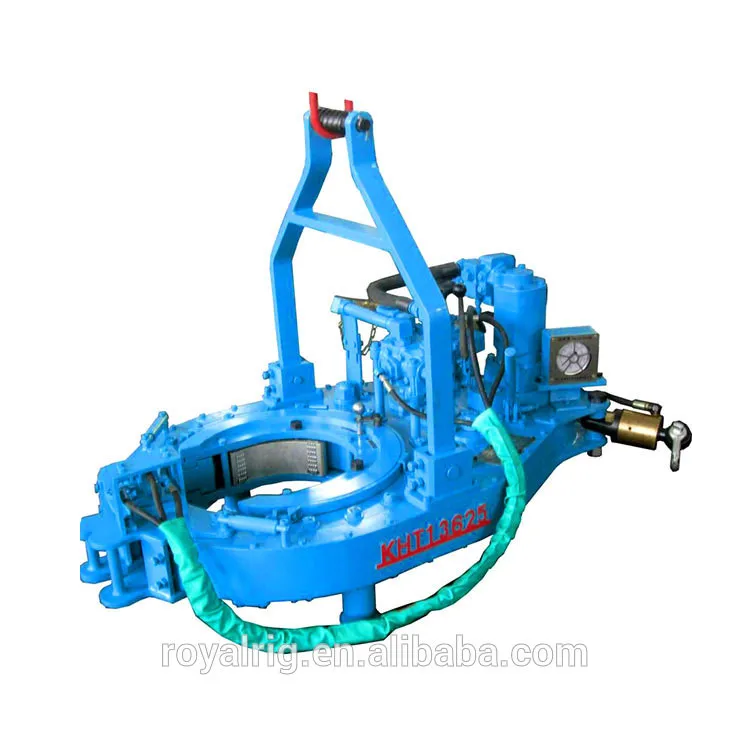

                       KHT13625 Hydraulic Casing Power Tong

Description:

KHT13625 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation.



Features:

1,Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.

2,Double swing head jaws, convenient to assemble and disassemble.

3,Brake belt assembly, easy to operate and convenient to maintain and replace.

4,Open gear supporting structure, improving the strength and rigidity.

5,Wholly hydraulic mode and mechanical gear shift.

6,High strength steel plate used on the shell, increasing the strength. The jaws are cast with precise technology, artistic and strong.

7,With hydraulic torque indicator and also installation interface, convenient to realize the computer management.

8,Use safety door hydraulic safety device,of great safety performance.

9,Large torque range,can meet the requirement of larger torque use.





Parameters:

Model KHT13625 Application range 4"-135/8" High Gear Torque 8400N.m @ 16MPa Low Gear Torque 42000N.m @ 16MPa High Gear rpm 42r/min Low Gear rpm 8.4r/min Oil Flow 150 L/min Dimension: L x W x H 1508x857x 1194mm Weight(including Backup Tong) 651kg/1433lbs
