Top quality Anesthesia machine manufacturer JINLING 01B with ISO

Product Overview

Description

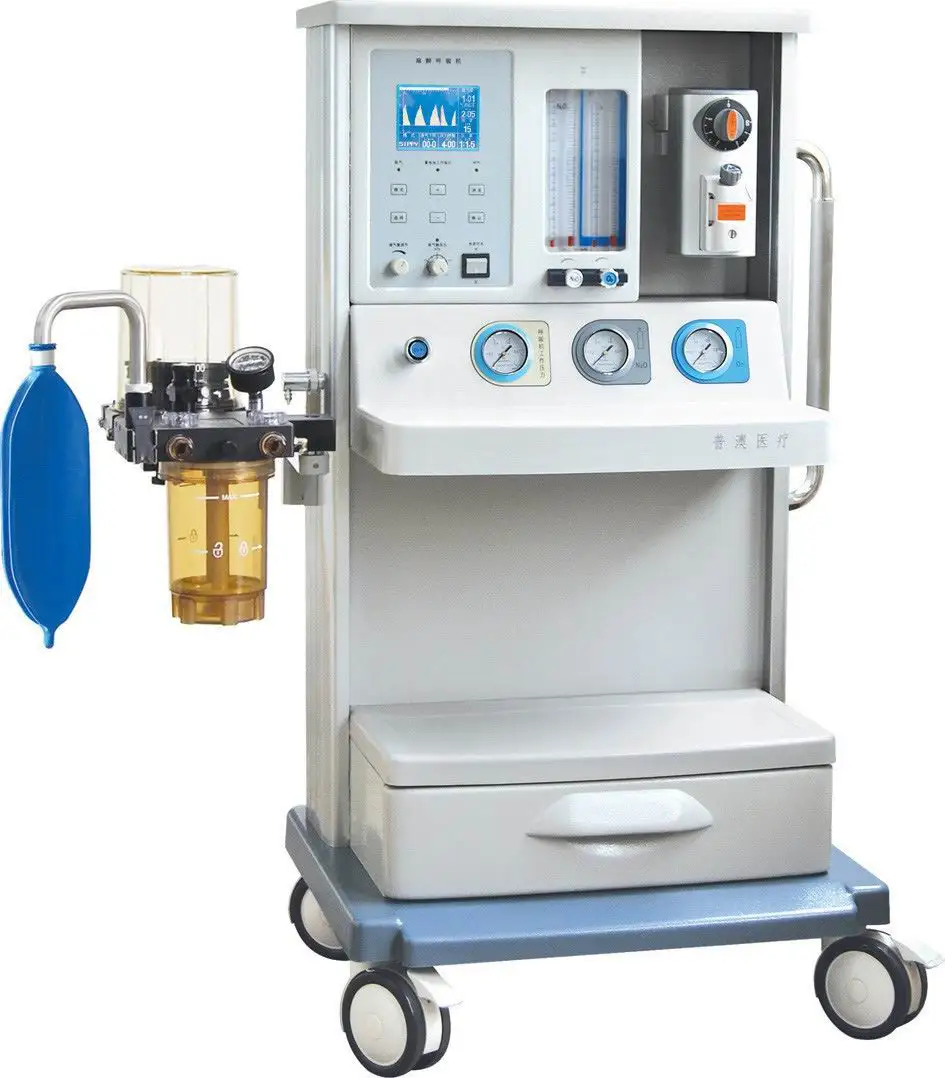

Top quality Anesthesia machine manufacturer

JINLING-01B with CE/ISO









PRODUCT FEATURES

• Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

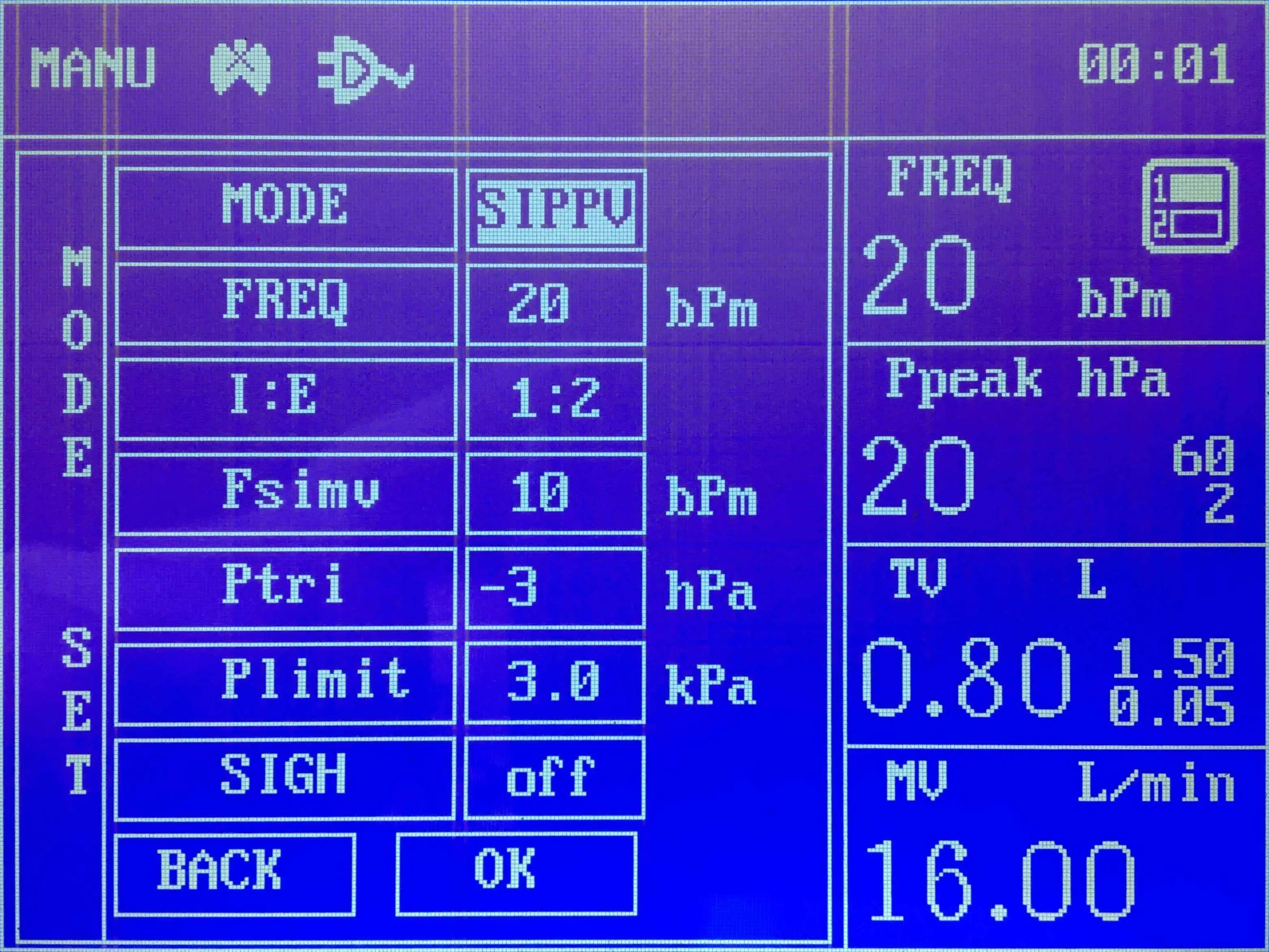

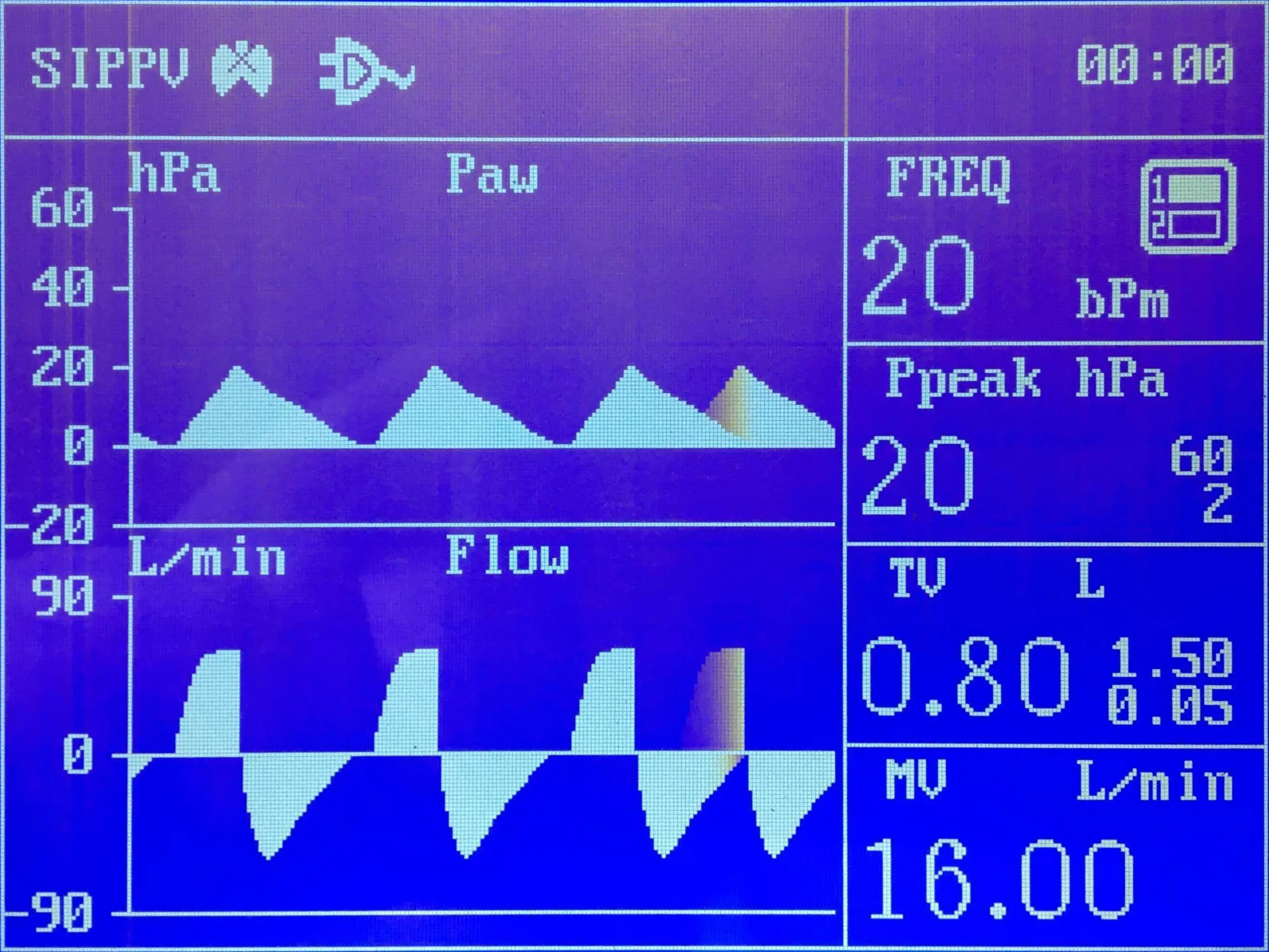

• Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button

•Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect

• Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor

• High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%

• Oxygen failure alarm is supported by the anesthetic gas delivery system; when the oxygen supply within the circuit or cylinder falls below 0.20 MPa, an alarm will sound and the nitrous oxide will be cutoff

•Power Failure Support Functions: Automatically converts to backup power mode during AC power outages

• Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms, also features a alarm query function

•Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable

•Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C

• Multi-parameter Patient Monitor: Optional



SPECIFICATIONS



Model	JINLING-01B  Economic Model	JINLING-01B  Standard Model	JINLING-01B  Advanced Model
Display	5.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min
	N2O: 0.1-10L/min
Ventilation Mode	IPPV,SIPPV, IMV, SIMV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
	Display range: 0-2000ml
Respiratory Rate	1-99bpm
Oxygen Supply Flow Rate	25~75L/min
Inspiratory/Expiratory (I:E) Ratio	4:1-1:10 (capable of inverse ratio ventilation)
Inspiratory Pressure Trigger	.-10-10cmH2O (electronically controlled)
SIGH	1 sigh breath in every 80-160 breaths
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Single PA-80 type slot	Single PA-I type slot	Double PA-I type slots
Gas Supply Pressure	O2: 0.32MPa~0.6MPa: N2O: 0.32MPa~0.6MPa
