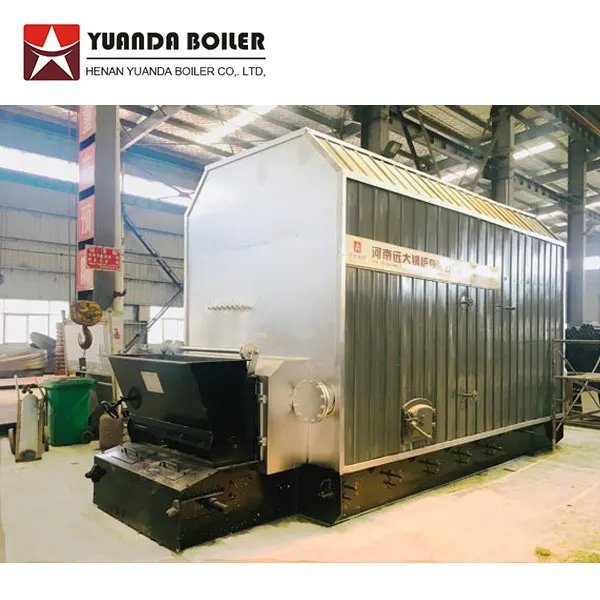

YLW Coal Biomass Fired Thermic Fluid Thermal Oil Boiler

Product Overview

Description

YLW series coal/biomass thermal oil boiler adopts square coil horizontal structure,chain grate automatic fuel feeding,FD/ID fan mechanical ventilation,slag remover for mechanical slag removing while running,the burning fuel enter into the chain grate through the fuel hoppe,then burn.The high-temperature flue gas is reflected to the front of the furnace by the rear arch and enters the furnace chamber.After radiation heat transfer by the radiation heating surface,it enters the convection heating surface for convection heat transfer,then enter into waste heat recovery boiler/air pre-heater,dust catcher,ID fan,finally discharged into air by chimney.



Core Technology

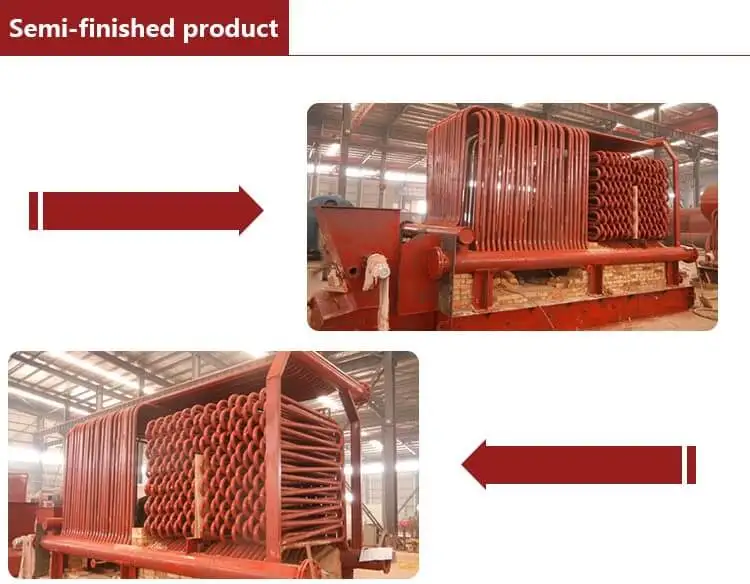

1.Multi-loop coil design
2.Countercurrent heat transfer process
3.Over oil temperature/over smoke temperature/low flow alarm
4.Set up air preheater,waste heat boiler
5.New furnace arch with upside down"α"flue gas flow
6.Advanced and scientific fabric technology

Boiler Model	YLW-700	YLW-1400	YLW-2400	YLW-2900	YLW-4200	YLW-5600	YLW-7000	YLW-8400	YLW-10500	YLW-14000
Rated thermal power(KW)	700	1400	3000	3500	4200	5600	7000	8400	10500	14000
Rated working pressure(Mpa)	0.8/1.0
Thwemal oil outlet/Inlet feeding temperature(℃)	280/250;320/290
Thermal efficiency(%)	>83
Exhaust gas temperature(℃)	<140
Fuel type	Soft coal,firewood,rice husk,palm shell and the other biomass fuels
Fuel consumption(Kg/h)	187	373	621.3	756	989.32	1196	1657.43	1926.2	2442.6	3230
Max transportation weight(t)	16.9	22	28.6	24.2	30	33.6	18.2	24.3	27.5	31





1.Professional industrial boiler manufacturer from China since 1956.
2.Class A boiler manufacturer,ASME,CE,EAC,ISO certificates.
3.Export to 102+ countries,100,000+ cases and 0 accidents.
4.Engineers abroad installing and commissing service for 50+ countries.
5.Nearly 200 employees and 20 advanced engineers(The Father of China Boiler professor Zhiguang Li is our technical consultant)

Q1: How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient
for our communication.



Q2: Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Henan Boiler Inspection Institute;
(6).Passed ISO:9001 and SGS certificate.



Q3: What about the installation and Commissioning?
After you receive the boiler, we will guide you to make some preparation for installation;If necessary, our expert will fly to your local place in 72 hours. The experts will responsible for guiding installation and commissioning.
But the buyer will be in charge of :
(1) The round air-tickets costs from Zhengzhou city to your project site.
(2) Board and lodging of seller's workers for entire period at the end user's site.
(3) Service fee for guiding engineer:100$/day/person.

Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
