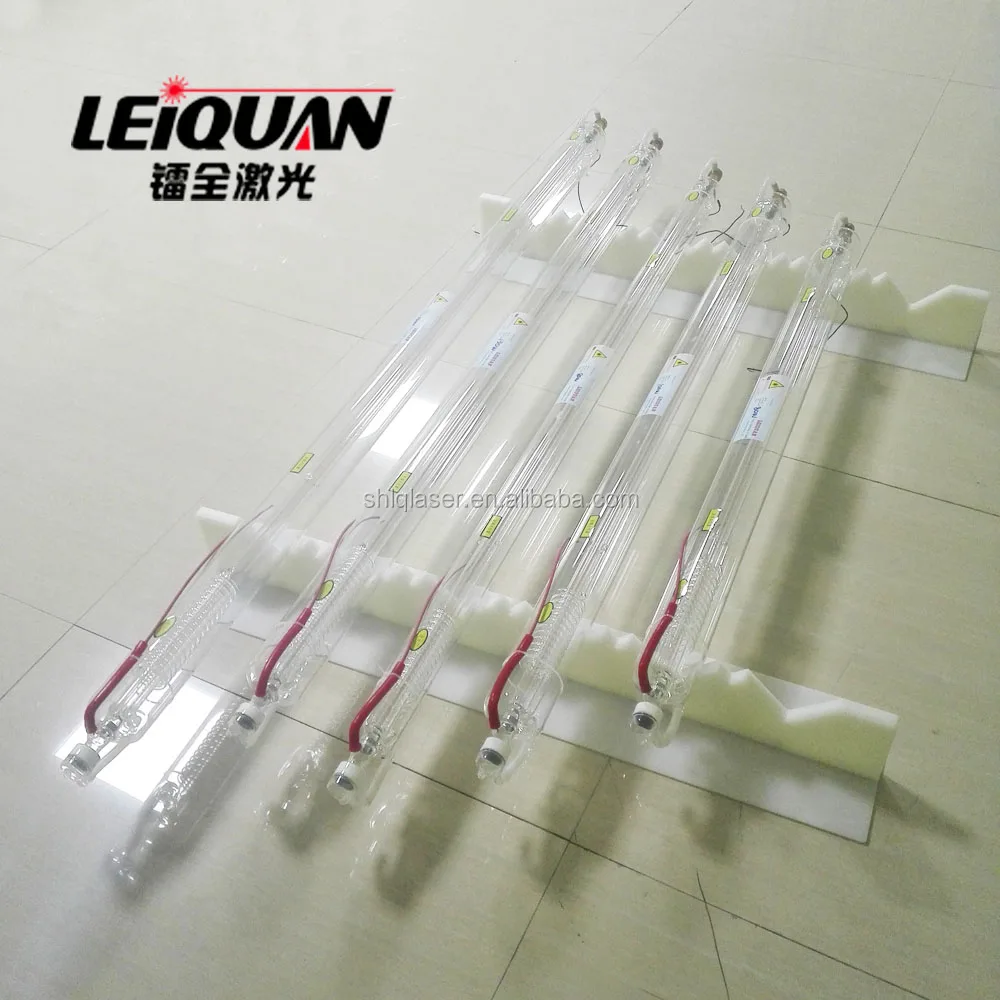

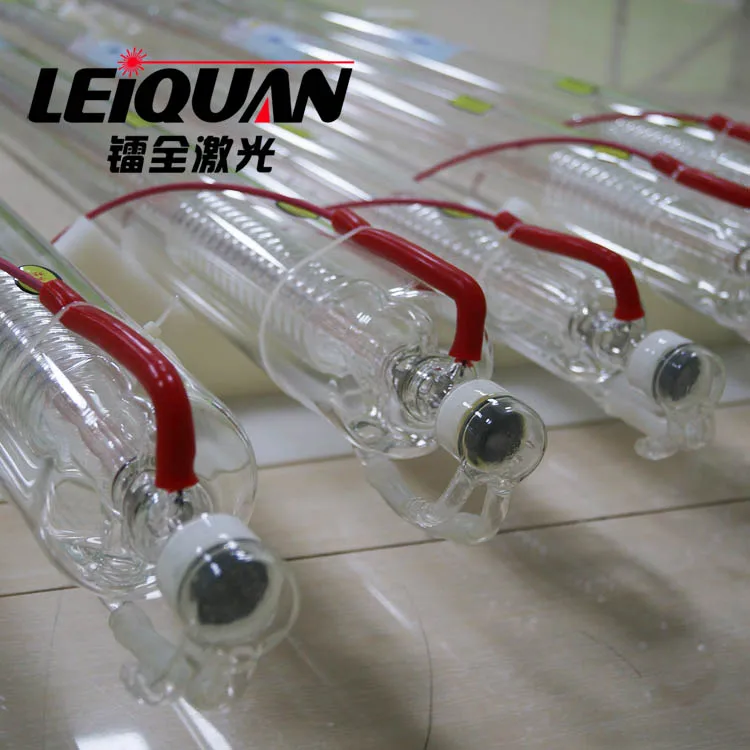

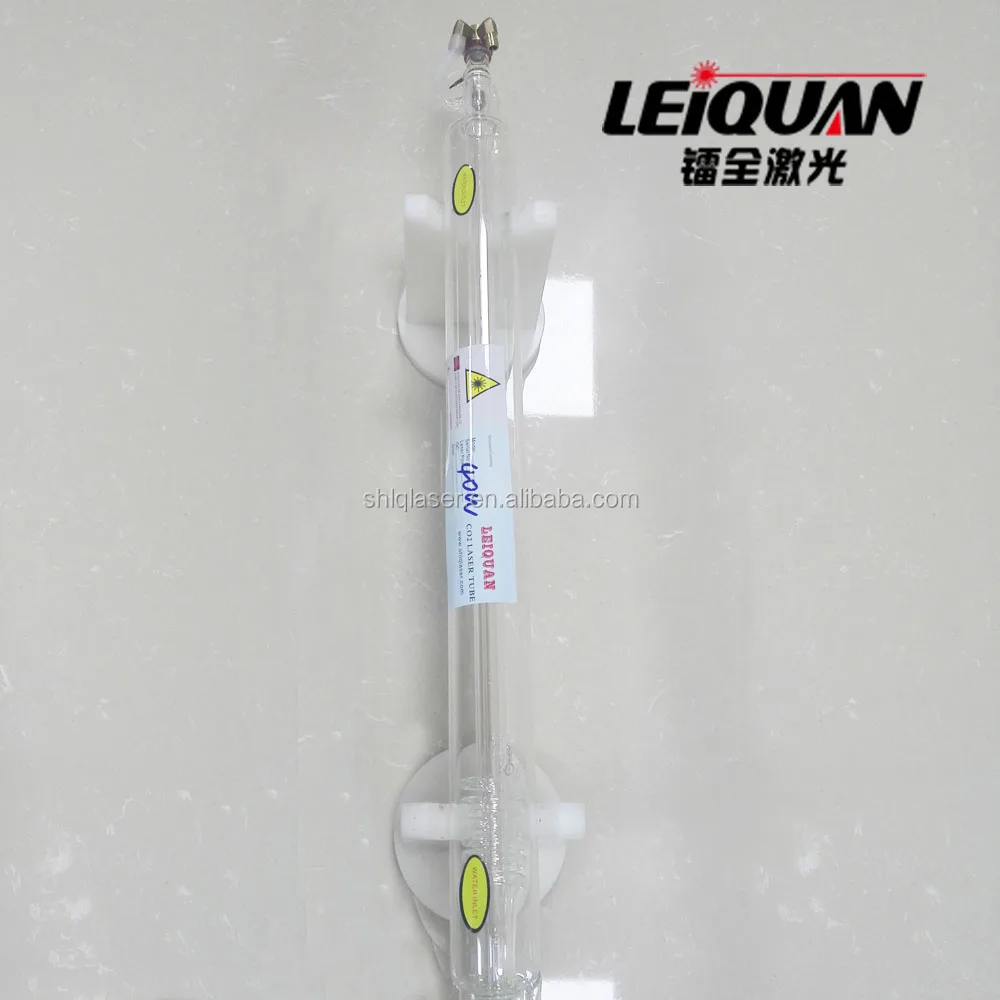

LeiQuan Max 100W 80W CO2 laser tube price with 10000 hours working life

General description of CO2 laser tube

Structure composition of CO2 laser tube

It is mainly composed of hard glass, resonator, electrode three parts.

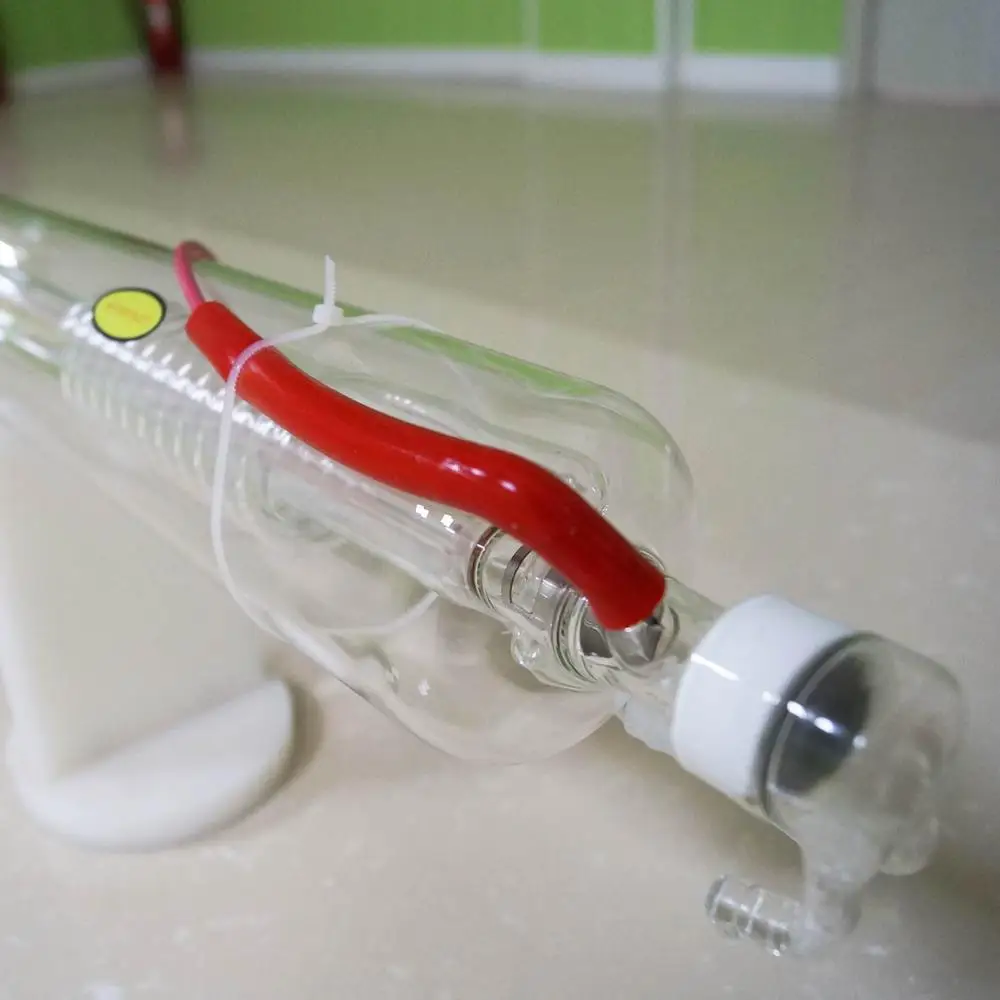

1. Hard glass part; this part is made of GG17 material into the discharge tube, water jacket, gas trap and return air pipe and composition. Sealed CO2 lasers are typically three-layer bushing structures. The most inside is the discharge tube, the middle is the net sets, the outermost layer is the gas trap, the return pipe is used to connect the discharge tube and the gas pipe.

2. Resonator part: This part is composed of a total mirror and output mirror. Resonant cavity of the mirror in general to the optical glass as the base, the surface of gold-plated film, gold film reflector in the vicinity of 10.6um reflectivity of 98% or more; resonant cavity output mirror generally can transmit 10.6um radiation infrared material germanium (Ge) as a substrate, and a multilayer dielectric film is coated thereon.

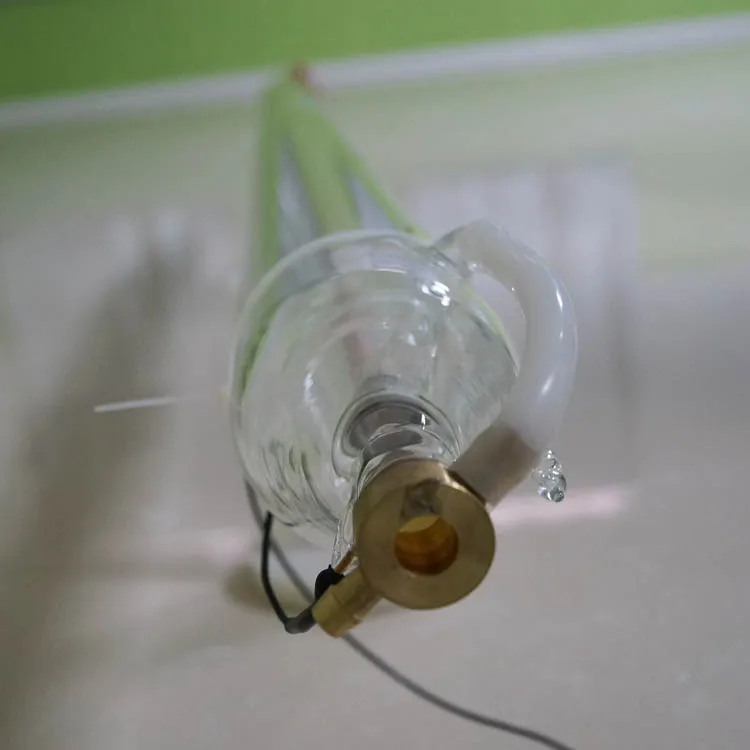

3. Electrode part: CO2 lasers generally use cold cathode, the shape of cylindrical, cathode material selection of the life of the laser has a great impact on the basic requirements of the cathode material is: the sputtering rate is low, the gas absorption rate is small,

Application of CO2 laser tube

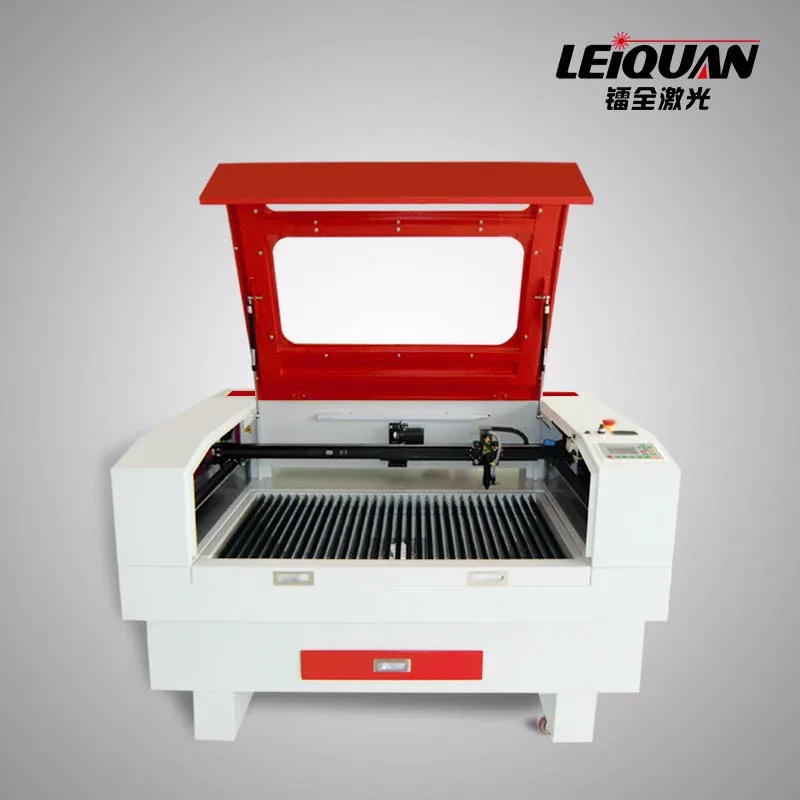

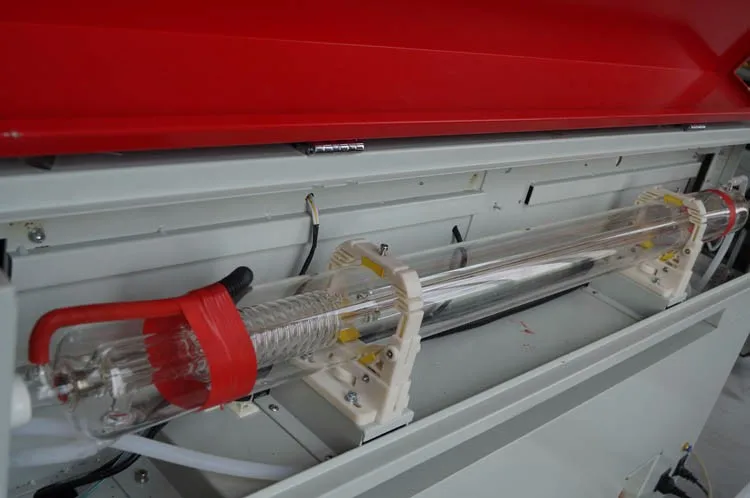

The laser tube is mainly used for CO2 laser processing equipment. Such as laser engraving machine, laser cutting machine, laser marking machine.

Small laser spot!

The laser spot of CO2 laser tube 100W is only 6~6.5mm, smaller than 90% manufacture in China.

Sharp laser beam.

When testing laser beam in acrylich or carbboard, it is very sharp. So that cutting and engraving is faster and better.

High Stability.

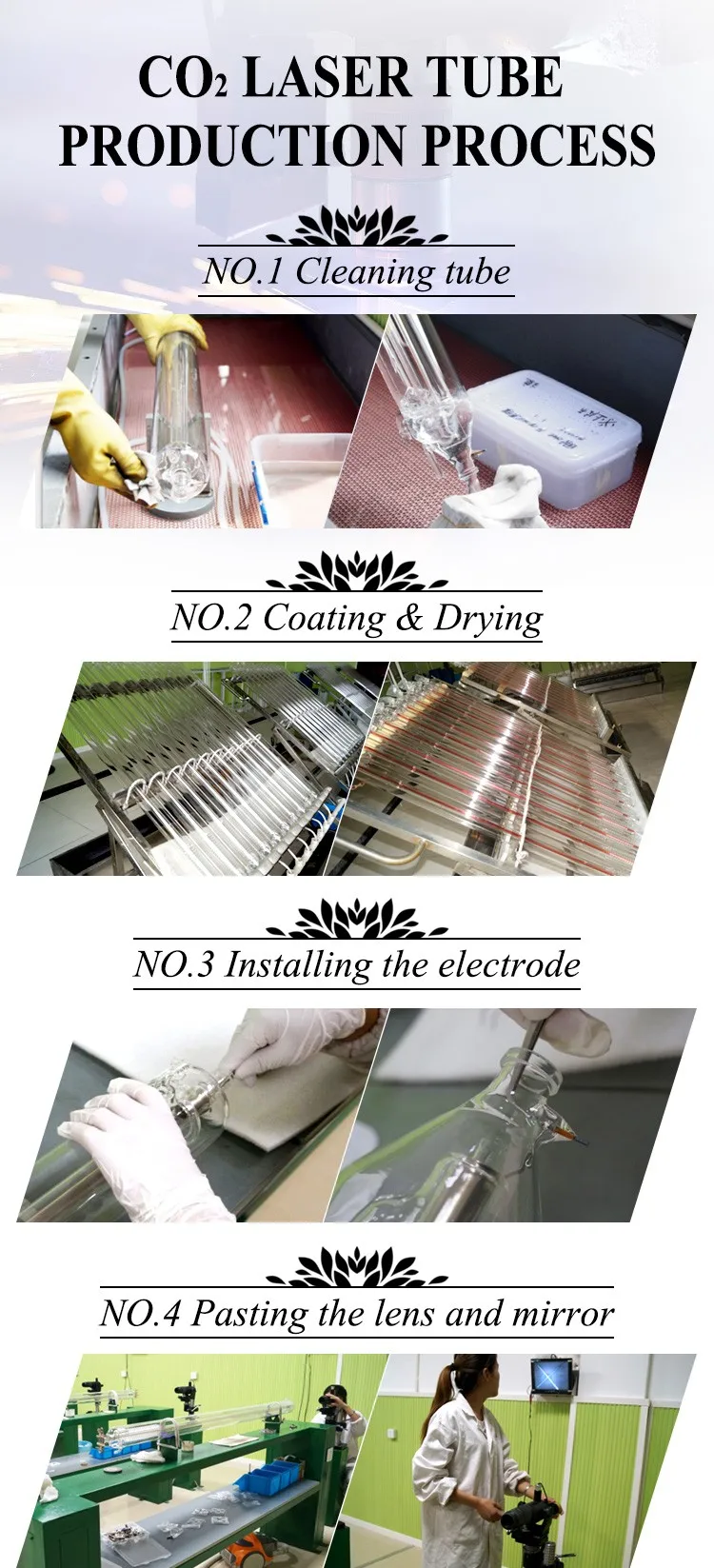

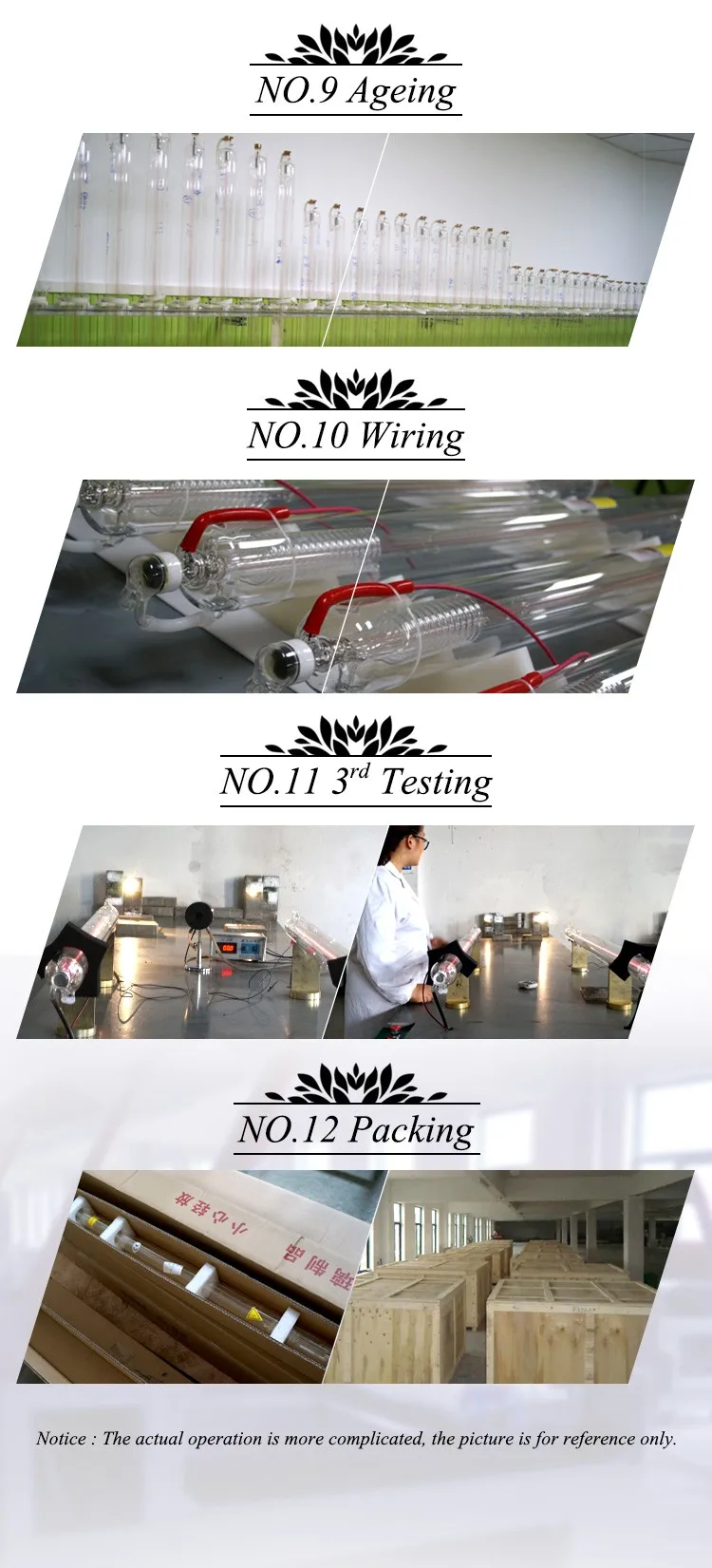

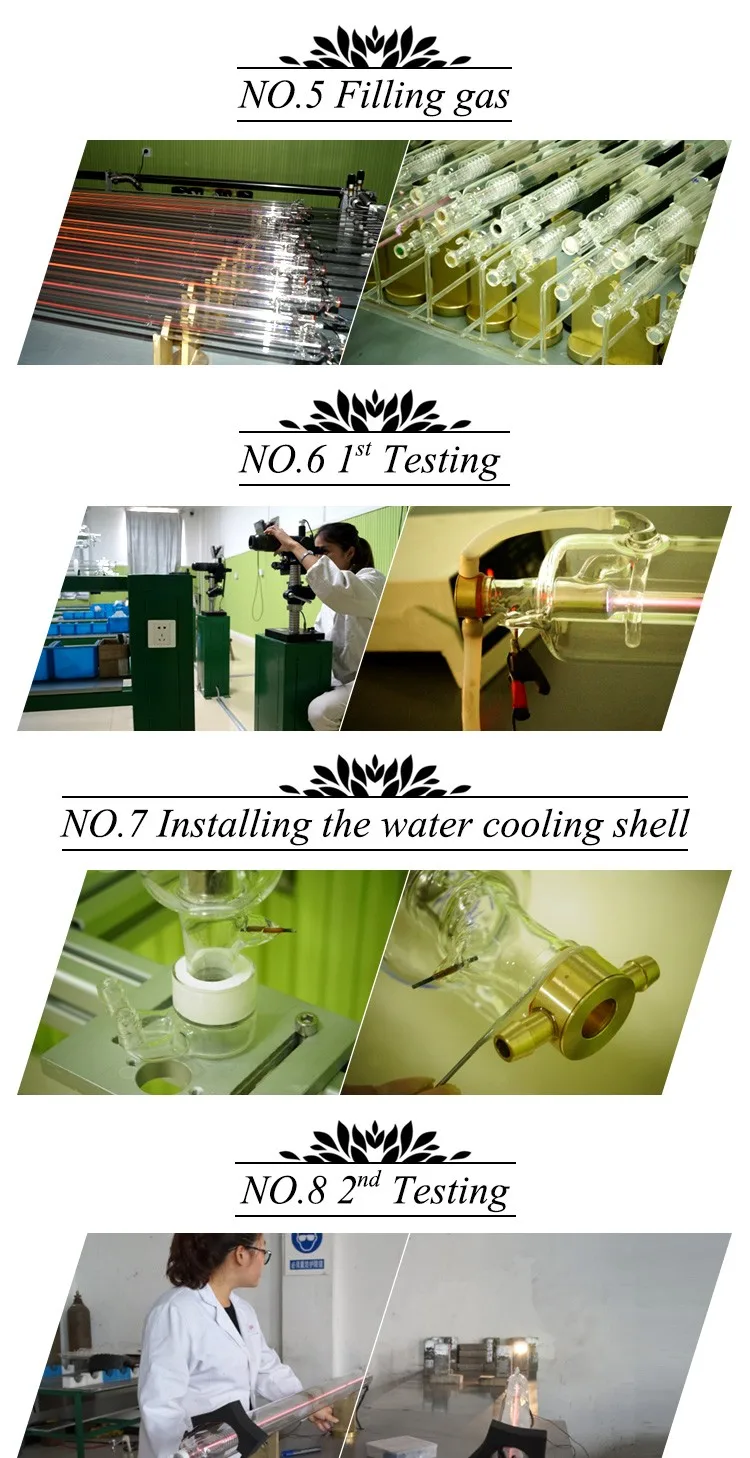

Laser output power and quality are very stable.Each tube will be tested at least 3 times before shipping to customer to make good quality.

Shanghai LeiQuan Laser Technology Co.,Ltd

LeiQuan factory is established in the year of 2009.The two factories combined in 2016 and found LeiQuan Laser Group.
Our company is the modern enterprise in combination with researching ,producing and selling of CO2 Laser Tube, laser machine case,

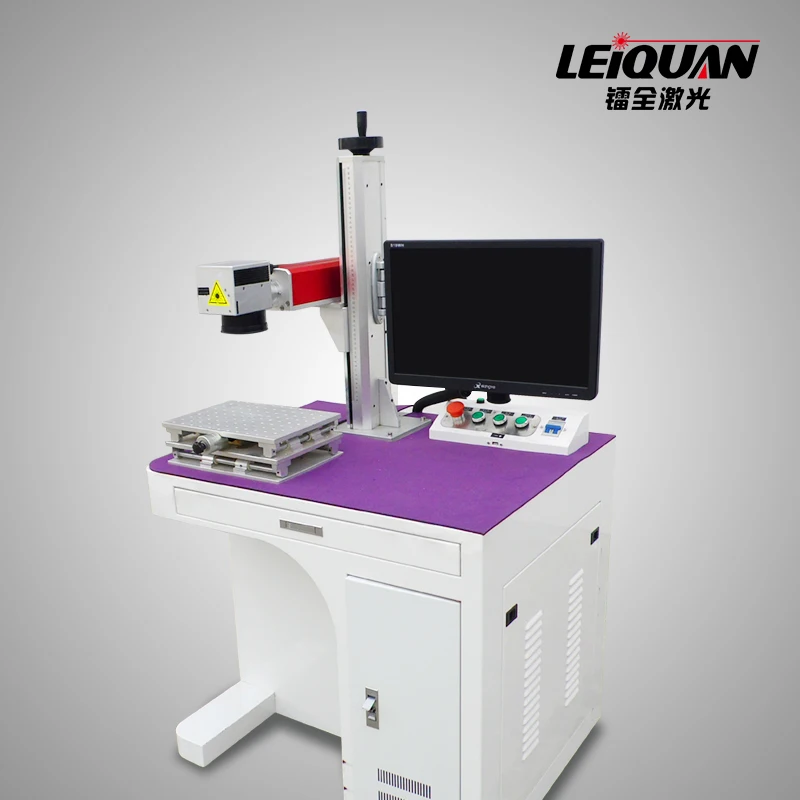

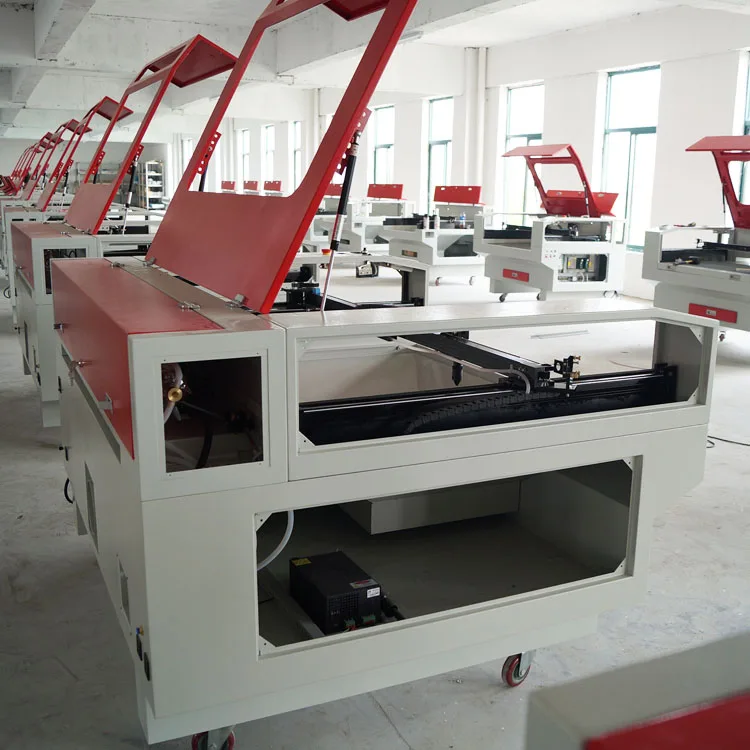

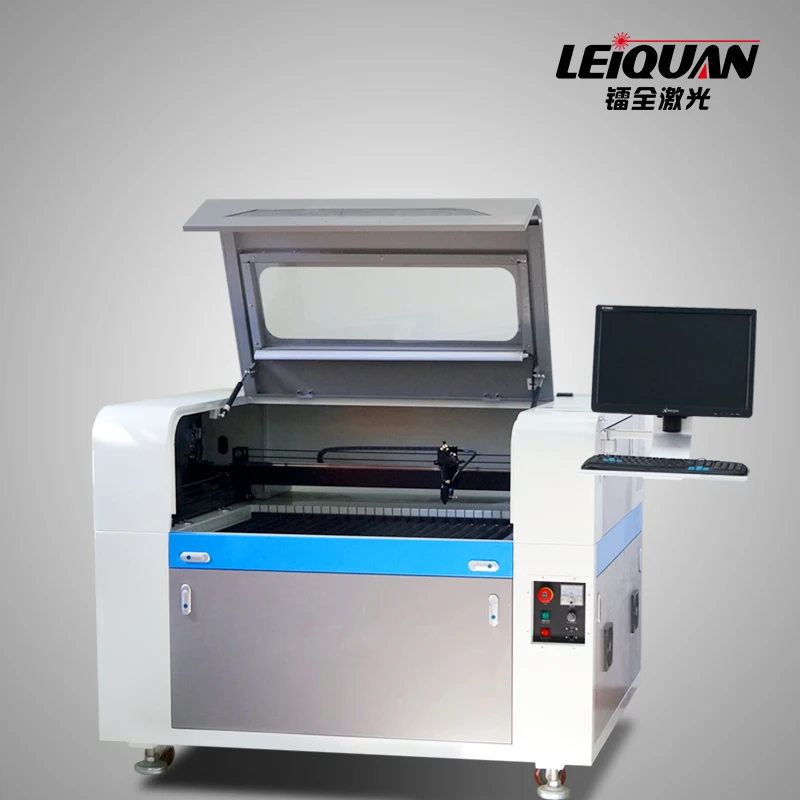

CO2 Laser Engraving and Cutting Machine, fiber marking machine and fiber cutting machine.
Our company is one of the biggest manufactures for small and medium laser equipments, recently the company owns more than 15 engineers,

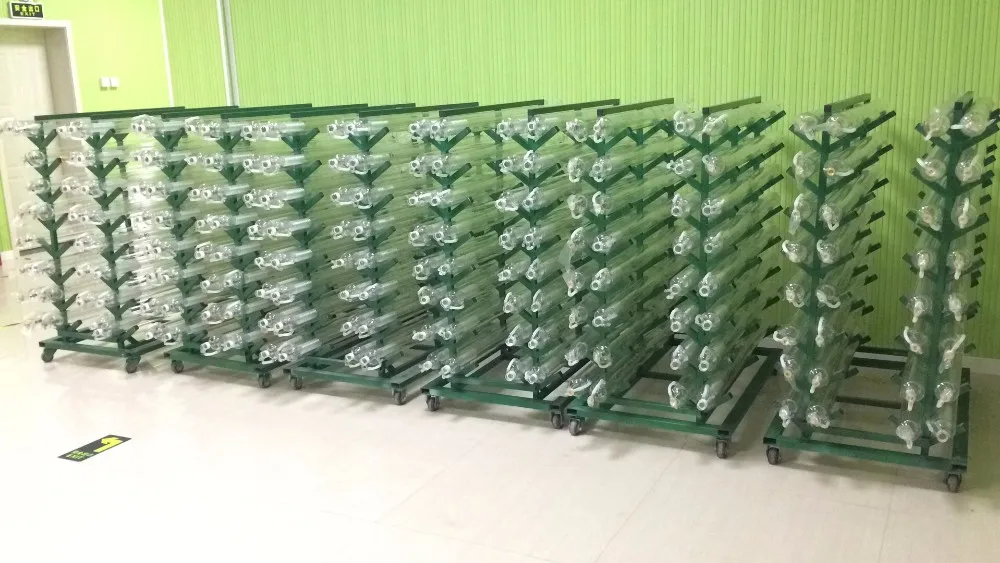

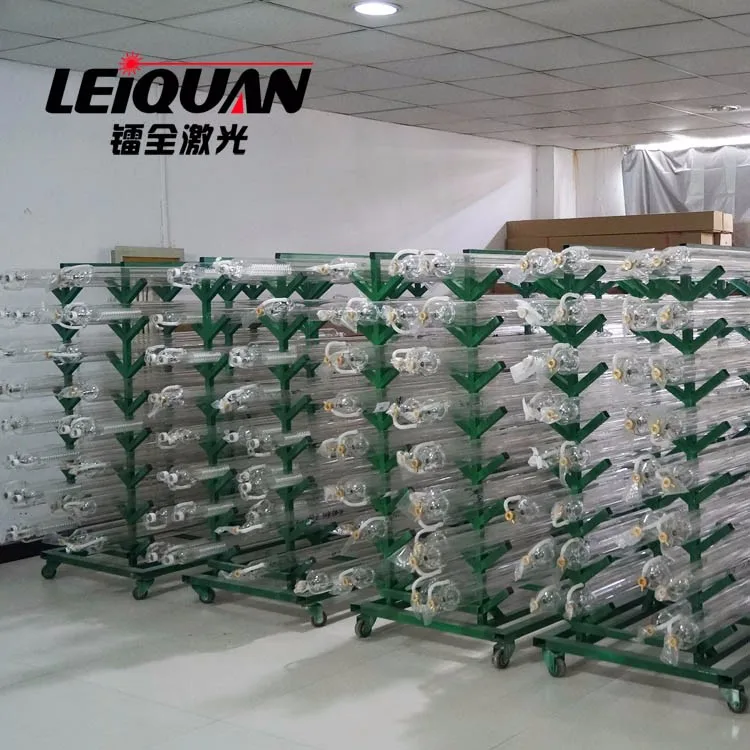

more than 50 operations.The annual sales quantity has achieved 20000pcs of CO2 laser tubes and 2000 sets of laser machines now.
LeiQuan head office locates in Shanghai.

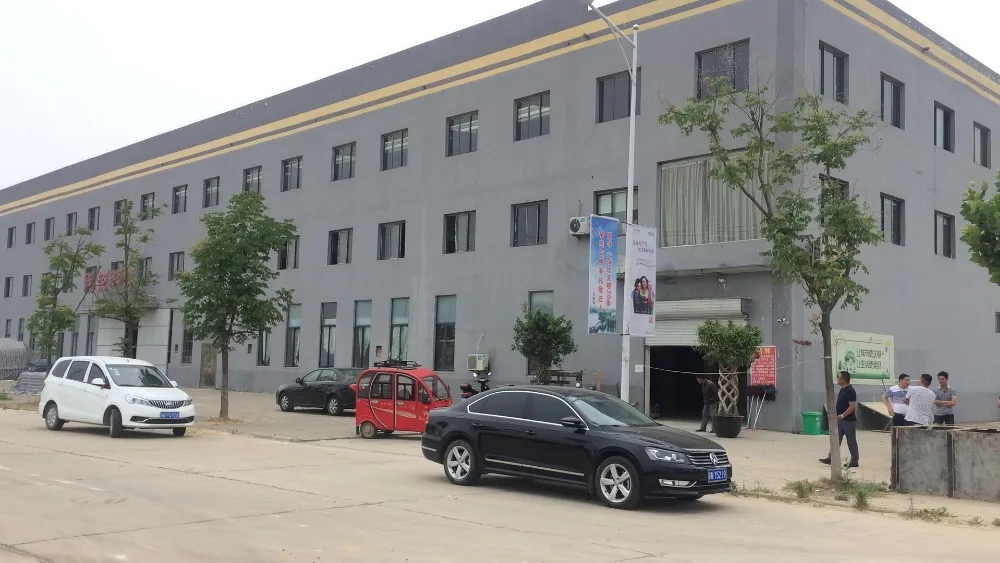

Factory locates in laser industrial park, which was constructed by our own in Suqian city, Jiangsu province, more than 8000 square meters.
