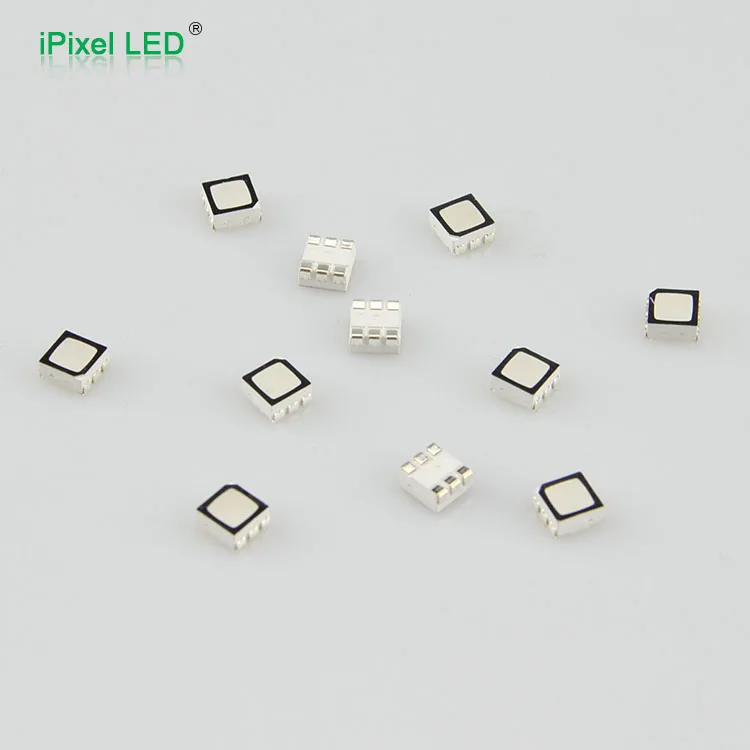

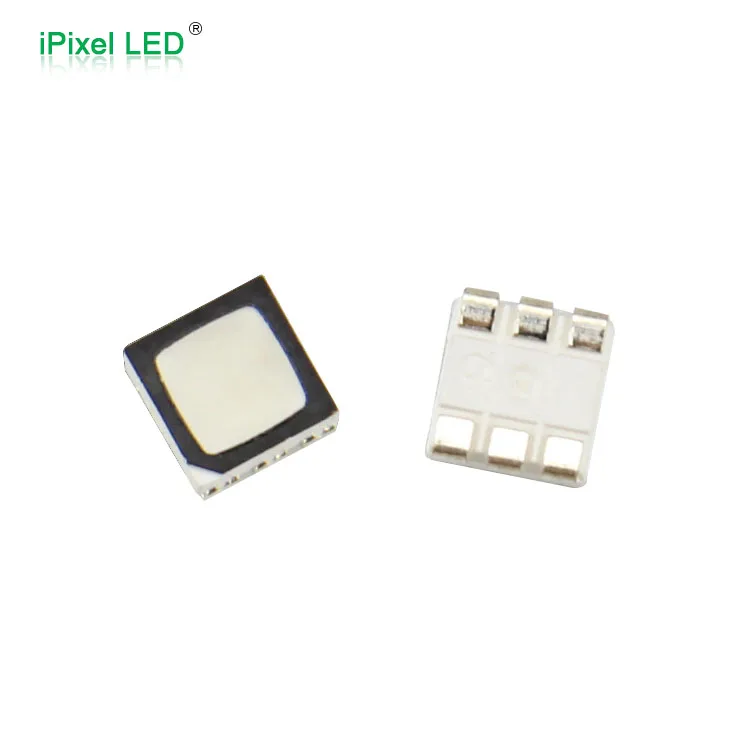

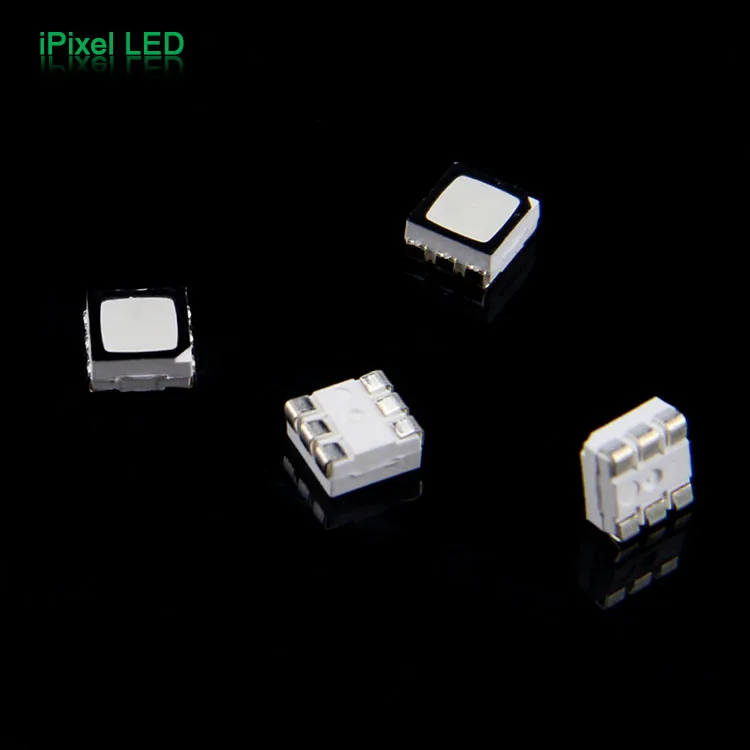

Full color led chip,rgb led chip, 5050 rgb smd lamp beads
- Category: >>>
- Supplier: Shenzhen Ipixel Led Light Co. Ltd.
Share on (60667757261):
Product Overview
Description
Full color led chip,rgb led chip, 5050 rgb smd lamp beads
Product parameter
| Items | Symbol | Condition | Values | Unit | ||
| R | G | B | ||||
| Wavelength at peak emission | λ peak | I F = 20mA | 625 | 525 | 470 | nm |
| Dominant wavelength | λ dom | I F = 20mA | 620~630 | 520~530 | 465~475 | nm |
| Forward voltage | V F (Typ) | I F = 20mA | 2.0 | 3.2 | 3.2 | v |
| V F (Max) | 2.4 | 3.6 | 3.6 | |||
| Luminous Intensity | I V (Typ | I F = 20mA | 850 | 1900 | --- | MCD |
| I F = 15mA | ---- | --- | 350 | |||
| Reverse current (Max) | I R | V R = 5V | 10 | 10 | 10 | μA |
| 50% Power Angle | 2θ½ | I F = 20mA | 110 | 110 | 110 | Deg. |
Product Details
Application
Indoor and outdoor displays
Backlights
Coupling into light guides
R G B full color displays
