16 мм 70 мм 4 ядро бронированного кабеля цена

Name: 16 мм 70 мм 4 ядро бронированного кабеля цена
SKU: 60667766819
Availability: InStock

Price:

Quantity:

\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

\t Description	\t 70mm 4 core cable price
\t Conductor:	\t Bare Copper Conductor of Class 1/2 (Solid)
\t Insulation:	\t XLPE Compound
\t Insulation Color	\t Red, Blue, Grey, Yellow/Green or as request
\t Sheath	\t PVC Compound
\t Sheath Color	\t Black
\t Temperature Range:	\t -20 -90℃
\t Nominal Voltage:	\t 600/1000V
\t Test Voltage:	\t 3500 V
\t Minimal Bending Radius:	\t 15D for Single Core 12D for Multicore
\t Standard	\t GB/T12706.2-2008

\t\t\t\t\t\t\t\t\tTechnical Details \t\t\t\t\t\t\t

\t Cores x conductor cross-section	\t Conductor construction	\t External diameter	\t Insulation thickness	\t Sheath thickness	\t Conductor resistance at 20 °C	\t Short circuit current 1s	\t Cable weight
\t	\t nominal	\t approx.	\t nominal	\t nominal	\t max.	\t nominal	\t
\t N x mm²	\t n x mm	\t mm	\t mm	\t mm	\t Ω/km	\t kA	\t kg/km
\t 4 x 70	\t 19 x 2,17	\t 35,3	\t 1,1	\t 2,1	\t 0,268	\t 8,05	\t 3204

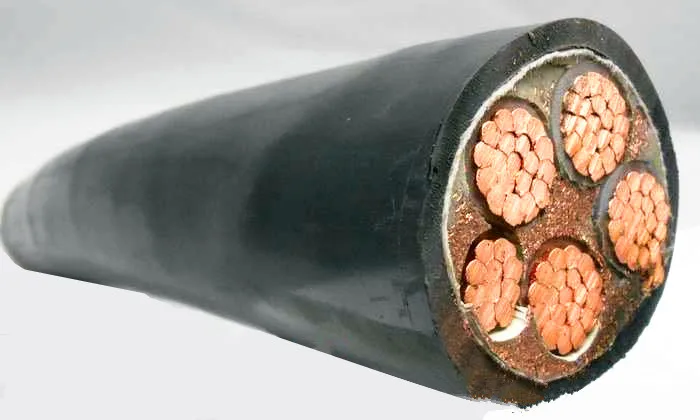

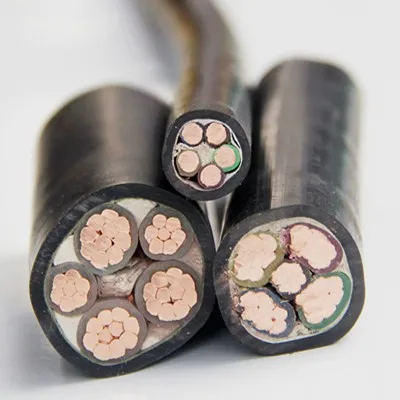

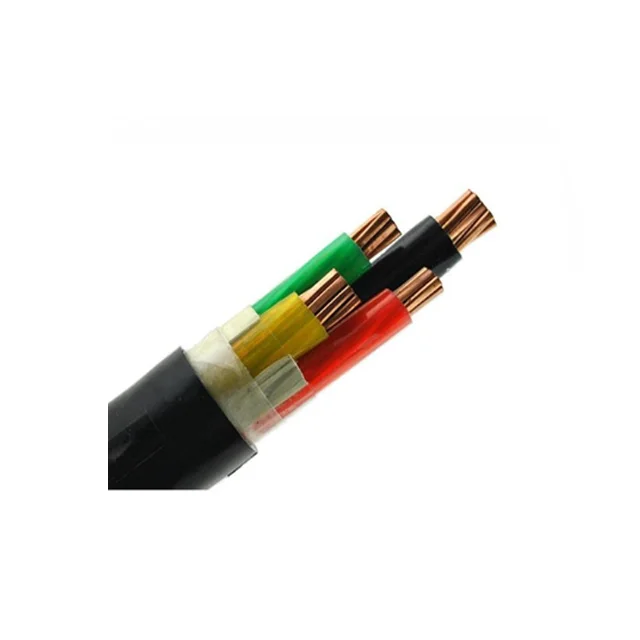

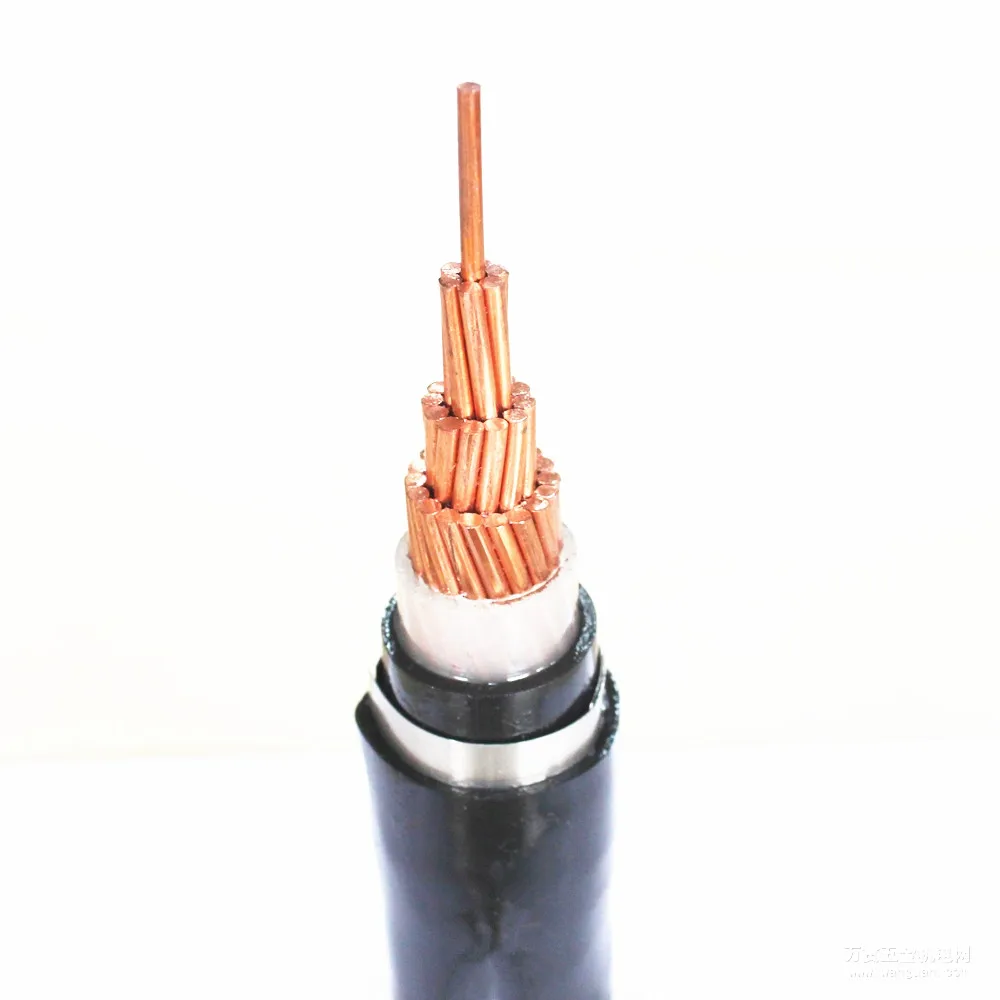

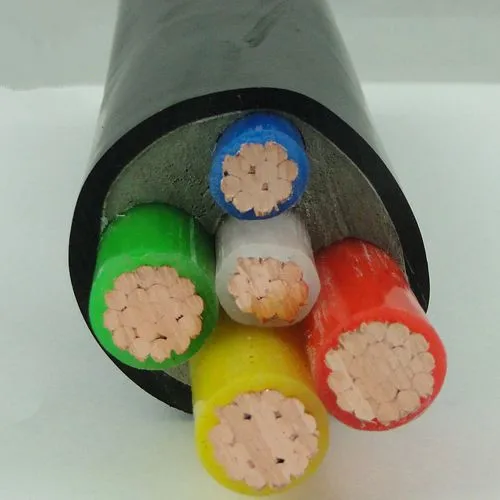

\t\t\t\t\t\t\t\t\tProduct Images \t\t\t\t\t\t\t

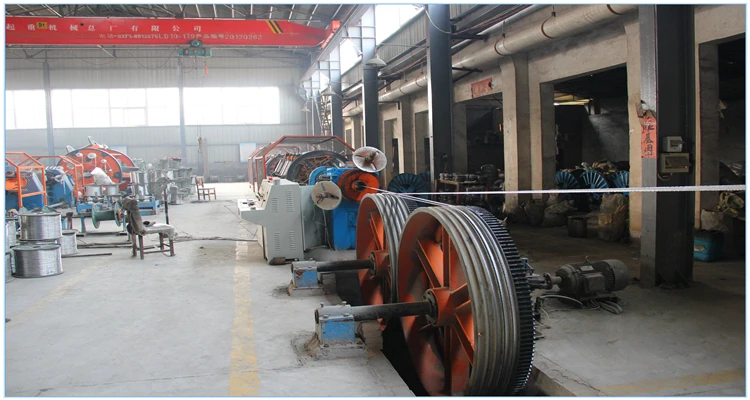

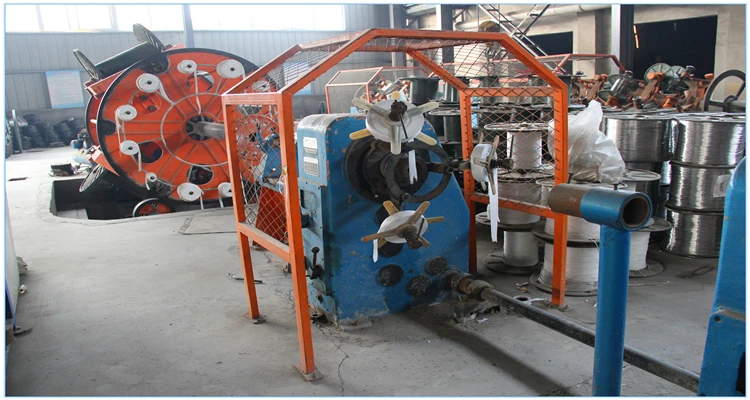

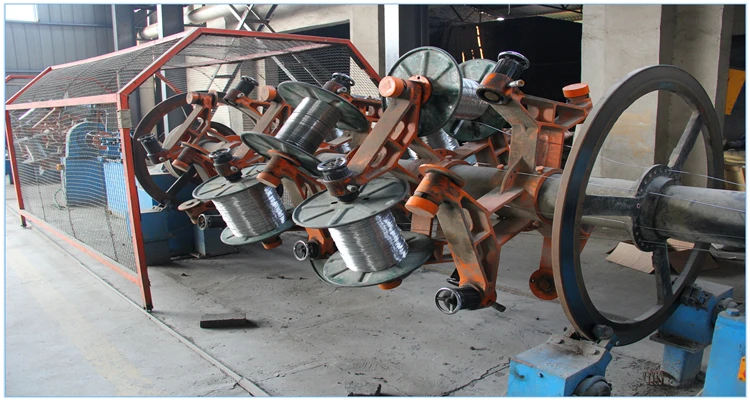

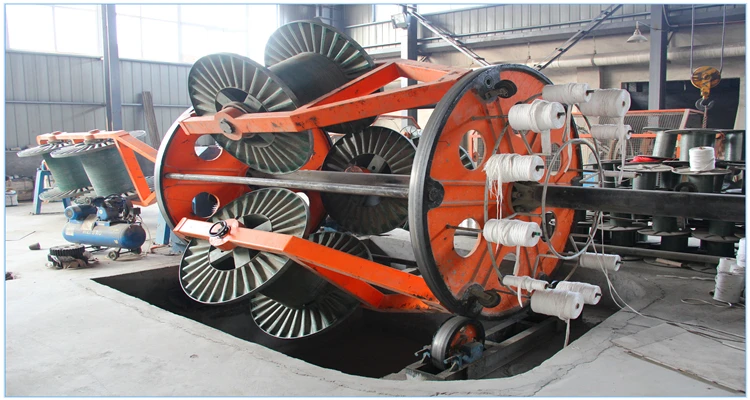

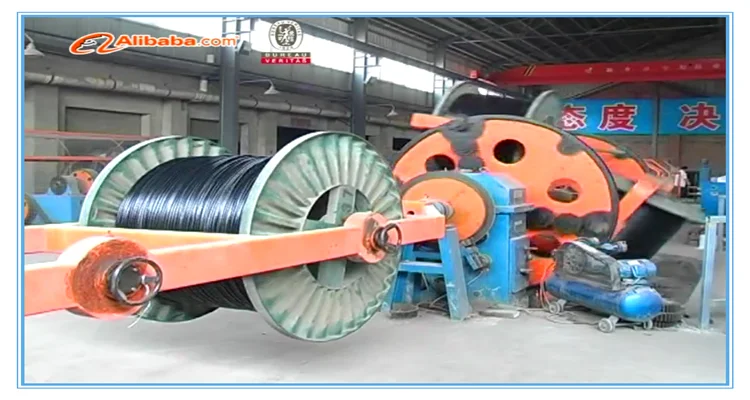

\t\t\t\t\t\t\t\t\tProduction Lines \t\t\t\t\t\t\t

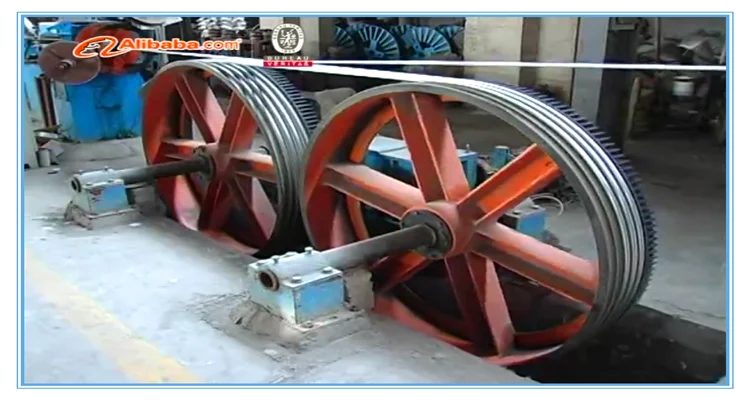

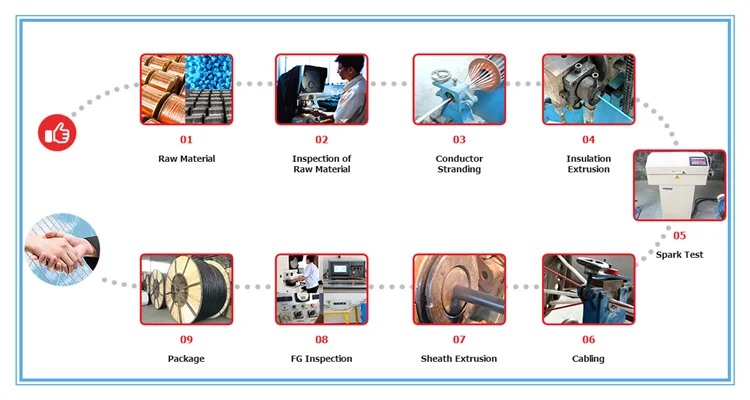

\t\t\t\t\t\t\t\t\tProduction Process \t\t\t\t\t\t\t

\t\t\t\t\t\t\t\t\tCooperation Partners \t\t\t\t\t\t\t

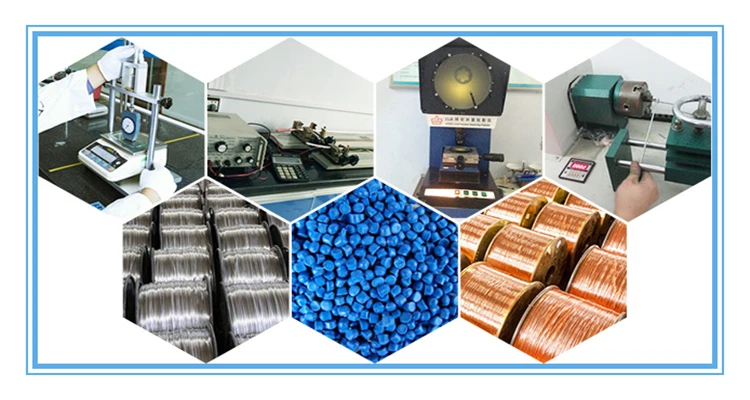

\t\t\t\t\t\t\t\t\tQuality Control \t\t\t\t\t\t\t
