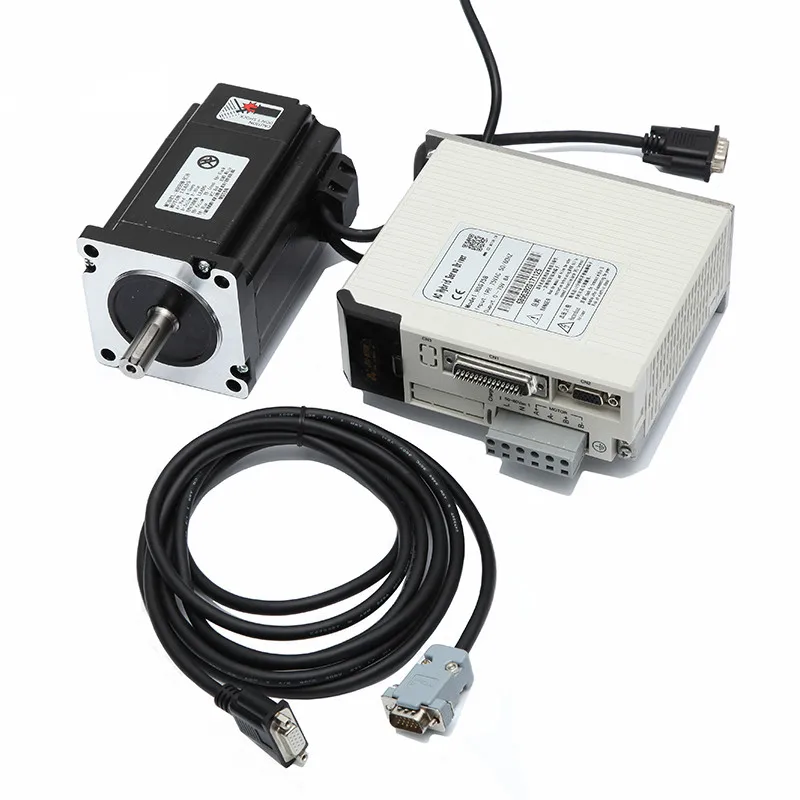

nema34 closed loop stepper motor nema 34 86HSE8N BC38 and driver HSS86 for cnc router machine
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (60667785455):
Product Overview
Description
Product Description
Motor Electrical Parameters
Mode No. | Step angle | Current (A) | Resistance (Ω±10%) | Inductance (mH±20%) | Holding torque (N.m) | Motor length (mm) | Encoder Resolution (PPR) | Weight (kg) |
86HSE4N-BC38 | 1.8° | 6.0 | 0.45 | 3.7 | 4.5 | 82 | 1000 | 2.65 |
86HSE8N-BC38 | 1.8° | 6.0 | 0.44 | 3.7 | 8.0 | 118 | 1000 | 4.0 |
86HSE12N-BC38 | 1.8° | 6.0 | 0.45 | 5.2 | 12.0 | 156 | 1000 | 5.65 |

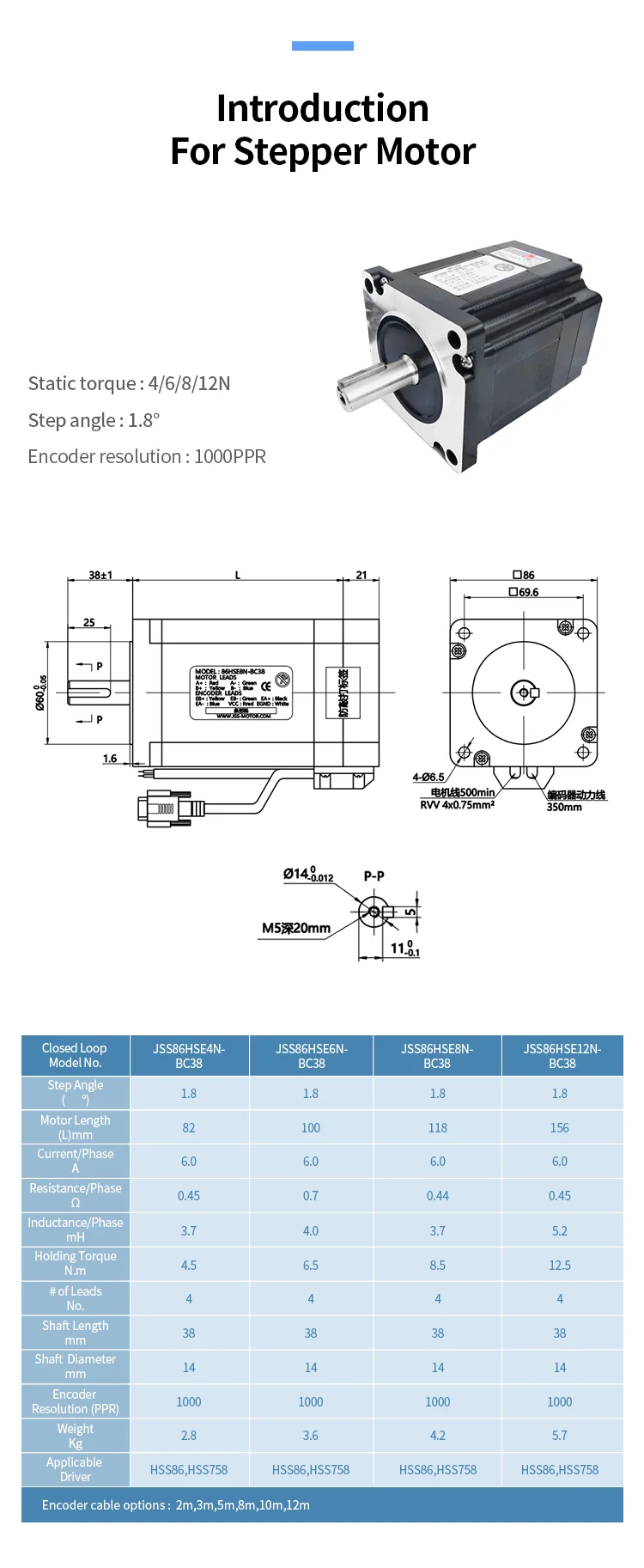

Motor Dimension (unit=mm)

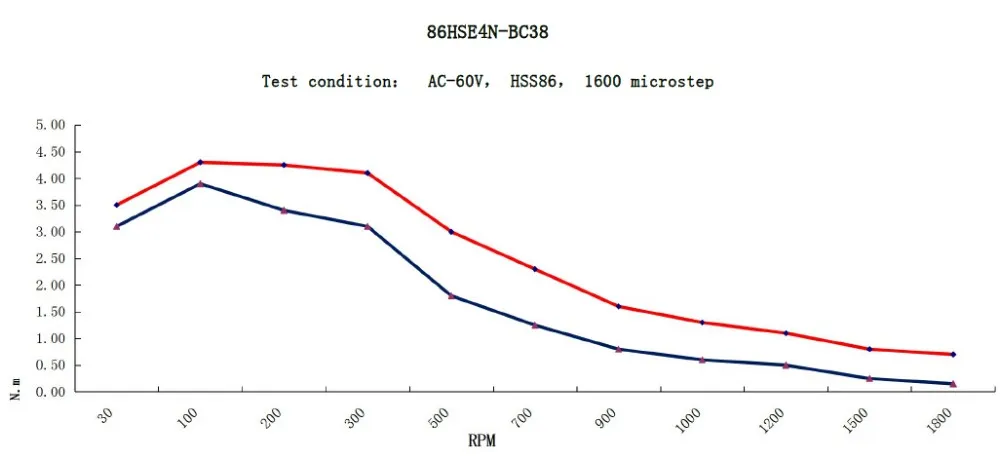

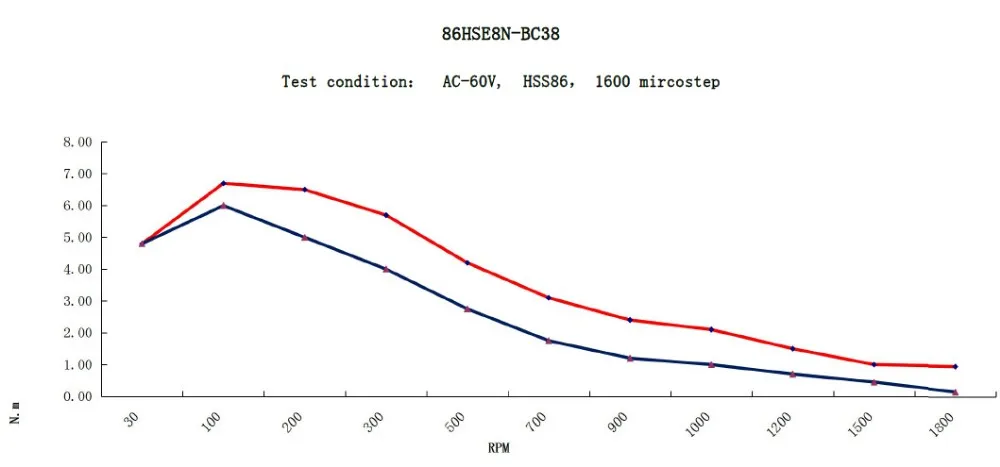

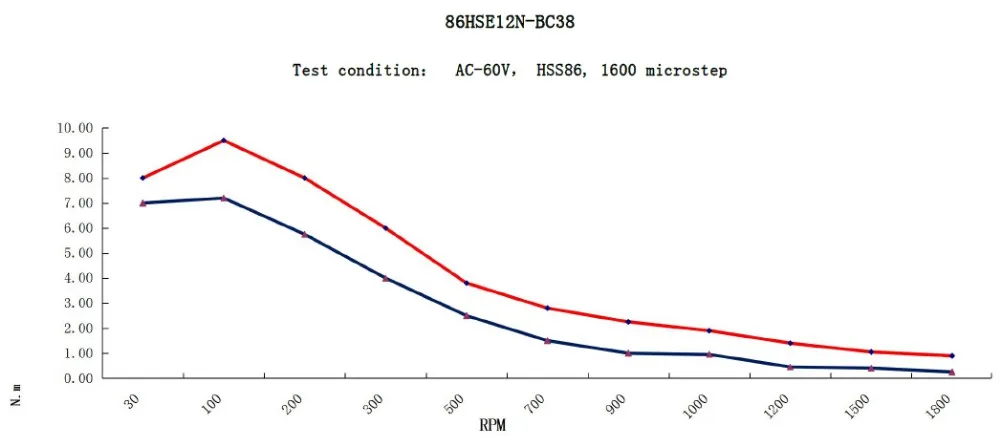

Torque/ Frequency Curve
Remark: Blue curve is nema34 standard stepper motor torque curve, red curve is nema34 closed loop torque curve.

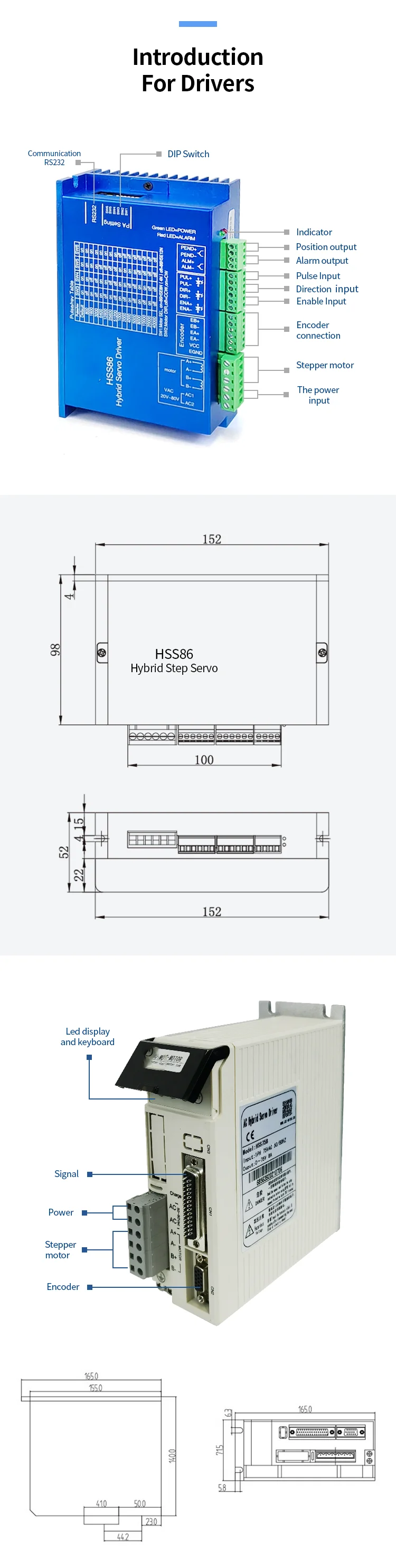

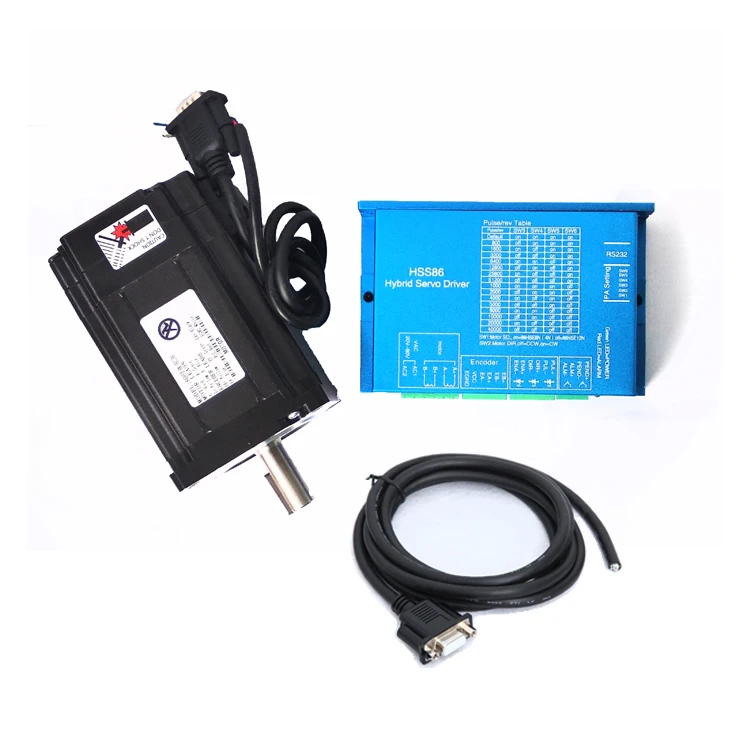

Close Loop Driver HSS86
Features
1. Position error correction and never lose steps.
2. Quick response and perfect acceleration, high torque at high speed.
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200 microsteps/rev.
7. Drive Nema 34 series4.5N.m,8N.m, 12N.m closed loop stepper motor
8. Voltage range: AC20-80V, DC30-110V
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
Our Services
First-class service:
customization and OEM is available.
Warranty: 18 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Different specification of stepper motor with competitive price for your choice:

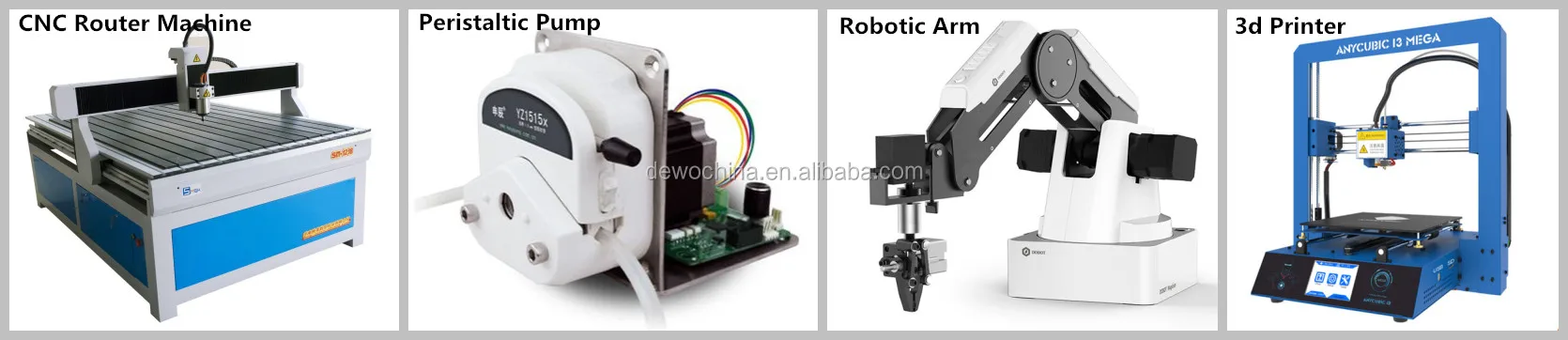

A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Company Information
Changzhou Dewo Motor Co., Ltd., exporting stepper motors, servo motor,spindle motor,BLDC motor and their driver ,VFD. We spcialize in this field for many years, with the strength of high quality and competitive price in China.
We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 24 hours!
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
