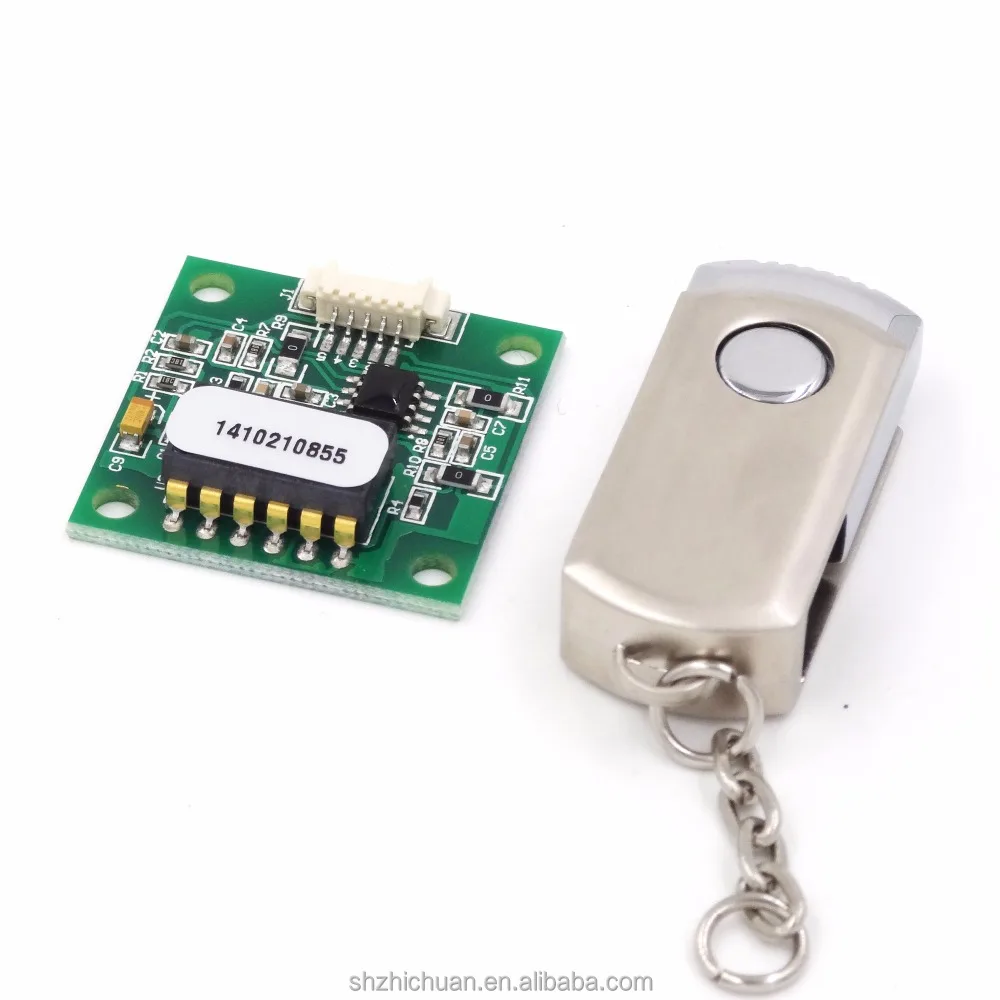

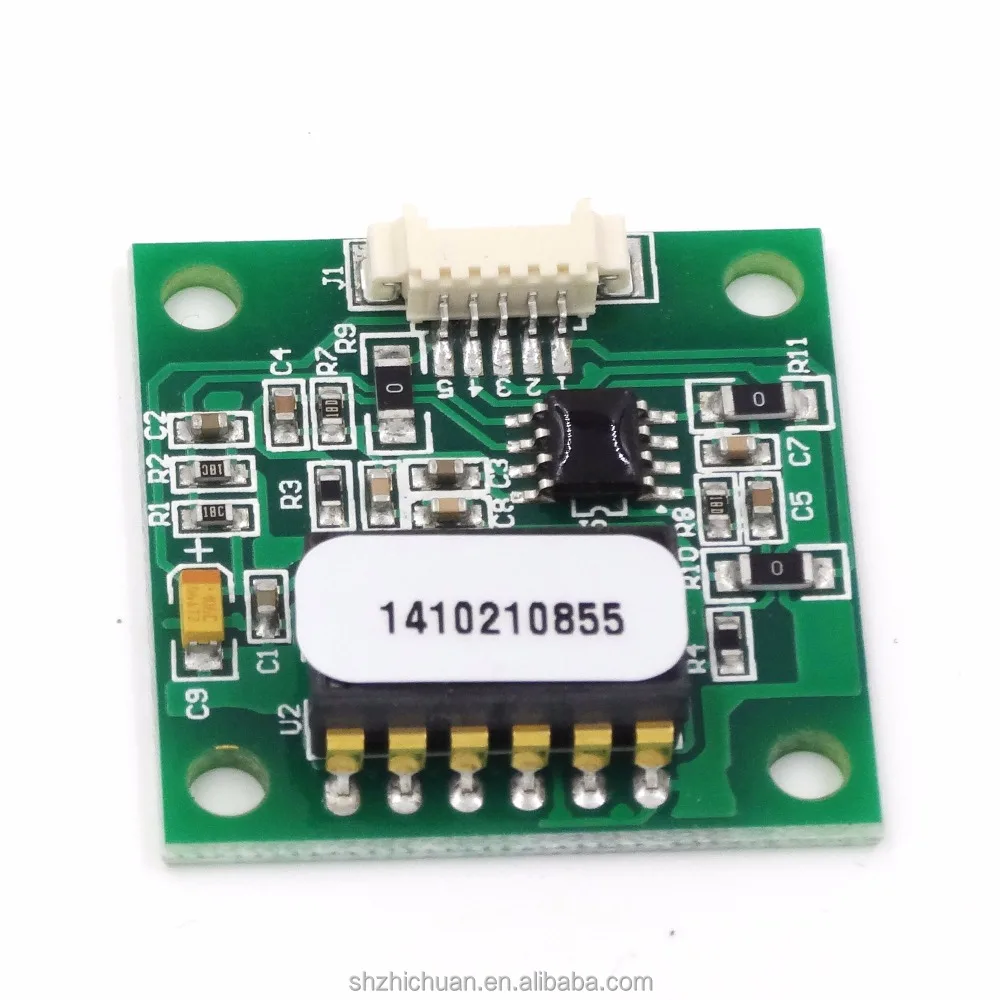

ZCT215FN-V1 two axis tilt sensor is researched and produced by Shanghai Zhihchuan Electronics.The product has two axis structure, horizontal mount, measuring X and Y axis.It outputs analog volatge.The measuring range is ±15 degree.Entirely industrial parts of device, stable and credible performance.
SPECIFICATIONS FOR ZCT215FN-V1
parameter
Test condition
Min
Typ
Max
Unit
Supply voltage(1
4.8
5
5.2
V（DC）
Static operating current
Without load
5
10
mA
Output impedance
Resistive
20
KΩ
Capacitive
20
nF
Operating temperature
－40
+85
℃
Measuring range
±15
°
linearity range
±10
°
Output voltage at zero
Vcc=5.00V
2.48
2.5
2.52
V
Temperature drift at zero
-5～+50℃
±0.05
±0.1
°
-25～+70℃
±0.2
±0.4
°
Non-linearity
±0.2
±0.25
％/FS
Sensitivity
Vcc=5.00V
148
150
152
mV/°
Sensitivity error(2
±1.3
％
Main Features
Small size, light weight, High accuracy, high resolution easy to integrate Anti shock, anti vibration

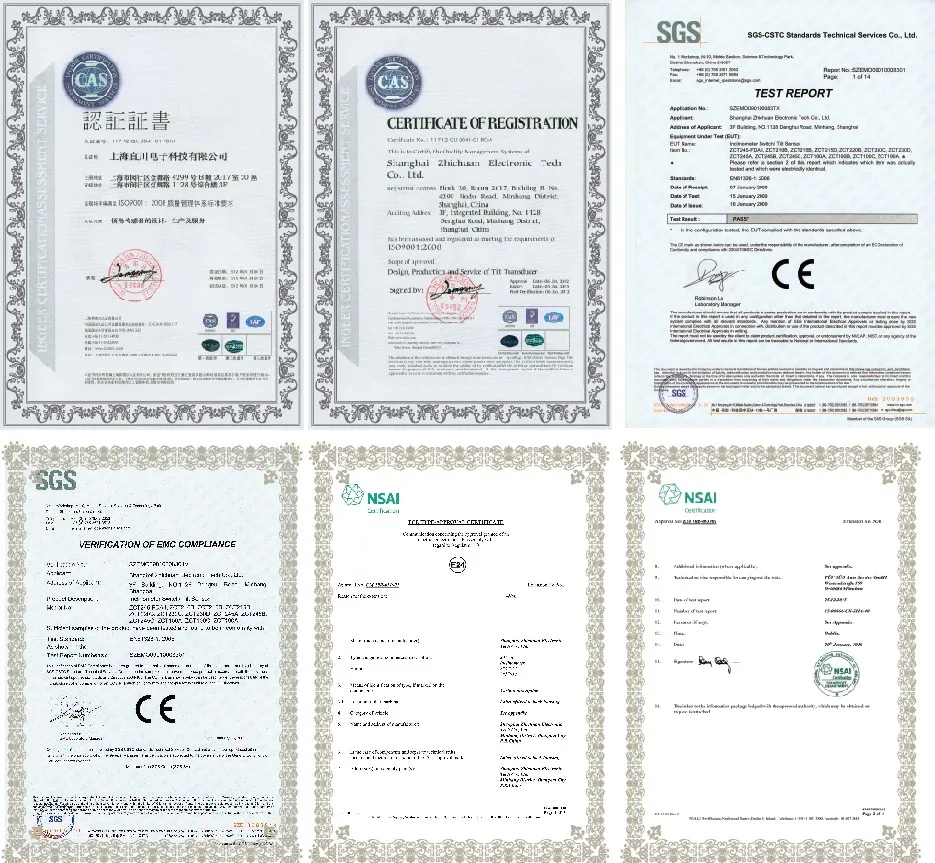

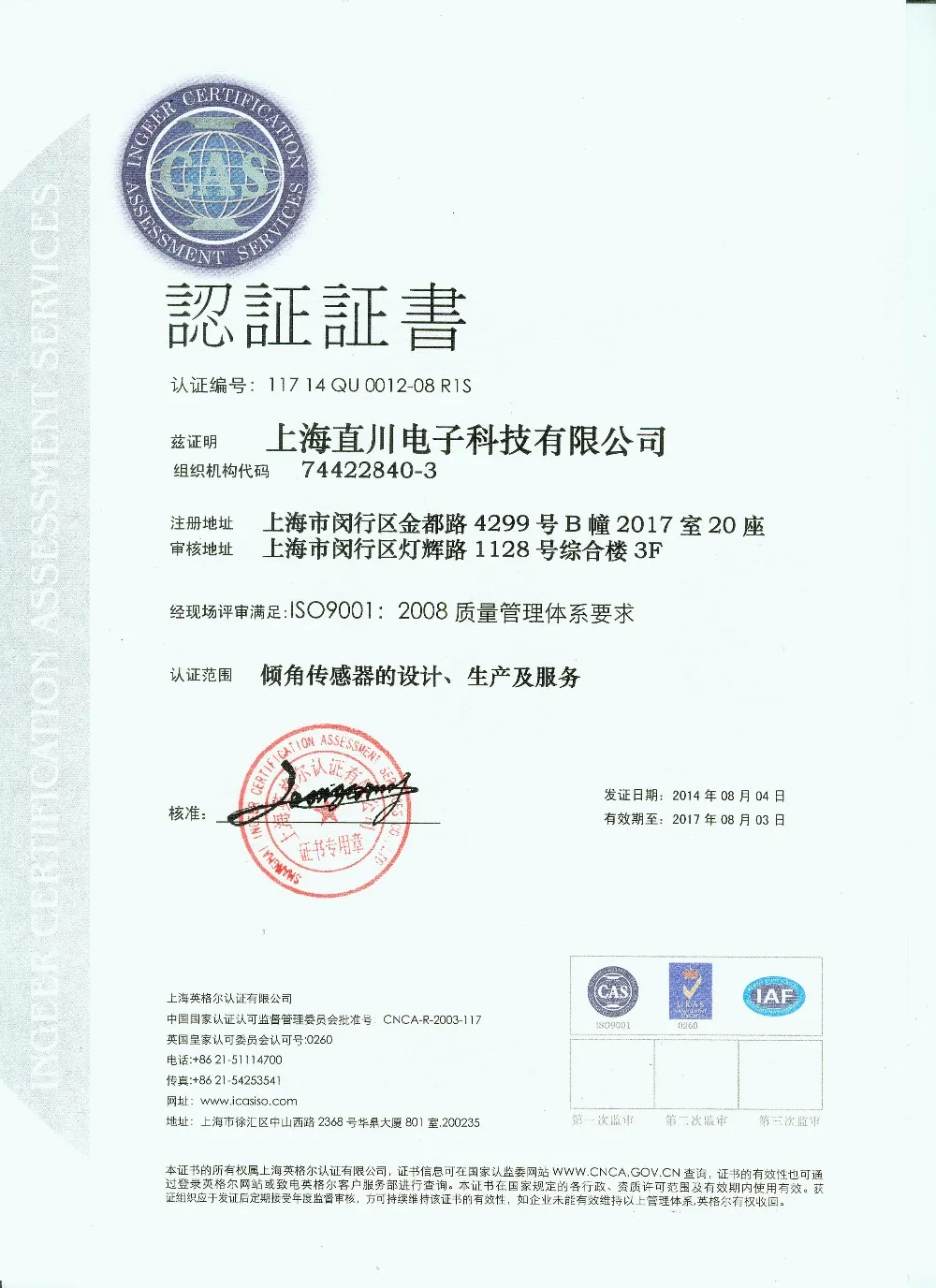

Certifications

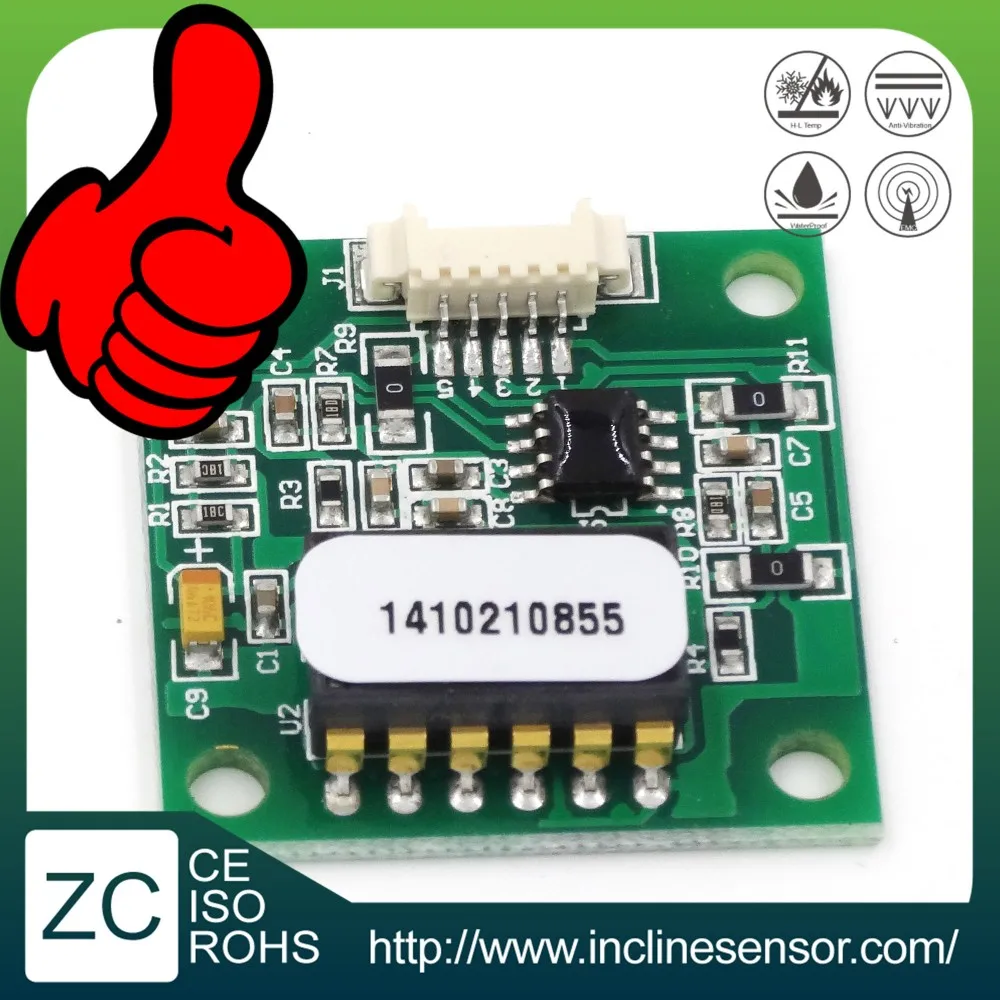

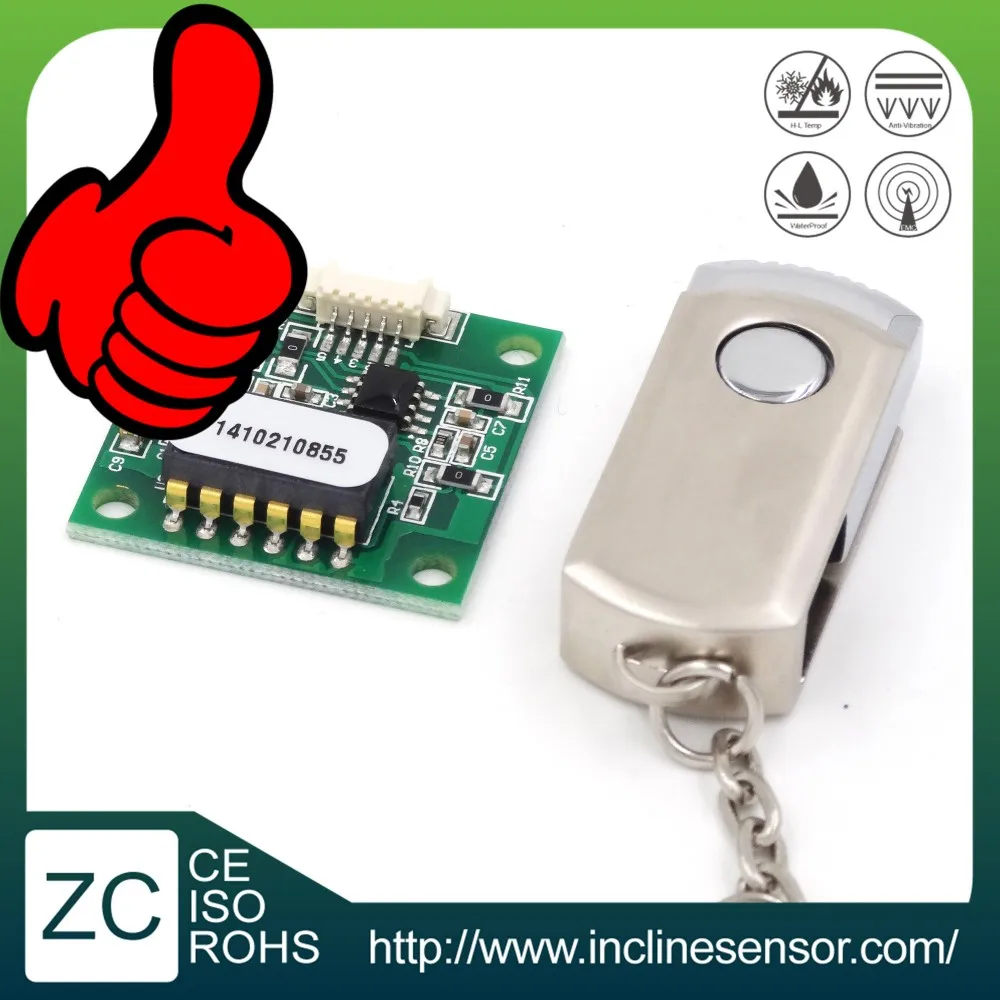

Detailed Images
Company Info.
Time: Founded in the year of 2002. Location：3F compositive building,No.1128 Denghui Rd,Minhang,Shanghai,201109,China Employee：50~100 person R&D Engineer：8-10 person Main Products: Inclinometer , tilt switches, inclinometer system【 more than 400 models 】 Annual production: 100,000pcs (2016) Sales : Domestic and Oversea sales, totally around US$4.5million (2016)
Product Application
Angle measuring, leveling adjustment, zero setting. Security control, monitoring, alarm system, Angle measurement of arm, dam, construction, bridge Aligning control, bending control Initial position control, grapher for tilt attitude

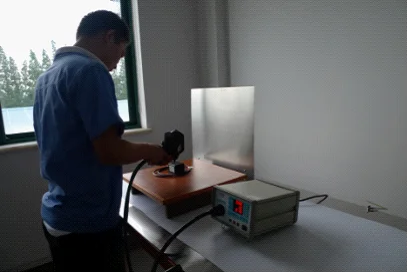

EMC Test Device
