Portable multi gas detector 4 gases O2 CO H2S LEL LCD screen 4 in1 gas analyzer

Product Overview

Description

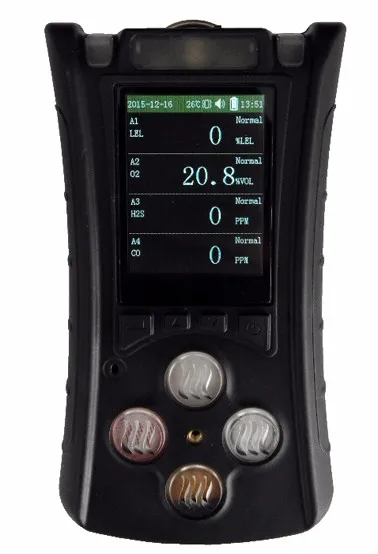

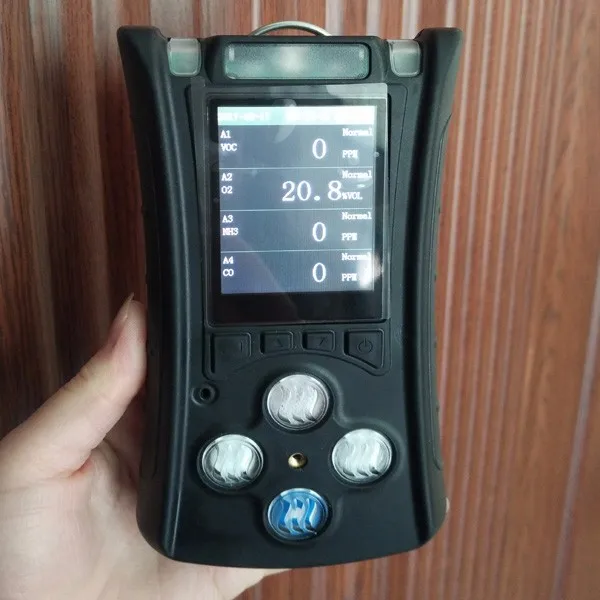

Portable multi gas detector 4 gases O2 CO H2S LEL LCD screen 4 in1 gas analyzer





PG810 series portable gas detecotor can detect 4 kinds of gases at one time. High brightness LCD display. Smart alarm.

    It is widely used in oil exploration, oil and gas transportation, oil refining, metallurgy, power plants, chemical industry, oil depot and gas station, mine, tunnels, underground pipeline and other industries.





Big OLED display, high brightness, high-definition



Automatically save detecting data for 3048 records of each channel



Standard mini-USB charging interface, charger is compatible with computer and cell phone's



Connected with computer to realize data download and parameter setting(optional)



Alarm type: audible and visual alarm, vibration alarm



STEL and TWA alarm function for toxic gases



Power on self-test function



Adjuatable high and low alarm level



Replaceable modularized sensor







Charging Time	combustible gas, toxic gas, oxygen
Measuring Range	according to the gas chosed
Sampling Method	diffused or pump suction (external electric sampling pump)
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Working Temperature	- 20 °C ~ + 55 °C
Working Humidity	< 95% R.H. no condensation
Sensor life	2-5 year

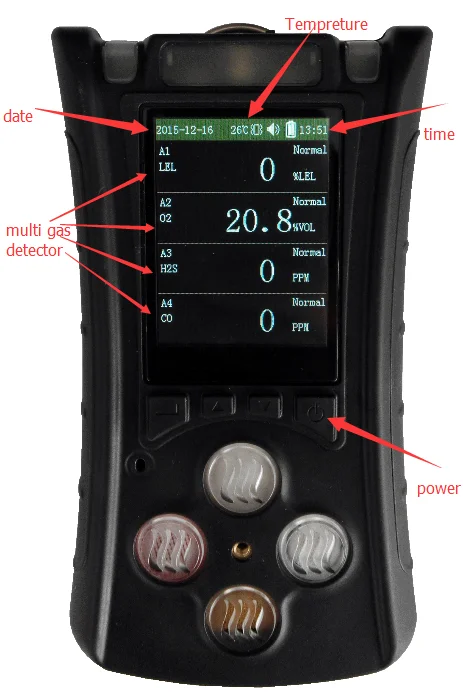

Display Mode	OLED screen shows density, time, battery power, Alarm state,
	percentage progress bar
Display screen	2.4 inch IPS colorful LCD screen, 240*320, 5 class brightness adjustable , reversable display
Data Storage	3048 records each channel
Upload Data	connected to computer via data line(optional)
Alarm Type	Light: wide-angle light emitting diode
	Sound alarm
	Vibration alarm
Working Voltage	DC3.7 V lithium ion battery, 3000 mAh
Charging Time	about 5h
Working Time	combustible gas more than 8 h (continuous); Toxic gas more than 72 h (continuous); 15 h ~ 20 h(LEL, CO, O2, H2S 4 gases)
Protection Class	IP66
Weight	300 g
Appearance Size	156 mm × 83 mm × 48 mm

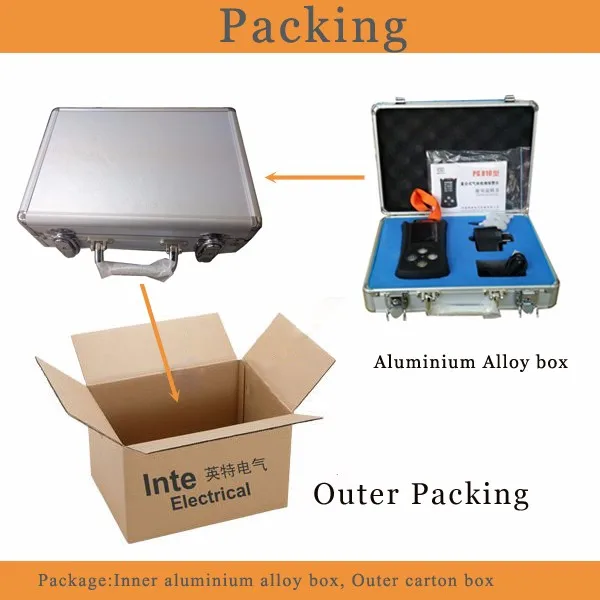

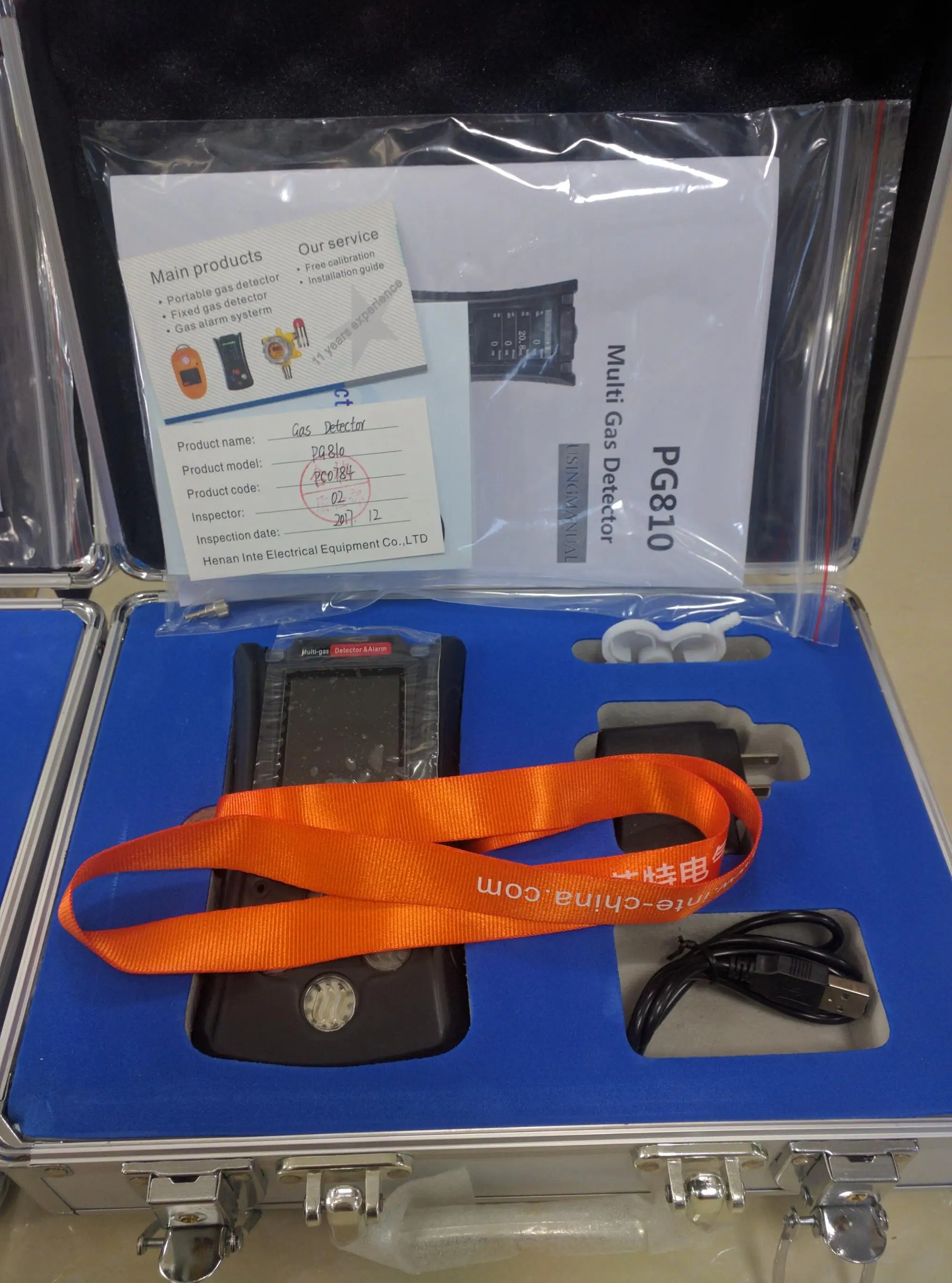

Standard Configuration:Aluminium Alloy box, Charger, gas detector, User manual,  certificate of approval, warranty card, gas hood.













  FAQ:



Q1. Can it applied to other gases?

A: PG810 series can detect a wide range of gases. Please inform us the gases you want to detect to see if it is available.



Q2.What is the minimum order?

A: One piece for quality test is okay!



Q3. How is the calibration be done?

A: To keep the high sensitivity, please calibrate it at least once a year .



Q4. What about the lead time?
A: We usually deliver the goods in 2-5 working days after the order confirmed.



Q5. Is it OK to print my logo on the gas detector?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q6. How to contact us?

A: Please send your enquiry to us, we will reply you within 12 hours. Click "SEND" now!
