RH-AUDIO Portable Voice Mixer Amplifier with 2.4G Wireless Transmitter for Presentations








RH-AUDIO 2.4G Wireless Microphone Portable Voice Amplifier page 18.jpg





This table-top mixer amplifier is designed as convenient solution for small to medium PA installations with USB/SD player/FM tuner/BT in a compact housing.
Equipped with 2.4G receiver circuit supporting wireless 2.4G transmitter with microphone.
Inputs for microphone,line input,USB/SD player are governed by front panel volume controls,and the digital
screen displays the working status of playing programmes,which can be controlled by the front panel buttons
or the remote control.
And features two MIC inputs and one line input with 60 and120 watts of amplifier power are available with either
70/100-volt or 4 to 16 ohms(Ω) output loads.
Also included a line level output for adding additional power amplifiers.
And features complete protection is provided for output short circuit,overload,high temperature,peak current limiters.





This amplifier is ideally suited for installation in areas for the sound reproduction of reading announcements,
and playing background music for small to medium PA installations such as clothing stores,
convenience stores, coffee shops,restaurants,and so on.

The 2.4G transmitter built-in laser pointer is particularly idea for small presentations such as classrooms,
meeting rooms,multi-media rooms,and so on.





1) Compact metal housing with front panel of aluminium alloy.
2) SMT circuit boards with highly stable performance.
3) Powerful TOSHIBA amplifier tubes.
4) Pure copper transformers for power supply and 70V/100V audio outputs.
5) 2 microphone inputs and 1 line input.
6) Built-in players of USB/SD,and FM tuner.
7) High-definition display for the working status of playing programmes.
8) 70/100-volt and 4 to 16 ohms(Ω) output loads.
9) Individual volume controller for inputs.
10) BASS and TREBLE tone controllers.
11) Individual LED indicator for POWER/SIGNAL/PROTECTION.








Specification






































































































Rated Power



60W



120W



Frequency Response



20 Hz 0dB -0.5dB 1dB



Output Terminals



Low impedance:4-16 ohms (Ω)



Voltage line:70V(51 ohms),
100V(167 ohms)



Voltage line:70V(41ohms),
100V(83ohms)



MIC Input



MIC1/MIC2:600 ohms(Ω) 5-10mv,unbalanced



LINE Input



LINE:10k ohms(Ω) 150-470mv,unbalanced



LINE Output



0.775V (0 dB)



Frequency Response



60 Hz ~ 15k Hz (± 3 dB)



THD



<0.5% at 1kHz,1/3 rated power



S/N



Line:85 dB , MIC:>72 dB



Tone



BASS:100 Hz (± 10 dB) , TREBLE:12k Hz (± 10 dB)



Cooling



DC 12V FAN



Protection



AC FUSE x 1A



AC FUSE x 2A



AC fuse,short circuit,overload,high temperature



Power Cord



(3×0.5 mm )×1.5M (standard)



Power Supply



AC 220V ± 10% 50-60Hz (Optional)



Power Consumption



84W



168W



Dimension



72(H)×305(W)×275(D) mm



Packing Size



130(H)×345(W)×345(D) mm



Net Weight



5Kg



5.5Kg



Gross Weight



5.7Kg



6.2Kg










Product details

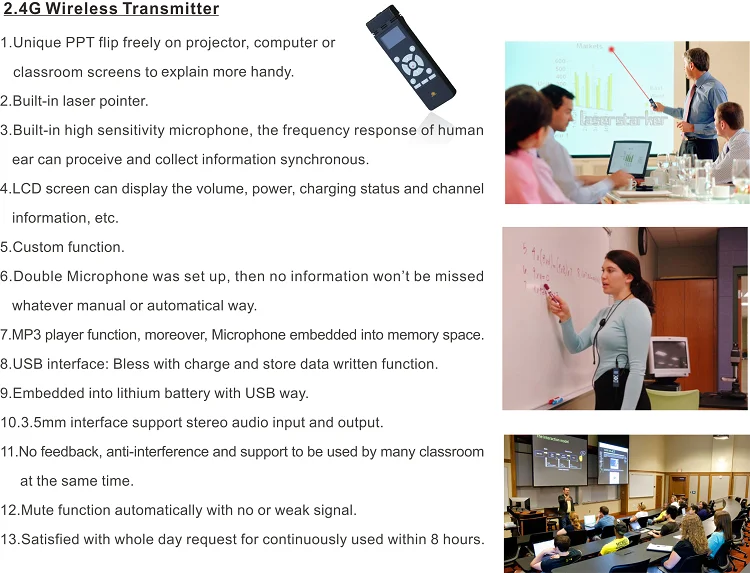

2.4G TEACHING SYSTEM 1.png


 RH-AUDIO MP3 BLUETOOTH AMPLIFIER page a.jpg

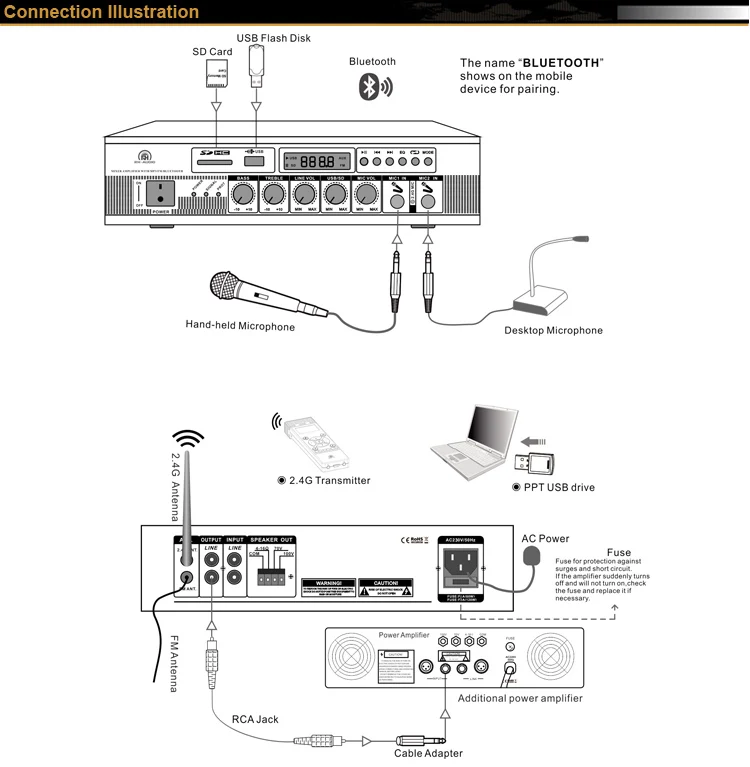

RH-AUDIO 2.4G MP3 BLUETOOTH AMPLIFIER page b.jpg
