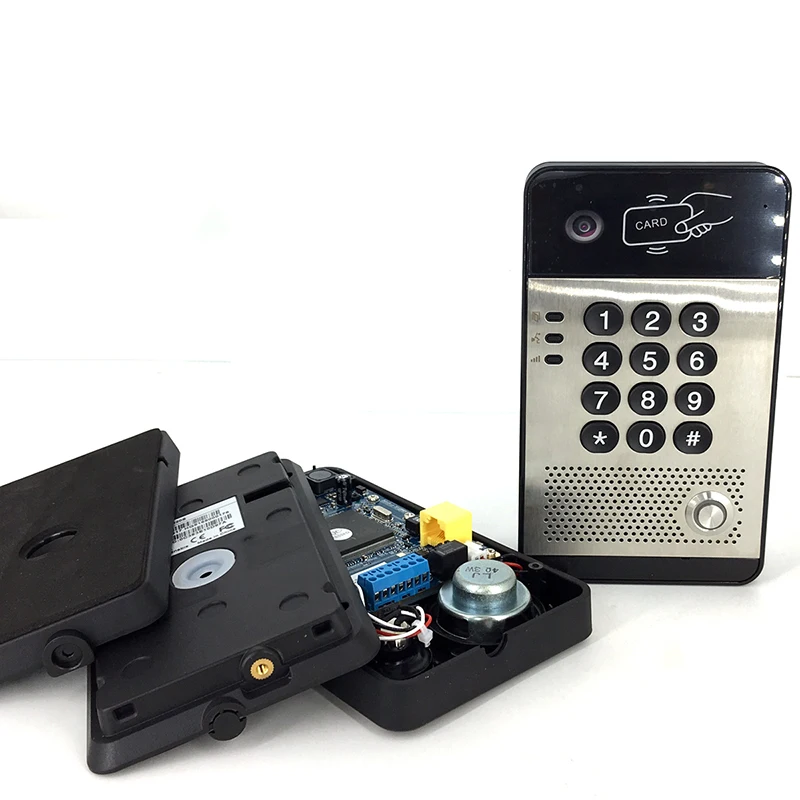

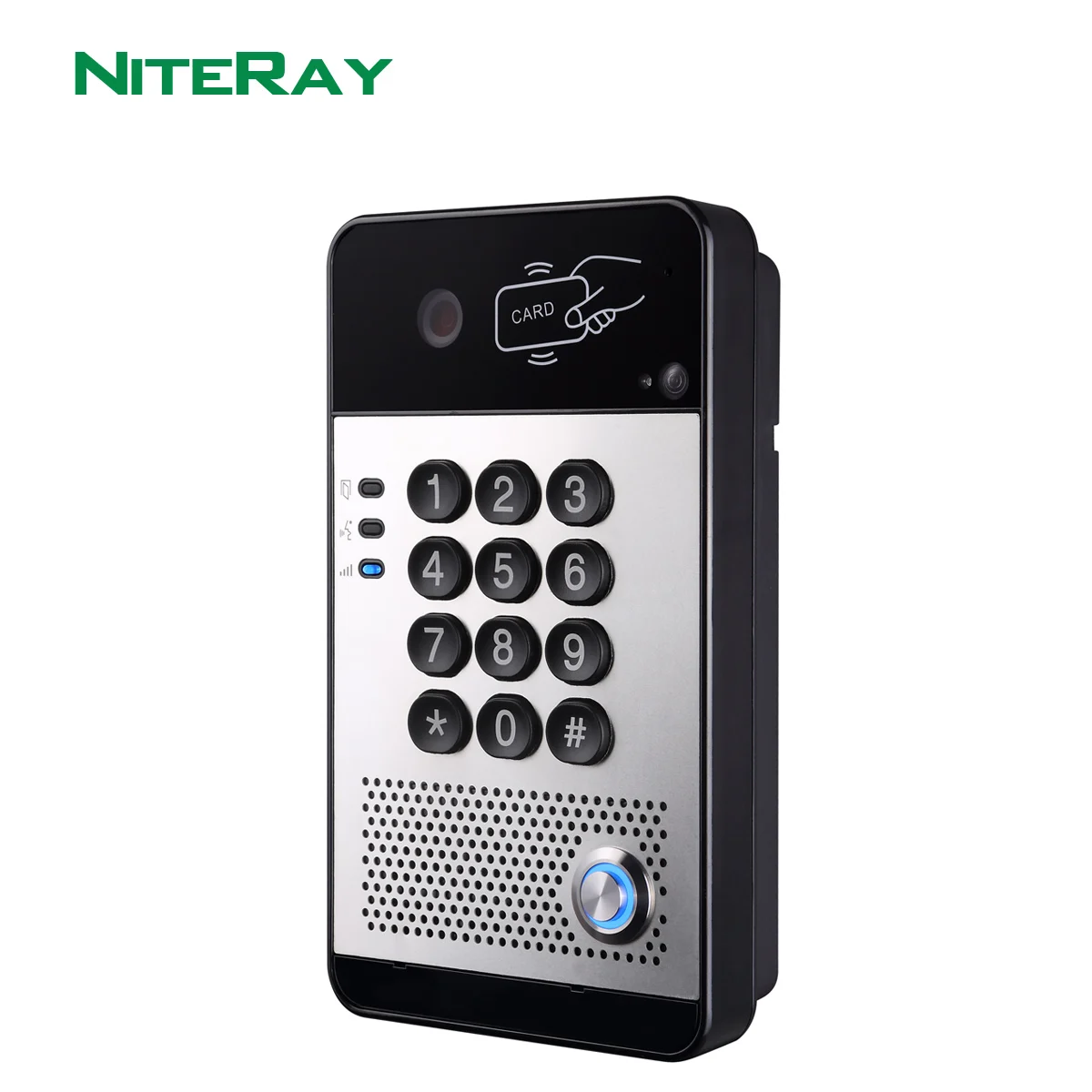

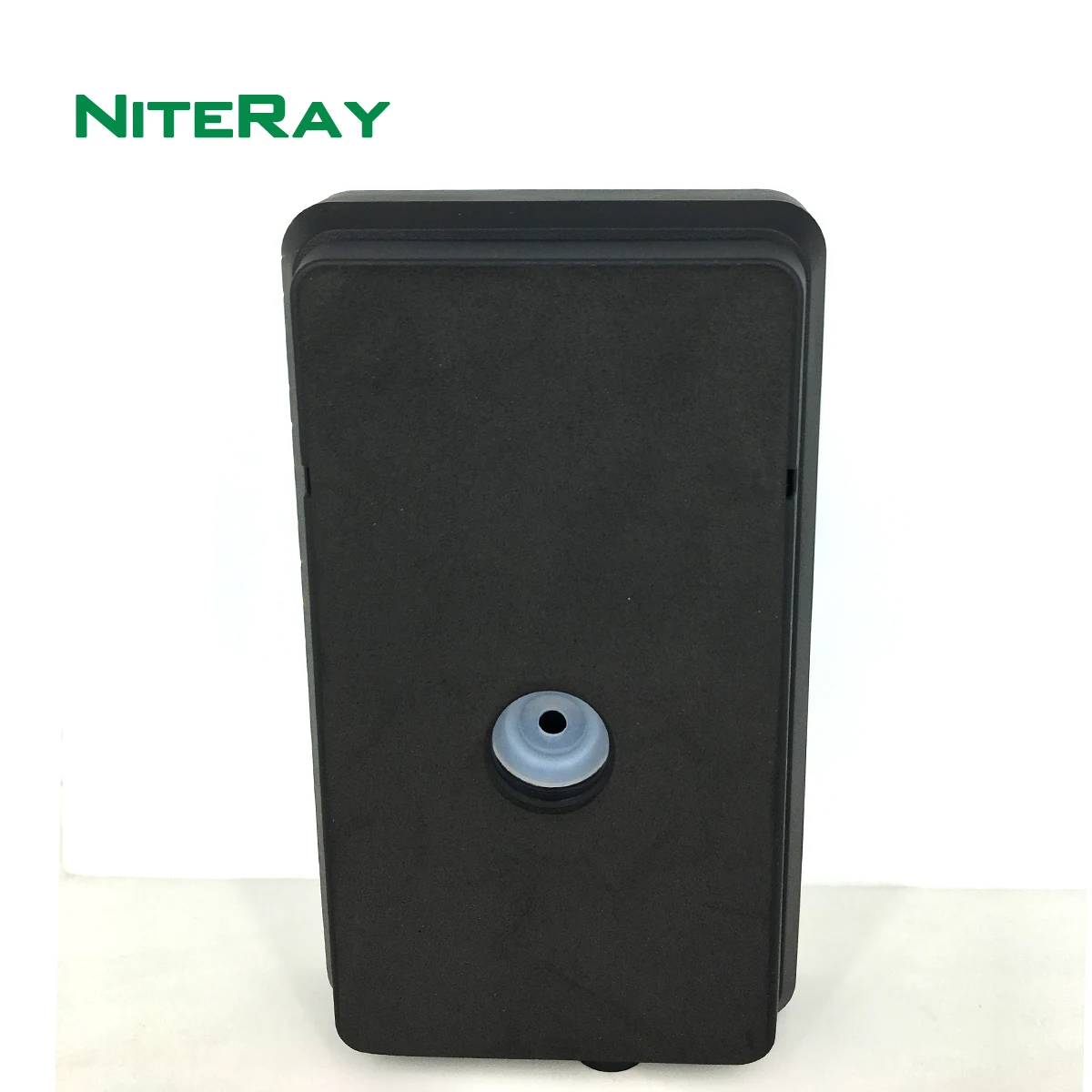

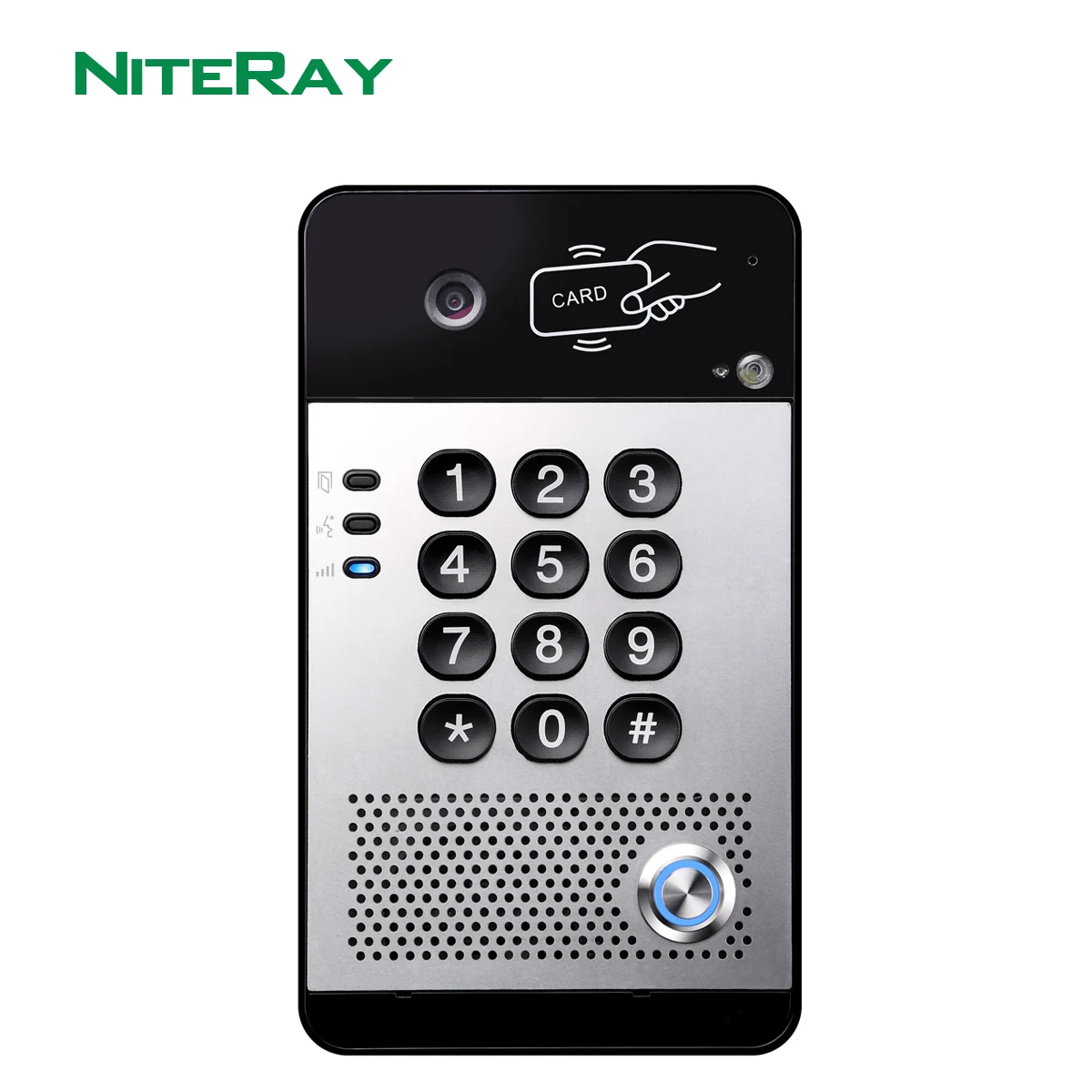

Outdoor waterproof video intercom system IP door phone for parking station and building entrance
- Category: >>>
- Supplier: Shenzhen Niteray Technology Co. Limited
Share on (60667964804):
Product Overview
Description
Video SIP Itercom System (SIP Door Phone+Multimedia Telephone)

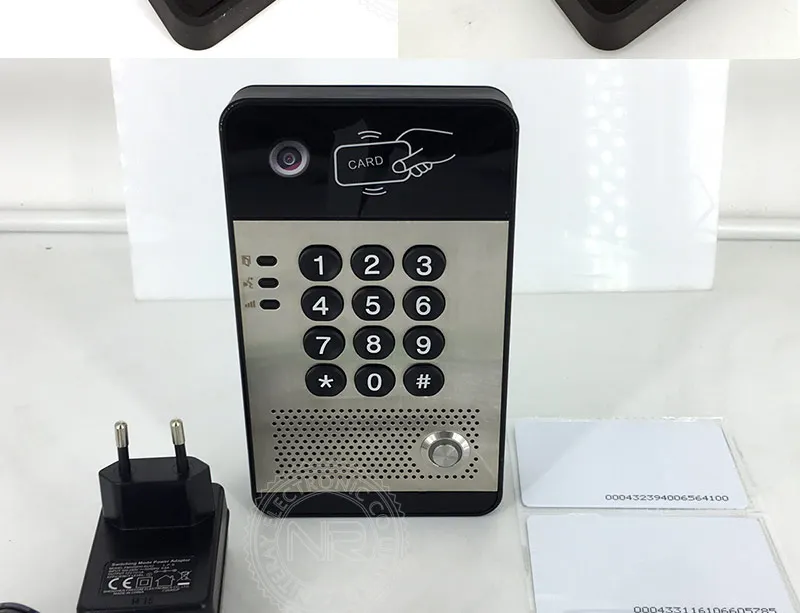

- Video SIP basic telephone(F600) + Video SIP door phone(Q520).
- Optional qty to choose: F600*N+Q520*N.

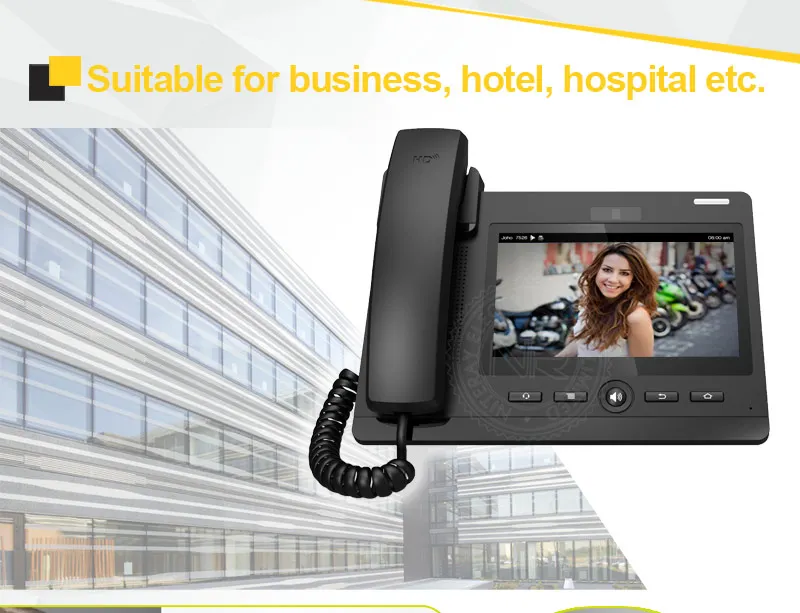

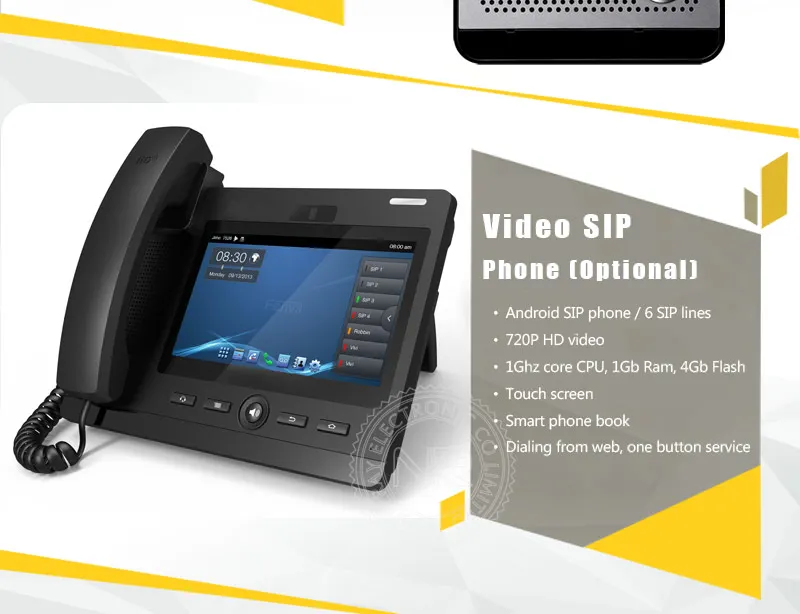

- 7 inch 720P HD video display, Android system on F600.
- Hidden RFID Card Reader.
- Relay to Connect to Door Lock , NO/NC Relay Mode.

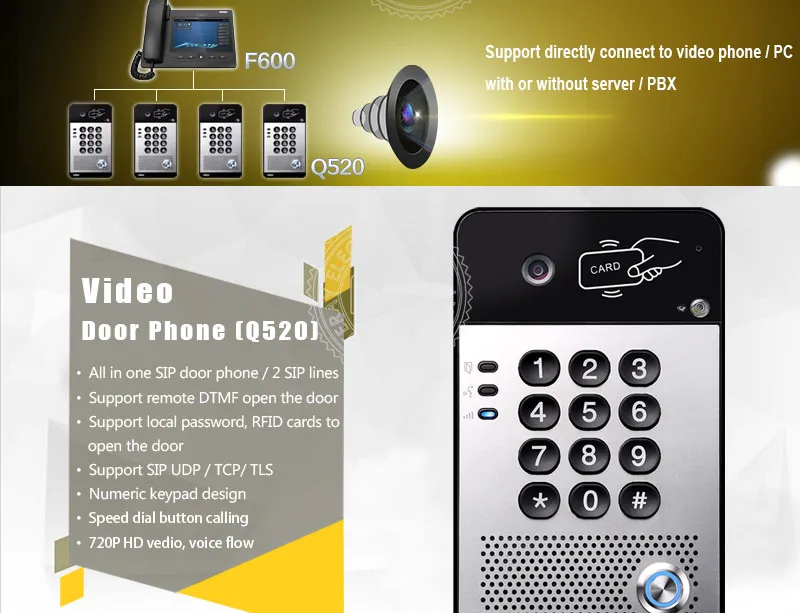

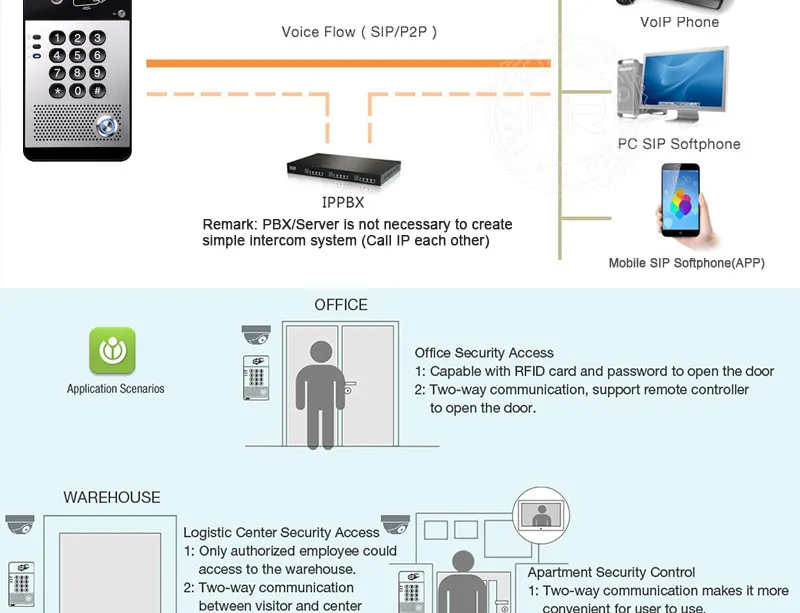

- Able to create Intercom with or without server/PBX.
- Use SIP Protocol, Easy to Deploy.
- Directly Call to Preset Telephone.
- Waterproof design IP65 level.
- Hight Quality Conversation Voice.
- Full Duplex Intercom.
- Auto Answer , Auto Hand Down.

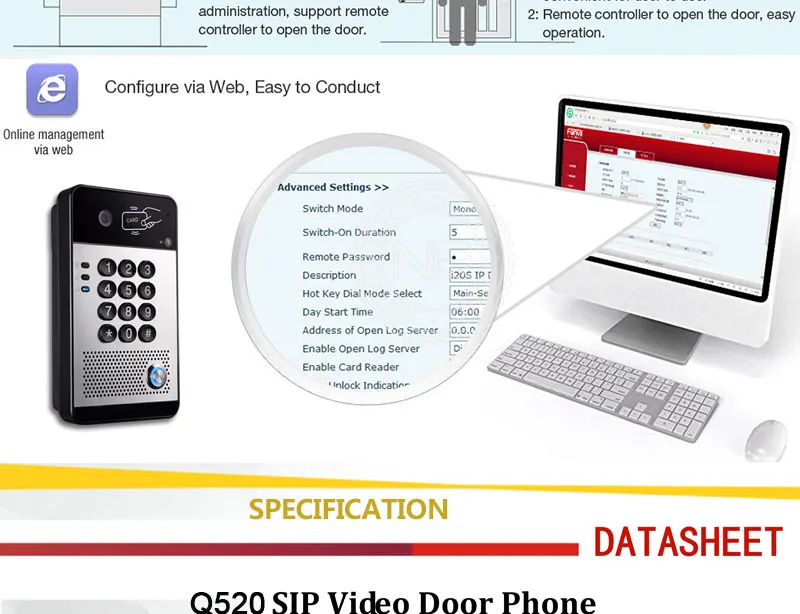

- Powerful Web Management.

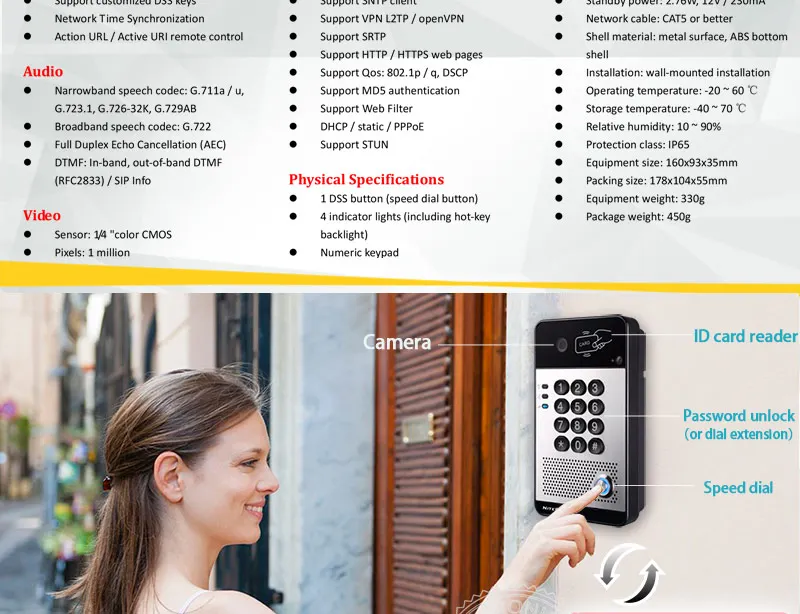

Datasheet:
| Access control function | · Video codec: H.264 | · 1 indoor switch | ||
| ·Two SIP lines, support SIP 2.0 (RFC3261) | · Resolution: The main stream1280 *720 | · 1 relay: MAX DC30V / 1A, AC125V/0.5A | ||
| and related RFC | Sub-stream 640*360, 352*288, 32*240 | · Active switching output: 12V/700mA DC | ||
| · Full-duplex handsfree (HF) | · Viewing angle: 110 ° (H), 95 ° (V) | · RFID reader: ID (EM4100) standard type | ||
| · Default Auto Answer | · Minimum illumination: 1Lux, temporarily | IC(MIFARE ONE) custom type | ||
| · Open the door operation: DTMF, | does not support infrared lighting | · RFID card number output: positive | ||
| password, RFID card, switch | Networking/ Protocols | sequence output 8H10D | ||
| · Support 200,000 door open records | · Support PoE (802.3af) | · Microphone: -38dB | ||
| · Support 2000 remote access list | · Primary and secondary DNS servers are | · Speaker: 4Ω / 3W | ||
| ·Support2000 RFID cards | supported | · WAN port: RJ-45, 10 / 100M adaptive | ||
| · Support electric lock internal or external | · Support VLAN | · Power supply: 12V ± 15%/1A DC or POE | ||
| power supply options | · Support SNTP client | · PoE: 802.3af (Class 3 - 6.49 to 12.95W) | ||
| · Support customized DSS keys | · Support VPN L2TP / openVPN | · Standby power: 2.76W, 12V / 230mA | ||
| · Network Time Synchronization | · Support SRTP | · Network cable: CAT5 or better | ||
| · Action URL / Active URI remote control | · Support HTTP / HTTPS web pages | · Shell material: metal surface, ABS body | ||
| Audio | · Support Qos: 802.1p / q, DSCP | |||
| · Narrowband speech codec: G.711a / u, | · Support MD5 authentication | · Installation: wall-mounted installation | ||
| G.723.1, G.726-32K, G.729AB | · Support Web Filter | · Operating temperature: -20 ~ 60 ℃ | ||
| · Broadband speech codec: G.722 | · DHCP / static / PPPoE | · Storage temperature: -40 ~ 70 ℃ | ||
| · Full Duplex Echo Cancellation (AEC) | · Support STUN | · Relative humidity: 10 ~ 90% | ||
| · DTMF: In-band, out-of-band DTMF | Physical Specifications | · Protection class: IP65 | ||
| (RFC2833) / SIP Info | · 1 DSS button (speed dial button) | · Equipment size: 160x93x35mm | ||
| Video | · 4 indicator lights (including hot-key | · Packing size: 178x104x55mm | ||
| · Sensor: 1/4 "color CMOS | backlight) | · Equipment weight: 330g | ||
| · Pixels: 1 million | · Numeric keypad | · Package weight: 450g |
