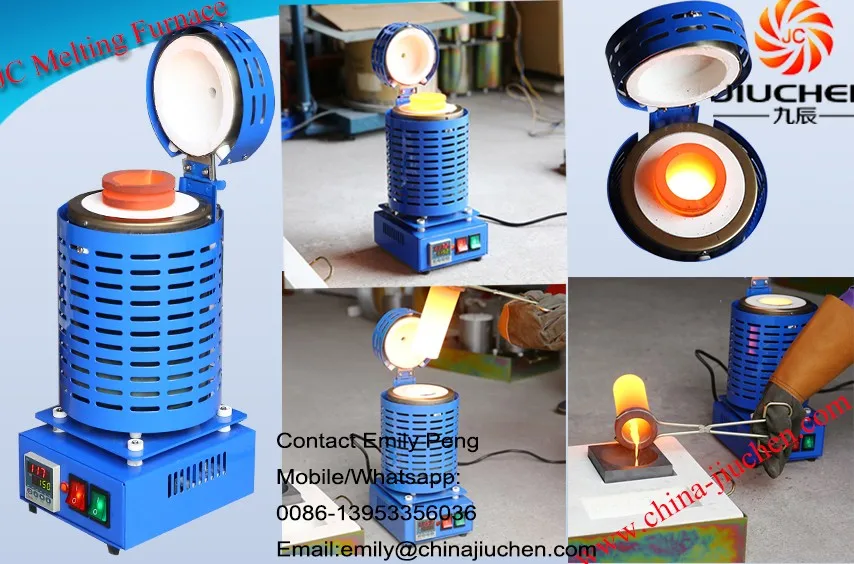

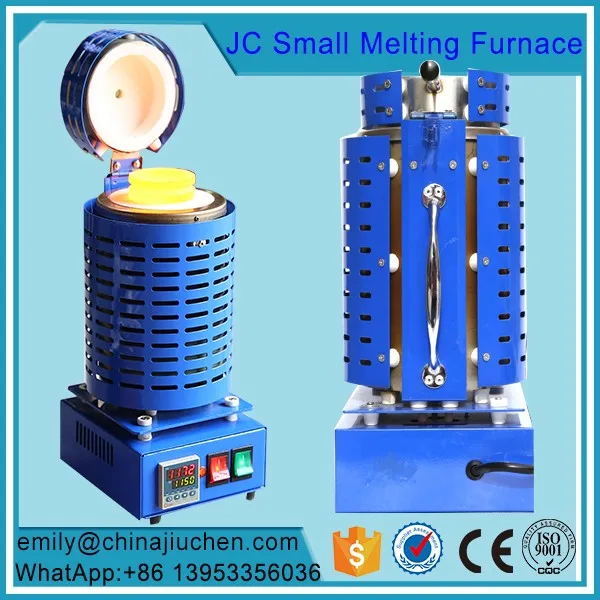

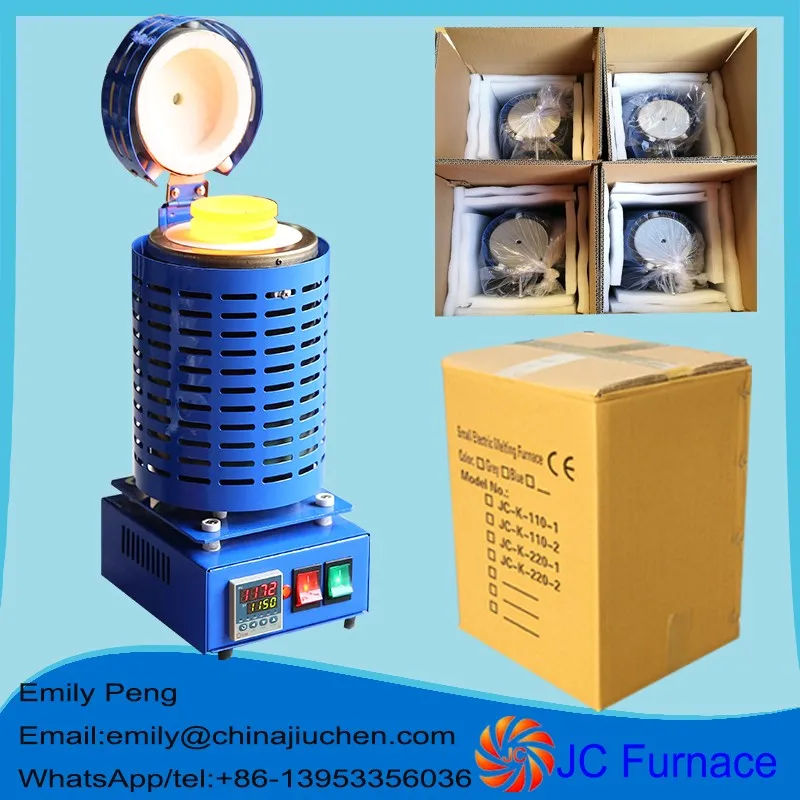

30oz Gold Jewelry Melting Casting Machine for Jewelry Tools

  1.Automatic Melting Furnace controls are easy to use and allows precision setting of any desired temperature.

2. It utilises a thermocouple which is used by the temperature controller to control the “ON” time, for the furnace to reach the desired temperature.
 3.Once the desired temperature is reached, it will maintain that temperature by the controller switching the power to the furnace “ON” or “OFF” as required, in order to maintain the desired temperature.

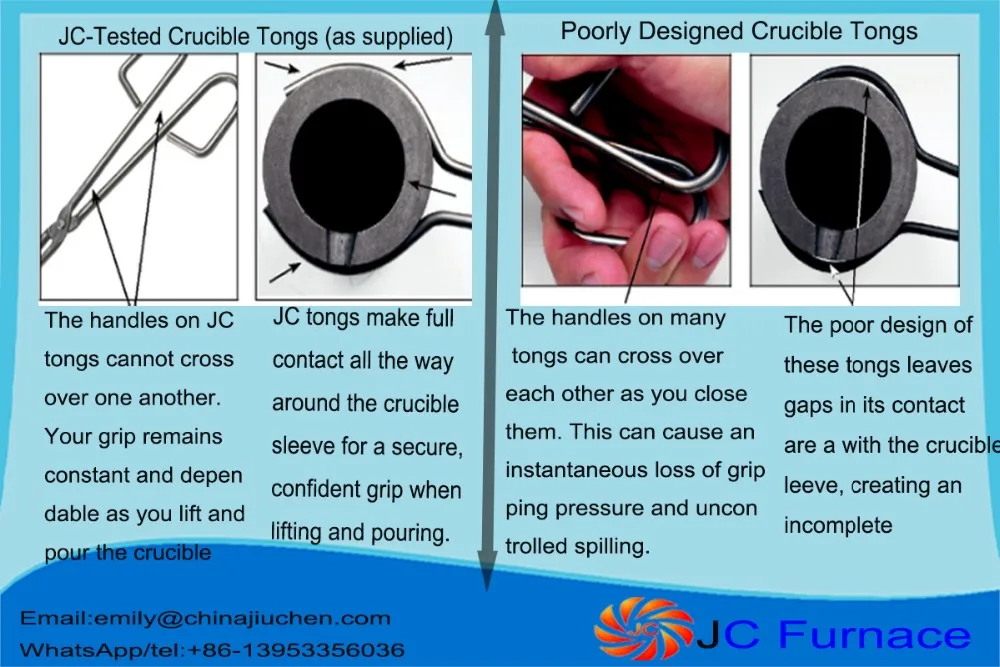

4.The tongs wrap around the crucible top recessed ring, allowing a safe method of removing the crucible for pouring.
An insulated lid lowers down onto the top of the crucible, reducing heat loss.

Graphite Crucibles

Note: One furnace standard package including one 1kg crucible.

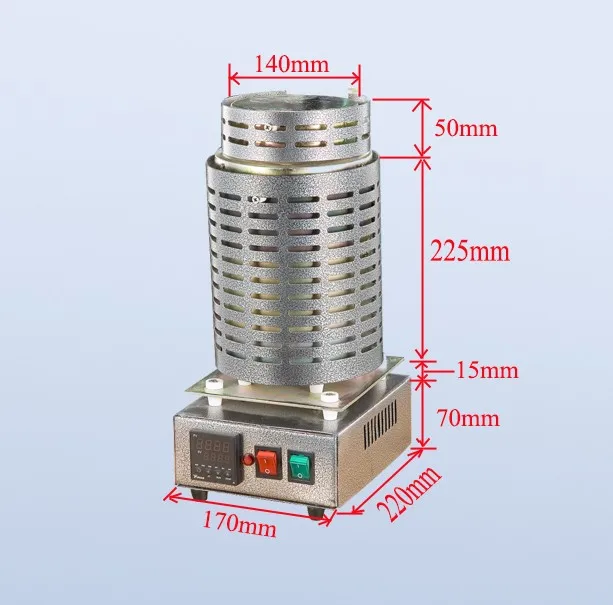

 Dimension Drawings for 1kg 2kg 3kg crucible

One furnace can use 1kg 2kg 3kg 4kg crucible

If you need more crucibles, price is extra.

Dimension Drawings for 4kg crucible

Setting the required temperature

Be sure the front power switch is in the OFF position, green switch for power supply switch, red switch for heating switch.
2. Connecting the furnace to your electrical supply, turn on the green switch, the top read-out (PV) displays the actual temperature inside the crucible during operation. The bottom readout (SV) displays the setting temperature 1100℃/2192F you enter into the furnace.
3._{Please Note: This unit is pre-set to Fahrenheit (°C).}

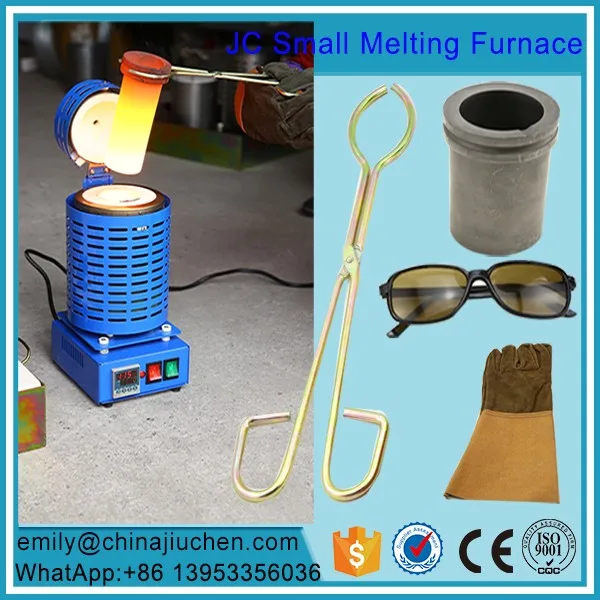

Crucible and Tongs

Gold Smelting
1. Using the tongs included with the furnace, grasp the crucible around the grooves in its upper sleeve
2. 5. Beginning with small pieces, slowly add metal to the crucible— fill the crucible only to 1/4–1/3 of its capacity

at first

Pour metal liquid process

1. After 15minutes, setting temperature is reached.
2. Wait for 5minutes, open the lid with insulating gloves and glasses to check
3. If melted, metal liquid will appear, it not melted, go on melting.
4. Put it on the insulating tray, wait for cooling with 10 second.

Packing List

Packaging
Size	30 (L) * 33 (W) * 48(D)CM
Weight	10KGS
Packaging Details	The normal package is Carton box(Size: 30L*33W*48H CM). If order above 10 units ,the wooden box will be fumigated. Note:Plug type is normal International type,you can choose other plug type

Contact Way

Contact Person

Ms.Emily Peng

Mobile &Whatsapp:86-13953356036



Welcome to contact me on WeChat Sweep



Certificate

Warranty

Warranty:One year for temperature controller including temp display,Relay,etc.

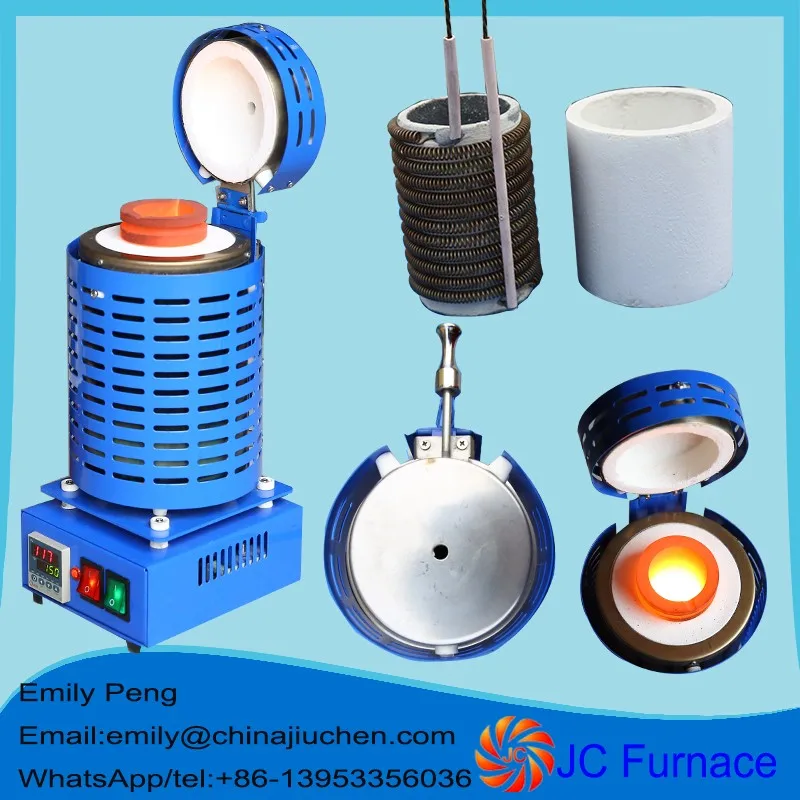

Six month for heating elements including chamer,heating coil etc.
Instruction:1.Connecting switch power supply,electricity,light switch is,
2.temperature controller with the digital furnace is slowly rising,
3. in the process of operation,the furnace temperature degrees will spread,user shall not move and
collision,avoid scald and damage,
4.When the temperature reached gold and gold rains melting point,user according to demand will continue to increase.When the maximum temperature reached 1,150 degrees,it will stop work or in cooling condition,
5.be sure to disconnect the power supply,then use to operate, professional pliers to ensure their safety
