Стандартный размер, деревообрабатывающие вольфрамовые карбидные полосы STB в дюймах

Product Overview

Description

Standard size woodworking tungsten carbide STB strips in inch

Application:

Tungsten carbide STB strips is mainly used for making tools for wood cutting, like general wood, hard wood and some kind of soft wood. They also can be used for as wear parts with its high hardness and long life time. Using 100% tungsten carbide raw material, advanced technology, automatic pressing and HIP sintering. OEM and ODM are accepted.

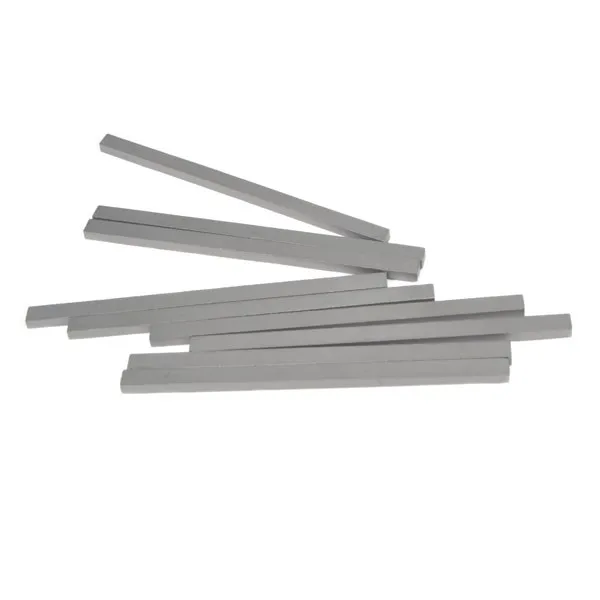

Picture of carbide STB strips:











Recommended grade for carbide STB strips :YG8, YG6, UF18H



Type	Grade	Grain/  size	Cobalt /  %	Density / g/cm3	Hardness/  HRA	TRS  /  HRA	Recommended/  Application	ISO / Code
Carbide Strips	YG8	Medium	8%	14.8	90.5	2400	General wood,hard wood	K20
	YG6	Medium	6%	15	91	2300	General wood	K20
	UF16H	Fine	8%	14.7	91.2	2500	Hard wood	K20
	UF18H	Submicron	10%	14.5	91.8	3200	Hard wood	K30
	UF07H	Submicron	7%	14.7	92.9	3000	MDF,HDF	K30

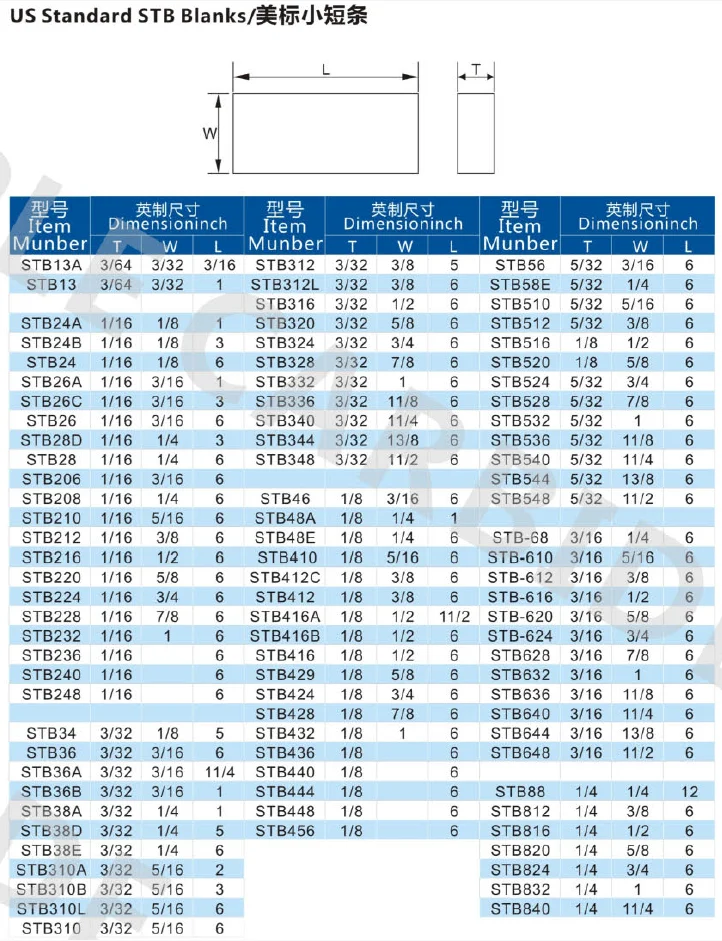

Some sizes of carbide STB strips for reference:

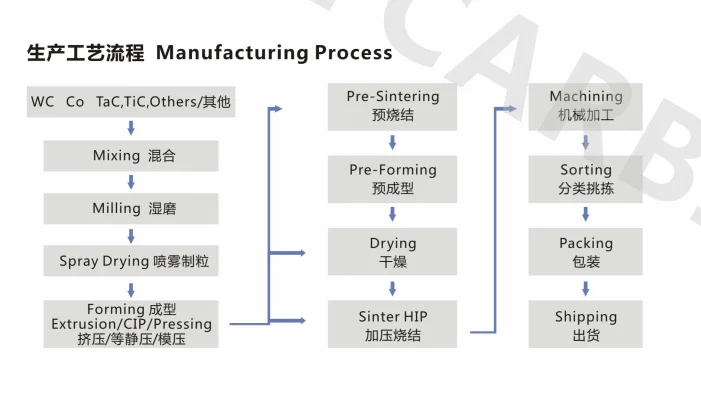

Manufacturing process:

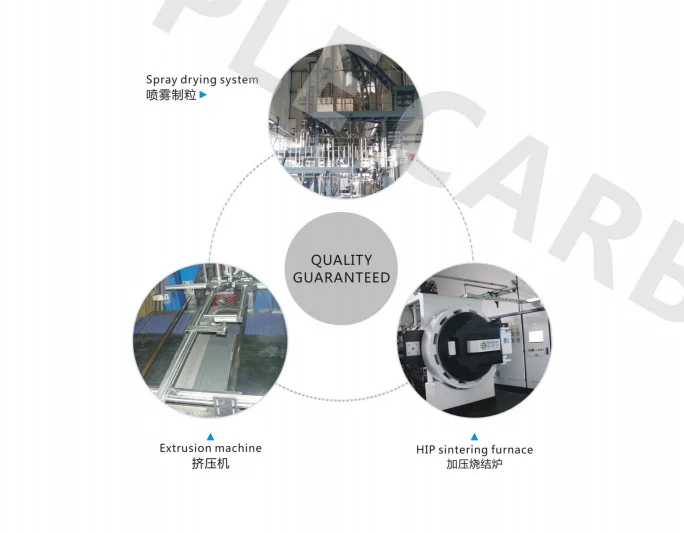

Testing equipment:







About us:

Zhuzhou Apple Carbide Tools Co. Ltd is a professional manufacturer of tungsten carbide products in China.With a wide range of products including carbide strips,STB blanks,carbide rods,carbide dies,with a large selection of carbide grades for woodworking,metalworking and working of composite materials.



For more information please contact Linda
