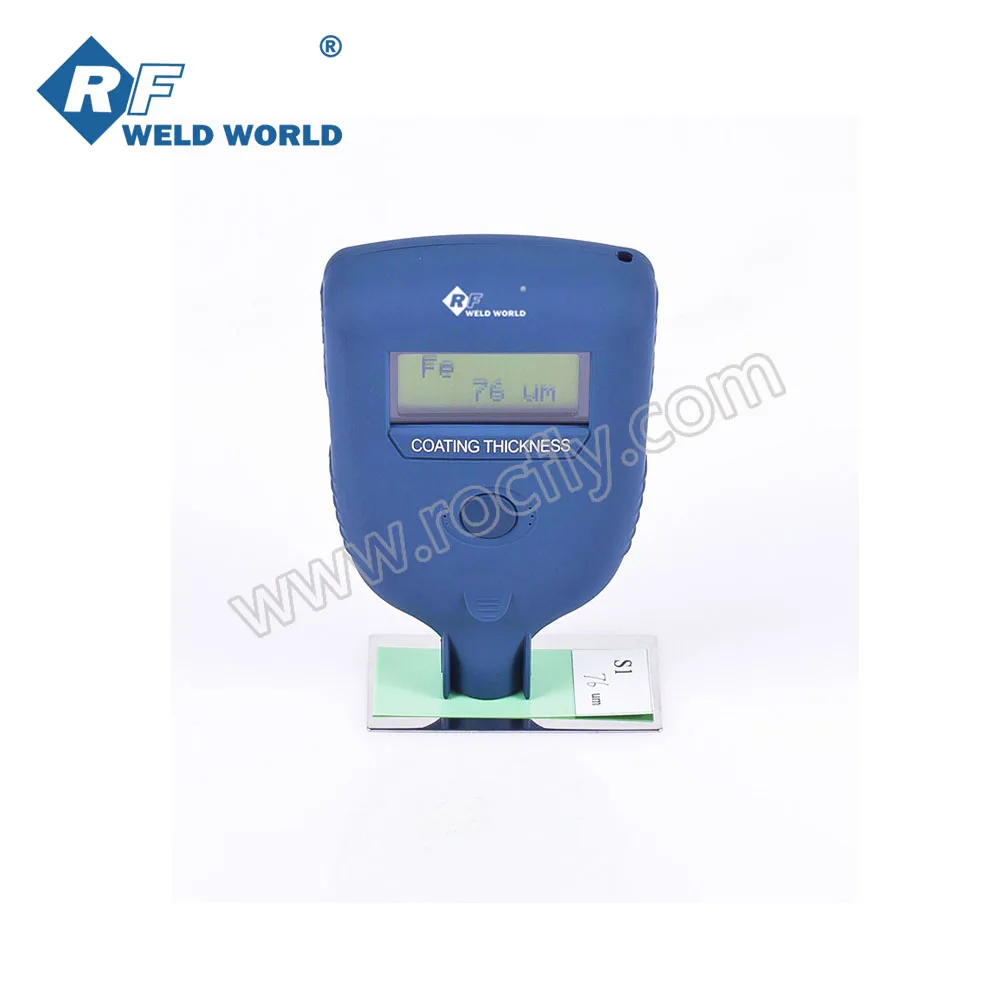

CTG-250 Coating Thickness Gauge High Precision Meter Magnetic and Non-magnetic 0-1500um
Product Description
| Model | CTG-250 | CTG-251 | CTG-252 | CTG-253 |
| Operating principle | Fe | NFe | Fe&NFe | Fe |
| Measuring range(μm) | 0-1250μm | 0-6000μm | ||
| Accuracy | ±[(1-3%)H+1]μm H refers to the thickness of testing piece | |||
| Minimum resolution(μm) | 1μm | |||
| Min curvature of the min area(mm) | Convex1.5 Concave20 | |||
| Diameter of the min area(mm) | ∅10 | |||
| Critical thickness of substrate(mm) | 0.5 | |||
| Operating temperature | 0℃-40℃ | |||
| Dampness | 20%-90% | |||
| Magnetic field | No strong magnetic field environment | |||
| Dimensions | 150x55.5x23mm | |||
| Power supply | AAA Alkaline battery | |||
| Weight | 120g | |||

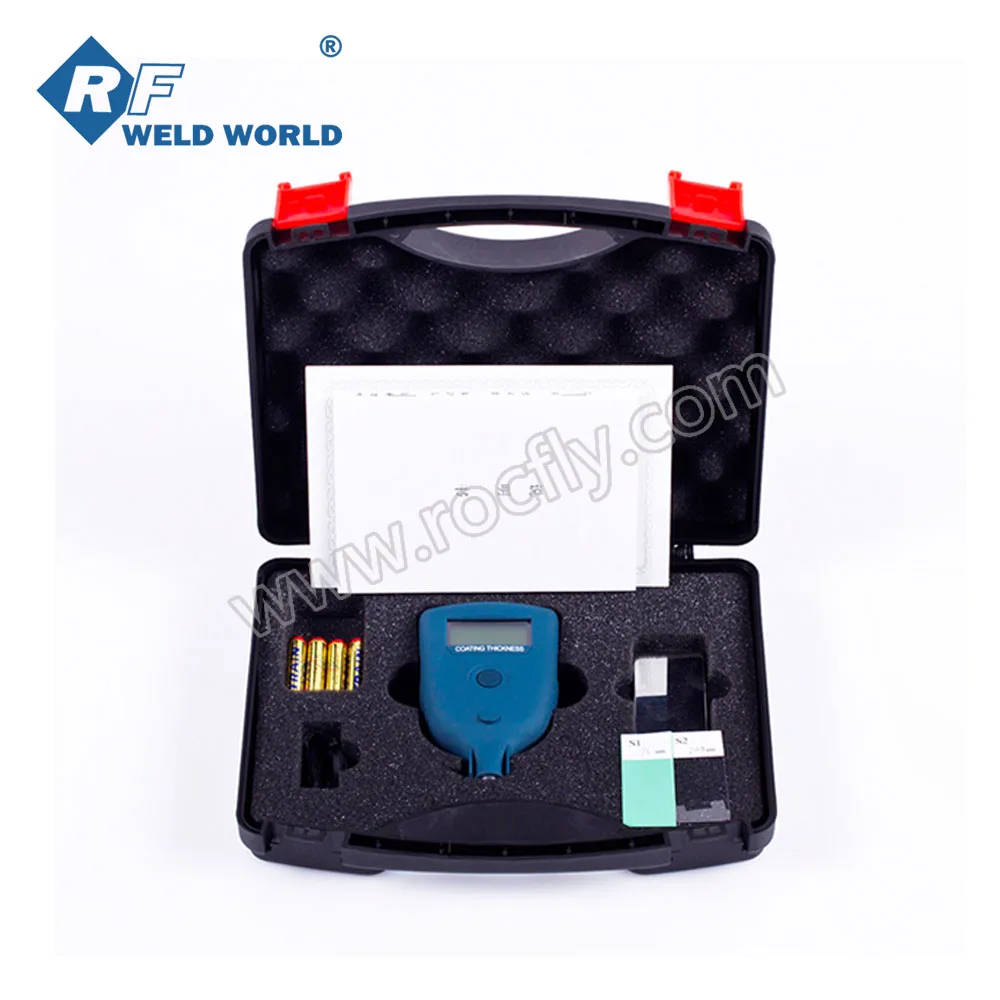

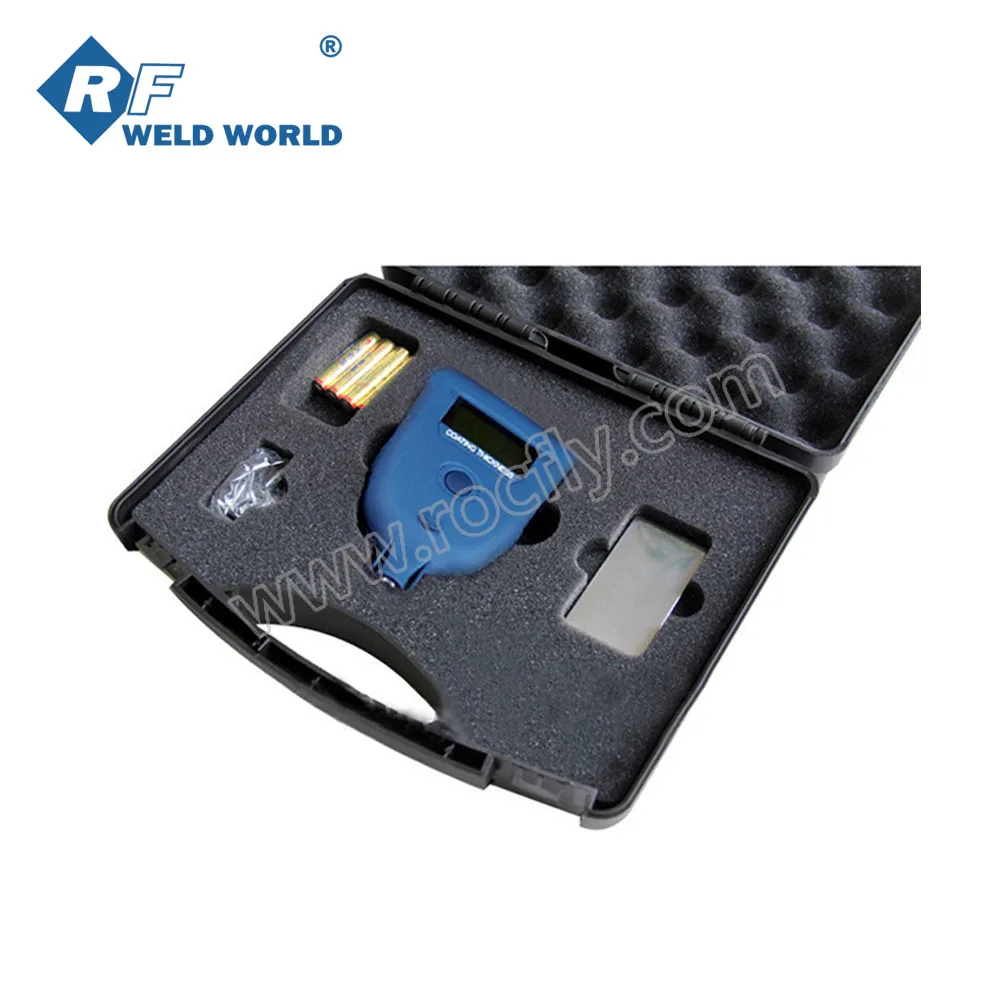

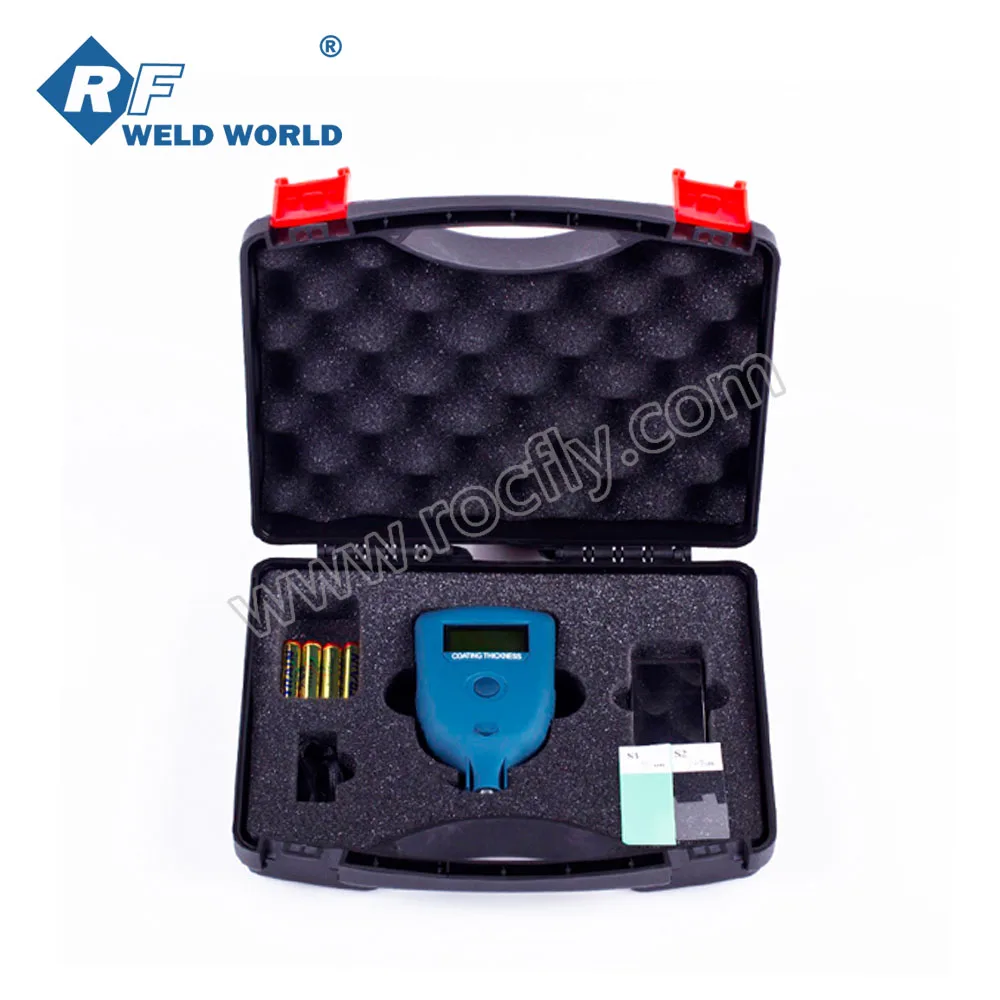

| Standard configuration | Main unit, 2 Calibration specimens(S1, S2), Fe and NFe substrate | |||

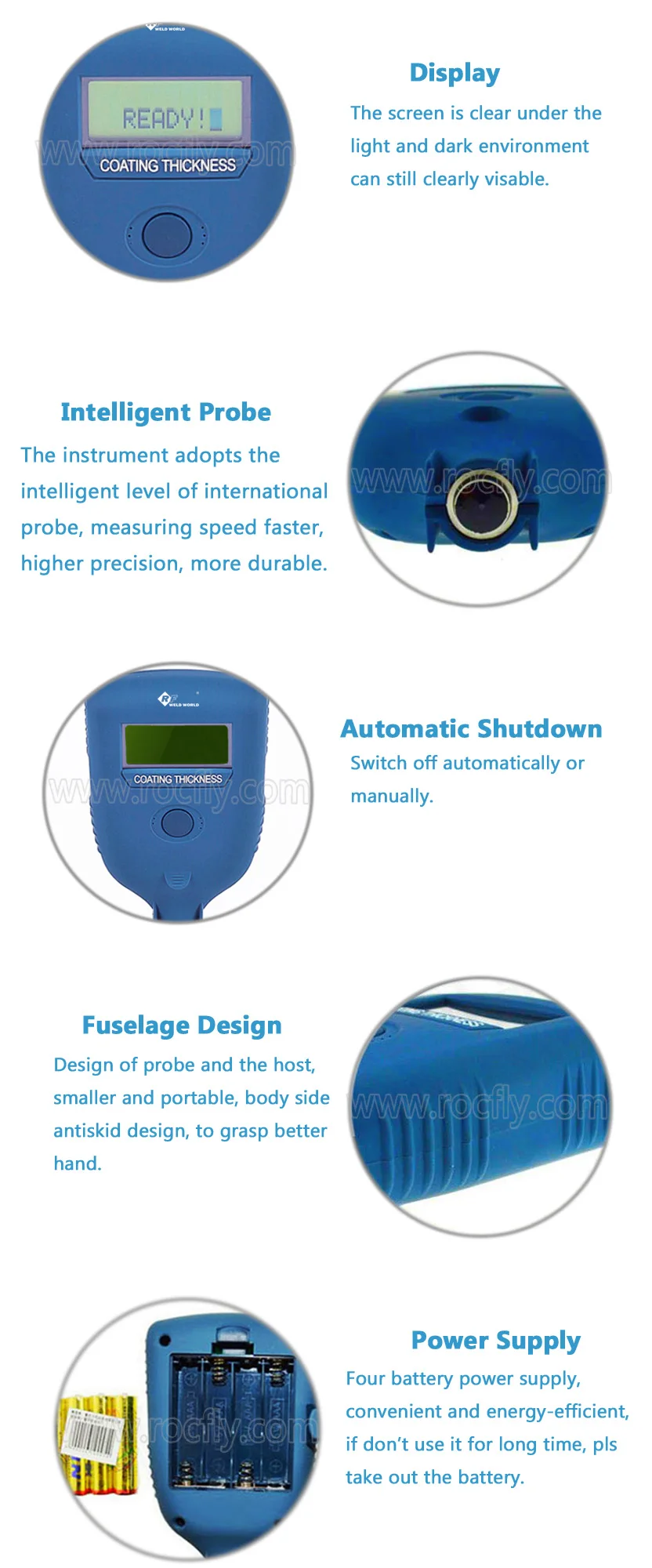

Features:
a. One button operation.
b. Integrated wit Fe an NFe in one probe.
c. Easy and quick for operation.
d. Switch off automatically or manually.
Application:
Measuring the thickness of Non-magnetic coating on magnetic metal subsrate, such as aluminum, chromium, copper, zinc, rubber, paint on the base of steel, alloy and magnetic steel.

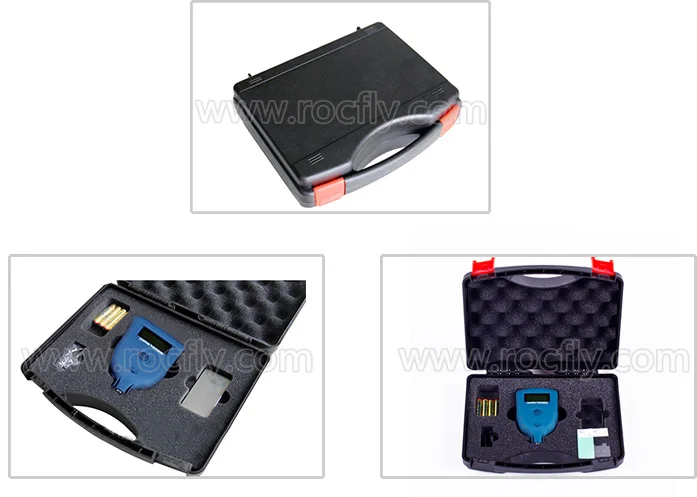

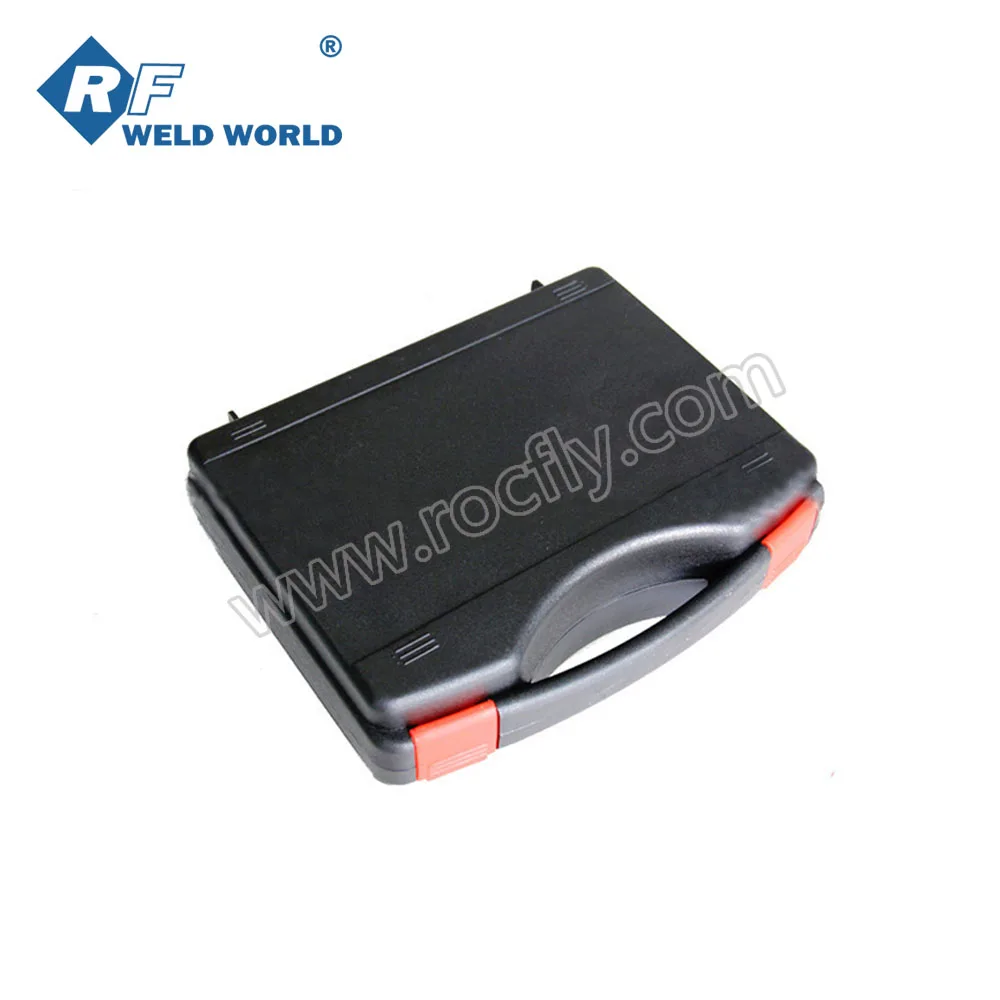

Packing

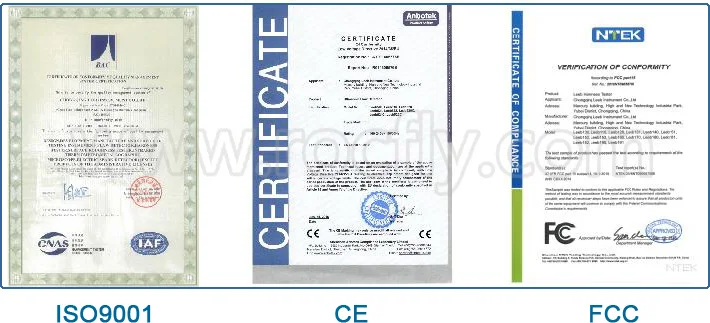

Certifications

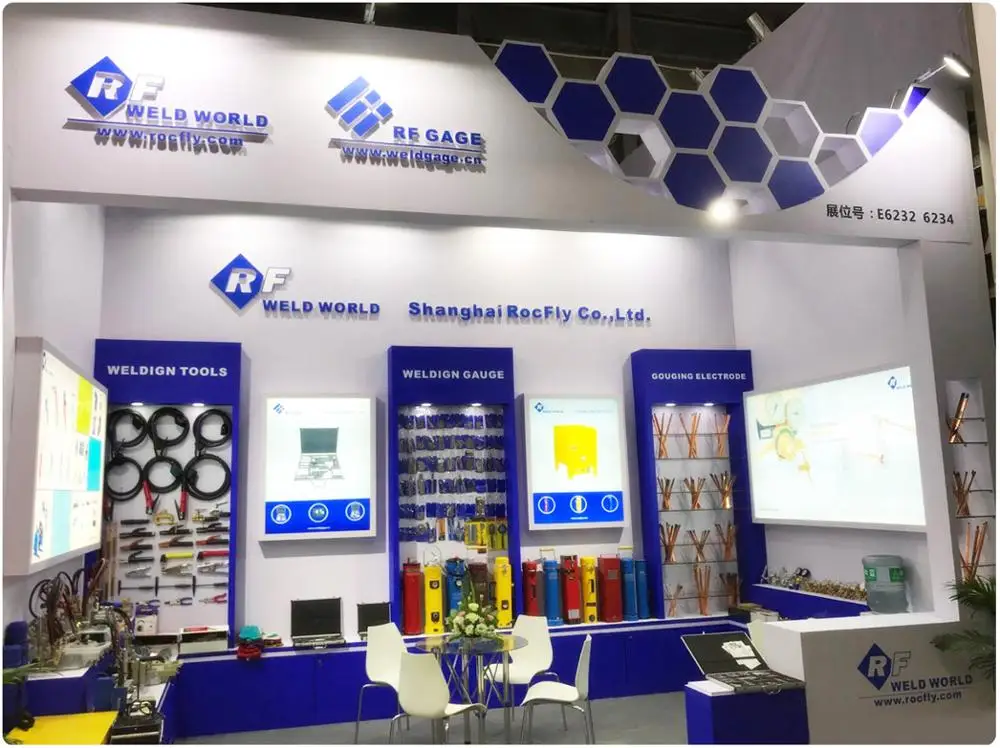

Trade Show
