WPC foamed plate production machine/wood plastic door/board extrusion line

Product Overview

Description

WPC foamed plate production machine/wood plastic door/board extrusion line



Production Description

This production line is composed of conical twin screw extruder, vacuum shaping table, drawer, cutter, pilling frame, and also coordinated with different profile break-section and mould to produce PVC door&window profile, foamed special shaped materials, decoration plate material, profile and multi-hole wire plastic products etc.



Technical paramete of PVC profile making machine

Specifications	SJZ45	SJZ51	SJZ55	SJZ65	SJZ80	SJZ92
Diameters of screws(mm)	45/90	51/107	55/110	65/132	80/156	92/188
Speed of screws(r/min)	1-45.5	1-42	1-40	1-38	1-36.9	1-34.7
Effective length of screws(mm)	989	1070	1200	1440	1800	2500
Main motor power(Kw)	15	18.5	27	37	55	110
Barrel heating power(Kw)	11.5	16	18	24	36	88
Production capacity(kg/h)	80	120	150	250	360	1000
Center height of machine(mm)	1000	1000	1000	1000	1000	1000
Net weight(kg)	3000	3200	3500	4000	5000	5500



Main composition of PVC profile making machine

Item	Quantity
1.twin screw extruder	one set
2.Nosae and Die mould	one set
3.Vacuum forming unit	one set
4.Haul-off unit	one set
5.Cutting unit	one set
6.Stacker	one set
7.Electric control system	one set
8.Spare parts list	one set



Photos of PVC profile making machine

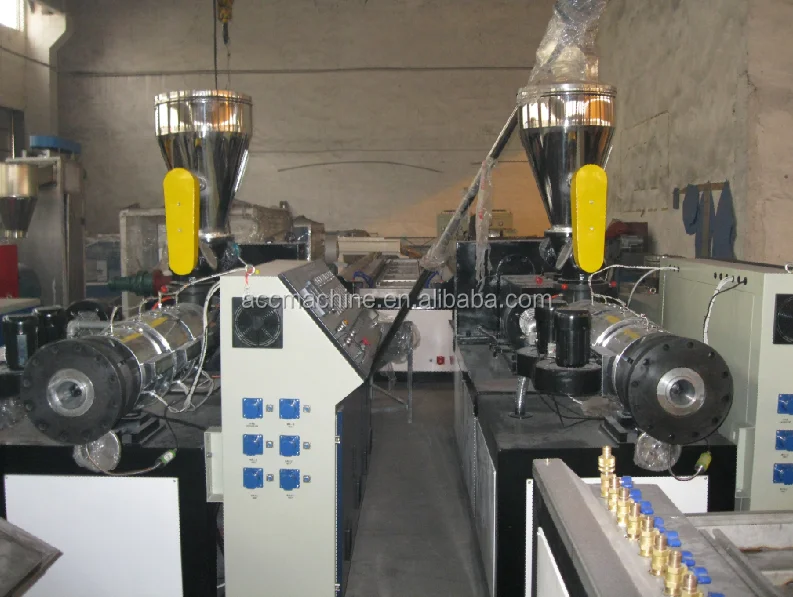

1.Twin screw extruder

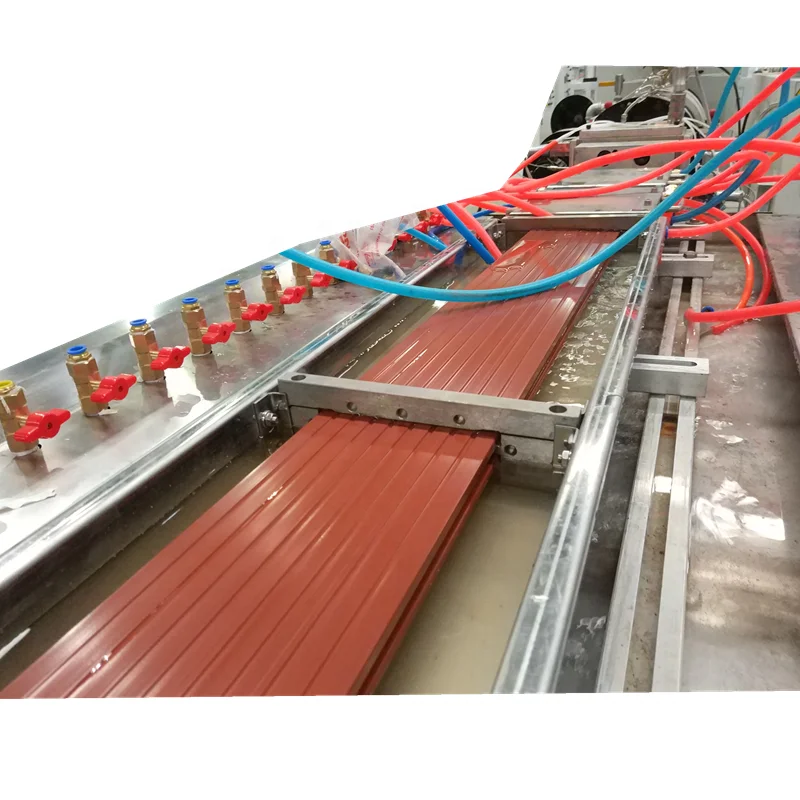

The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.

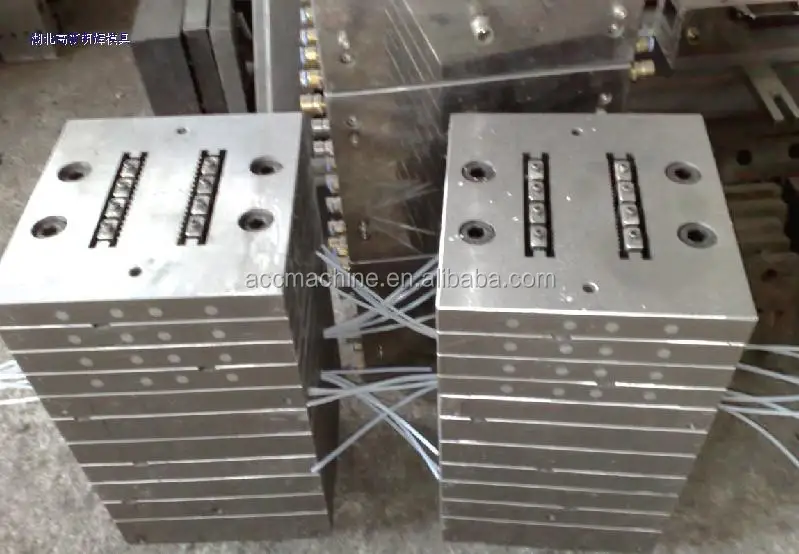

2.Die mould

Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.



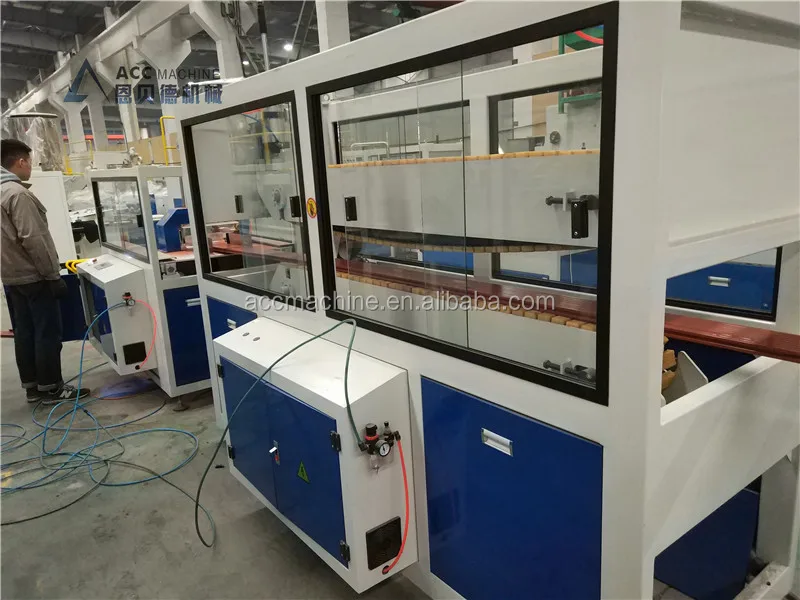

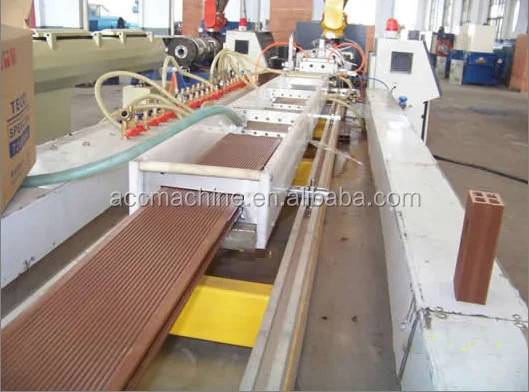

3. forming unit

Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

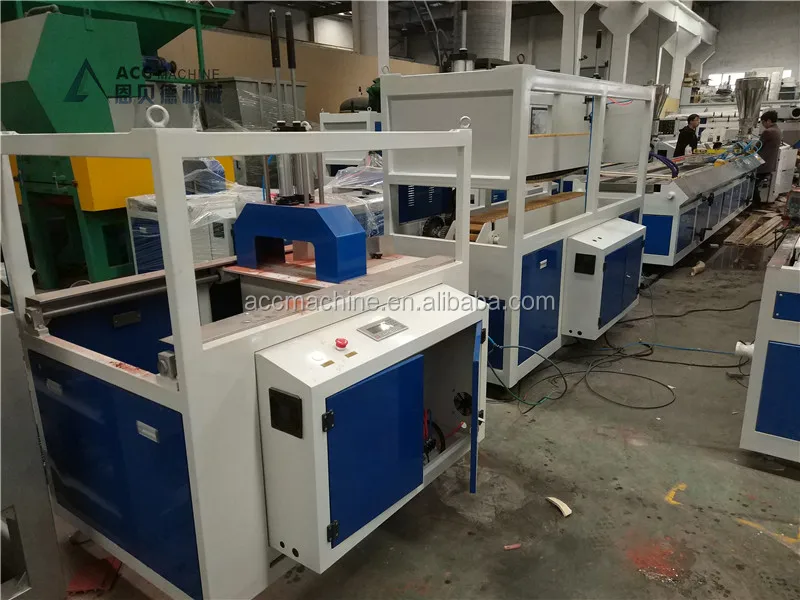

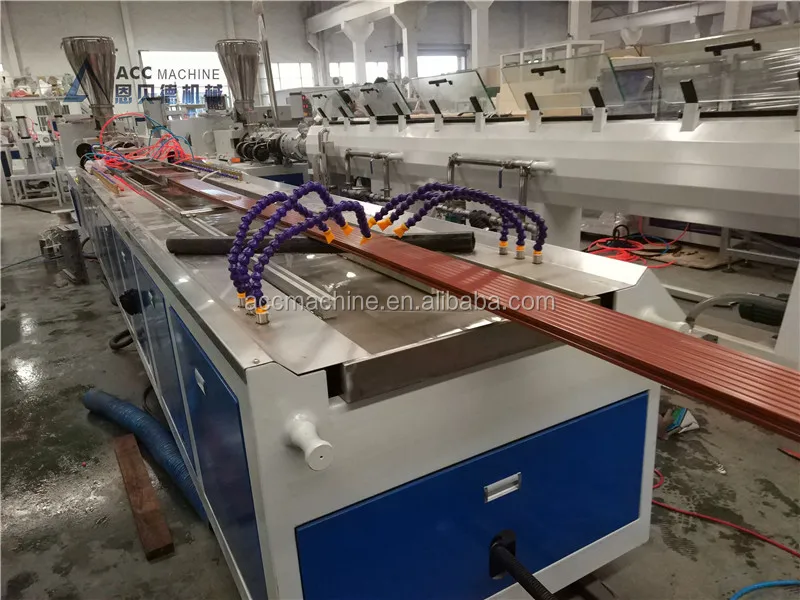

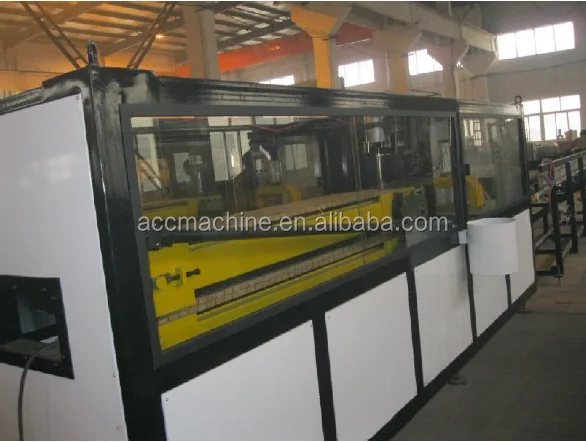

4.Haul-off unit and cutting unit

There are two tractors. The first one is of high powr, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.





Application

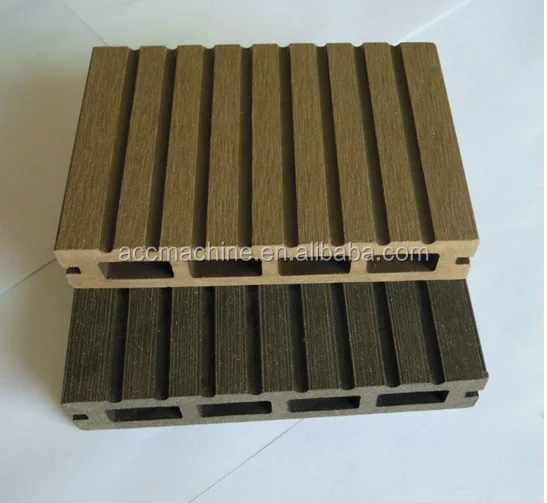

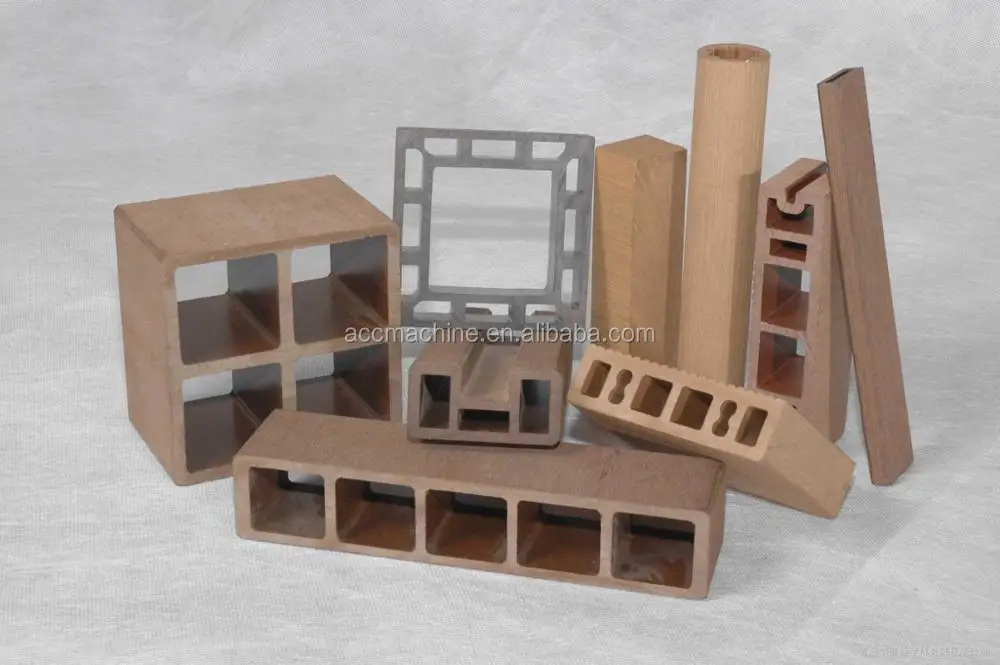

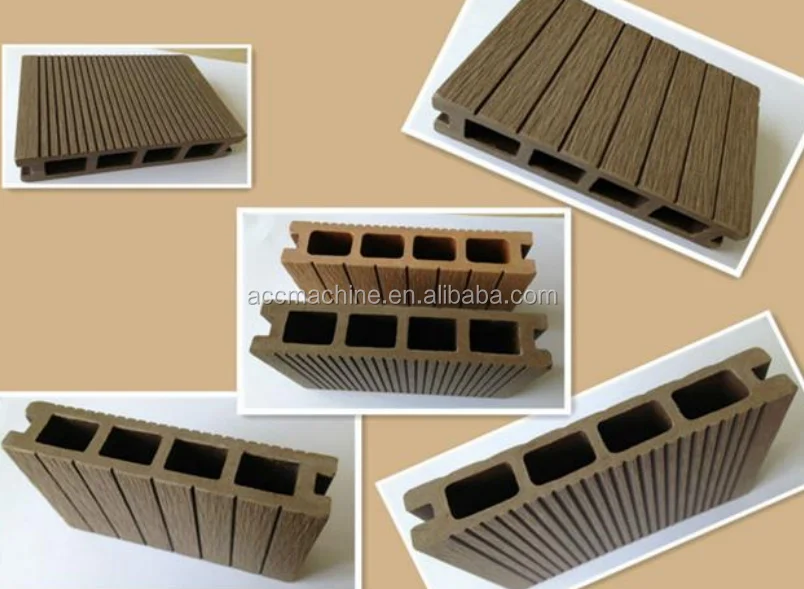

wpc production line is mainly used for producing wpc profiles,such as decking,skirting stair handrails etc.Meanwhile,this production line can also produce pure pvc products,such as door&window frame,ceiling etc.Final products has good appearance,high compression capability.not easy deformation.
