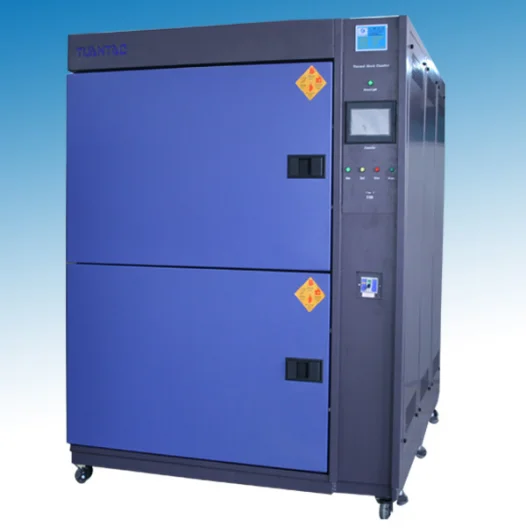

Dong Guan City custom hot and cold impact temperature humidity cooling impact test chamber / machine for testing

Product Overview

Description



Normal temperature to +200 C / 30 min (no load)

Note: the heating time is the performance of the high temperature chamber when it is running alone

Cryogenic chamber

Temperature range

-70 DEG C to -10 DEG C

Cooling rate

Normal temperature to -70 C / 50 min (no load)

Note: the cooling time is the performance of the high temperature chamber when it is running alone

Test mode

Pneumatic door switch, 2 temperature zone or 3 temperature zone

Temperature shock range

High temperature (+60 DEG 150) low temperature (-55 ~ -10) C (no load)

control accuracy

The temperature is 0.2 degrees centigrade

Temperature uniformity:2 C

Temperature recovery time

5min (5Kg aluminum load)

Material

The inner box is made of SUS304 heat-resistant and cold resistant stainless steel plate. The outer box is cold - picked steel plate and sprayed with gray paint

Structural design:

A, box insulation material: insulation insulation layer, flame retardant, PU + insulation glass cotton (insulation layer 10 cm thick)

B, anti sweat device: use the heat of system K tube to prevent perspiration

C, in tray: removable adjustable grid tray or stainless steel strip grid tray two (each bearing 50KG)

D, box door: double insulated, airtight, tight tight, effectively insulate internal temperature leakage

E, test hole: external test power line and signal (5 cm, optional)

F, machine pulley: Mining pulley move, adjust the place and strong bolt fixed position

G, high and low temperature test box door, single open, left hinge, right handle



Using environment:

Ambient ambient temperature range

-10 DEG C, ~+45 DEG C

Relative humidity of environment

Less than 85%RH

Atmospheric pressure intensity

0.086MPa to 0.106MPa

Ambient air requirement

No high concentration dust, flammable and explosive gas or dust, no strong electromagnetic radiation source nearby

The ground is level and well ventilated

There is no strong vibration around

Temperature cycle system

A, centrifugal fan with multiple blades

B, FLOW, THROWS, air supply, horizontal diffusion, vertical heat exchange, arc cycle

C, nickel chromium alloy heater

D, low temperature test box, fan adopts centrifugal fan

High temperature test box adopts centrifugal type high temperature resistant high speed fan







OEM	ORDER	OF	CLIENT	FOR	RECOMMEND
Model	GTH-040	GTH-042P	GTH-044P	GTH-046P	GTH-050P	GTH-052P	GTH-054P	GTH-056P
Internal Dim   W×H×Dmm	400×550× 450	500×600× 500	500×750× 600	1000×1000× 800	400×550× 400	500×600× 500	500×750× 600	1000×1000×800
Extrnal Dim   W×H×Dmm	970×1400×800	1070×1450× 850	1070×1600× 900	1570×1850× 1100	970×1400×800	1070×1450×850	1070×1600×900	1570×1850×1100
Temp.Range	0℃~100℃(+150℃)				-20℃~100℃(+150℃)
*Telative Humidity Range	20%~98%R.H.				20%~98%R.H.



The other hot sale modles for recommending :



Equipment summary

Constant Temperature/Humidity Environment Test Chamber is applied to test the materials inheat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Corresponding standard

Programmable cold and thermal impact test equipment

Programmable constant temperature and humidity test equipment -1P

Programmable constant temperature and humidity chamber-2P

Programmable high and low temperature constant temperature test equipment

Constant temperature and humidity (room) series

The standard type of constant temperature and humidity test equipment

Applicable industry

Constant Temperature/Humidity Environment Test Chamberapplied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on .



We also supply:



Hot air circulation oven is our original product, with carefully designed and continuously update,it have reach the international advanced level.
The device is a kind of oven, and can be installed, divided into CT type (centrifugal fan)
CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source,
through the heater heating,a large number of hot air will circulate in the Oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture.
The oven equipped with low noise and high temperature proof axial flow fan and automatic temperaturecontrol system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%.
Advantage
1.Strong durability: As the haater is sealed in the housing,the contact area with air is small,it is difficult be oxidized.
2.Heated air circulation: Baked good is heated uniformly
Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency.
With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over
temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy. To assure
optimum performance and durability, we manufacture these ovens using superior quality raw material such as sheets and structural
steel, blowers and motors, burners, insulation , heat exchanger and Control systems.
Vitech manufactures the following type of ovens
Dry Off Ovens for moisture removal after Pretreatment or any wet process
Industrial Drying Oven for any drying application
Batch / Conveyorised Ovens for paint or powder curing
Hot Air Generators - Electrical / Oil /Gas
Heat Exchangers



     Yes, we can customize any products according to customer's requirements.



2. Which payment terms are you doing?

     PayPal, West Union, T/T, (100% payment in advance.)



3. Which shipment is available?

     By sea, by air ,by express or as your requirement.



4. Which country you have been exported?

    We have been exported to many countries, all most all around the world, like Malaysia, Vietnam,  Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.



5. How long is the delivery time?

     It's about 15-30 days.
